Removal Procedure

    Fig 1: View Of Power Steering Pressure Hose & Power Steering Pump
    GM284268Courtesy of GENERAL MOTORS CORP.
  1. Install a drain pan under the vehicle.
  2. Remove the power steering pressure hose from the power steering pump.
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  4. Remove the power steering gear heat shield. Refer to Power Steering Gear Heat Shield Replacement .
  5. Remove the fascia extension panel. Refer to Fascia Extension Replacement - Front in Bumpers.

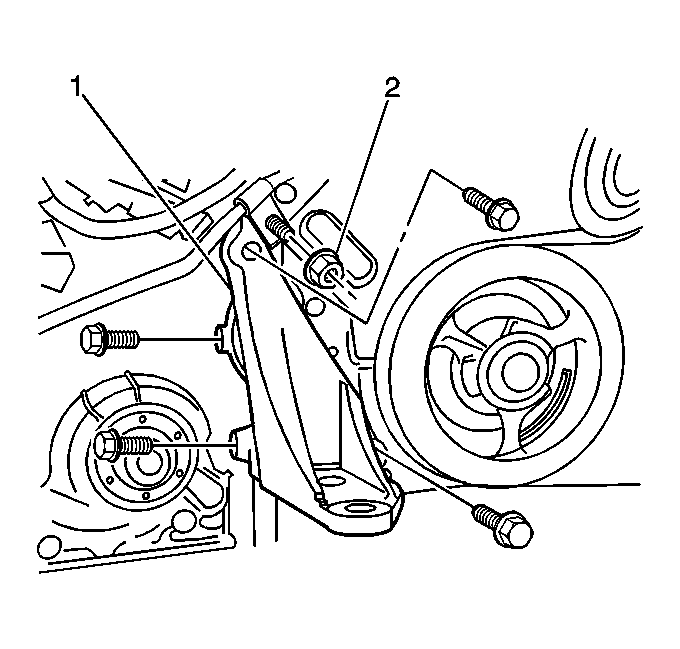

    6. Fig 2: Removing/Installing Lower Engine Mounting Bracket
    GM493550Courtesy of GENERAL MOTORS CORP.
  6. Remove the power steering pressure hose bracket retaining nut (2) at the cylinder head.
    7. Fig 3: View Of Steering Rack & Related Components
    GM460600Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the power steering pressure hose from the bracket at the frame.
  8. Disconnect the power steering pressure hose from the power steering gear.
  9. Remove the power steering pressure hose from the vehicle.
