Installation Procedure

    Fig 1: View of Power Steering Pressure and Return Hoses
    GM337376Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering pressure outlet hose (2) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the power steering pressure outlet hose (1) to the power steering gear.

    Tighten:  Tighten the power steering pressure outlet hose to the power steering gear to 27 N.m (20 lb ft).

  3. Lower the vehicle.

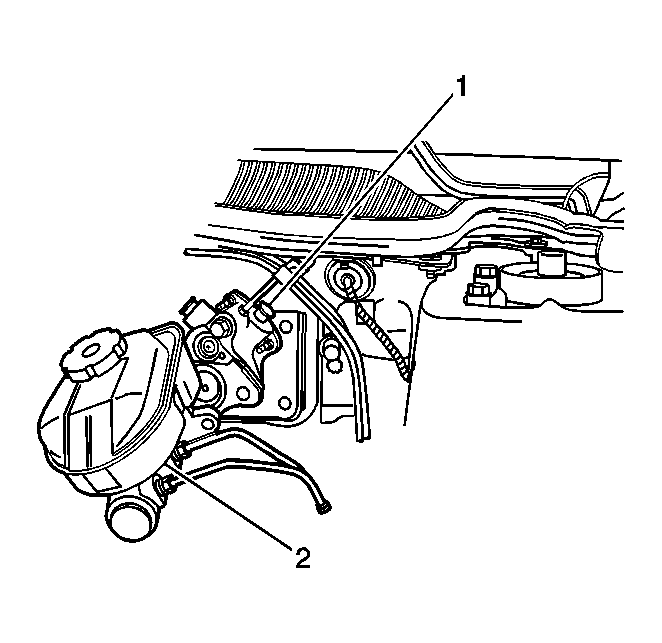

    4. Fig 2: View Of Master Cylinder & Hydro Boost Unit
    GM696040Courtesy of GENERAL MOTORS CORP.
  4. Install the power steering pressure outlet hose to the hydro boost unit.

    Tighten:  Tighten the power steering pressure outlet hose to the hydro boost unit to 30 N.m (22 lb ft).

  5. Position the master cylinder (2) to the hydro boost unit (1).
  6. Install the master cylinder retaining nuts.

    Tighten:  Tighten the master cylinder retaining nuts to 30 N.m (22 lb ft).

  7. Fill and bleed the power steering system. Refer to Bleeding the Power Steering System .
