Installation Procedure

    Fig 1: Identifying Rear Passenger Seat Belt Retractor
    GM474797Courtesy of GENERAL MOTORS CORP.
  1. Install the rear shoulder belt retractor (4). Engage the tabs on the retractor (4) to the notches on the hinge box reinforcement ears.
  2. Install the seat belt retractor through bolt (1) and hand tighten the bolt.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the rear seat shoulder belt retractor nut (3) and hand tighten the nut.

    Tighten:  Tighten the rear seat shoulder belt fasteners (1, 3) to 30 N.m (22 lb ft).

  4. Install the seat belt retractor access cover (2).

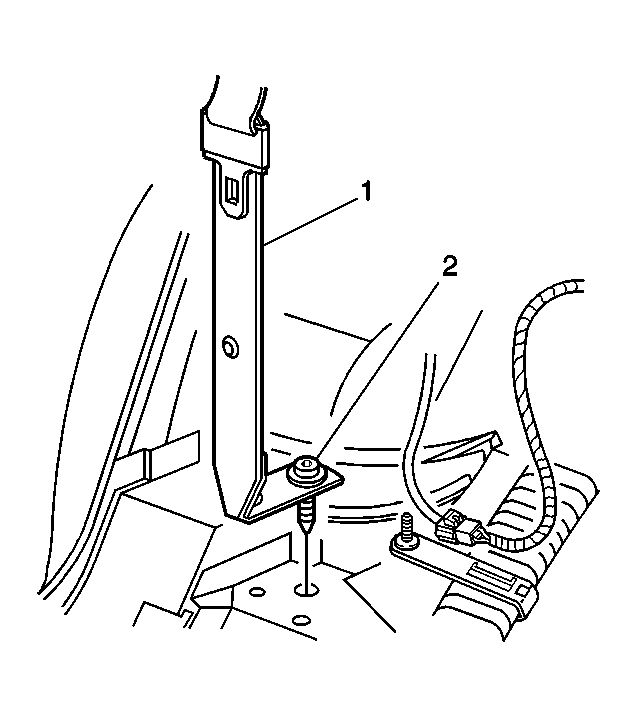

    5. Fig 2: View Of Floor Pan Anchor Fastener & Shoulder Belt
    GM474800Courtesy of GENERAL MOTORS CORP.
  5. Verify that the shoulder belt (1) is not twisted.

    Align the anchor plate between the dimples in the floor pan, with the seat belt side of the plate facing forward.

  6. Install the anchor bolt (2).

    Tighten:  Tighten the rear seat outer bolt to 41 N.m (30 lb ft).

  7. Install the rear seat back. Refer to Seat Back Replacement - Rear (Standard) or Seat Back Replacement - Rear (WC2, WC8) in Seats.
