Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Install the sunroof switch (2) and the vent switch (2) to the overhead console.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the screws (1) that retain the sunroof switch (2) and the vent switch (2) to the overhead console.
Tighten: Tighten the screws to 1 N.m (9 lb in).

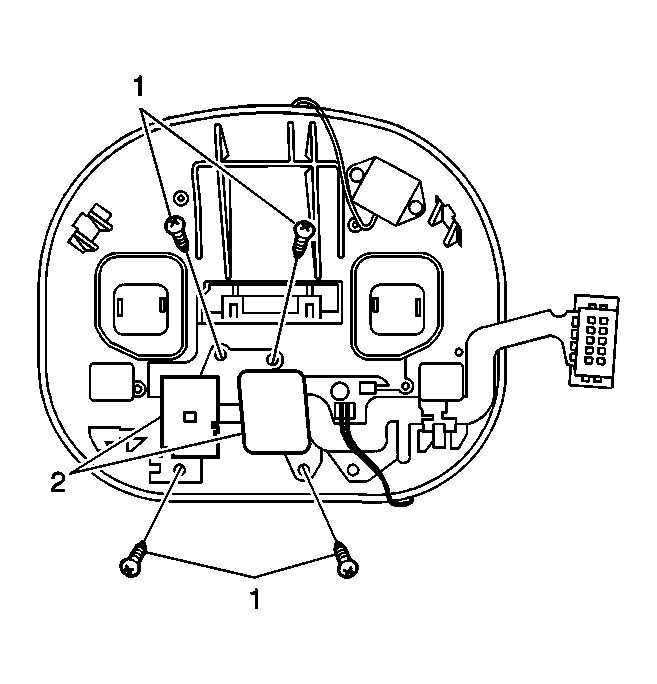

Fig 1: View Of Sunroof Switch, Vent Switch & Screws

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Care should be taken not to damage the flat wire harness.

Connect the electrical connectors.
Install the overhead console into the opening in the headliner.
Push in on the overhead console to engage the four retainer clips.

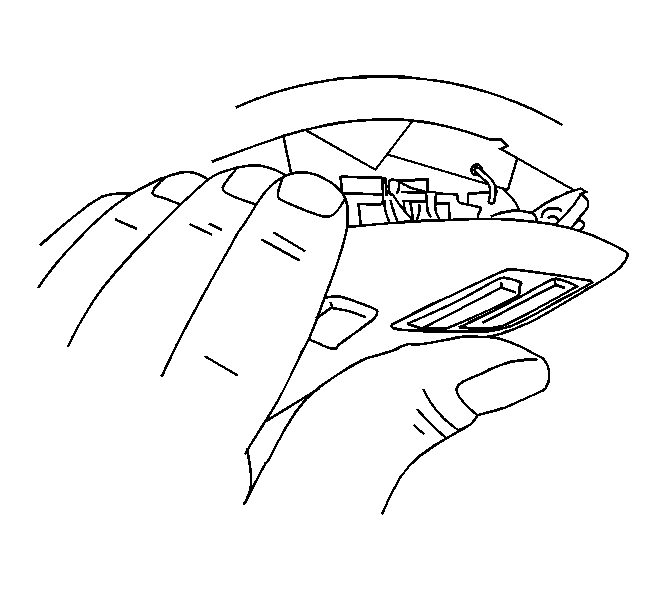

Fig 2: View Of Overhead Console

Courtesy of GENERAL MOTORS CORP.
