Removal Procedure

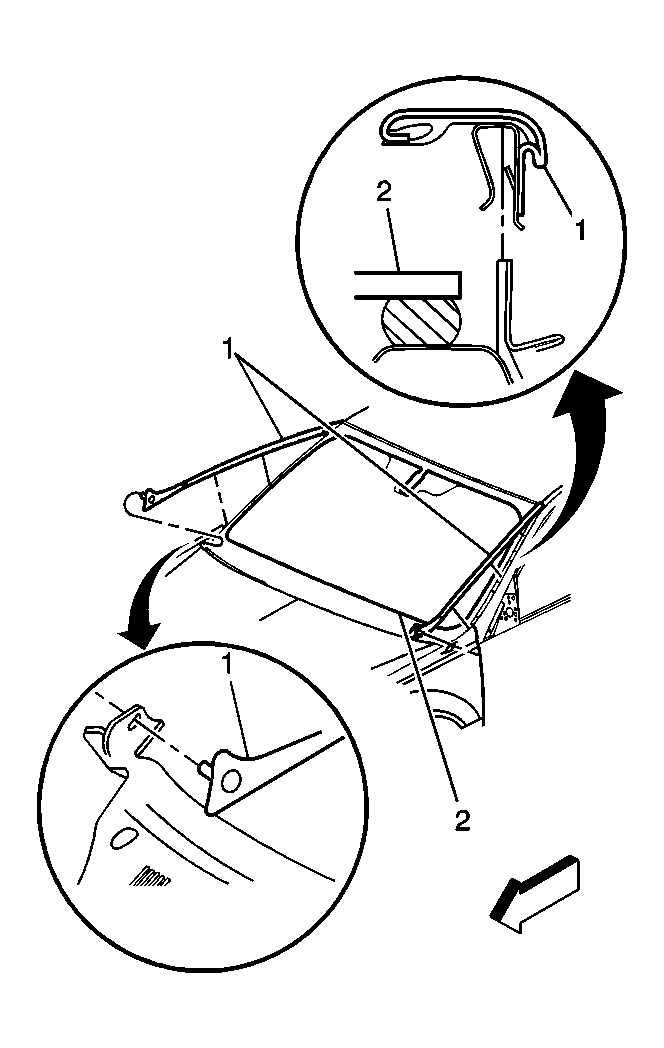

    Fig 1: View Of Reveal Molding
    GM620938Courtesy of GENERAL MOTORS CORP.
  1. Remove the retainer located at the bottom of the reveal molding (1) by pressing the center stud.
  2. Starting at the bottom of the reveal molding (1), pull the molding off of the windshield pillar flange.
  3. Remove the molding from the vehicle.
