Removal Procedure

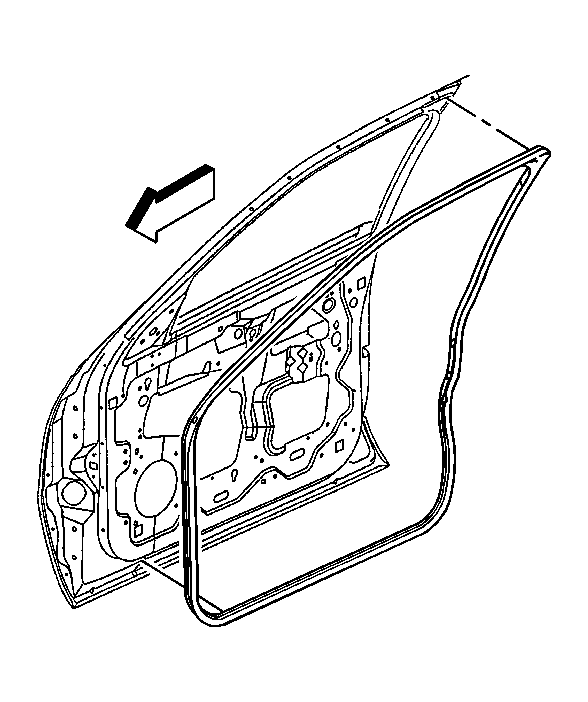

    Fig 1: View Of Front Door Weatherstrip
    GM524177Courtesy of GENERAL MOTORS CORP.
  1. With the door open, start at the rear upper corner of the door working downward pull the weatherstrip away from the door flange.
  2. Use the J 38778  to carefully remove the retainers from the bottom half of the door. See Special Tools .
  3. Remove the weatherstrip from the door.
