Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door (Standard)  or Trim Panel Replacement - Side Front Door (WC2, WC8) .
  2. Remove the door module. Refer to Door Control Module Replacement .

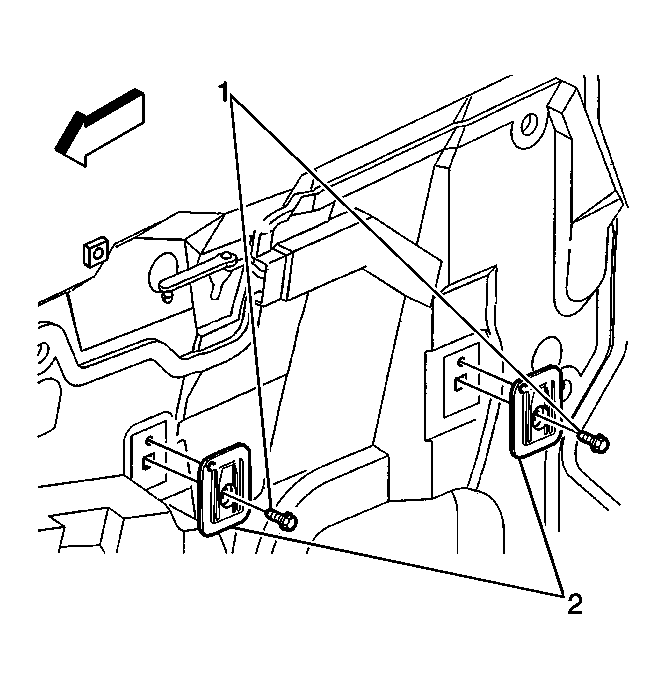

    3. Fig 1: View Of Fasteners & Nylon Nuts
    GM524048Courtesy of GENERAL MOTORS CORP.
  3. Remove the wiring harness from the water deflector.
  4. Remove the two fasteners (1) securing the nylon nuts (2) to the inner panel.

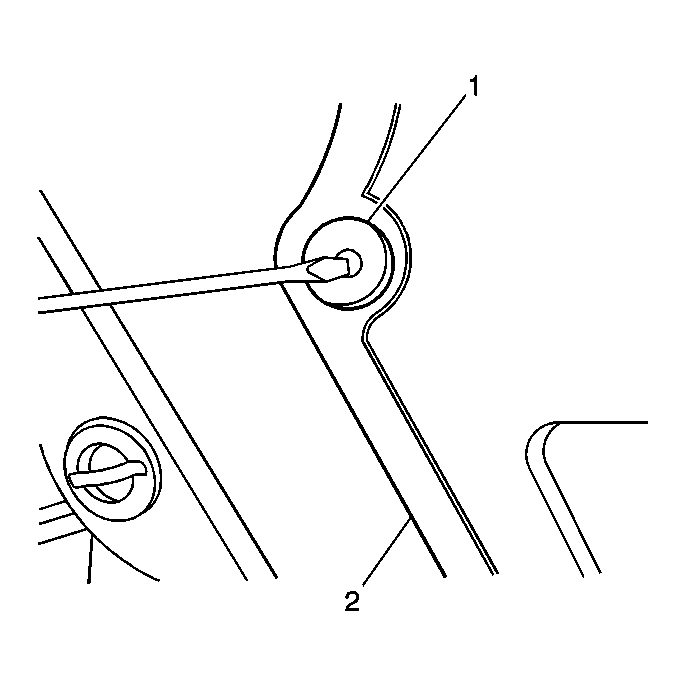

    5. Fig 2: View Of Water Deflector & Retainers
    GM511646Courtesy of GENERAL MOTORS CORP.
  5. Press the center stud of the retainers (1) in order to remove the water deflector (2).
  6. Remove the retainers (1).

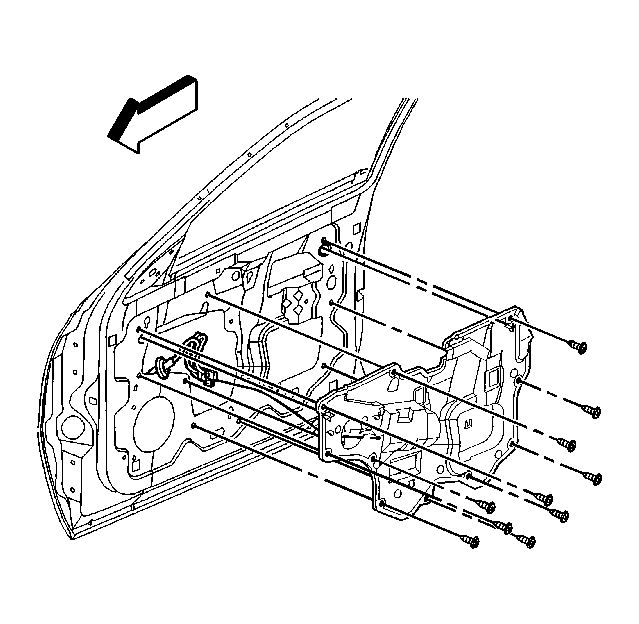

    7. Fig 3: View Of Water Deflector - Front Door
    GM524049Courtesy of GENERAL MOTORS CORP.
  7. Remove the water deflector.
