Home >> Cadillac >> 2005 >> DeVille Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Door Handle Replacement - Front Inside >> Removal Procedure

Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door (Standard)  or Trim Panel Replacement - Side Front Door (WC2, WC8) .

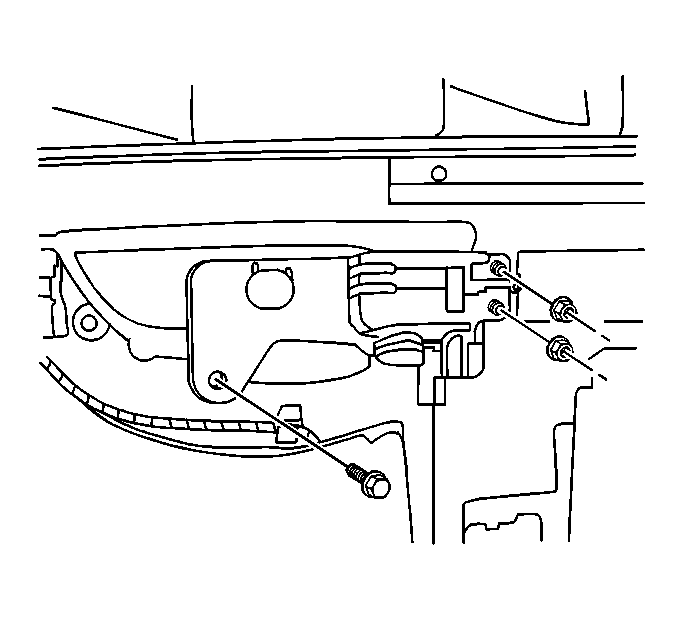

    2. Fig 1: View Of Front Inside Door Handle Fasteners
    GM511227Courtesy of GENERAL MOTORS CORP.
  2. Remove the three fasteners attaching the inside door handle to the door trim panel.
  3. Remove the inside door handle from the door trim panel.
