Body Control System Schematics

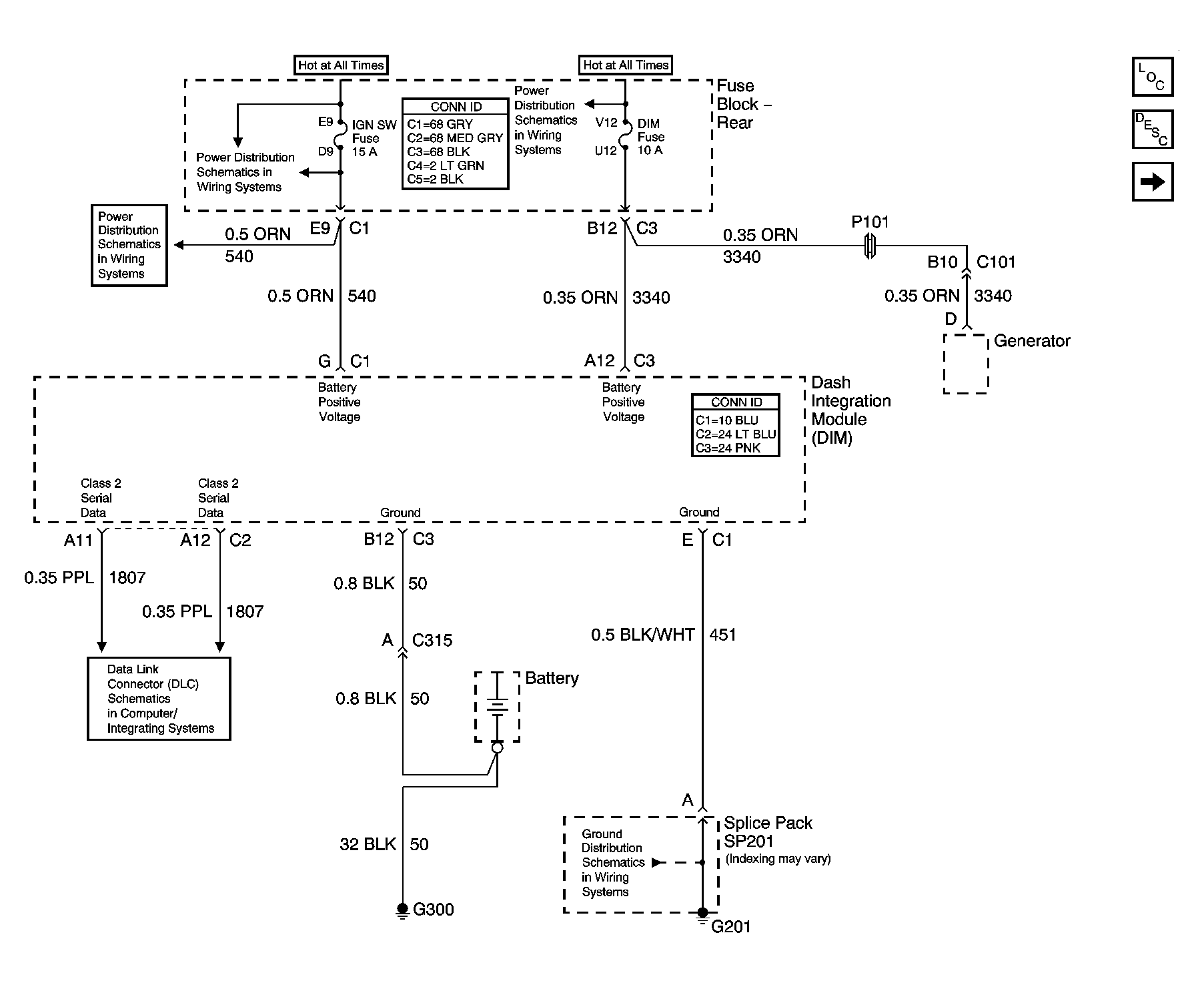

Fig 1: Dash Integration Module (DIM) - Power, Ground, and Serial Data
GM1411849Courtesy of GENERAL MOTORS CORP.

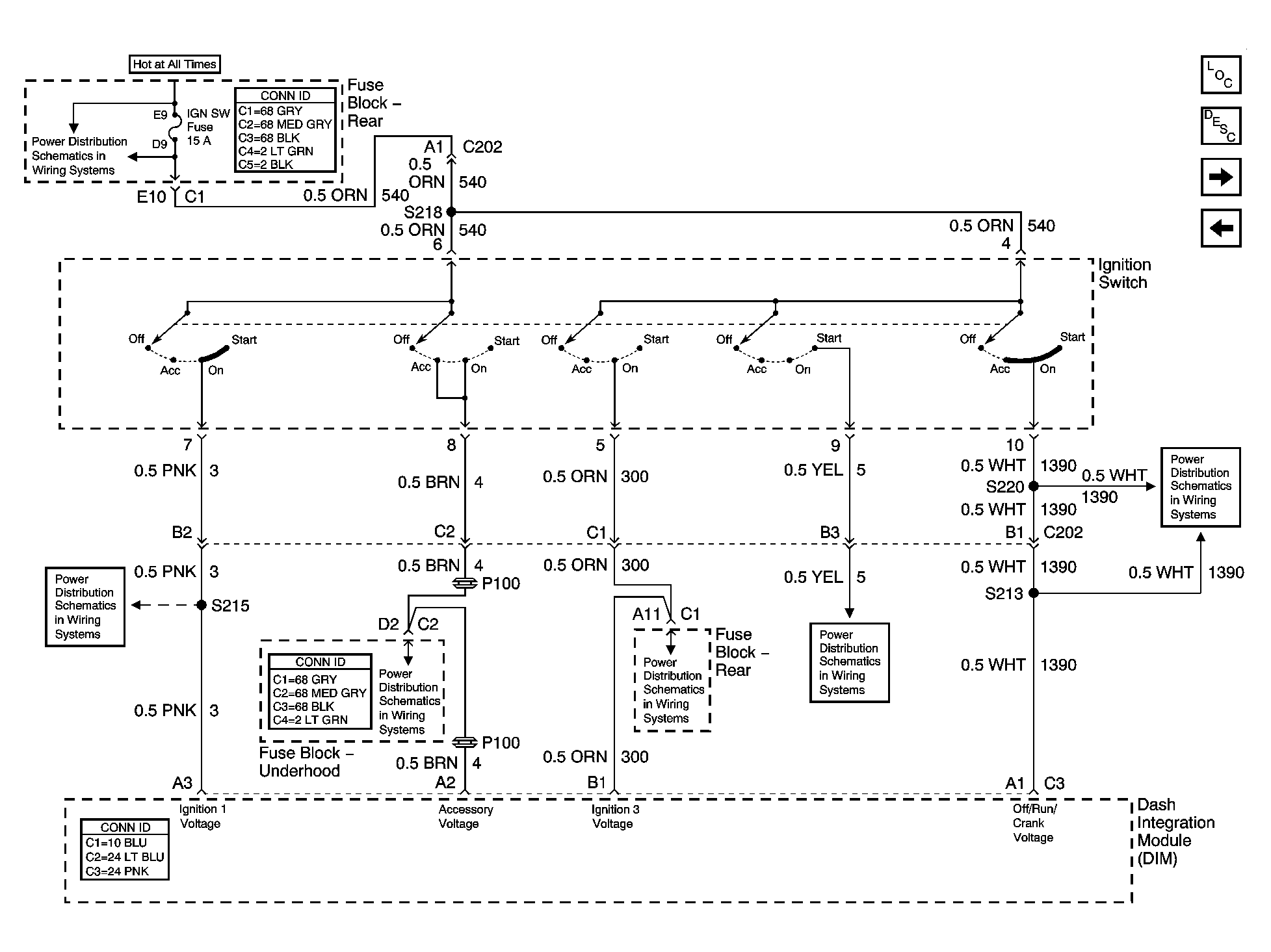

Fig 2: Dash Integration Module (DIM) - Ignition Switch Inputs
GM1411851Courtesy of GENERAL MOTORS CORP.

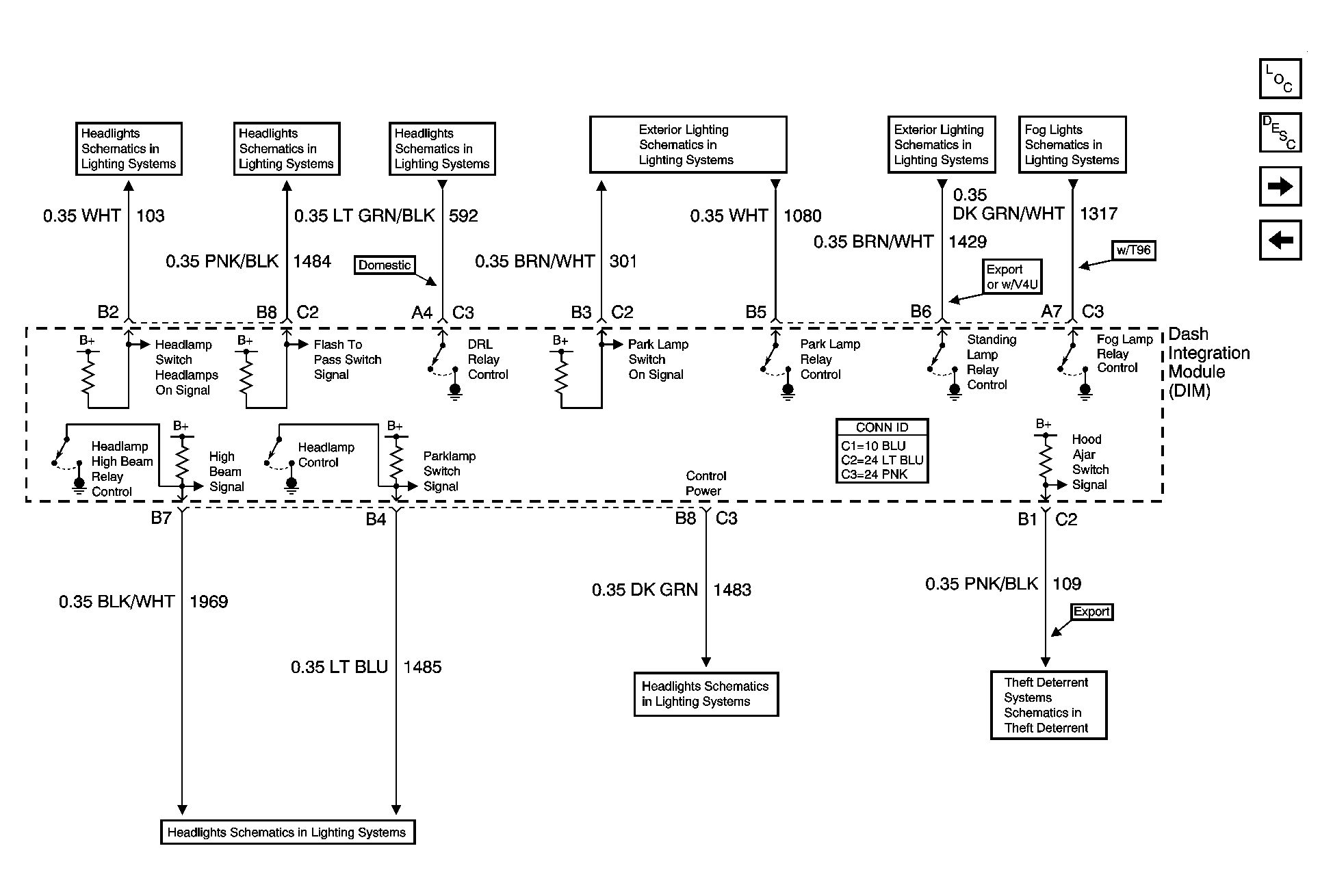

Fig 3: Dash Integration Module (DIM) - Lighting Inputs and Outputs
GM1411853Courtesy of GENERAL MOTORS CORP.

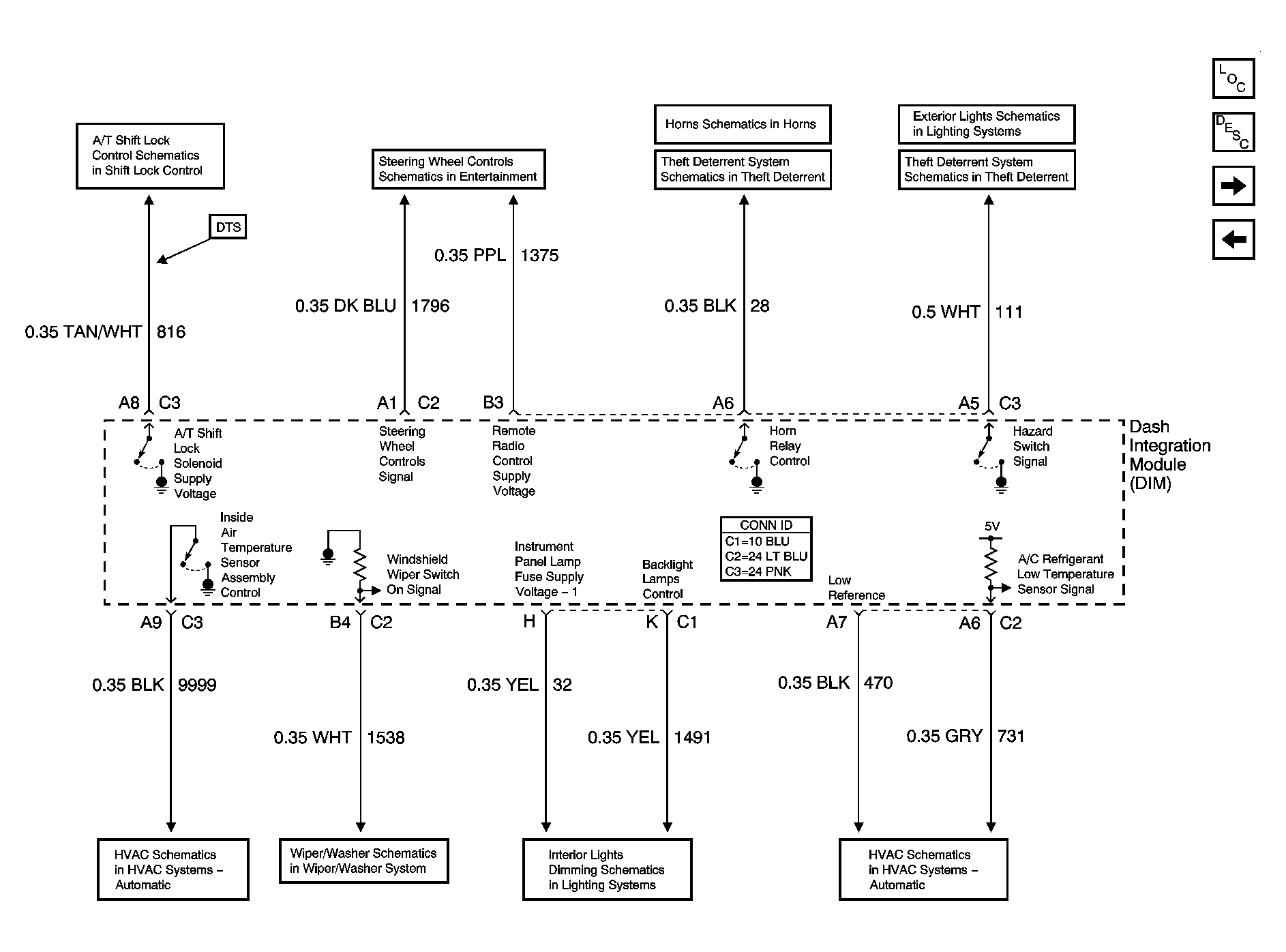

Fig 4: Dash Integration Module (DIM) - Inputs and Outputs
GM1411854Courtesy of GENERAL MOTORS CORP.

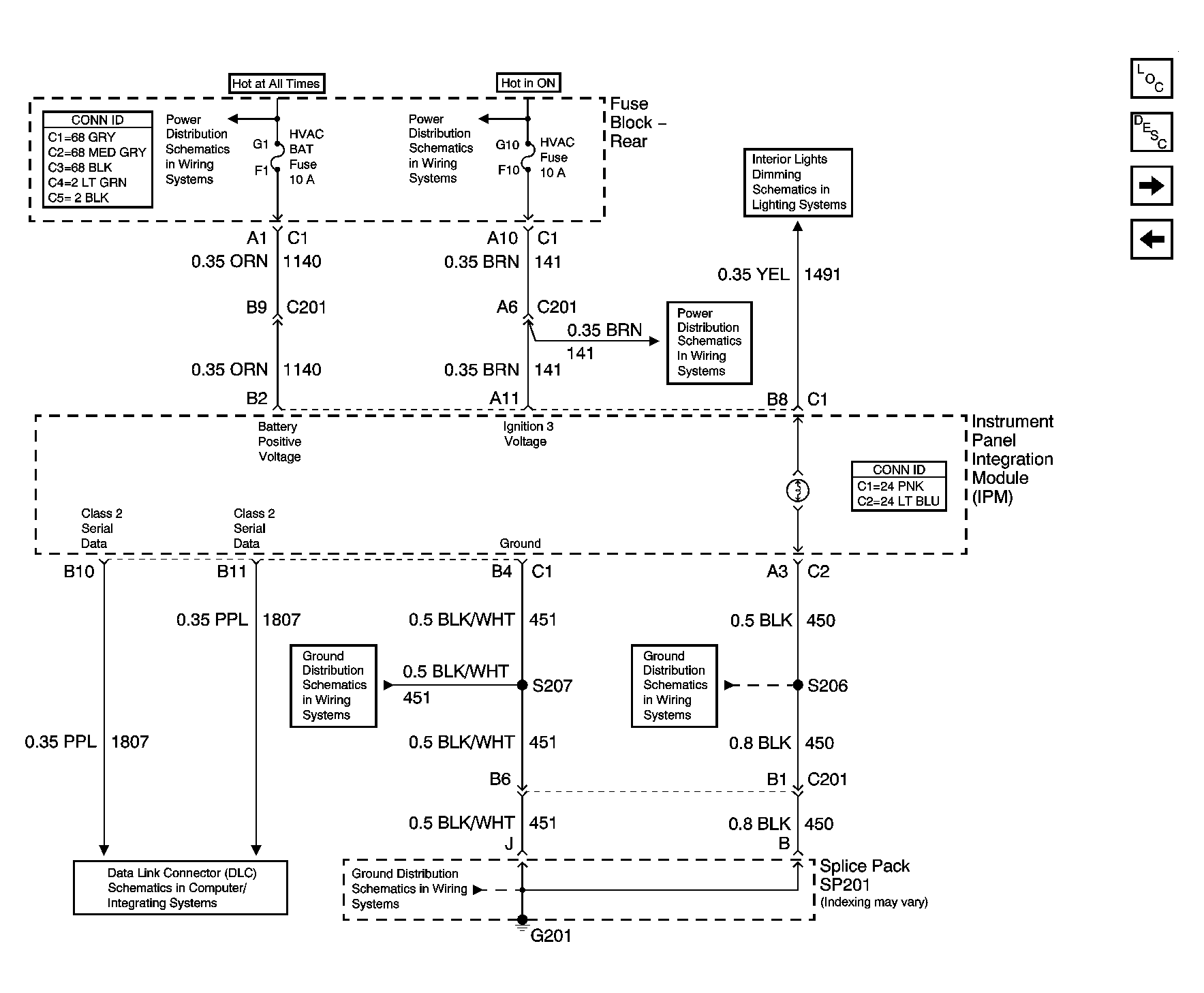

Fig 5: Instrument Panel Integration Module (IPM) - Power, Ground, and Serial Data
GM1411856Courtesy of GENERAL MOTORS CORP.

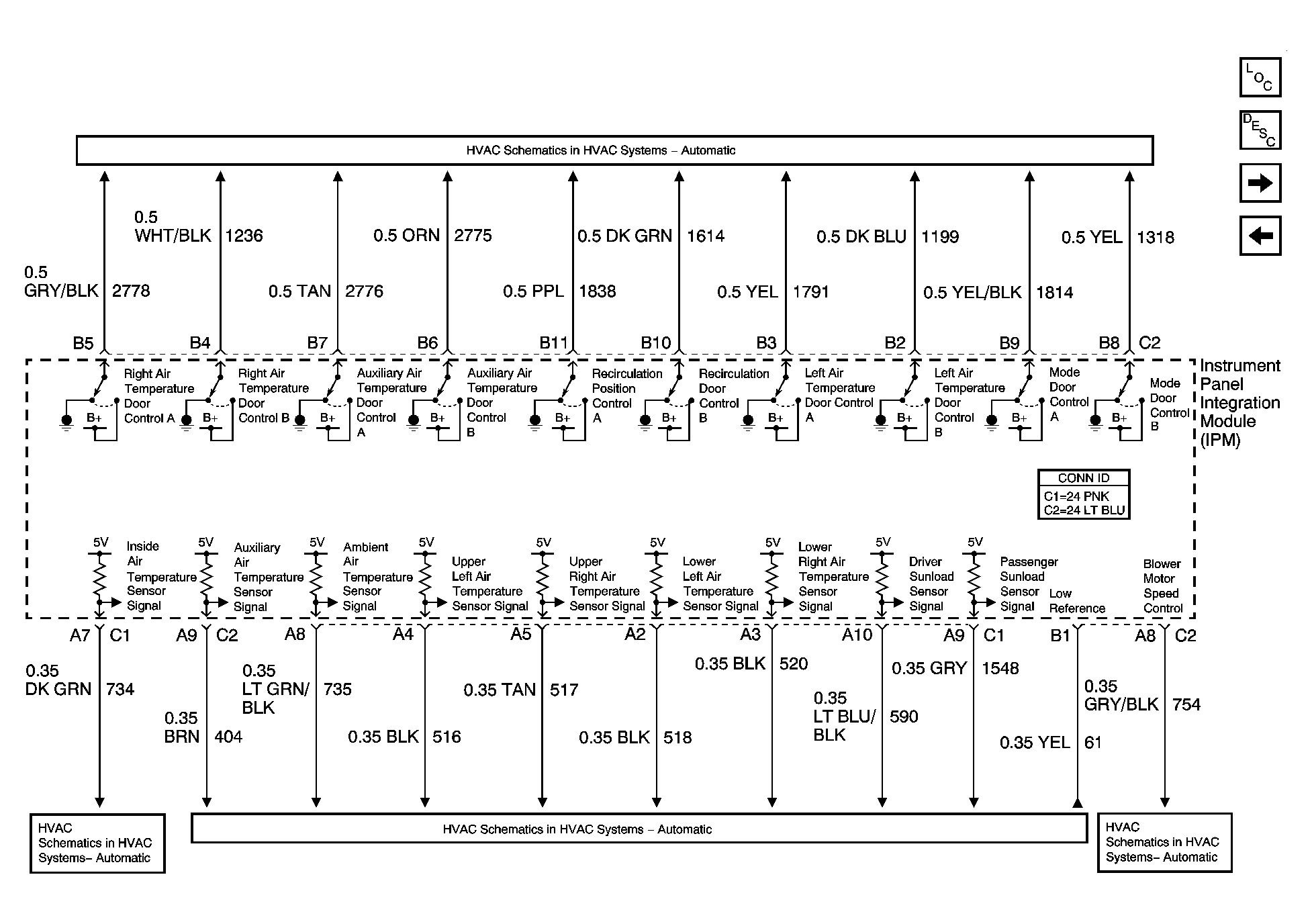

Fig 6: Instrument Panel Integration Module (IPM) - HVAC Inputs and Outputs
GM1411858Courtesy of GENERAL MOTORS CORP.

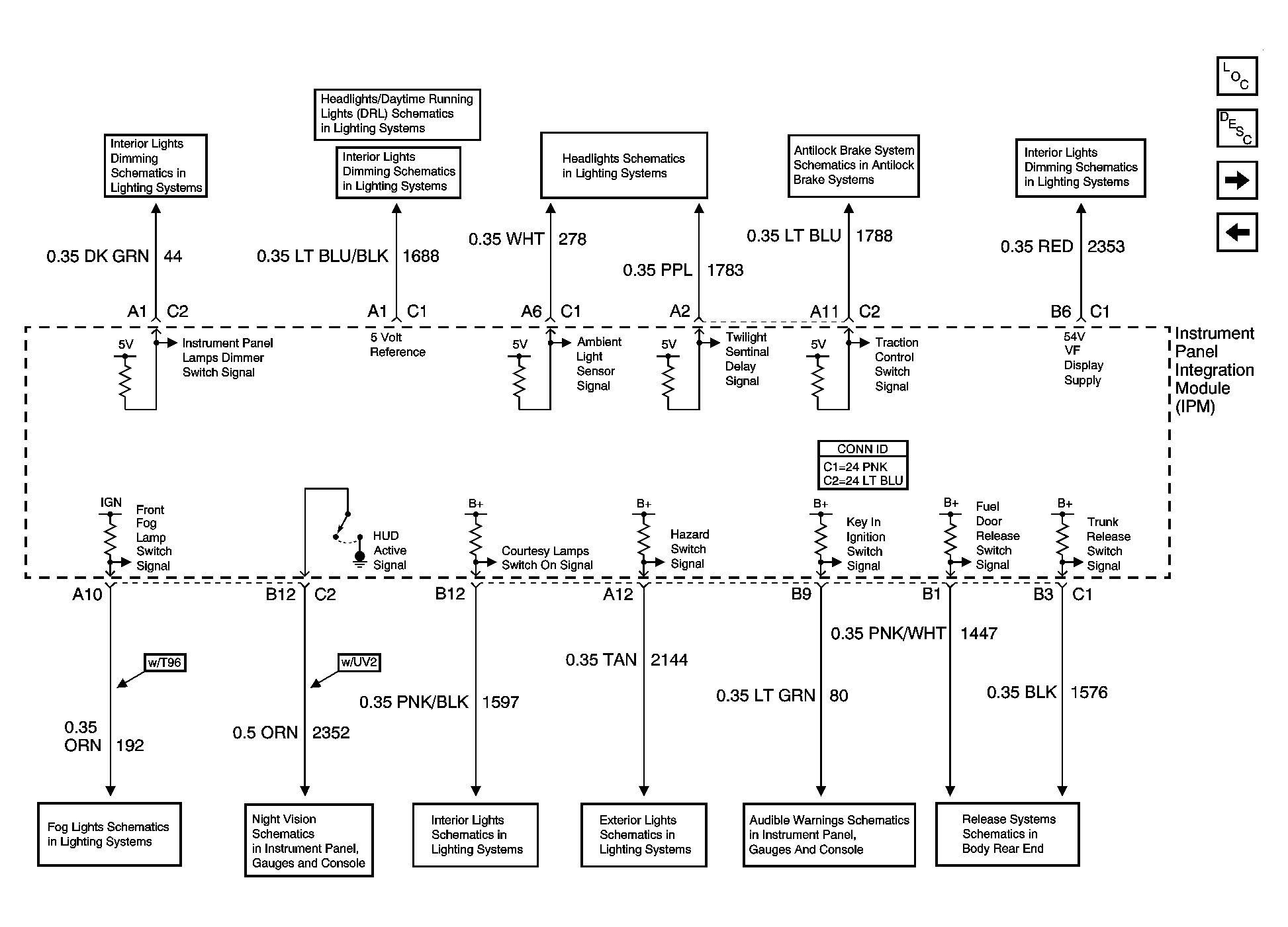

Fig 7: Instrument Panel Integration Module (IPM) - Inputs and Outputs
GM1411862Courtesy of GENERAL MOTORS CORP.

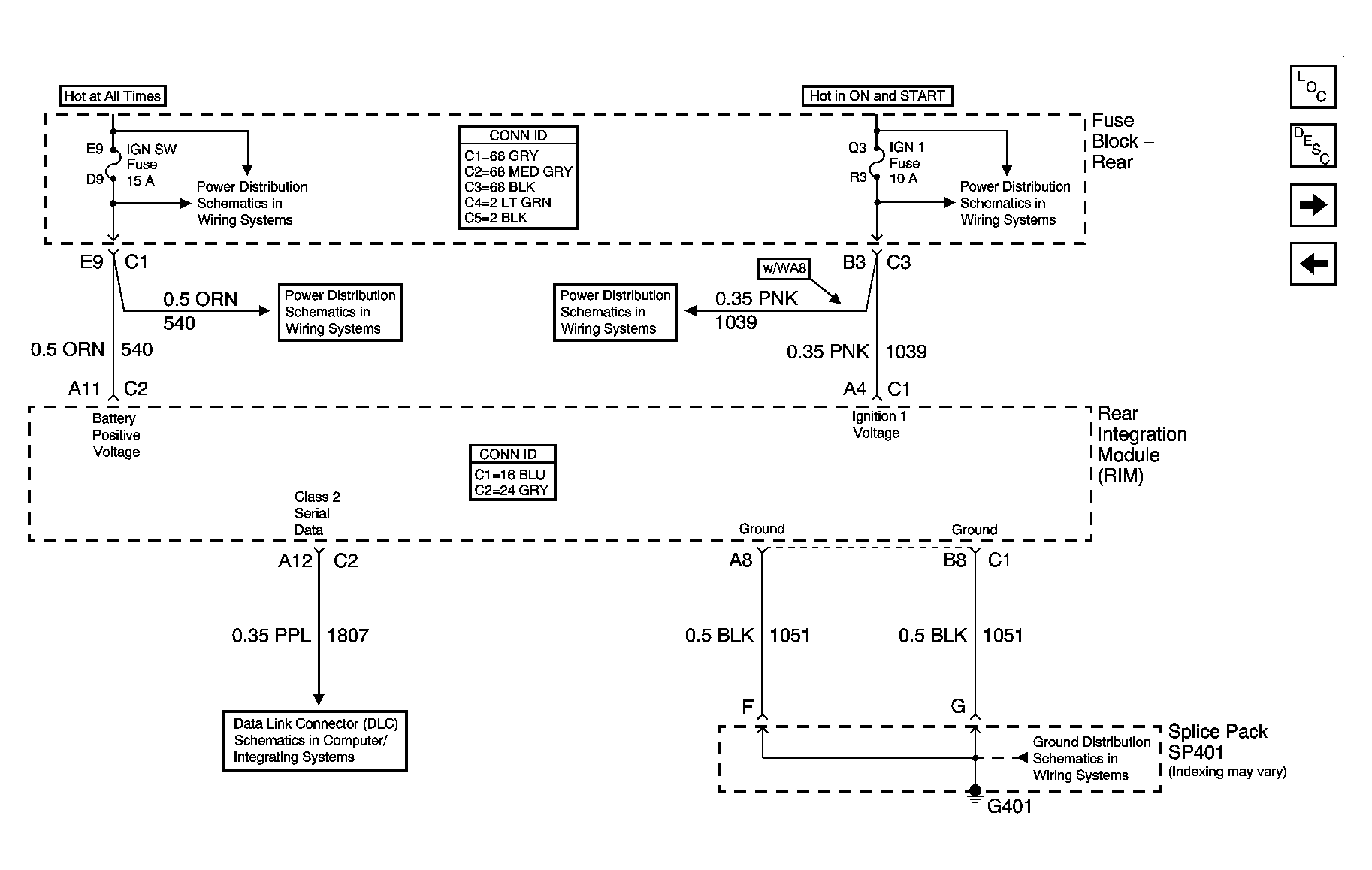

Fig 8: Rear Integration Module (RIM) - Power, Ground, and Serial Data
GM1411864Courtesy of GENERAL MOTORS CORP.

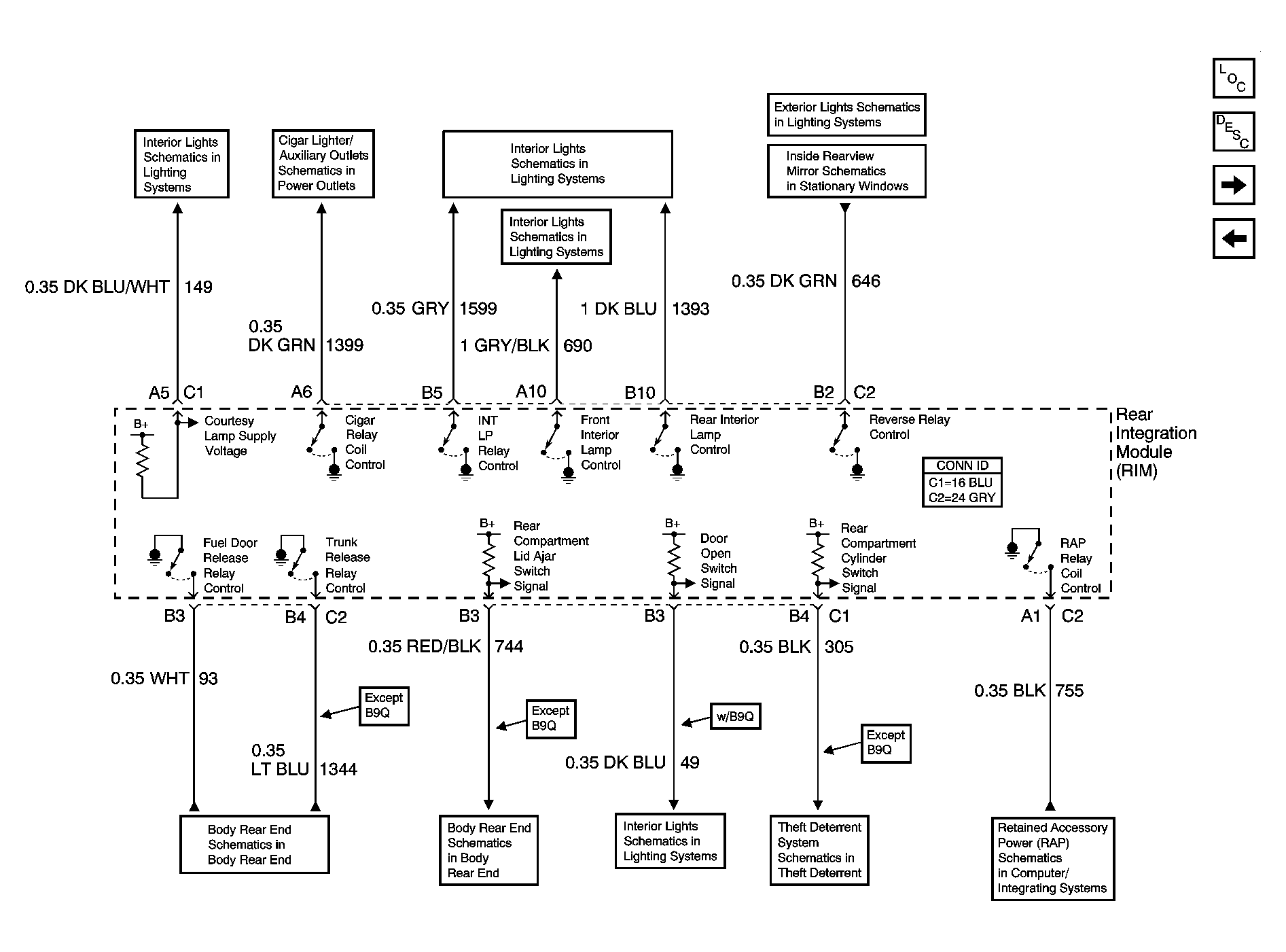

Fig 9: Rear Integration Module (RIM) - Lighting, Release Systems, and Other Inputs and Outputs
GM1411871Courtesy of GENERAL MOTORS CORP.

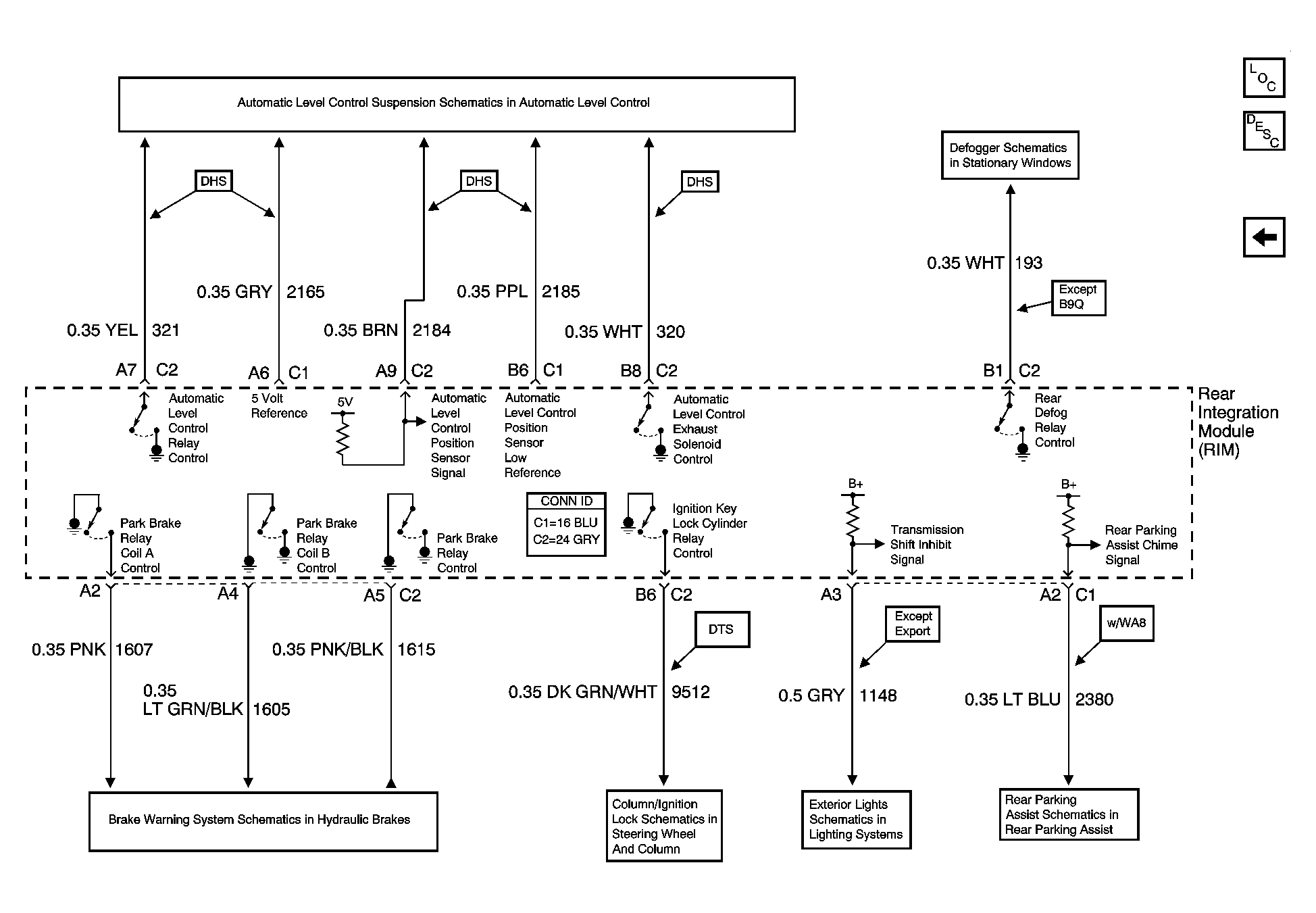

Fig 10: Rear Integration Module (RIM) - Level Control, and Other Inputs and Outputs
GM1411873Courtesy of GENERAL MOTORS CORP.
