Installation Procedure

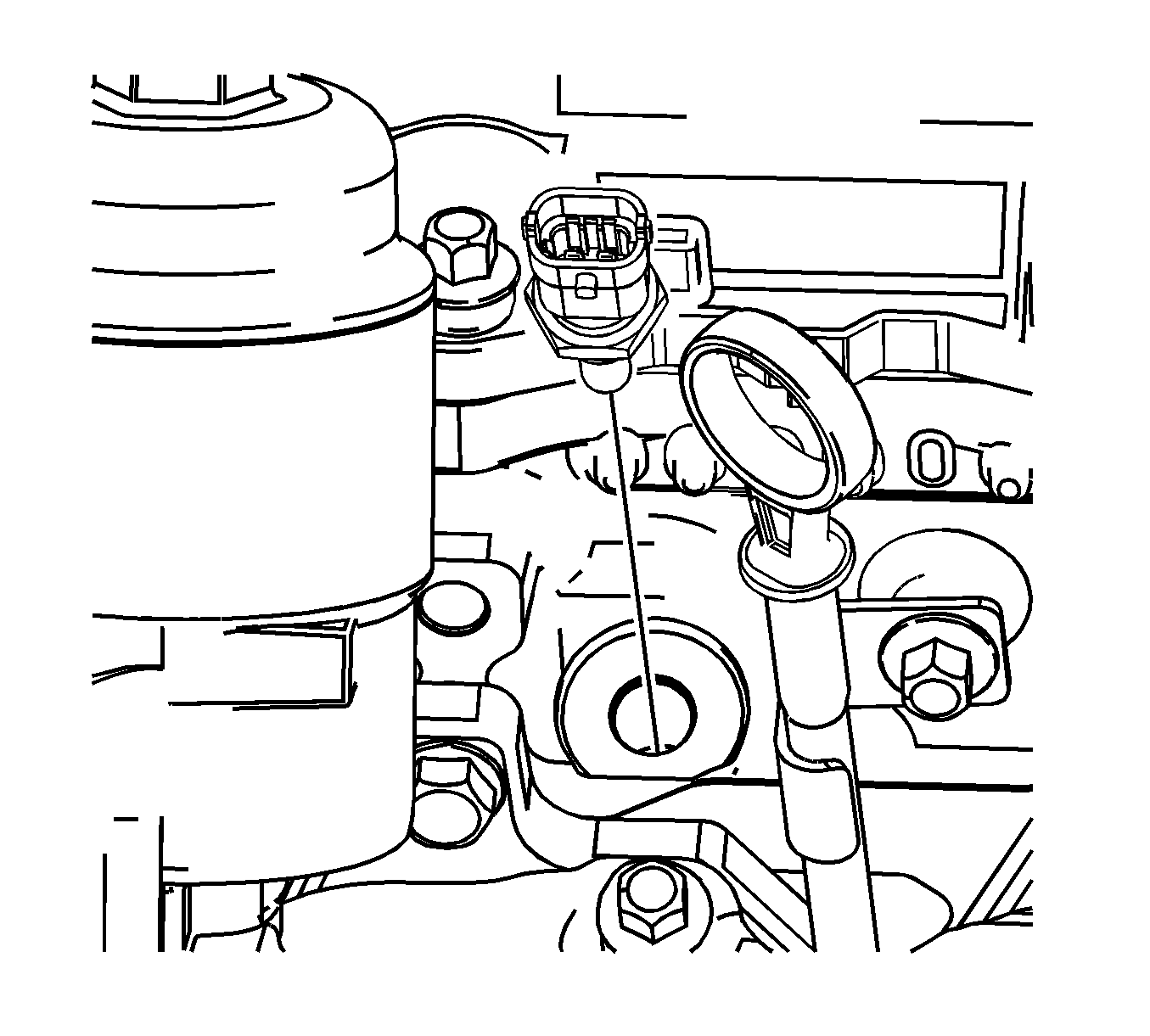

Fig 1: View Of ECT Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the coolant temperature sensor.
Tighten: Tighten the coolant temperature sensor to 22 N.m (16 lb ft).

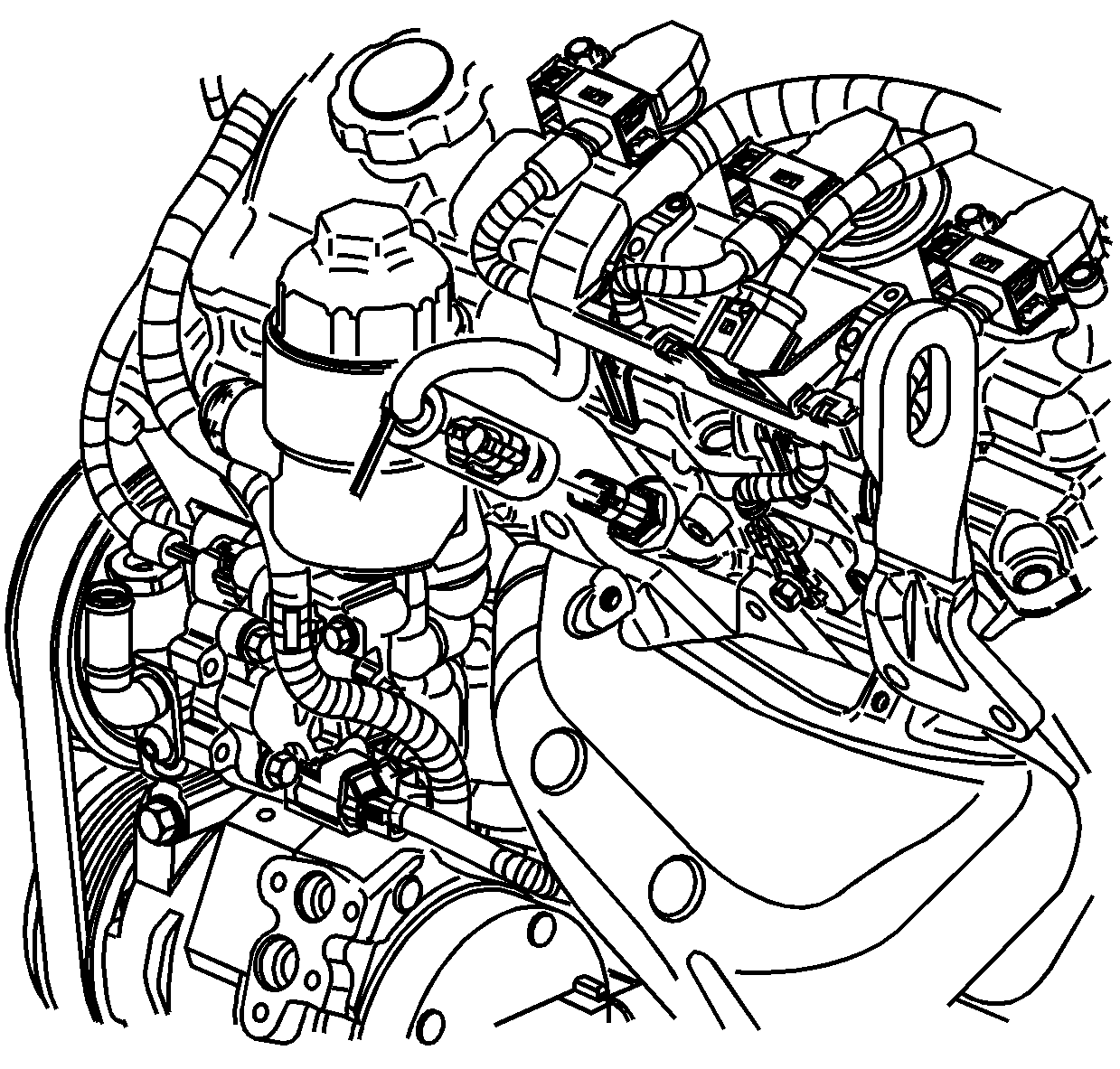

Fig 2: View Of Coolant Temperature Sensor And Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the coolant temperature sensor electrical connector.
Inspect and fill the cooling system as necessary. Refer to Draining and Filling Cooling System (LP1, LY7) or Draining and Filling Cooling System (LS6) in Engine Cooling.
