Installation Procedure

    Fig 1: View Of BARO Sensor
    GM1285192Courtesy of GENERAL MOTORS CORP.
  1. Install the barometric pressure sensor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the barometric pressure sensor bolt.

    Tighten:  Tighten the barometric pressure sensor bolt to 10 N.m (89 lb in).

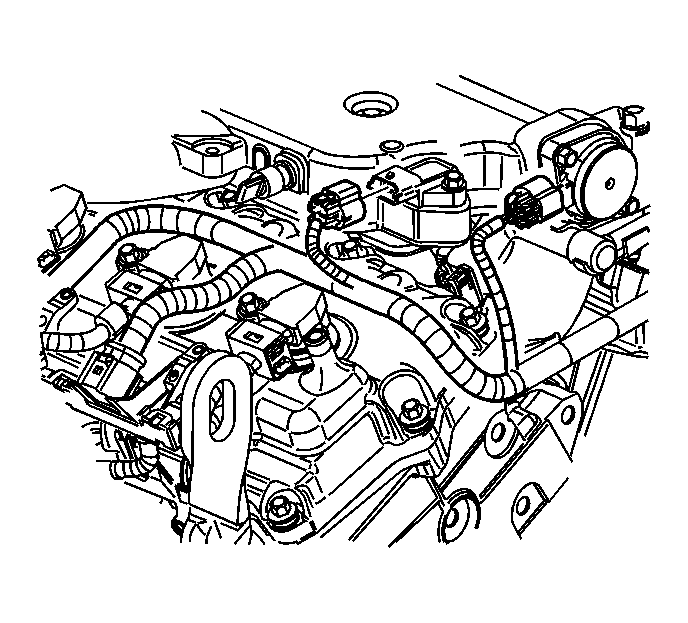

    3. Fig 2: Identifying Barometric Pressure Sensor And Electrical Connector
    GM945437Courtesy of GENERAL MOTORS CORP.
  3. Install the sensor electrical connector.
