Installation Procedure

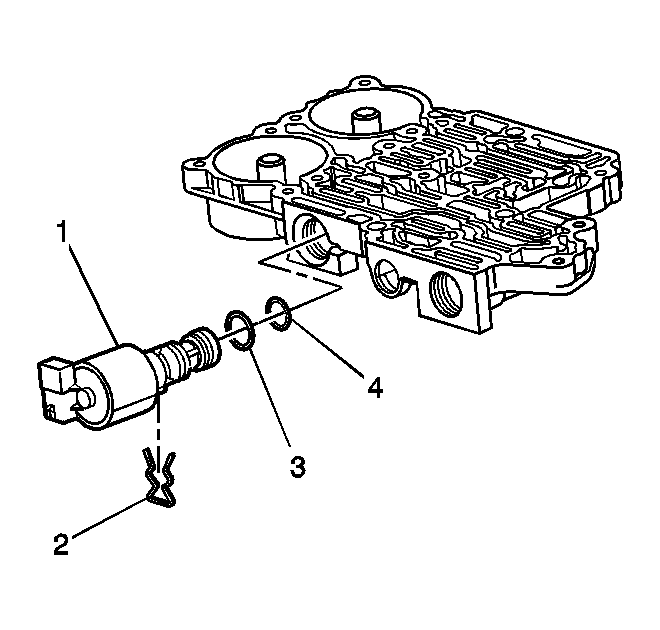

Fig 1: Exploded View Of PCS

Courtesy of GENERAL MOTORS CORP.

Install new O-ring seals (3-4) to the pressure control solenoid (1), if the O-rings were previously removed.
Install the pressure control solenoid (1) into the control valve body.

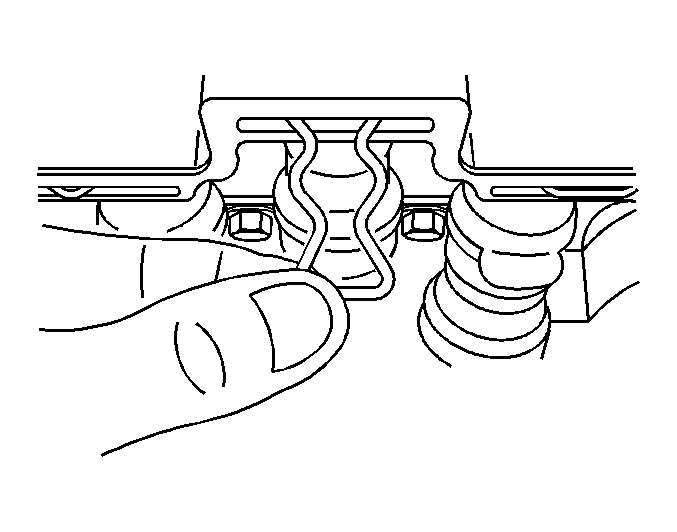

Fig 2: Locating Solenoid Retainer

Courtesy of GENERAL MOTORS CORP.

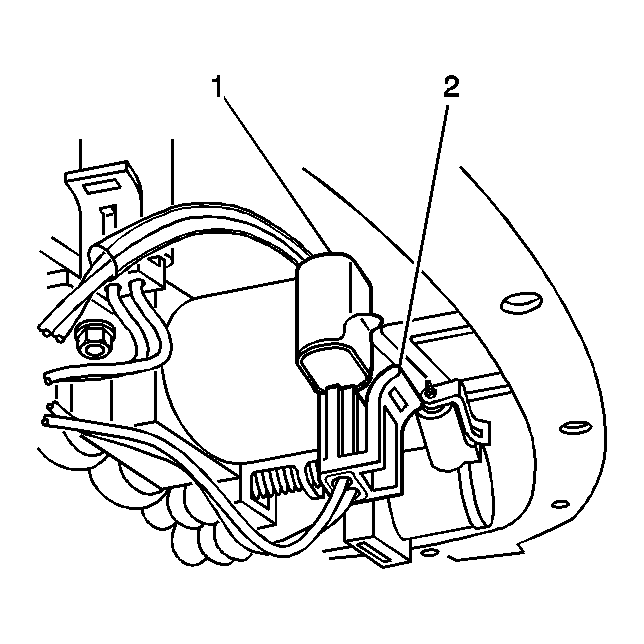

Fig 3: View Of PCS & Electrical Wiring Harness Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical wiring harness connector (2) to the pressure control solenoid (1).
Install the transmission fluid pan and filter. Refer to Automatic Transmission Fluid/Filter Replacement .
