Installation Procedure

  1. Position the battery negative cable to the engine.

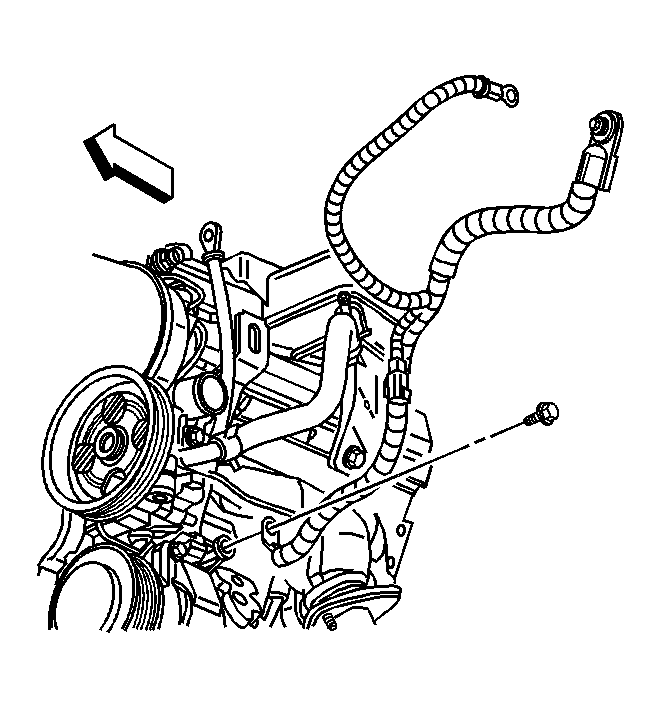

    2. Fig 1: View Of Battery Negative Cable To Engine Block Retaining Bolt
    GM772429Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolt securing the battery negative cable to the engine block.

    Tighten:  Tighten the battery negative cable to engine block bolt to 50 N.m (37 lb ft).

  3. Lower the vehicle.

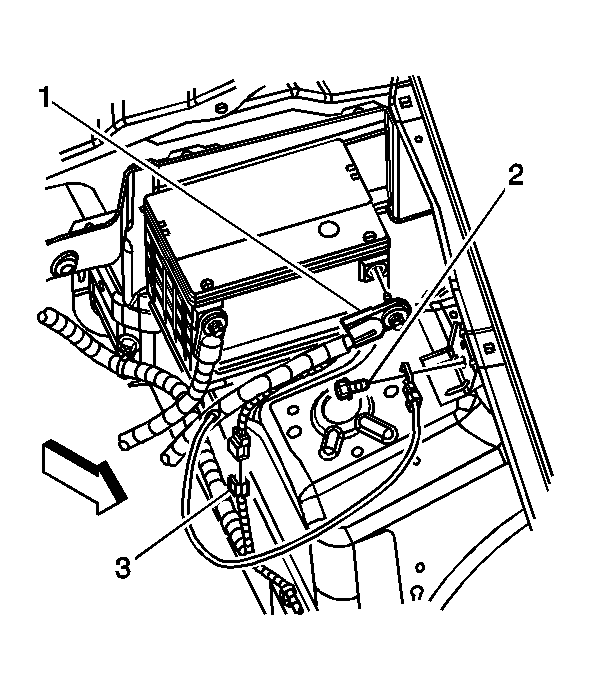

    4. Fig 2: View Of Battery Negative Cable To Side Rail & Body Harness Connector
    GM772420Courtesy of GENERAL MOTORS CORP.
  4. Install the bolt (2) securing the battery negative cable to the side rail.

    Tighten:  Tighten the battery negative cable to side rail bolt to 36 N.m (27 lb ft).

  5. Connect the body harness connector (3) to the battery negative cable.
  6. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
