Installation Procedure

  1. Install the power steering cooler pipe/hose to the vehicle.

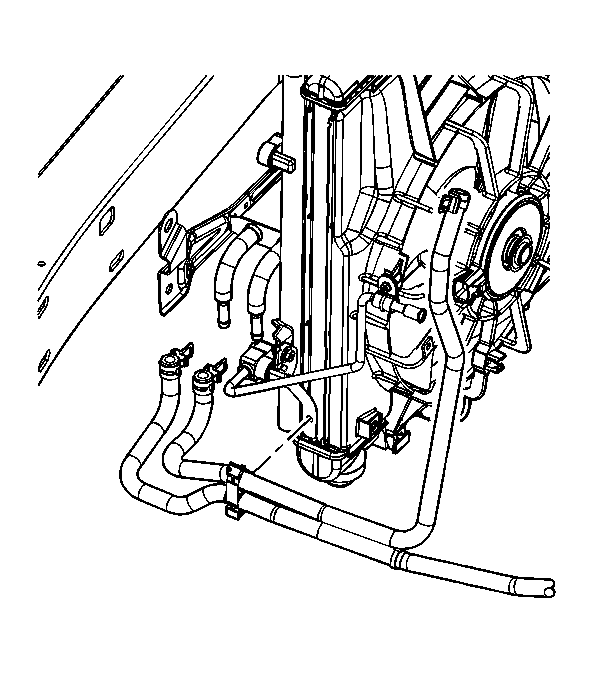

    2. Fig 1: View Of Power Steering Cooler Pipe/Hose & Clip
    GM1391087Courtesy of GENERAL MOTORS CORP.
  2. Connect the power steering cooler pipe/hose to the power steering reservoir.
  3. Connect the power steering cooler pipe/hose to the clip at the radiator.
    4. Fig 2: View Of Power Steering Cooler Lines
    GM1391088Courtesy of GENERAL MOTORS CORP.
  4. Connect the power steering cooler pipe/hose to the power steering cooler.
  5. Install the front air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
  6. Remove the drain pan from under the vehicle.
  7. Bleed the power steering system. Refer to Bleeding the Power Steering System .
