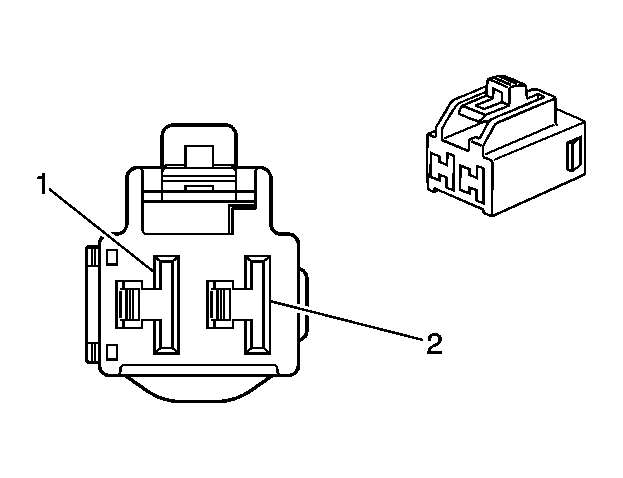

Blower Motor Connector End View
Blower Motor Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 7283-3028-20
- 2-Way F Yazaki (BK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
BK/RD |
450 |
Ground |
| 2 |
L-BU |
188 |
Blower Motor Control Processor Supply Voltage |
