Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

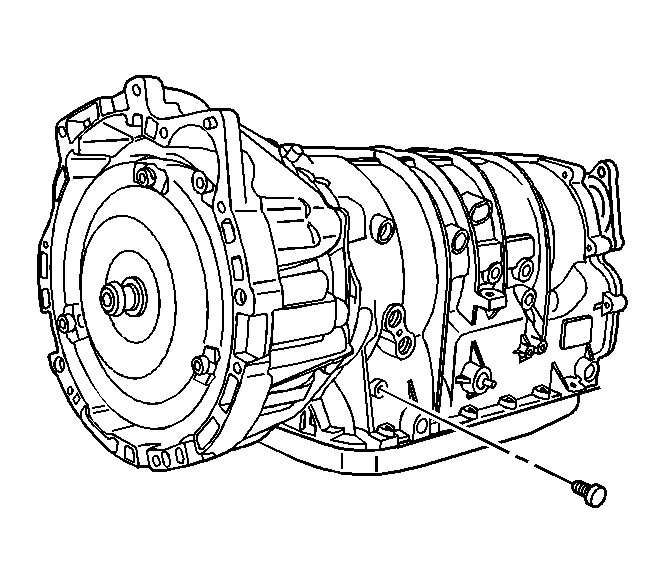

    2. Fig 1: View Of Oil Pressure Test Plug
    GM792887Courtesy of GENERAL MOTORS CORP.
  2. Remove and discard the oil pressure test plug.
