Installation Procedure

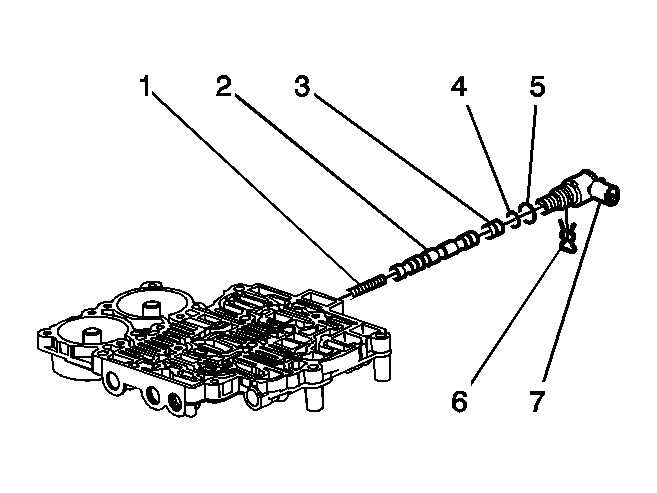

    Fig 1: Exploded View Of 2-3 Shift Solenoid
    GM792791Courtesy of GENERAL MOTORS CORP.
  1. Install new O-ring seals (4-5) to the 2-3 shift solenoid (7), if the O-rings were previously removed.
  2. Install the 2-3 shift solenoid (7) into the control valve body.
    3. Fig 2: Locating Solenoid Retainer
    GM795835Courtesy of GENERAL MOTORS CORP.
  3. Install the 2-3 shift solenoid retainer into the control valve body.

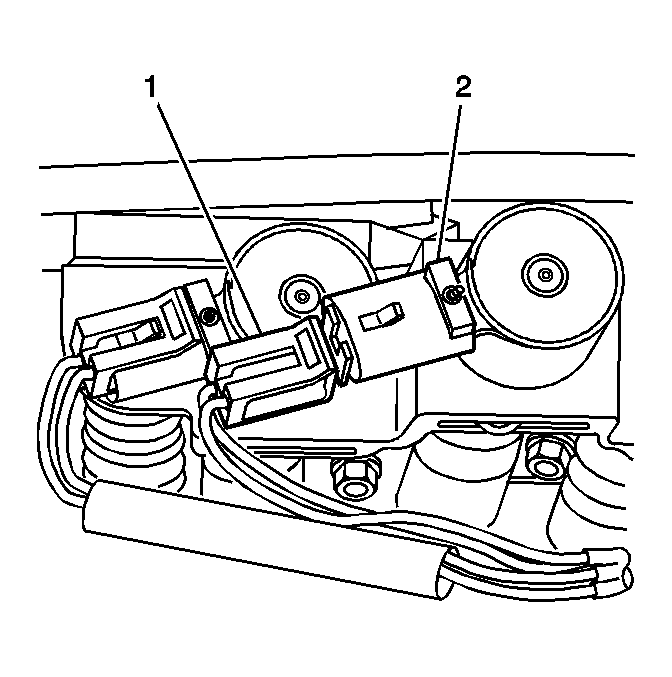

    4. Fig 3: View Of 2-3 Shift Solenoid & Electrical Wiring Harness Connector
    GM795839Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical wiring harness connector (1) to the 2-3 shift solenoid (2).
  5. Install the transmission fluid pan. Refer to Automatic Transmission Fluid/Filter Replacement .
