Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

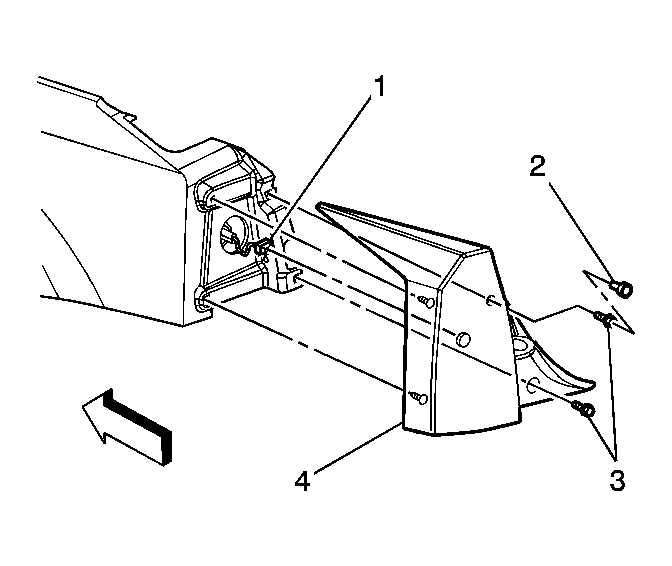

    Fig 1: View Of Tail/Turn Signal Lamp Components
    GM914398Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (1) to the tail/turn lamp (4).
  2. Position the tail/turn lamp (4) to the quarter panel.
    3. NOTE: Refer to Fastener Notice .
  3. Install the tail/turn lamp screws (3).

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  4. Install the tail/turn lamp screws caps (2).
  5. Inspect the tail/turn lamp for proper operation.
  6. Close the rear compartment.
