Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

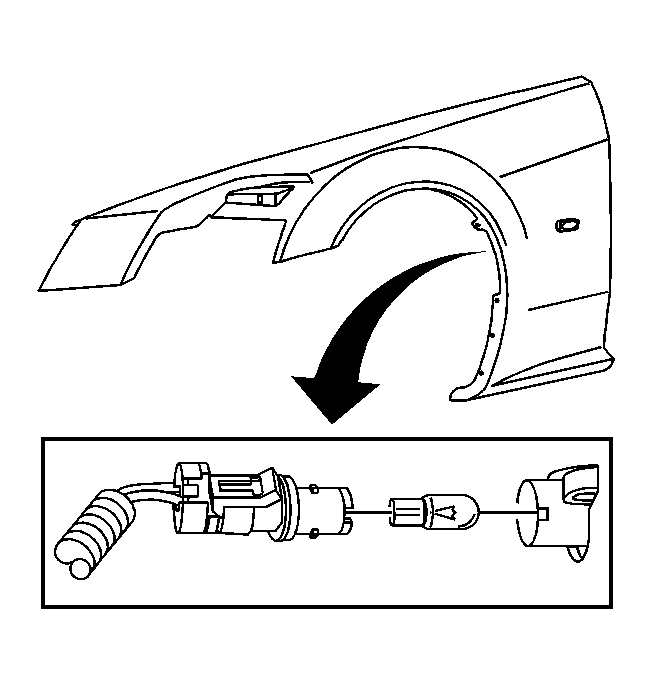

Fig 1: View Of Side Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Install the bulb to the socket.
Inspect the bulb for proper operation.
Install the side lamp bulb/socket to the side lamp.

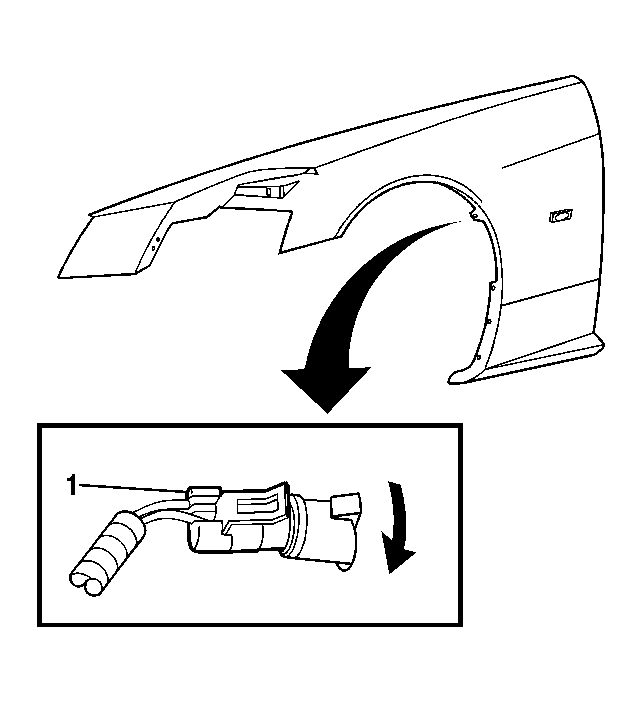

Fig 2: Seating Side Lamp Bulb/Socket

Courtesy of GENERAL MOTORS CORP.

Rotate the bulb/socket clockwise (1) until the bulb/socket is fully seated.
Install the wheelhouse filler. Refer to Wheelhouse Filler Replacement .
