Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the license lamp bulb/socket to the license lamp.

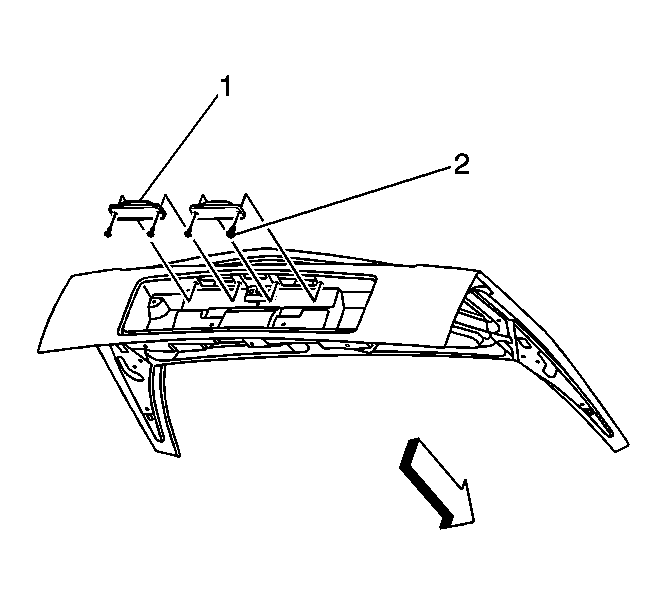

    2. Fig 1: View Of License Lamp & Screws
    GM914409Courtesy of GENERAL MOTORS CORP.
  2. Position the license lamp (1) to the rear compartment lid.
    3. NOTE: Refer to Fastener Notice .
  3. Install the license lamp screws (2).

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  4. Inspect the license lamp for proper operation.
  5. Install the back up lamp. Refer to Backup Lamp Replacement .
