Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front fascia lower close out panel. Refer to Front Bumper Fascia Lower Close Out Panel Replacement .
  2. Disconnect the front fog lamp electrical connector from the fog lamp bulb/socket.

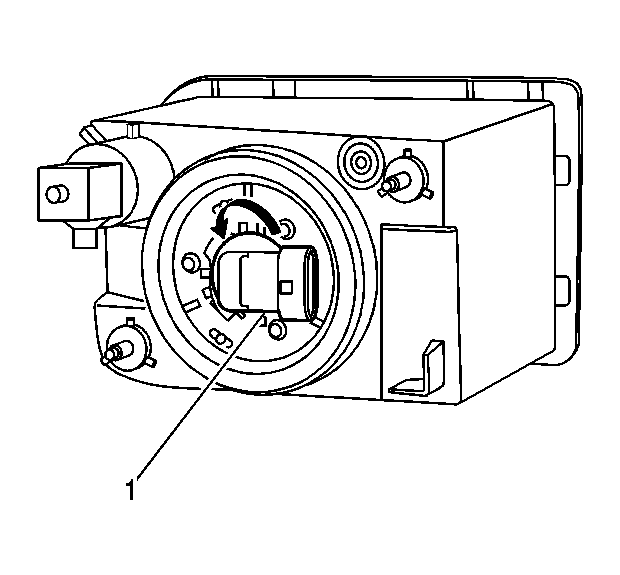

    3. Fig 1: View Of Fog Lamp Bulb/Socket
    GM918899Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Halogen Bulb Caution.
  3. Remove the fog lamp bulb/socket from the fog lamp by rotating the bulb/socket counterclockwise (1).
    4. Fig 2: View Of Fog Lamp Bulb/Socket
    GM922582Courtesy of GENERAL MOTORS CORP.
  4. Remove the fog lamp bulb/socket (1).
