Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the rear compartment.
  2. Remove the back up lamp assembly. Refer to Backup Lamp Replacement .

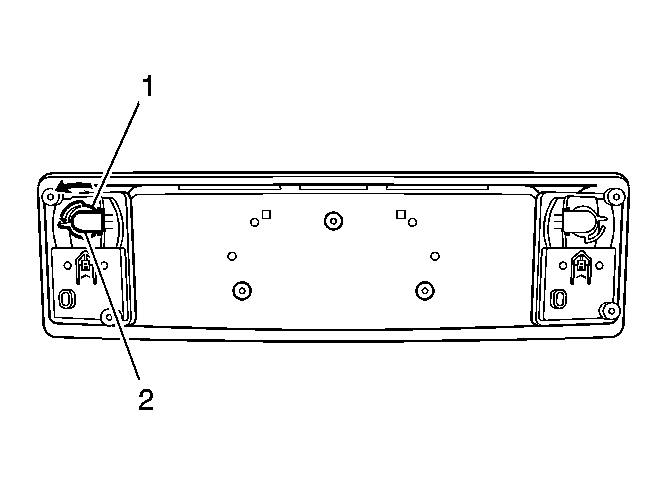

    3. Fig 1: View Of Backup Lamp Socket & Locking Tab
    GM918875Courtesy of GENERAL MOTORS CORP.
  3. Remove the back up lamp socket from the back up lamp by depressing the locking tab (1) and rotating the socket counterclockwise (2).
    4. Fig 2: View Of Backup Lamp Bulb & Socket
    GM918873Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb (1) from the socket (2).
