Special Tools

Illustration	Tool Number/Description

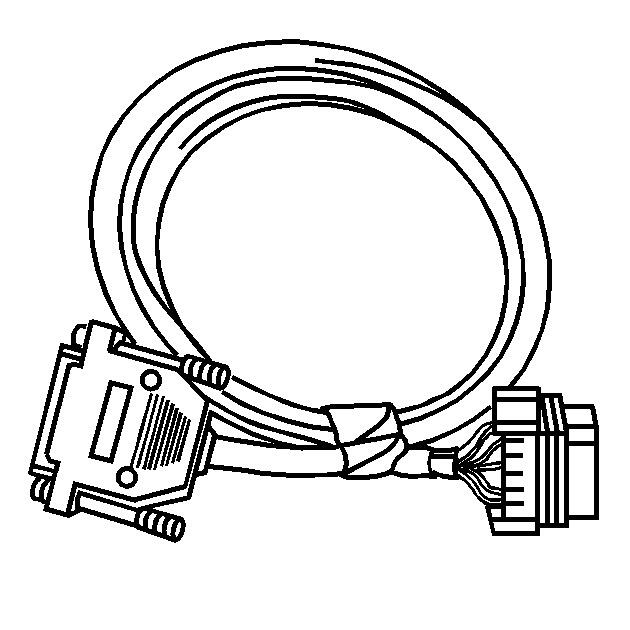

Courtesy of GENERAL MOTORS CORP.	EL 39021-460 Injector Harness Adapter
Courtesy of GENERAL MOTORS CORP.	GE 44602 Injector Test Adapter
Courtesy of GENERAL MOTORS CORP.	J 23738-A Vacuum Pump
Courtesy of GENERAL MOTORS CORP.	J 26792 Spark Tester
Courtesy of GENERAL MOTORS CORP.	J 34730-1A Fuel Pressure Gage
Courtesy of GENERAL MOTORS CORP.	J 34730-405 Injector Test Lamp
Courtesy of GENERAL MOTORS CORP.	J 35616 Connector Test Adapter Kit
Courtesy of GENERAL MOTORS CORP.	J 35616-200 Un-powered Test Light Kit
Courtesy of GENERAL MOTORS CORP.	J 36850 Transjel Lubricant
Courtesy of GENERAL MOTORS CORP.	J 37088-A Fuel Line Disconnect Tool Set
Courtesy of GENERAL MOTORS CORP.	J 37287 Inlet and Return Fuel Line Shut-Off Adapters
Courtesy of GENERAL MOTORS CORP.	J 37287-100 Fuel Line Shut-Off Quick Connect Adapters
Courtesy of GENERAL MOTORS CORP.	J 39021 Fuel Injector Coil/Balance Test
Courtesy of GENERAL MOTORS CORP.	J 39021-210 Injector Switch Box
Courtesy of GENERAL MOTORS CORP.	J 39200 Digital Multimeter (DMM)
Courtesy of GENERAL MOTORS CORP.	J 41413-200 Evaporative Emission System Tester (EEST)
Courtesy of GENERAL MOTORS CORP.	J 41413-300 EVAP Cap and Plug Kit
Courtesy of GENERAL MOTORS CORP.	J 41413-SPT High Intensity White Light
Courtesy of GENERAL MOTORS CORP.	J 41413-VLV Evaporative Emission Service Port Fitting
Courtesy of GENERAL MOTORS CORP.	J 41415-50 Fuel Tank Cap Adapter
Courtesy of GENERAL MOTORS CORP.	J 42598-B CAN+ Vehicle Data Recorder
Courtesy of GENERAL MOTORS CORP.	J 42960-02 Fuel Flap Door Holder
Courtesy of GENERAL MOTORS CORP.	J 44175 Fuel Composition Tester
Courtesy of GENERAL MOTORS CORP.	J 45004 Fuel Tank Drain Hose
Courtesy of GENERAL MOTORS CORP.	J 45289 Controller Area Network Diagnostic Interface (CANdi) Module
Courtesy of GENERAL MOTORS CORP.	J 45747 Fuel Sender Lock Ring Wrench
Courtesy of GENERAL MOTORS CORP.	70000081 Tech II Scan Tool
