Installation Procedure

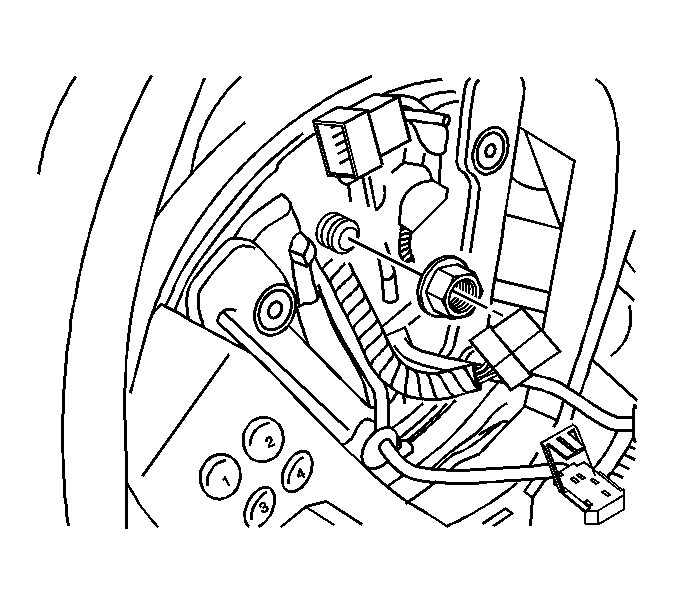

    Fig 1: View Of Steering Wheel Retaining Nut
    GM754853Courtesy of GENERAL MOTORS CORP.
  1. Install the steering wheel.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the steering wheel retaining nut.

    Tighten:  Tighten the nut to 41 N.m (30 lb ft).

    3. Fig 2: View Of Steering Wheel Control Switch Electrical Connector
    GM754855Courtesy of GENERAL MOTORS CORP.
  3. Connect the steering column electrical connector.
  4. Install the inflator module. Refer to Inflatable Restraint Steering Wheel Module Replacement in SIR.
  5. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
