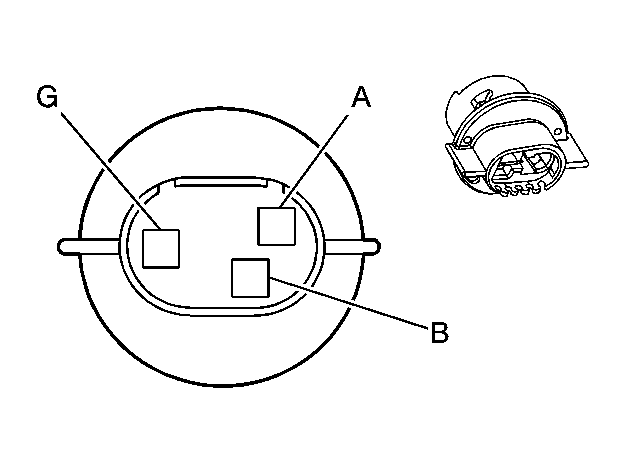

Backup Lamp - Right Connector End View
Backup Lamp - Right Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- OEM: 16530673
- Service: NS
- 3-Way F (L-GY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
L-GN |
24 |
Backup Lamp Supply Voltage |
| L-GN |
24 |
Backup Lamp Supply Voltage |
| B |
- |
- |
Not Used |
| G |
BK |
1150 |
Ground |
| BK |
1150 |
Ground |
| BK |
1150 |
Ground (Europe) |
