Door Control Module Schematics

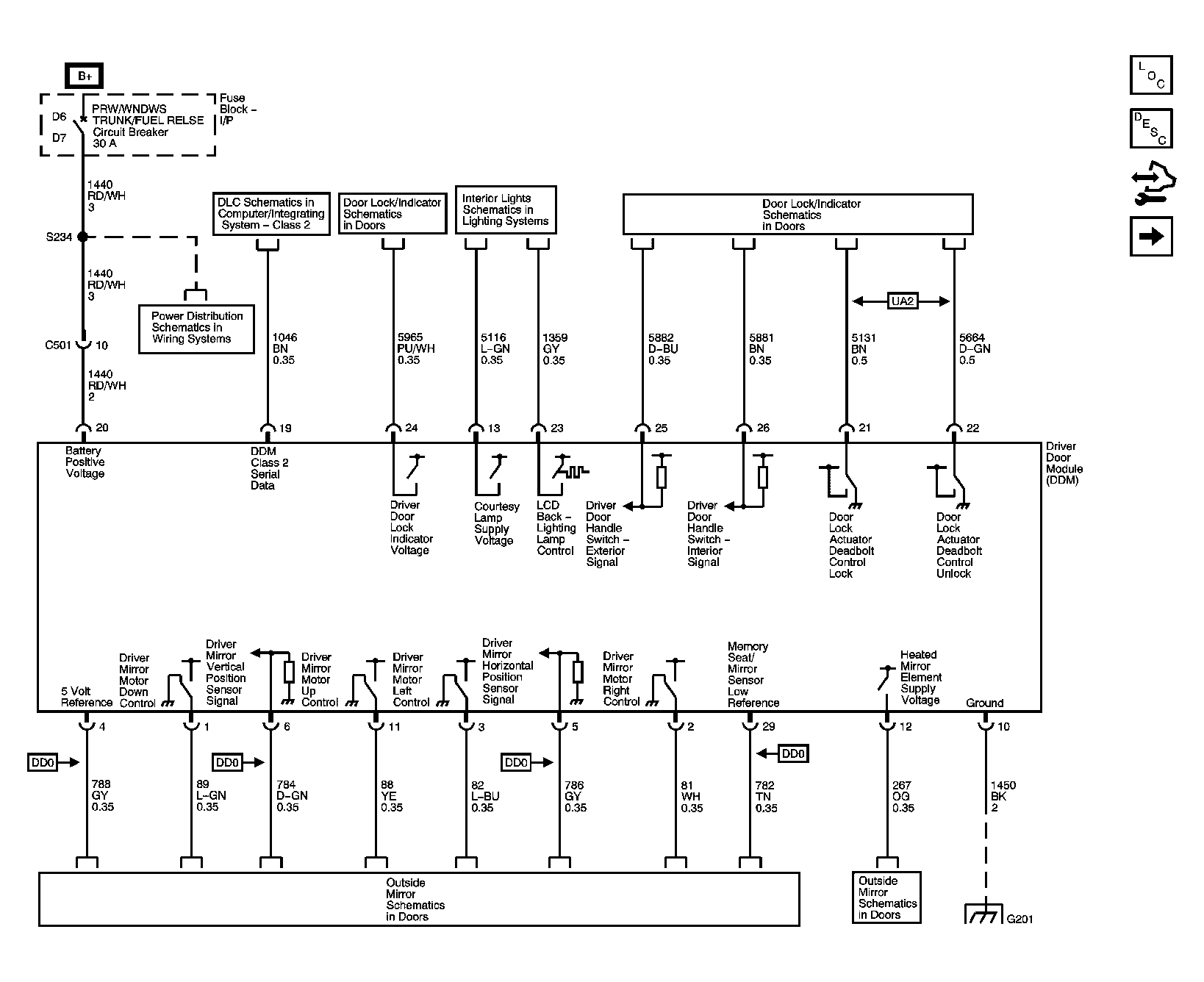

Fig 1: Driver Door Control Schematic

GM1199353

Courtesy of GENERAL MOTORS CORP.

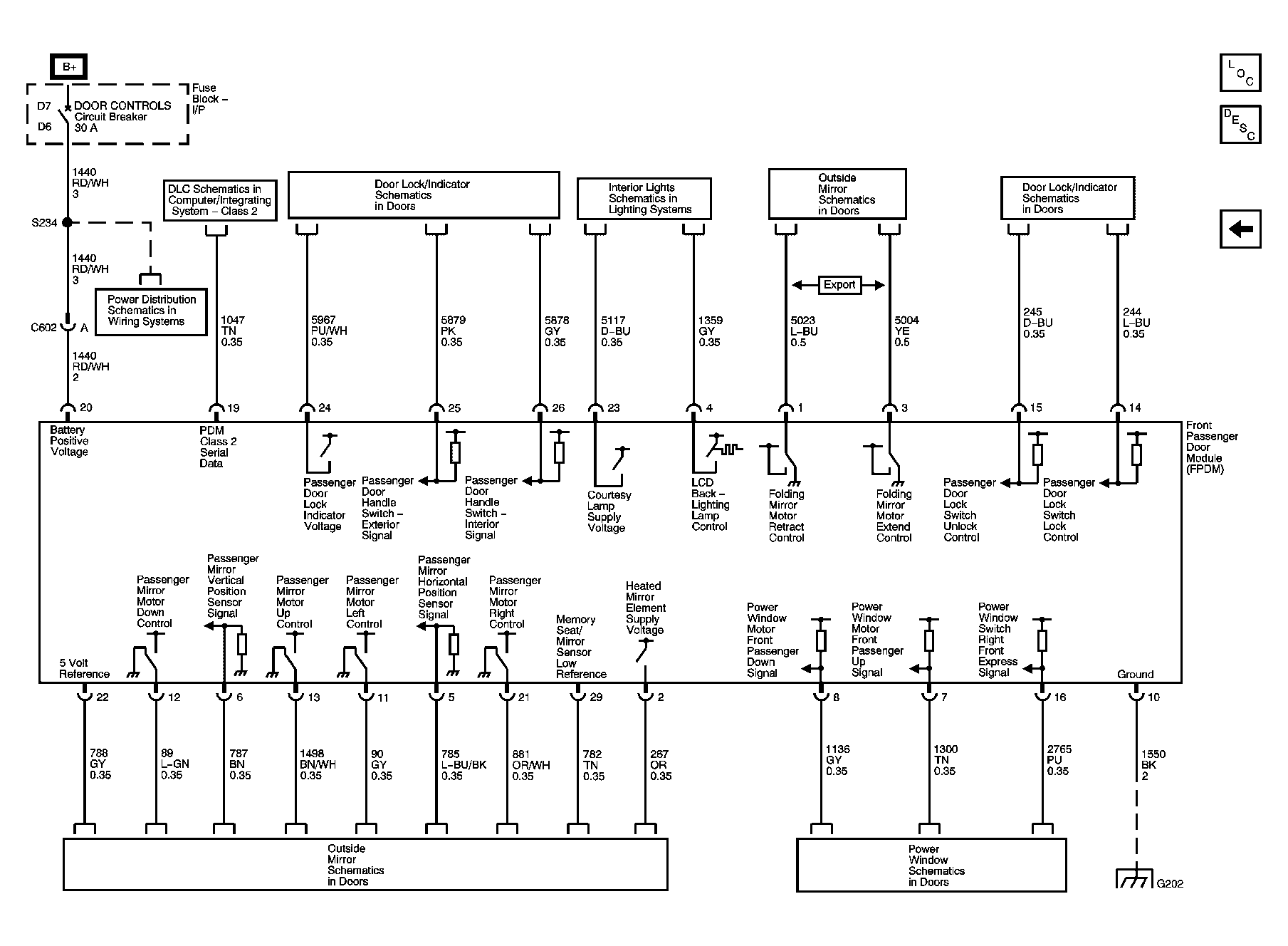

Fig 2: Passenger Door Control Schematic

GM1199355

Courtesy of GENERAL MOTORS CORP.
