Removal Procedure

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear sunshade from the vehicle. Refer to Sunshade Replacement - Rear .
  2. Disconnect the electrical connector from the rear sunshade control module.
  3. Remove the screw (1) that retains the rear sunshade control module to the rear sunshade assembly.
  4. Slide the rear sunshade control module off of the rear sunshade assembly.

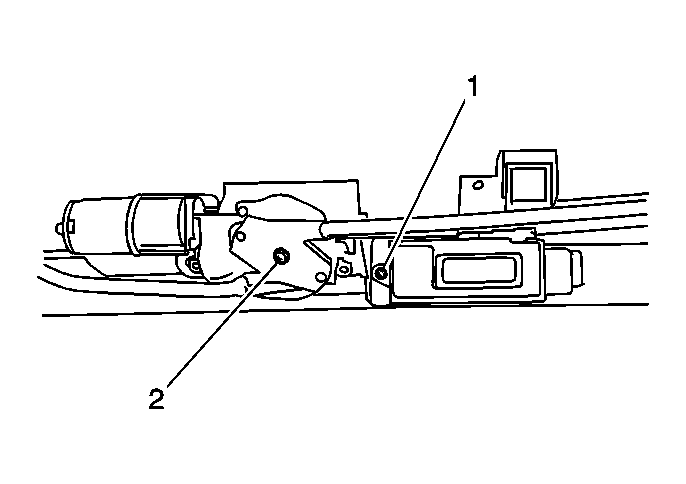

    5. Fig 1: View Of Rear Sunshade Control Module Screw
    GM589590Courtesy of GENERAL MOTORS CORP.
