Body Rear End Component Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Passenger Compartment, Center Front of the Headliner Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Slide Switch (Part of the Power Sunroof Switch Assembly)
2	Rear Window Sunshade Switch
3	Overhead Console Courtesy Lamp
4	Noise Compensation Microphone
5	Outside Moisture Sensor
6	Inside Rearview Mirror
7	Overhead Console Courtesy Lamp
8	Cellular Telephone Microphone
9	Garage Door Opener
10	Sunroof Vent Switch (Part of the Power Sunroof Switch Assembly)
11	Overhead Console

Fig 2: Right Side of the Instrument Panel, in the Instrument Panel Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Compartment Lamp Switch
2	Valet Switch
3	I/P Compartment Lamp
4	Remote Playback Device - CD Changer

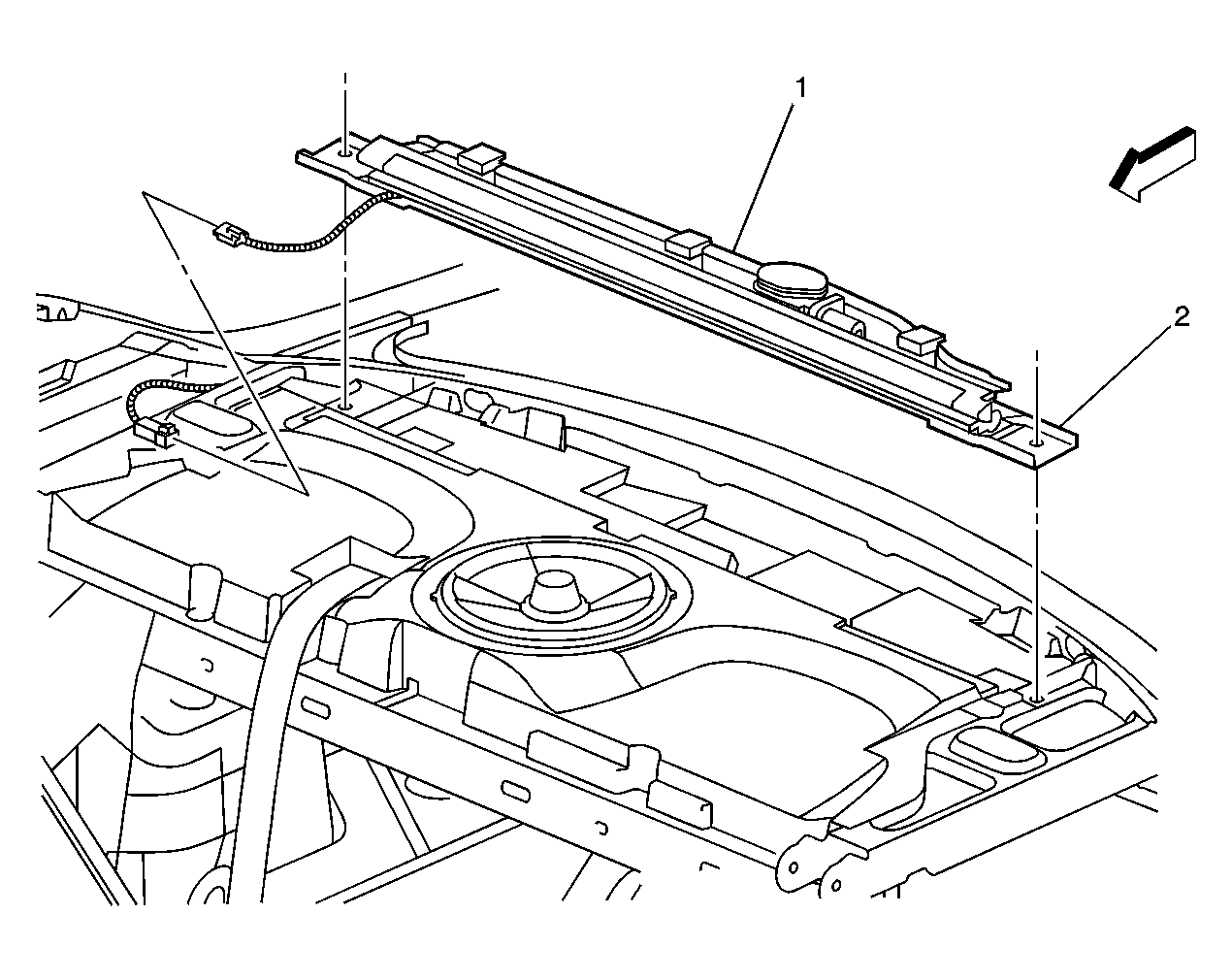

Fig 3: Rear of the Passenger Compartment, in the Rear Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Sunshade Module (on back side of Actuator)
2	Rear Window Sunshade Actuator

Fig 4: Center Rear of the Rear Compartment Lid Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Actuator
2	Rear Compartment Lid Tamper Switch

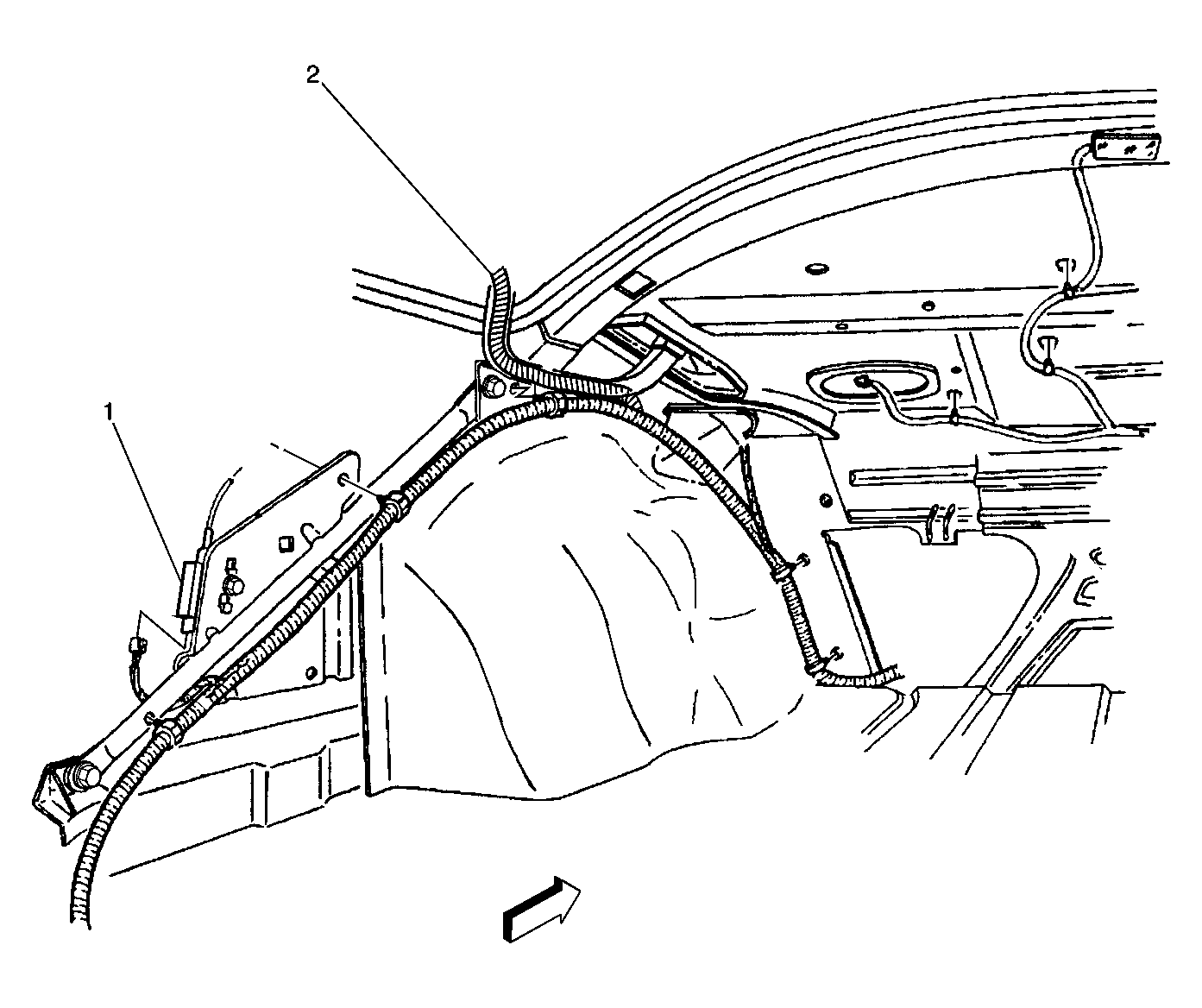

Fig 5: Rear Compartment, in the Left Side Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Door Release Solenoid
2	To Rear Compartment Lid
