HVAC Component Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Compartment, Lower Right Side of the Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch
2	Generator

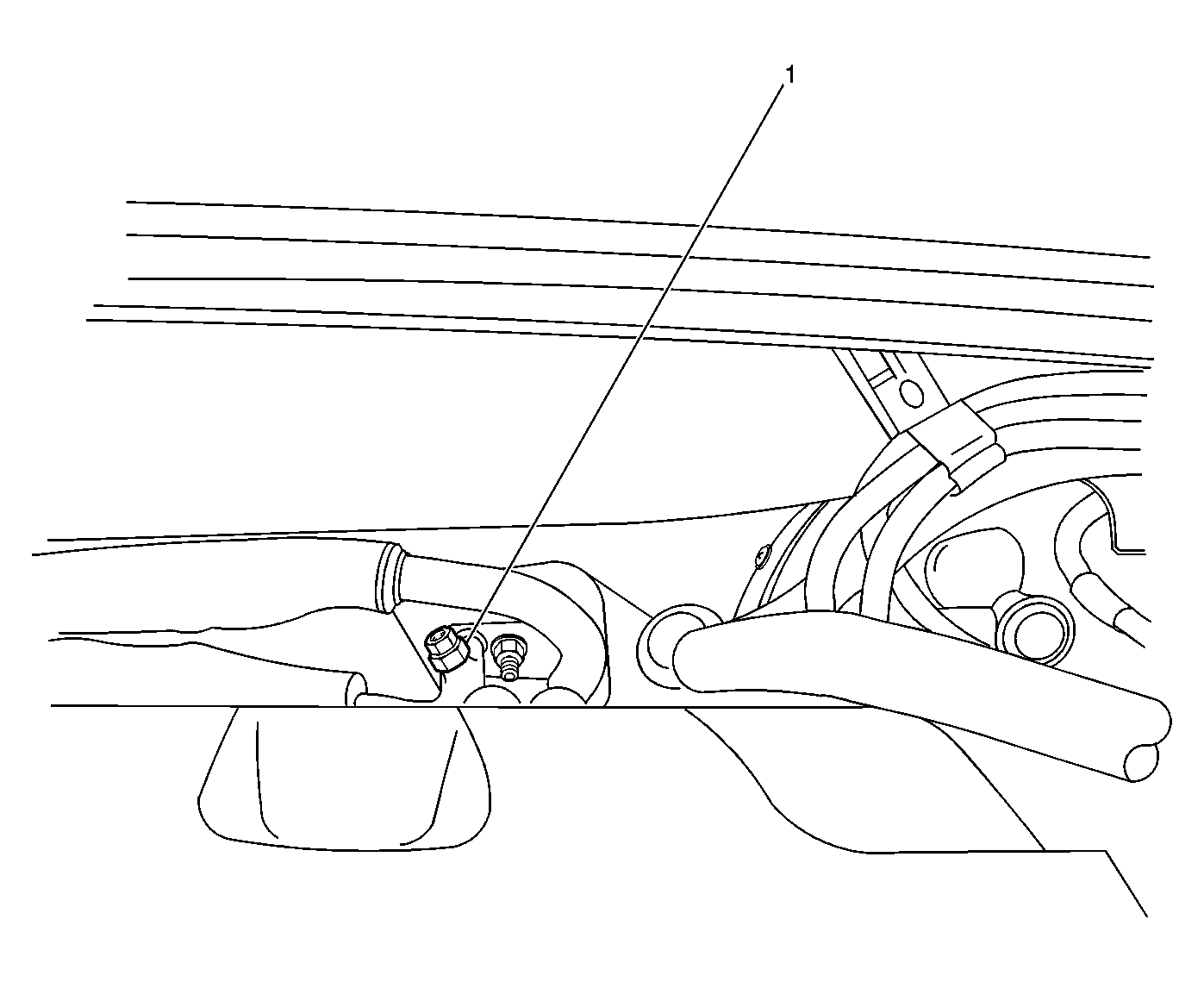

Fig 2: Rear of the Engine Compartment, on the A/C Low Side Line Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Refrigerant Low Temperature Sensor

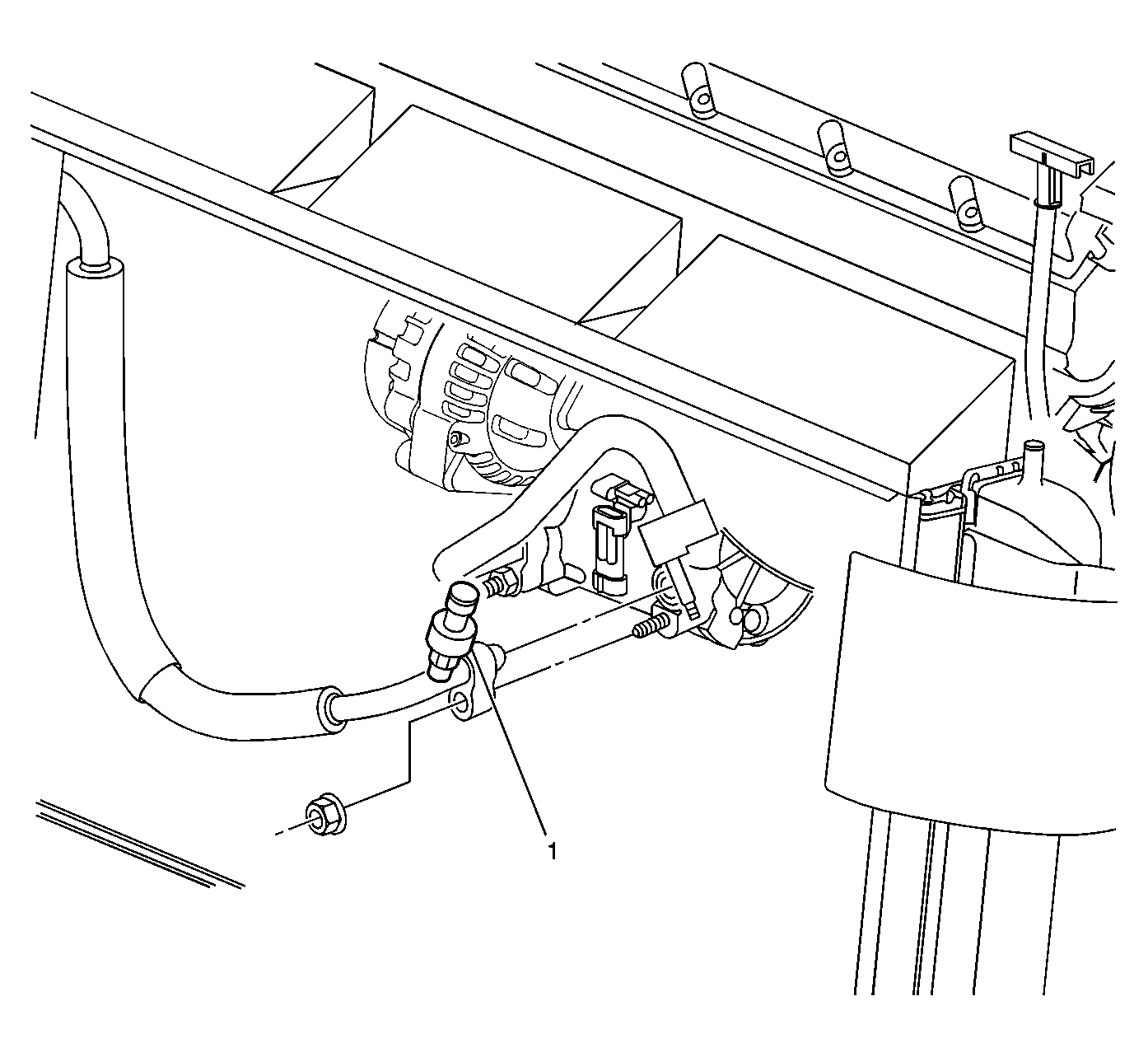

Fig 3: Right Lower Front Corner of the Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Refrigerant Pressure Sensor

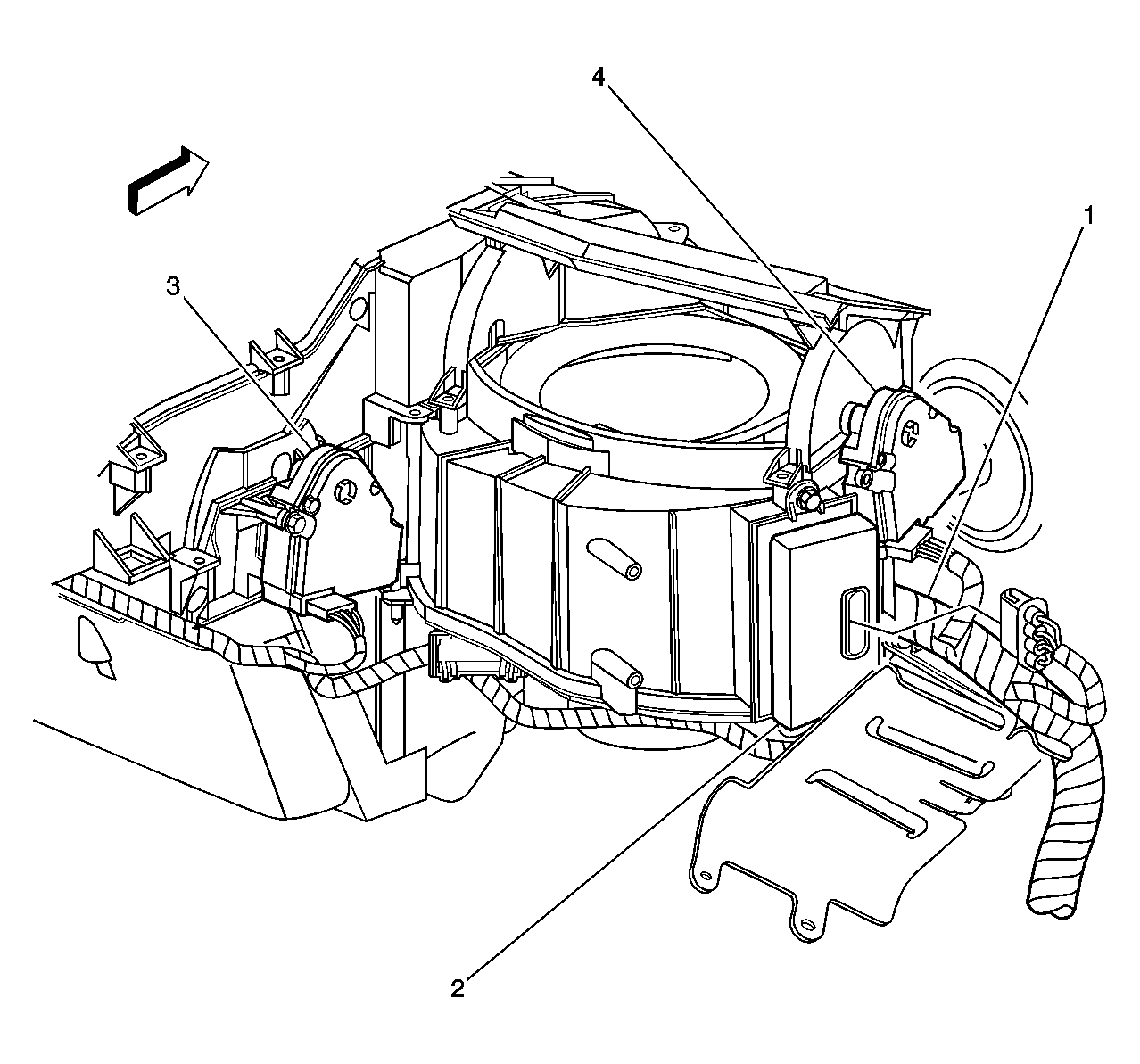

Fig 4: Under the Right Side of the Instrument Panel, Right of the Blower Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S215
2	Blower Motor Control Processor
3	Air Temperature Actuator Assembly
4	Recirculation Actuator

Fig 5: Passenger Compartment, Center of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunload Sensor Assembly
2	Speaker - Front I/P Midrange
3	Hazard Switch
4	Instrument Panel Integration Module (IPM)
5	Radio (w/o U3R, U3S, U3Q)
6	Driver Information Center (DIC) Switch - Right

Fig 6: Behind the Front Grille, at the Center of the Radiator Core Support Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (Export)
2	Night Vision Camera
3	Ambient Air Temperature Sensor

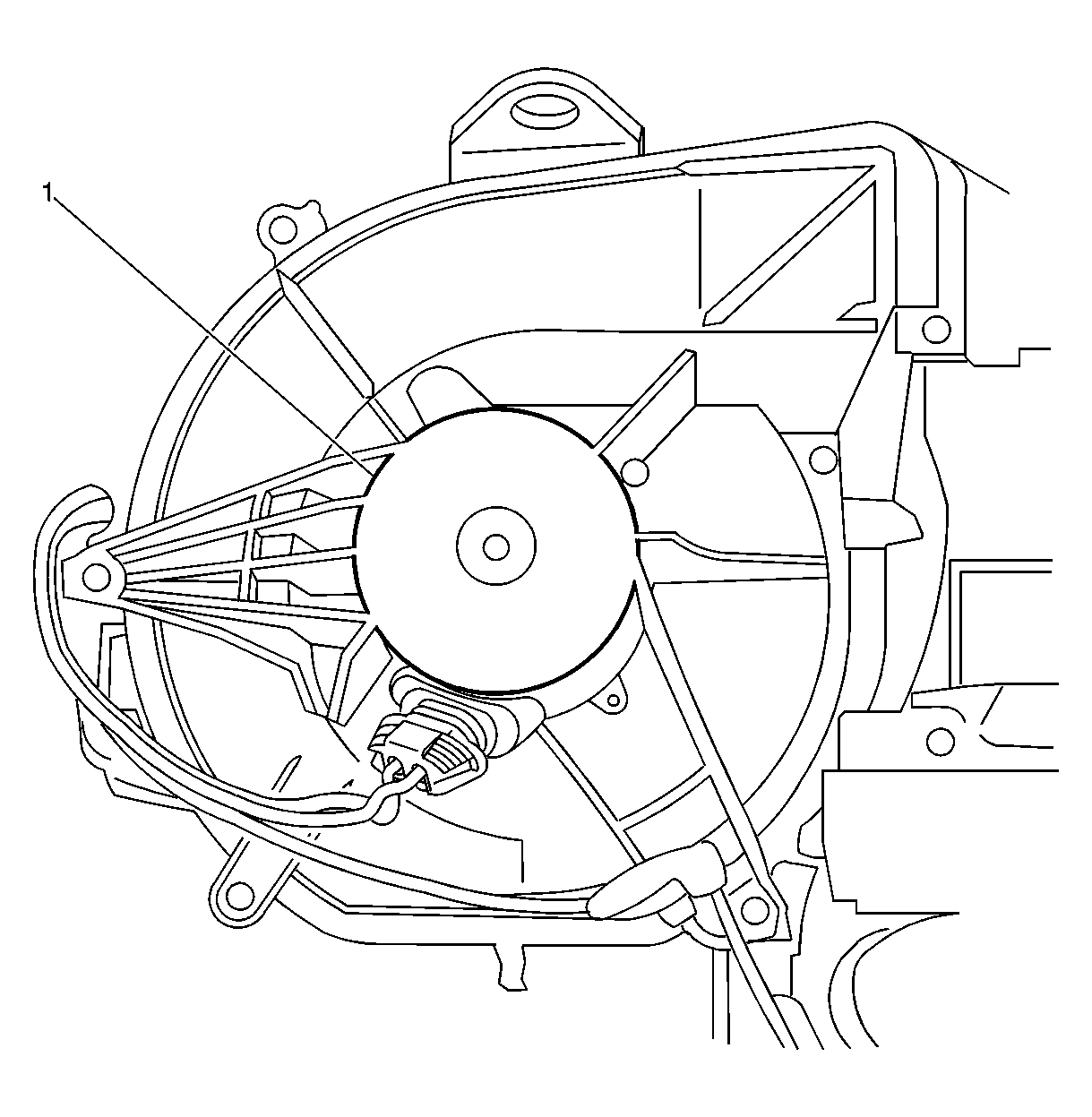

Fig 7: Upper Right Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor

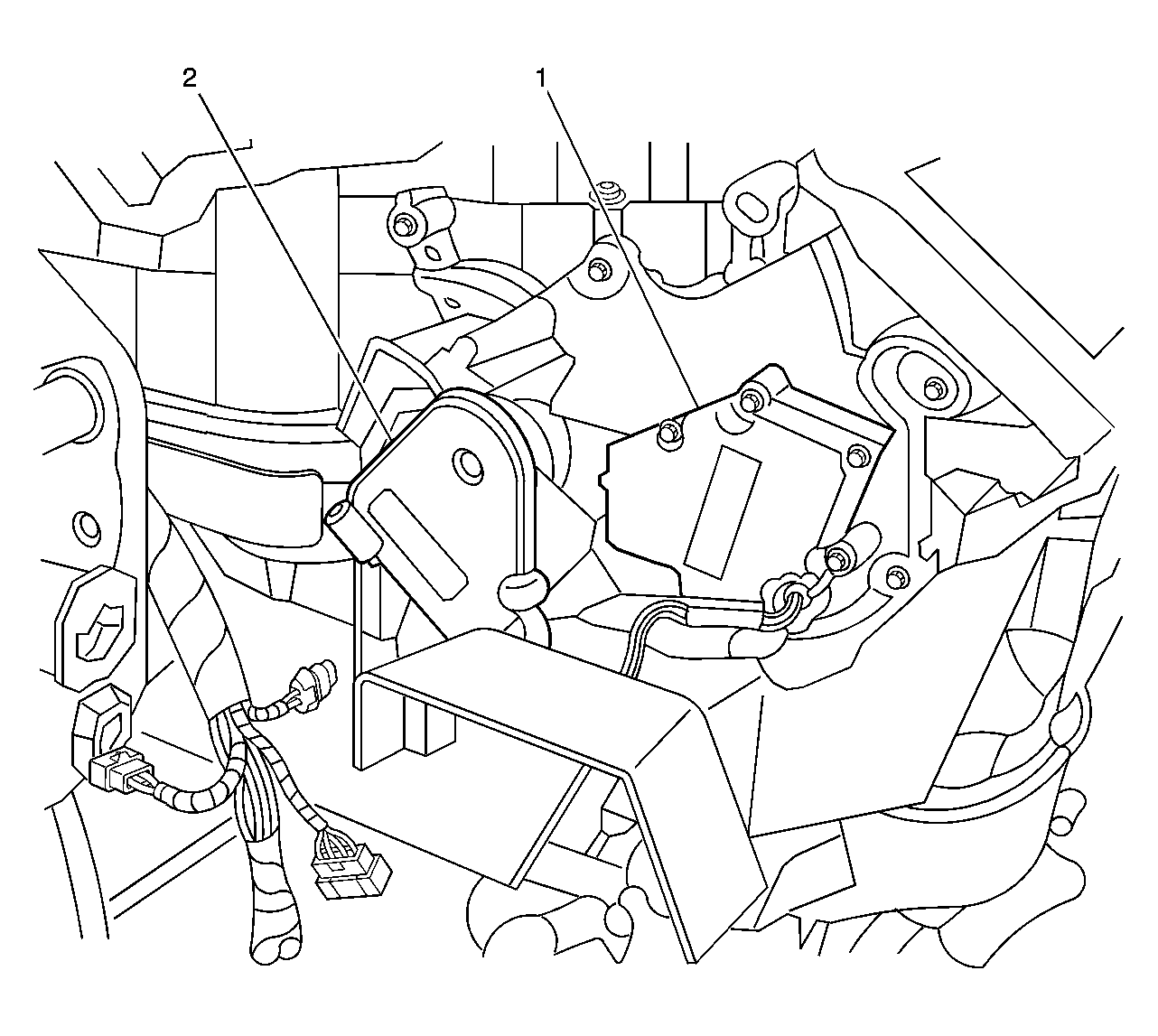

Fig 8: Center Left Side of the Instrument Panel, on the Left Side of the HVAC Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Air Temperature Actuator- Left

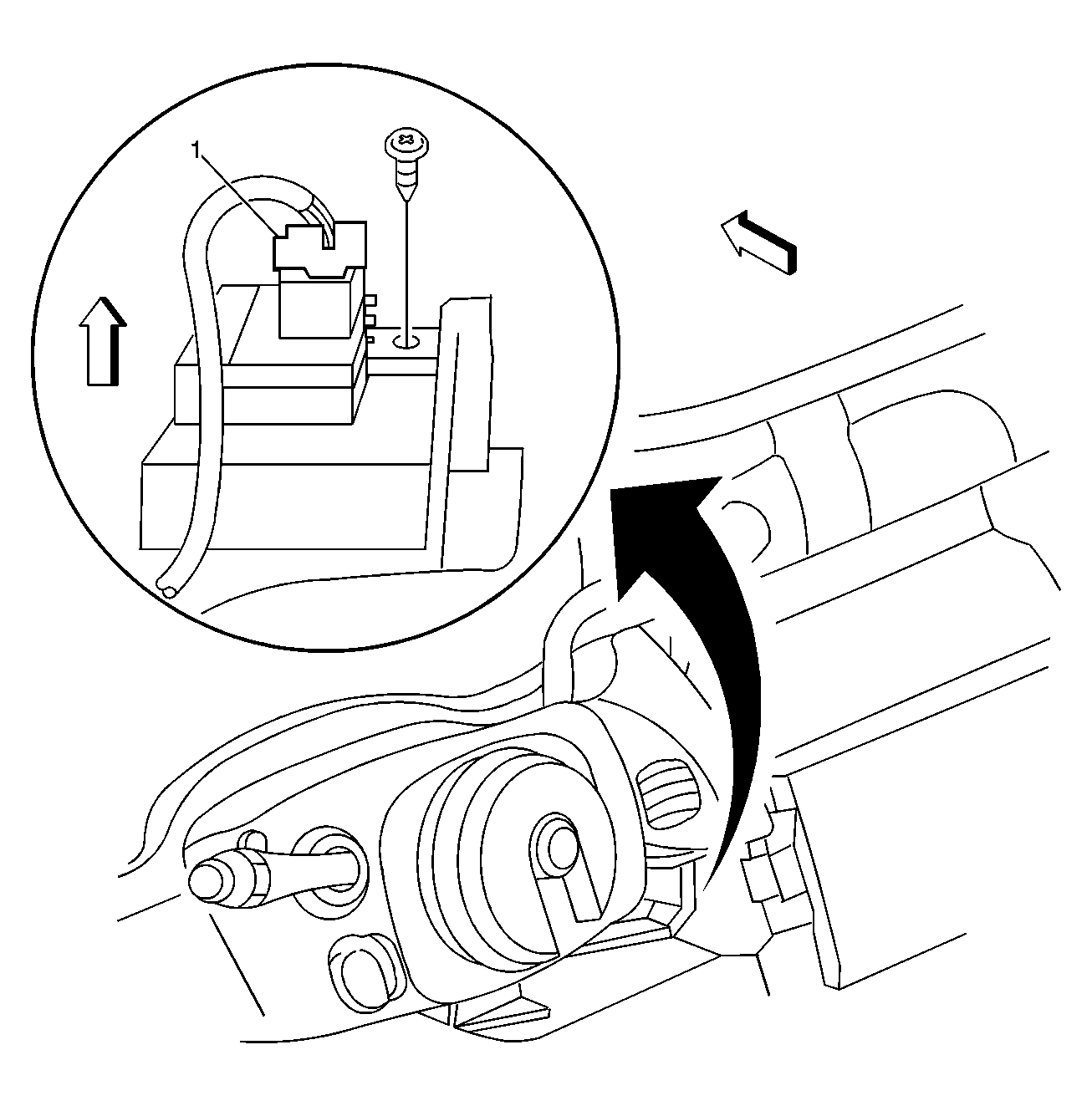

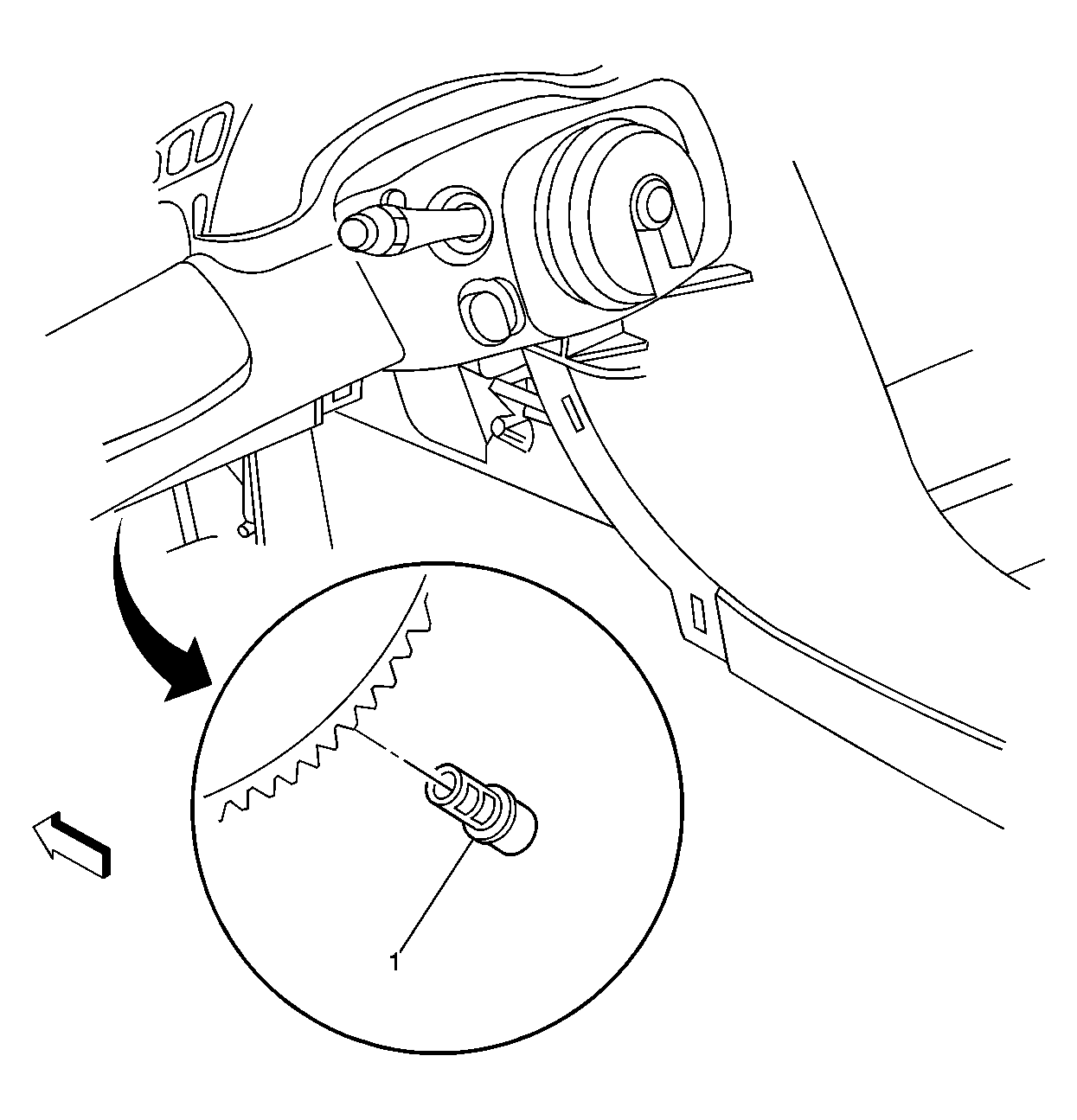

Fig 9: Behind the Left Side of the Instrument Panel, Left of the Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor - Inside

Fig 10: Left Side of the Instrument Panel, Near the Instrument Cluster Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Driver Information Center (DIC) Switch - Left
3	Air Temperature Sensor - Upper Left, Upper Right Similar

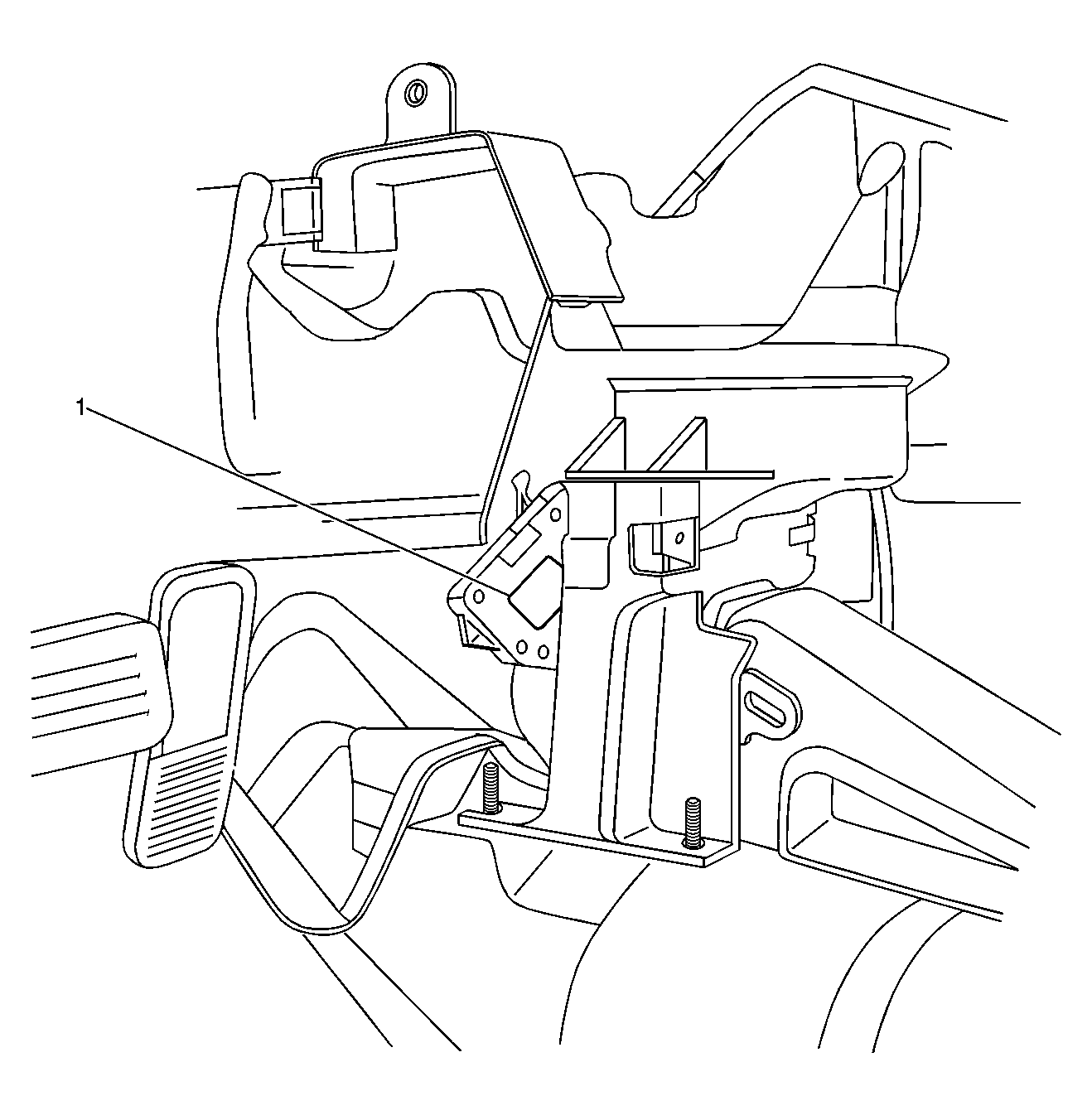

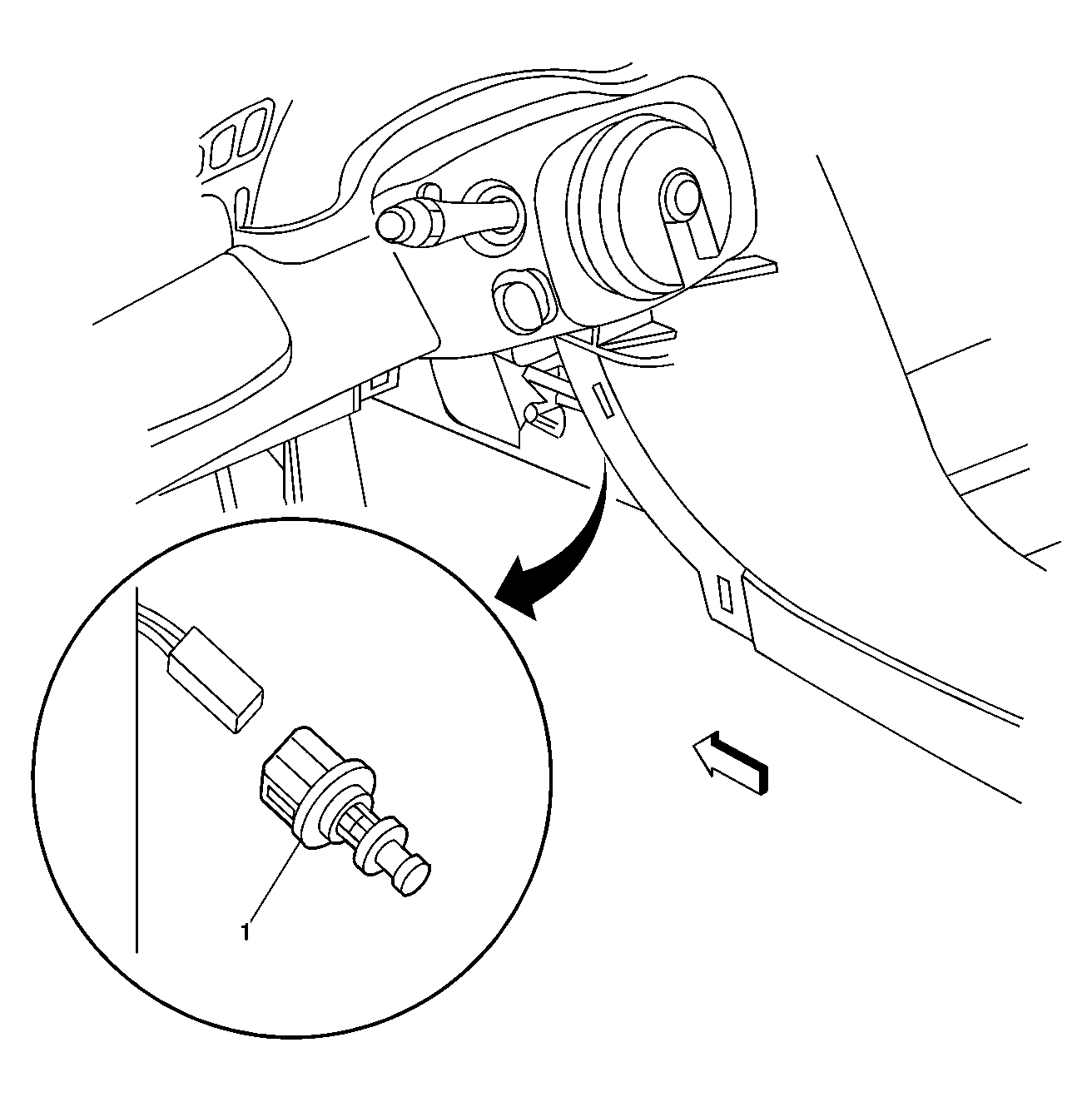

Fig 11: Under the Left Side of the Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor - Lower Left, RH Similar

Fig 12: Left Side of the Instrument Panel, on the Right Side of the HVAC Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Left

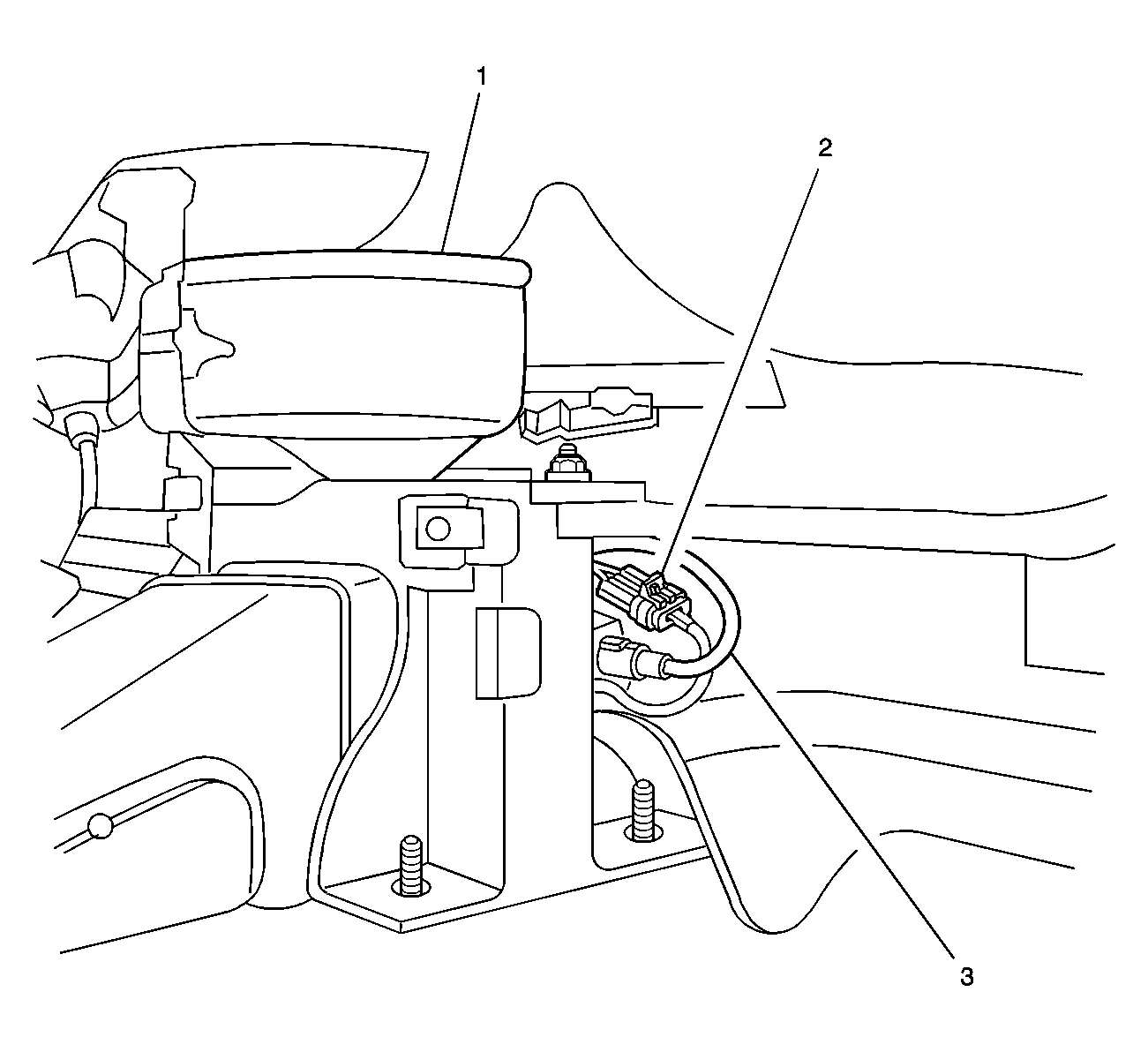

Fig 13: Front of the Center Console, Below the Ashtray Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor - Auxiliary
2	Blower Motor Resistor Assembly - Auxiliary
3	S307

Fig 14: Center of the Passenger Compartment, Behind the Center Console Storage Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module - Auxiliary
2	Auxiliary Power Outlet - RR
3	Auxiliary Power Outlet - LR
4	Auxiliary RCA Video Jacks

Fig 15: Center Front of the Passenger Compartment, Under the Front Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor - Auxiliary
