Removal Procedure

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel right accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Right in Instrument Panel, Gages, and Console.
  2. Disconnect the electrical connector.
    3. Fig 1: View Of Hazard Warning Switch Electrical Connector
    GM488586Courtesy of GENERAL MOTORS CORP.
  3. Remove the hazard switch by releasing the locking tabs.
    4. Fig 2: View Of Hazard Switch Locking Tabs
    GM488584Courtesy of GENERAL MOTORS CORP.
  4. Remove the hazard switch.

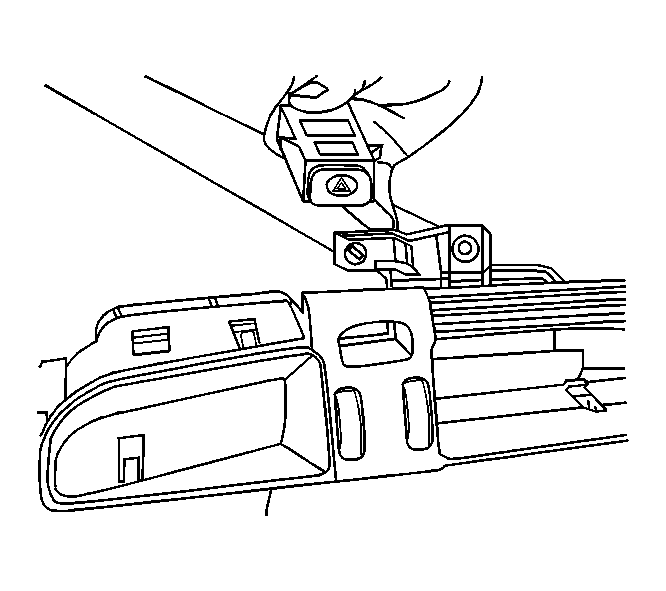

    5. Fig 3: View Of Hazard Switch
    GM488583Courtesy of GENERAL MOTORS CORP.
