Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the new coaxial antenna cable from the IP through the wiring harness conduit to the rear seat area.

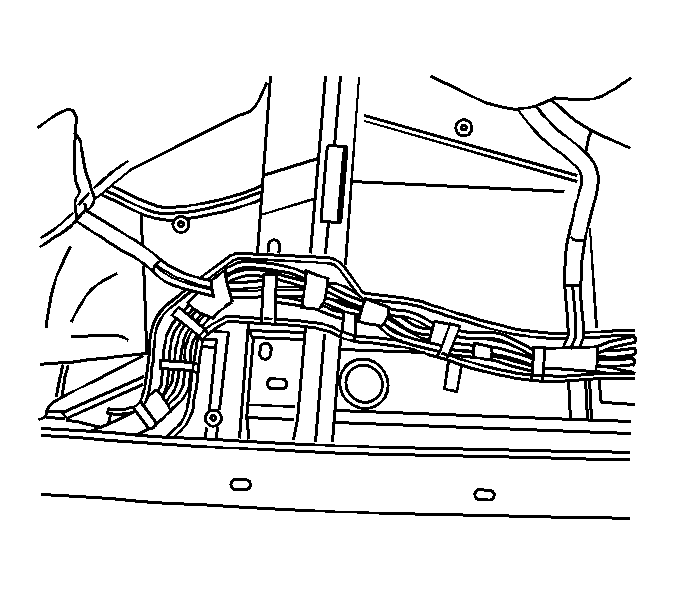

    2. Fig 1: View Of Antenna Coaxial Cable
    GM827592Courtesy of GENERAL MOTORS CORP.
  2. Install the vehicle harness conduit cover (1).

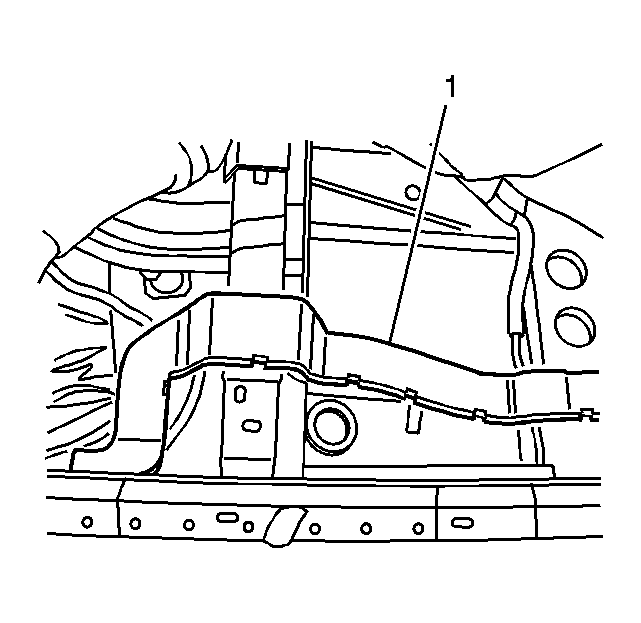

    3. Fig 2: View Of Vehicle Harness Conduit Cover
    GM827594Courtesy of GENERAL MOTORS CORP.
  3. Position the carpet back to the floor, over the vehicle wiring harness.
  4. Route the antenna cable (2) to the antenna module (1).
  5. Connect the antenna cable (2) to the antenna module (1).
  6. Reattach the radio antenna cable (2) to the antenna module wiring harness and clips
    7. Fig 3: View Of Antenna Module & Radio Antenna Cable
    GM827575Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the antenna cable is routed so it will not interfere with the rear seat back and bottom removal and installation procedure.
  7. Tie strap or tape the antenna cable to the electrical wiring harness, in the rear seat area.
  8. Connect the radio antenna cable to the radio extension cable.

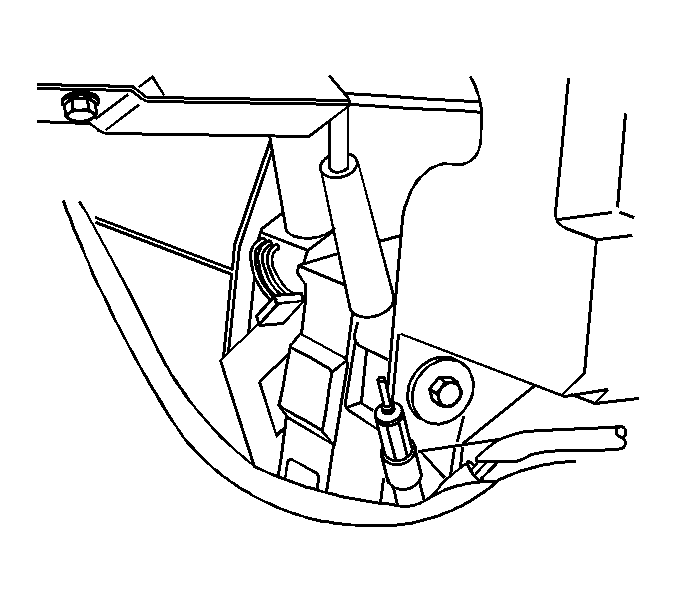

    9. Fig 4: View Of Radio Antenna Extension Cable
    GM827580Courtesy of GENERAL MOTORS CORP.
  9. For DTS vehicles equipped with a floor console, Install the floor console. Refer to Console Replacement - Front Floor (DTS without UV8) or Console Replacement - Front Floor (DTS with UV8) in Instrument Panel, Gages and Console.
  10. For base DeVille and DHS, Install the instrument panel (IP) center compartment. Refer to Compartment Replacement - Instrument Panel (I/P) (Base and DHS) or Compartment Replacement - Instrument Panel (I/P) (DTS) in Instrument Panel, Gages and Console.
  11. Install the left front seat. Refer to Seat Replacement - Bucket in Seats.
  12. Install the left rear sail panel. Refer to Sail Panel Replacement (Standard) or Sail Panel Replacement (WC2, WC8) in Interior Trim.
  13. Install the center pillar garnish molding. Refer to Garnish Molding Replacement - Center Pillar (Standard) or Garnish Molding Replacement - Center Pillar (WC2, WC8) in Interior Trim.
  14. Install the left front carpet retainer. Refer to Carpet Retainer Replacement - Front in Interior Trim.
  15. Install the left rear carpet retainer. Refer to Carpet Retainer Replacement - Rear in Interior Trim.
  16. Install the rear seat back. Refer to Seat Back Replacement - Rear (Standard) or Seat Back Replacement - Rear (WC2, WC8) in Seats
