Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Install the brake pedal assembly into position on the brake booster and cowl studs.

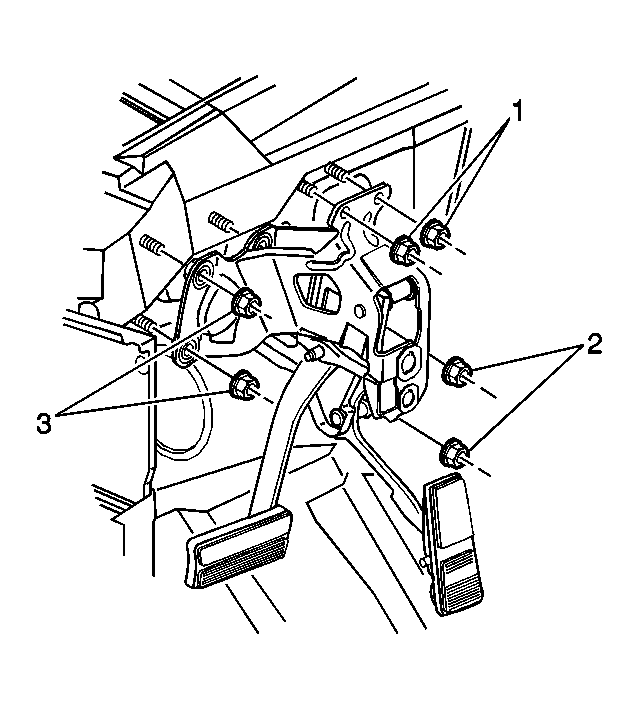

Fig 1: View Of Pedal Bracket Assembly

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the brake pedal assembly to brake booster mounting nuts.
Tighten: Tighten the brake pedal assembly to booster stud mounting nuts to 36 N.m (27 lb ft).
Install the brake pedal assembly to cowl stud mounting nuts (1).
Tighten: Tighten the brake pedal assembly to cowl mounting nuts to 16 N.m (12 lb ft).
Apply a small amount of lubricant, GM P/N 12346293 or equivalent, to the clevis pin of the brake pedal.

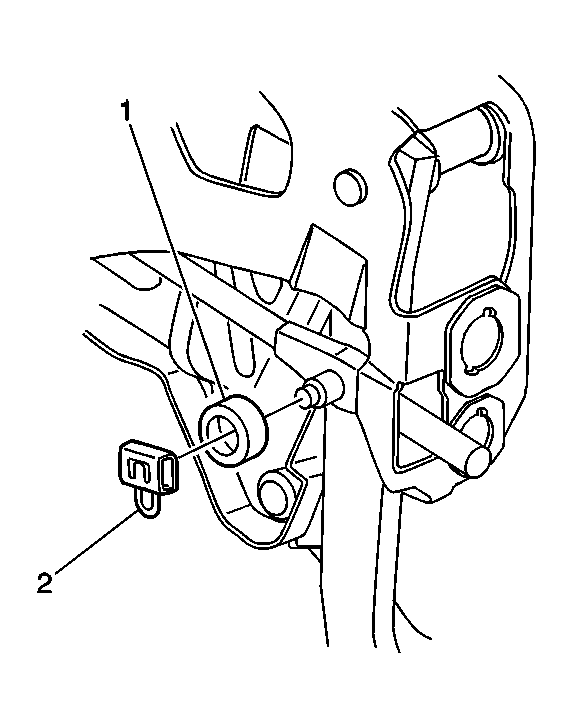

Fig 2: View Of Foam Spacer & Pushrod Retainer Clip

Courtesy of GENERAL MOTORS CORP.

Connect the vacuum brake booster pushrod to the brake pedal assembly clevis pin.
Install the foam spacer to the brake pedal assembly clevis pin.
Install the retainer clip (2) to the brake pedal assembly clevis pin.

Fig 3: Identifying Brake Pedal & Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Install the stop lamp/ABS/shift lock switch (2) to the brake pedal assembly. Refer to Stop Lamp Switch Replacement in Lighting Systems.
Connect the electrical connector to the stoplamp/ABS/shift lock switch.
Install the TCC/cruise control release switch (1) to the brake pedal assembly. Refer to Torque Converter Clutch/Cruise Control Release Switch Replacement in Automatic Transaxle-4T80-E.
Connect the electrical connectors to the TCC/cruise control release switch (1).
Connect the accelerator cable to the brake pedal assembly. Refer to Accelerator Controls Cable Replacement in Engine Controls - 4.6L.
Install the I/P assembly. Refer to Instrument Panel (I/P) Assembly Replacement in Instrument Panel, Gages and Console.
