Steering Column Fuse Holder
WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

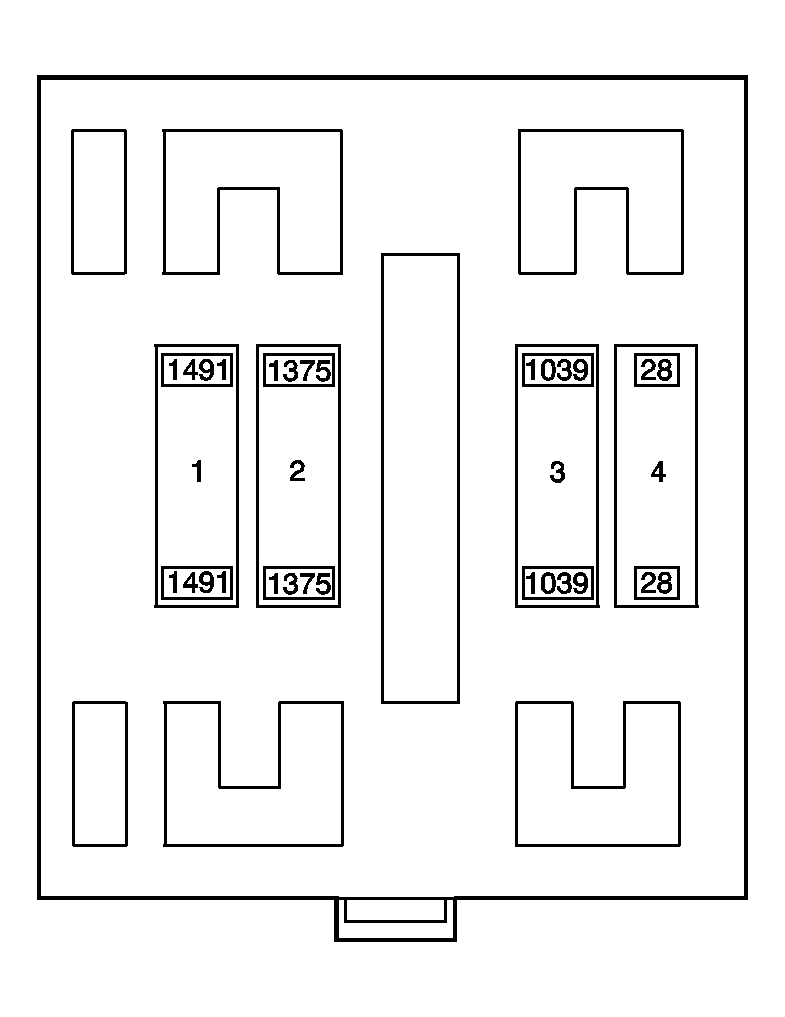

Courtesy of GENERAL MOTORS CORP. Steering Column Fuse Holder
| Fuse |
Rating |
Description |
| Dimming Fuse (1) |
2A |
Steering Wheel Controls Illumination |
| Radio Fuse (2) |
2A |
Steering Wheel Audio Controls |
| Cruise Fuse (3) |
2A |
Steering Wheel Cruise Controls |
| Horn Fuse (4) |
2A |
Horn Switch |
