SIR Connector End Views

WARNING: This page is about a different car, the 2004 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
Inflatable Restraint Front End Sensor Connector End View

GM698674Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356717
  • 2-Way F GT 150 Series (YEL)
Pin Wire Color Circuit No. Function
1 DK GRN 2164 Front End Sensor - Signal
2 TAN 2163 Front End Sensor - Voltage
Inflatable Restraint IP Module (Dual Stage) Connector End View

GM707474Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15358741
  • 4-Way M Micro-Pack 280 Series (YEL)
Pin Wire Color Circuit No. Function
A1 YEL 3025 I/P Module - Stage 1 - High Control
A2 ORN 3024 I/P Module - Stage 1 - Low Control
B1 GRY 3027 I/P Module - Stage 2 - High Control
B2 PPL 3026 I/P Module - Stage 2 - Low Control
Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector End View

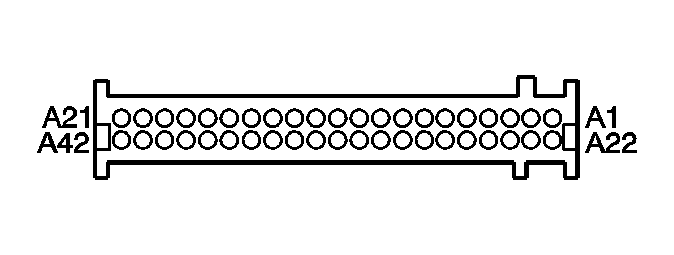

GM798779Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15359269
  • 42-Way F Micro-Pack 100 Series Sealed (YEL)
Pin Wire Color Circuit No. Function
A1 YEL 1139 Ignition 1 Voltage
A2 - - Not Used
A3 BLK/WHT 238 Seat Belt Switch - Left Signal
A4 - - Not Used
A5 DK GRN 2164 Front End Sensor - Signal
A6 - - Not Used
A7 YEL 2131 Side Impact Sensing Module - Left - Voltage
A8 TAN 2133 Side Impact Sensing Module - Right - Voltage
A9 YEL 3025 I/P Module - Stage 1 - High Control
A10 ORN 3027 I/P Module - Stage 2 - High Control
A11 PNK 1363 Seat Belt Switch - Left - Low Reference
A12 BRN 3020 Steering Wheel Module - Stage 1 - Low Control
A13 TAN 3021 Steering Wheel Module - Stage 1 - High Control
A14 GRY 2103 Side Impact Module - Right - High Control
A15 DK BLU 2104 Side Impact Module - Right - Low Control
A16 BRN 2106 Side Impact Module - Left - Low Control
A17 DK GRN 2105 Side Impact Module - Left - High Control
A18 DK GRN/WHT 9410 Side Impact Module - RR - High Control
A19 LT GRN/BLK 9411 Side Impact Module - RR - Low Control
A20 ORN/BLK 9413 Side Impact Module - LR - Low Control
A21 LT GRN/WHT 9412 Side Impact Module - LR - High Control
A22 PPL 1807 Class 2 Serial Data
A23 PPL 1807 Class 2 Serial Data
A24-A25 - - Not Used
A26 TAN 2163 Front End Sensor - Voltage
A27 - - Not Used
A28 WHT 2132 Side Impact Sensing Module - Left - Signal
A29 DK GRN 2134 Side Impact Sensing Module - Right - Signal
A30 GRY 3024 I/P Module - Stage 1 - Low Control
A31 PPL 3026 I/P Module - Stage 2 - Low Control
A32 BLK/WHT 1751 Ground
A33 PNK 3022 Steering Wheel Module - Stage 2 - Low Control
A34 WHT 3023 Steering Wheel Module - Stage 2 - High Control
A35 LT GRN 2116 Seat Belt Pretensioner - Right - High Control
A36 ORN 2117 Seat Belt Pretensioner - Right - Low Control
A37 ORN/BLK 2119 Seat Belt Pretensioner - Left - Low Control
A38 BLK/WHT 2118 Seat Belt Pretensioner - Left - High Control
A39-A42 - - Not Used
Inflatable Restraint Side Impact Sensor (SIS) - Left Connector End View

GM489937Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355117
  • 2-Way F Metri-Pack 150 Series (YEL)
Pin Wire Color Circuit No. Function
A WHT 2132 Side Impact Sensing Module - Left - Signal
B YEL 2131 Side Impact Sensing Module - Left - Voltage
Inflatable Restraint Side Impact Sensor (SIS) - Right Connector End View

GM489937Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355117
  • 2-Way F Metri-Pack 150 Series (YEL)
Pin Wire Color Circuit No. Function
A DK GRN 2134 Side Impact Sensing Module - Right - Signal
B TAN 2133 Side Impact Sensing Module - Right - Voltage
Inflatable Restraint Side Impact Module - LR Connector End View (w/AW9)

GM646194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186799
  • 2-Way M Metri-Pack 280 Series (YEL)
Pin Wire Color Circuit No. Function
A LT GRN/WHT 9412 Side Impact Module - LR - High Control
B ORN/BLK 9413 Side Impact Module - LR - Low Control
Inflatable Restraint Side Impact Module - RR Connector End View (w/AW9)

GM646194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186799
  • 2-Way M Metri-Pack 280 Series (YEL)
Pin Wire Color Circuit No. Function
A DK GRN/WHT 9410 Side Impact Module - RR - High Control
B LT GRN/BLK 9411 Side Impact Module - RR - Low Control
Inflatable Restraint Side Impact Module and Seat Belt Pretensioner - LF Connector End View

GM258658Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304649
  • 6-Way M (YEL)
Pin Wire Color Circuit No. Function
A BLK/WHT 2118 Seat Belt Pretensioner - Left - High Control
B - - Not Used
C DK GRN 2105 Side Impact Module - Left - High Control
D BRN 2106 Side Impact Module - Left - Low Control
E - - Not Used
F ORN/BLK 2119 Seat Belt Pretensioner - Left - Low Control
Inflatable Restraint Side Impact Module and Seat Belt Pretensioner - RF Connector End View

GM258658Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304649
  • 6-Way M (YEL)
Pin Wire Color Circuit No. Function
A LT GRN 2116 Seat Belt Pretensioner - Right - High Control
B - - Not Used
C GRY 2103 Side Impact Module - Right - High Control
D DK BLU 2104 Side Impact Module - Right - Low Control
E - - Not Used
F ORN 2117 Seat Belt Pretensioner - Right - Low Control
Inflatable Restraint Steering Wheel Module Coil - C1 Connector End View

GM707474Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15358741
  • 4-Way M Metri-Pack 280 Series (YEL)
Pin Wire Color Circuit No. Function
A1 TAN 3021 Steering Wheel Module - Stage 1 - High Control
A2 BRN 3020 Steering Wheel Module - Stage 1 - Low Control
B1 WHT 3023 Steering Wheel Module - Stage 2 - High Control
B2 PNK 3022 Steering Wheel Module - Stage 2 - Low Control
Inflatable Restraint Steering Wheel Module Coil - C2 Connector End View

GM739643Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • CA 252-92-4R
  • 2-Way F (GRY)
Pin Wire Color Circuit No. Function
1 TAN 3021 Steering Wheel Module - Stage 1 - High Control
2 BRN 3020 Steering Wheel Module - Stage 1 - Low Control
Inflatable Restraint Steering Wheel Module Coil - C3 Connector End View

GM739646Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • CA-252-92-5Q
  • 2-Way F (PPL)
Pin Wire Color Circuit No. Function
1 WHT 3023 Steering Wheel Module - Stage 2 - High Control
2 PNK 3022 Steering Wheel Module - Stage 2 - Low Control
Inflatable Restraint Steering Wheel Module Coil - C4 Connector End View

GM808703Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064770
  • 10-Way M Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A GRY 397 Cruise Control On Switch Signal
GRY 397 Cruise Control On Switch Signal
B PNK 1039 Ignition 1 Voltage
C DK BLU 84 Cruise Control Set/Coast Switch Signal
D GRY/BLK 87 Cruise Control Resume/Accel Switch Signal
E PPL 1375 Remote Radio Control Supply Voltage
F YEL 1491 Backlight Lamps Control
G DK BLU 1796 Steering Wheel Controls Signal
DK BLU 1796 Steering Wheel Controls Signal
H BLK 350 Ground
J BLK 28 Horn Relay Control
K - - Not Used
