Installation Procedure

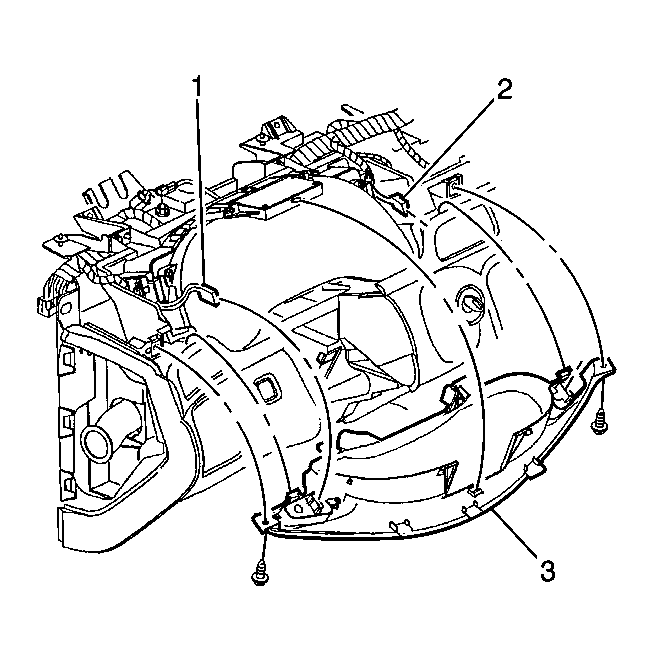

    Fig 1: Identifying Left & Right DIC Switch Electrical Connectors & IP Cluster Trim
    GM105548Courtesy of GENERAL MOTORS CORP.
  1. Align the switch that was removed with the instrument cluster trim panel (3) and install the fasteners.
  2. Connect the two electrical connectors to the driver information center switches (1,2).
  3. Install the instrument cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster .
