Installation Procedure

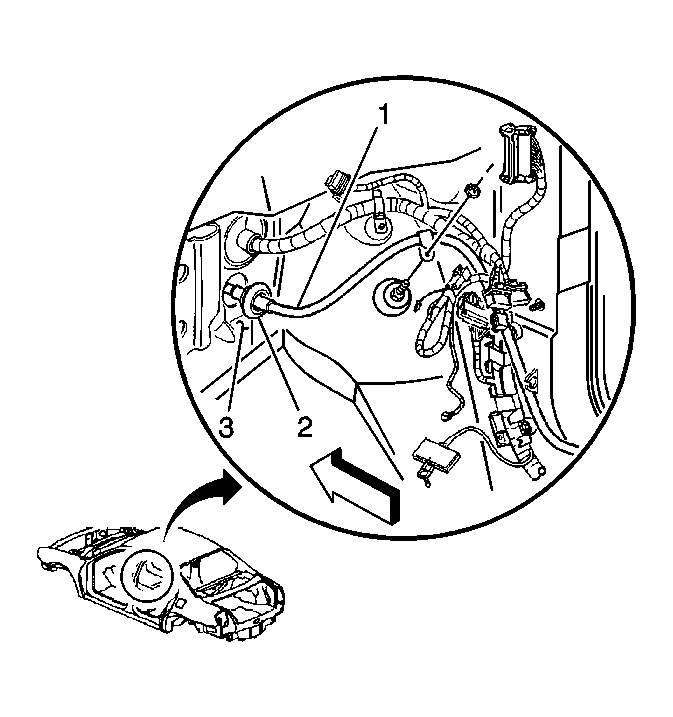

Fig 1: View of Battery Cable, Grommet, & Cowl Panel

Courtesy of GENERAL MOTORS CORP.

Slide the battery cable (1) through the opening in the cowl panel (3) and seat the cable grommet (2) by pulling the cable forward into the engine compartment.

Fig 2: View of Battery Cable Retainer

Courtesy of GENERAL MOTORS CORP.

Fig 3: View of Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Connect the positive battery cable to the underhood fuse block (2).
Tighten: Tighten the battery cable to remote positive terminal nut (1) to 12 N.m (106 lb in).

Fig 4: Identifying Battery Cable Retainers

Courtesy of GENERAL MOTORS CORP.

Route the battery cable (1) along the rocker panel and install the cable retainers (2).
Install the right closeout insulator panel. Refer to Closeout/Insulator Panel Replacement - Right (LHD) or Closeout/Insulator Panel Replacement - Right (RHD) in Instrument Panel, Gages and Console.
Install the interior trim moldings. Refer to Garnish Molding Replacement - Center Pillar in Interior Trim to expose the positive battery cable.

Fig 5: View Of Rear Fuse Block

Courtesy of GENERAL MOTORS CORP.

Connect the positive battery cable to the rear fuse block.
Tighten: Tighten the battery cable to the rear fuse block nut (1) to 15 N.m (11 lb ft).

Fig 6: Disconnecting Positive Battery Cable

Courtesy of GENERAL MOTORS CORP.

Connect the positive battery cable (1) to the battery.
Tighten: Tighten the battery cable bolt to 17 N.m (13 lb ft).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
