Power Distribution Schematics

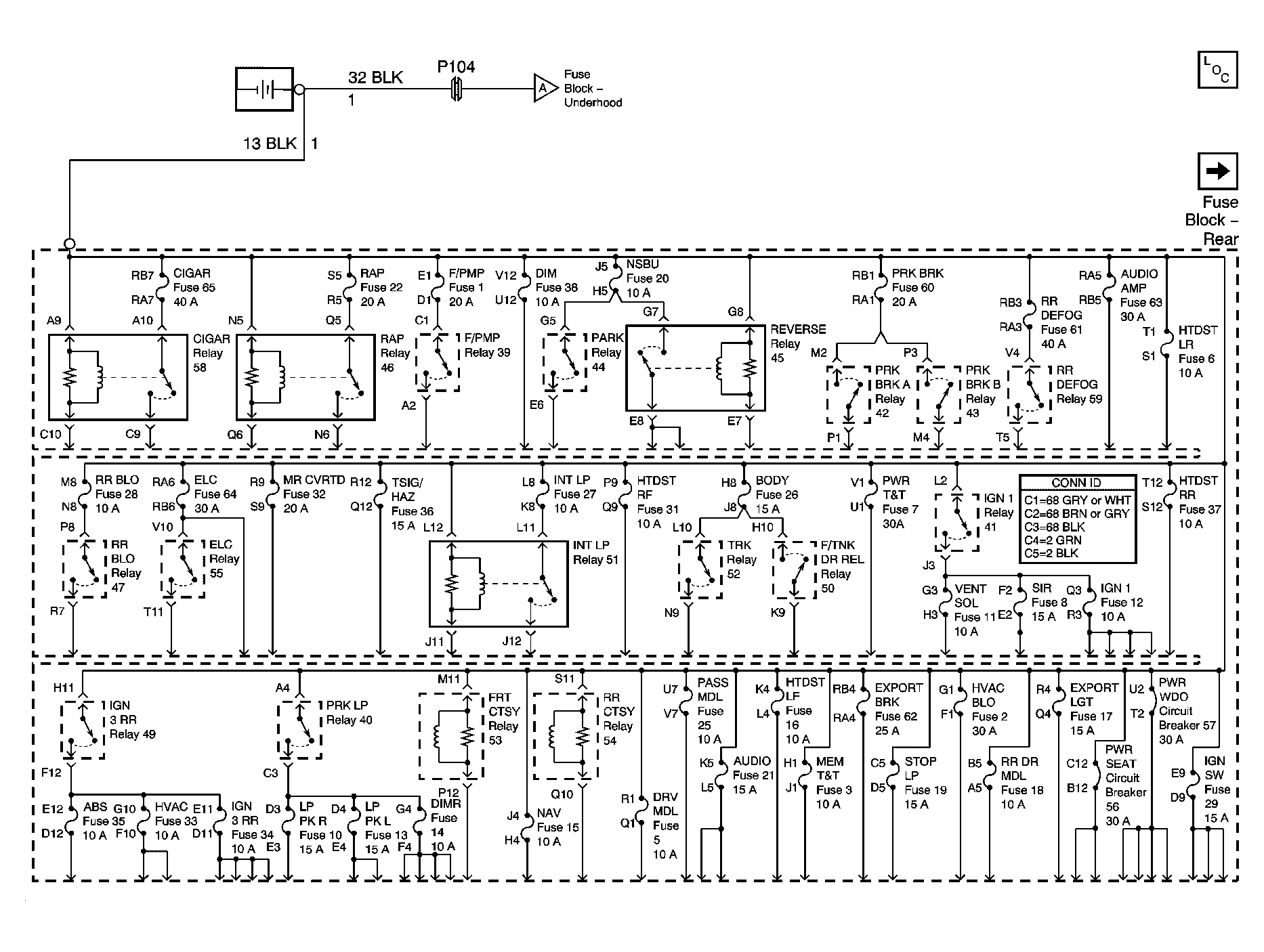

Fig 1: Battery Feed to Fuse Block - Rear Schematic

GM899926

Courtesy of GENERAL MOTORS CORP.

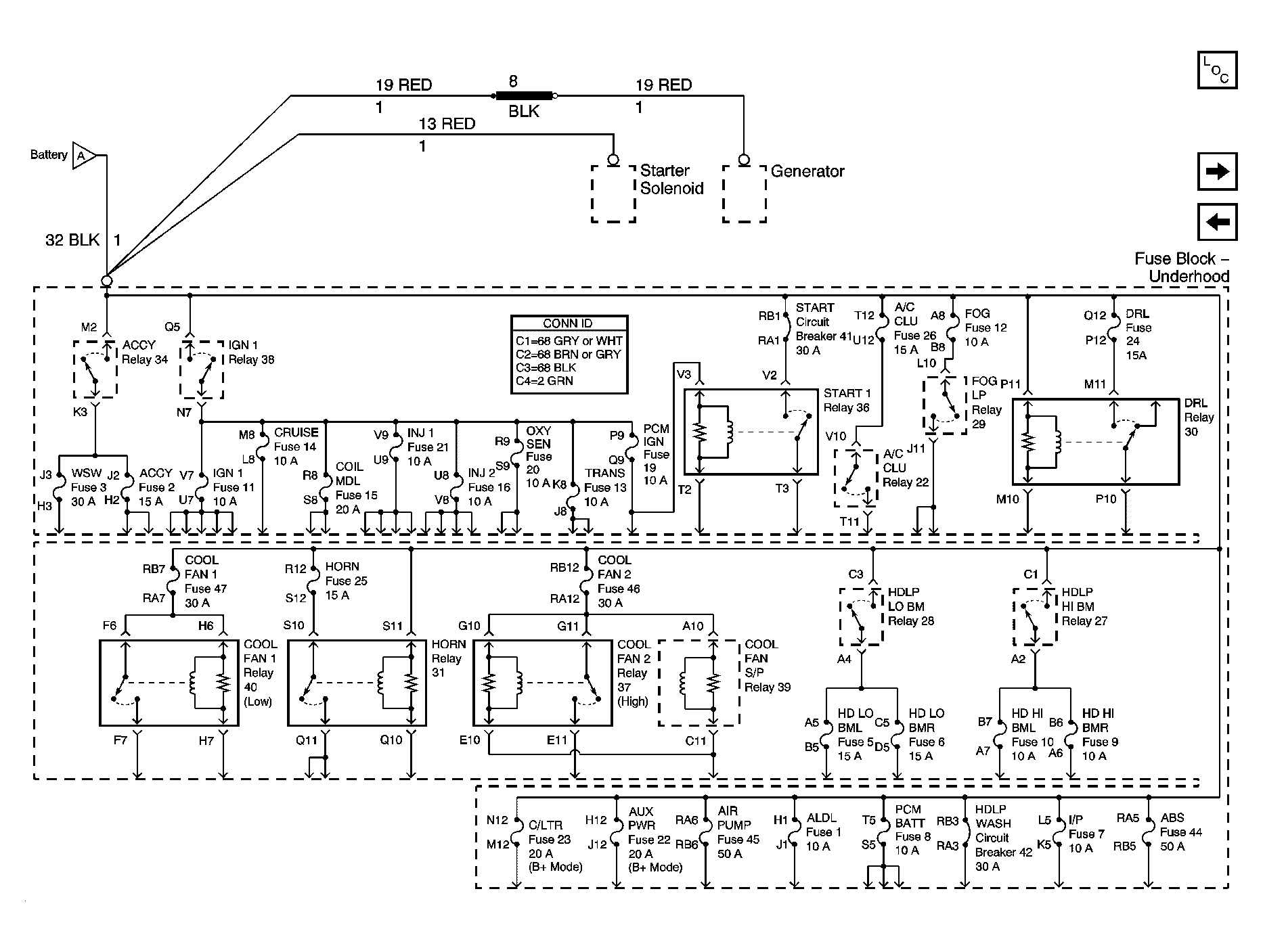

Fig 2: Battery Feed to Fuse Block - Underhood Schematic

GM879618

Courtesy of GENERAL MOTORS CORP.

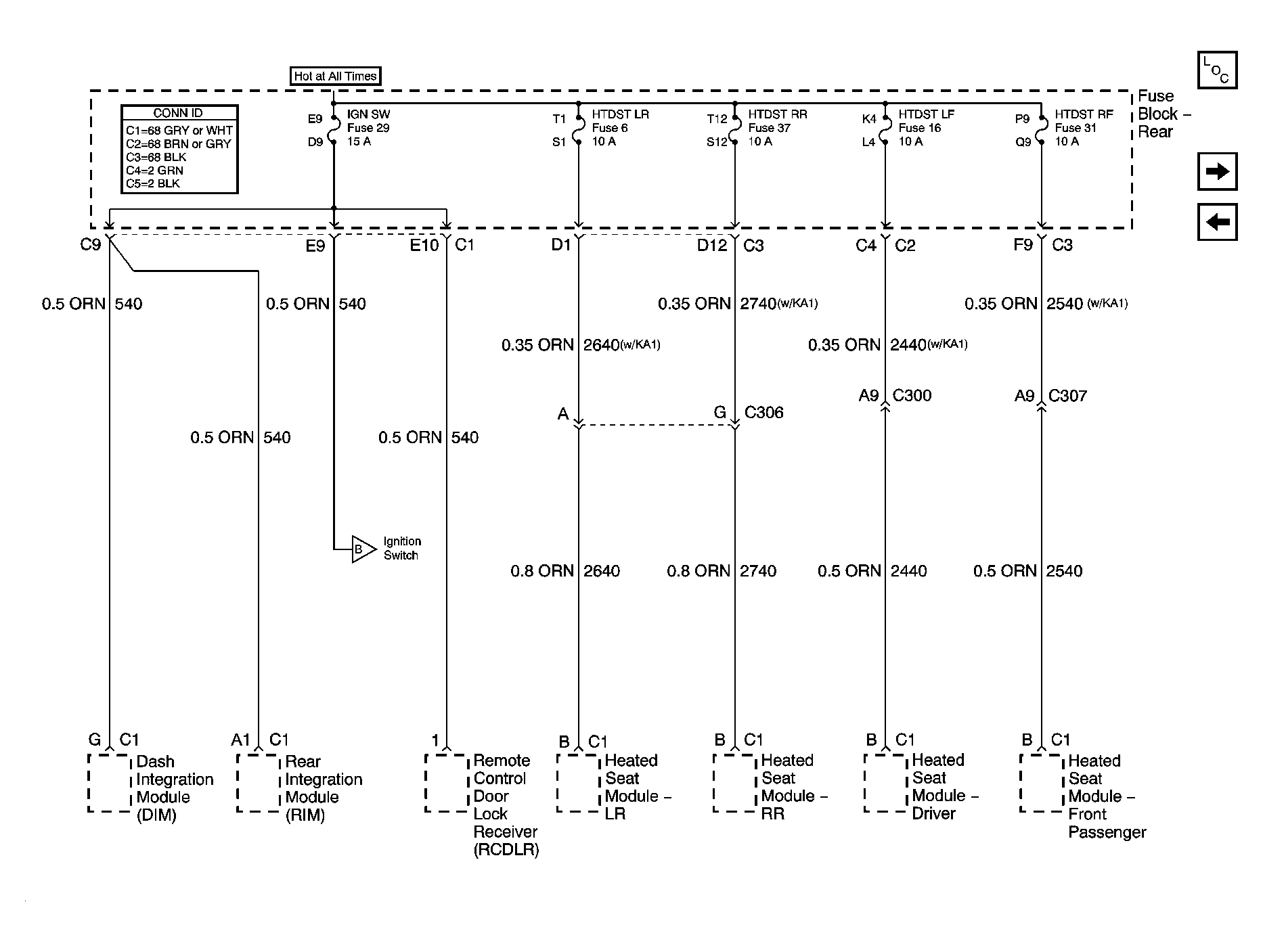

Fig 3: IGN SW and HTDST Fuses Schematic

GM879619

Courtesy of GENERAL MOTORS CORP.

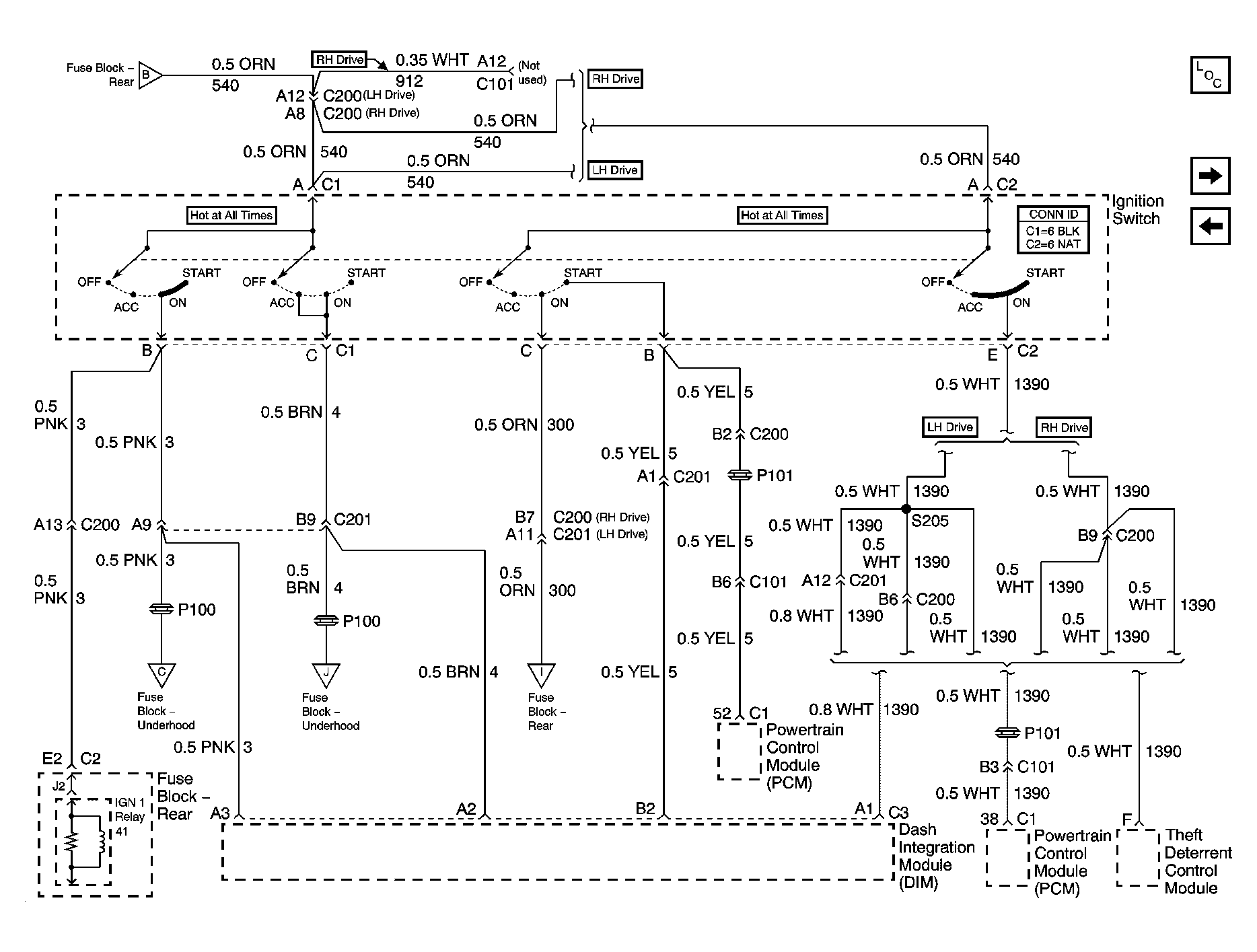

Fig 4: Ignition Switch Supply Schematic

GM1230546

Courtesy of GENERAL MOTORS CORP.

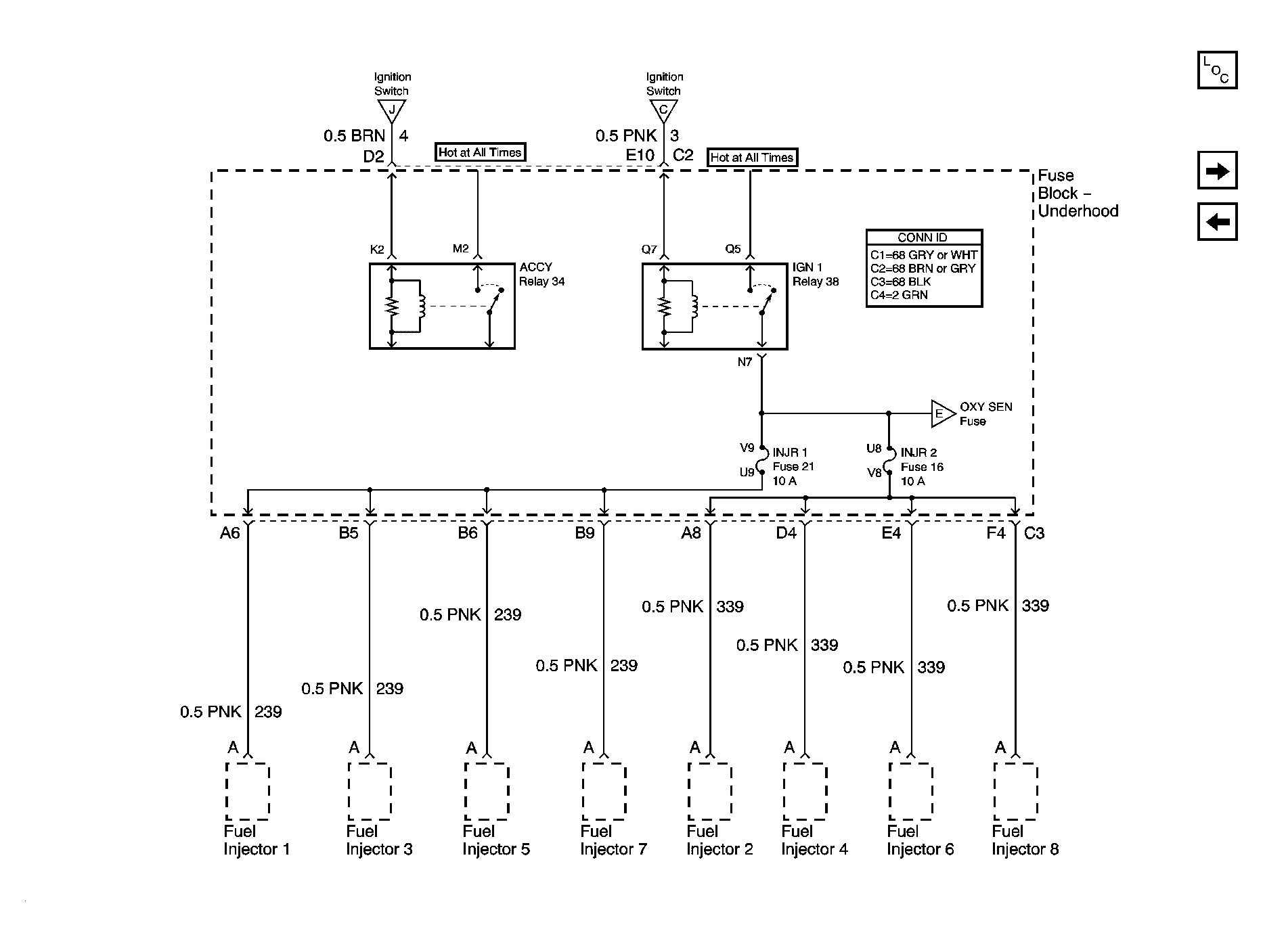

Fig 5: ACCY and IGN 1 Relays and INJR 1 and INJR 2 Fuses Schematic

GM1251877

Courtesy of GENERAL MOTORS CORP.

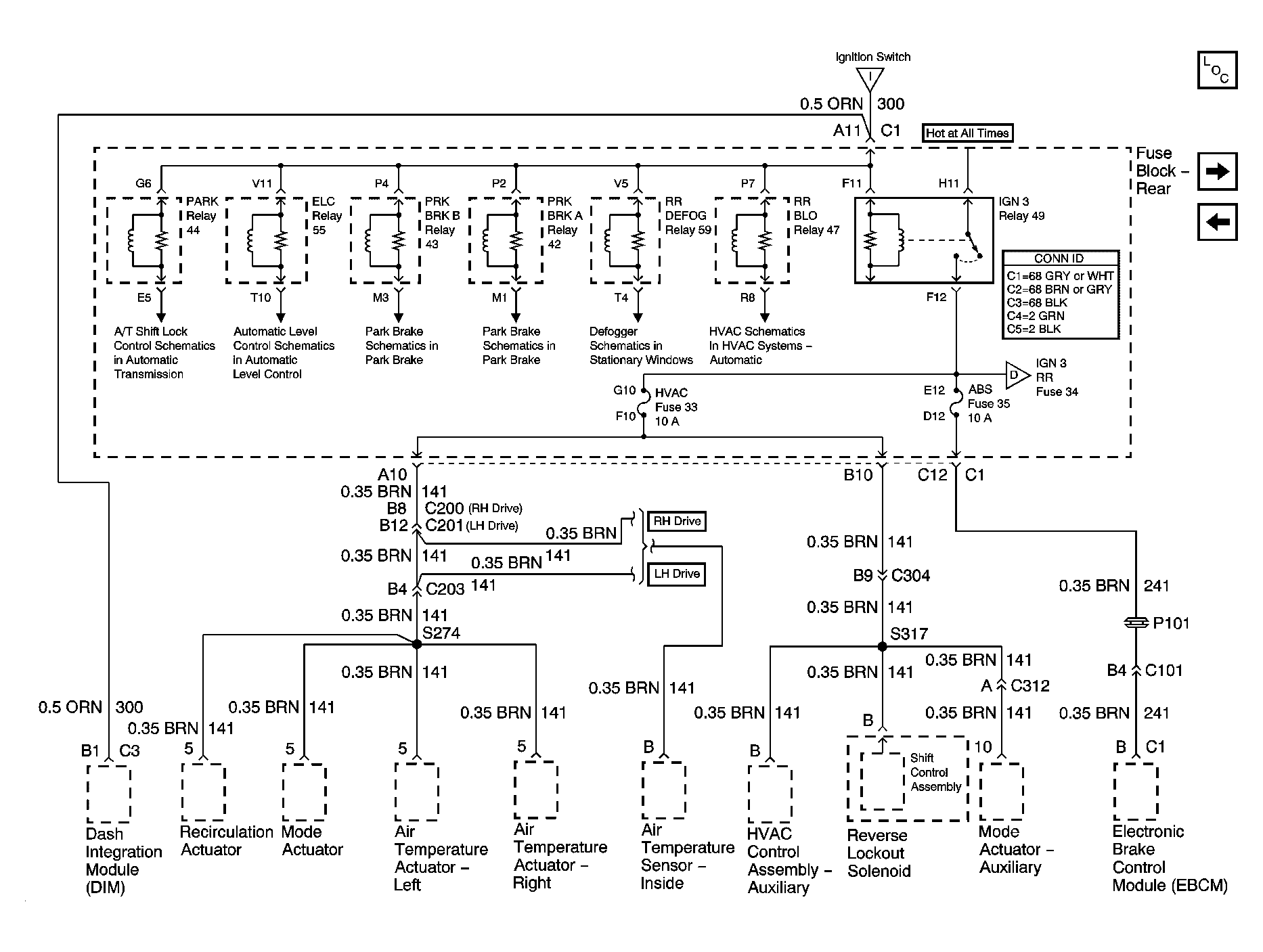

Fig 6: Ignition Switch Supply and HVAC and ABS Fuses Schematic

GM879624

Courtesy of GENERAL MOTORS CORP.

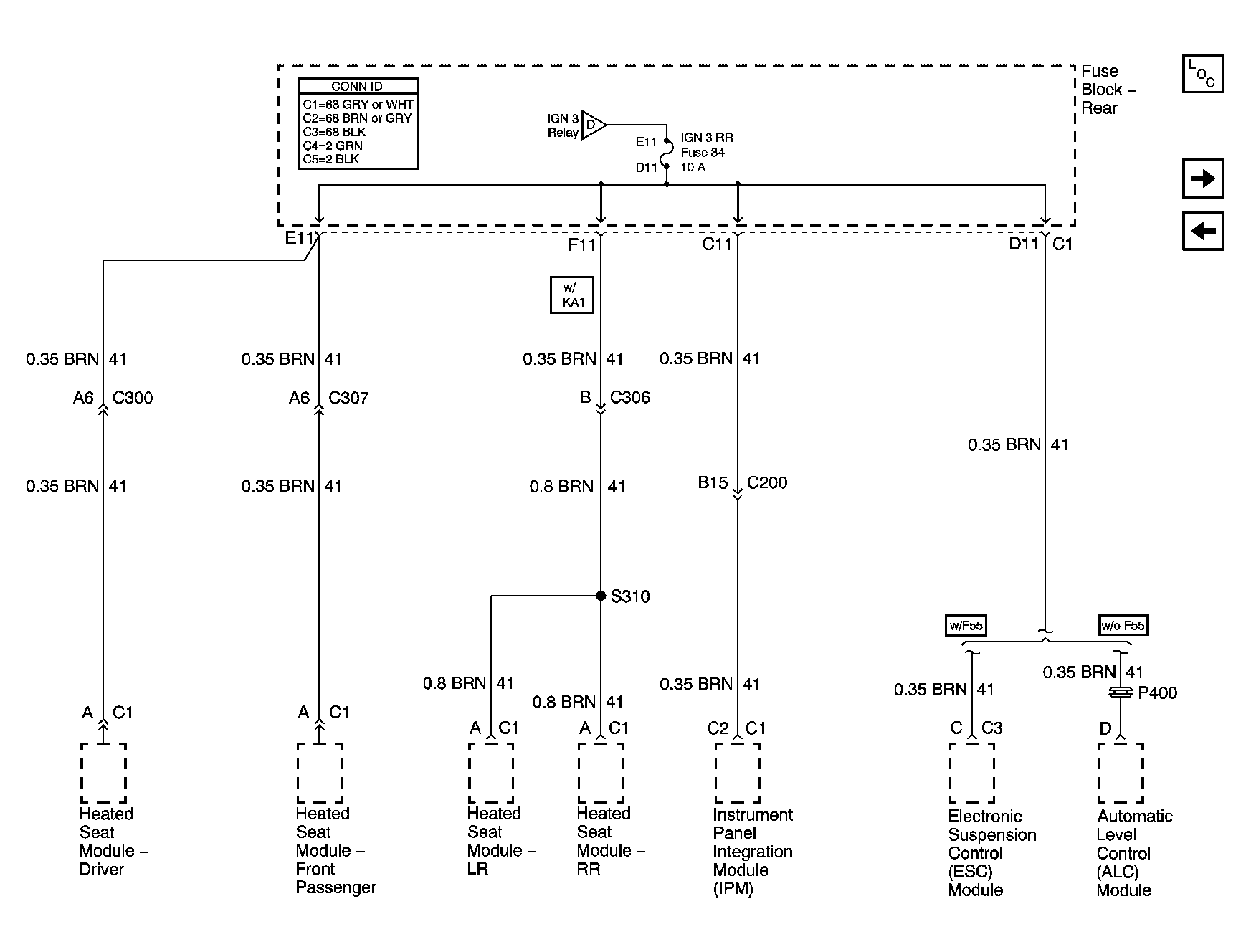

Fig 7: IGN 3 RR Fuse Schematic

GM879626

Courtesy of GENERAL MOTORS CORP.

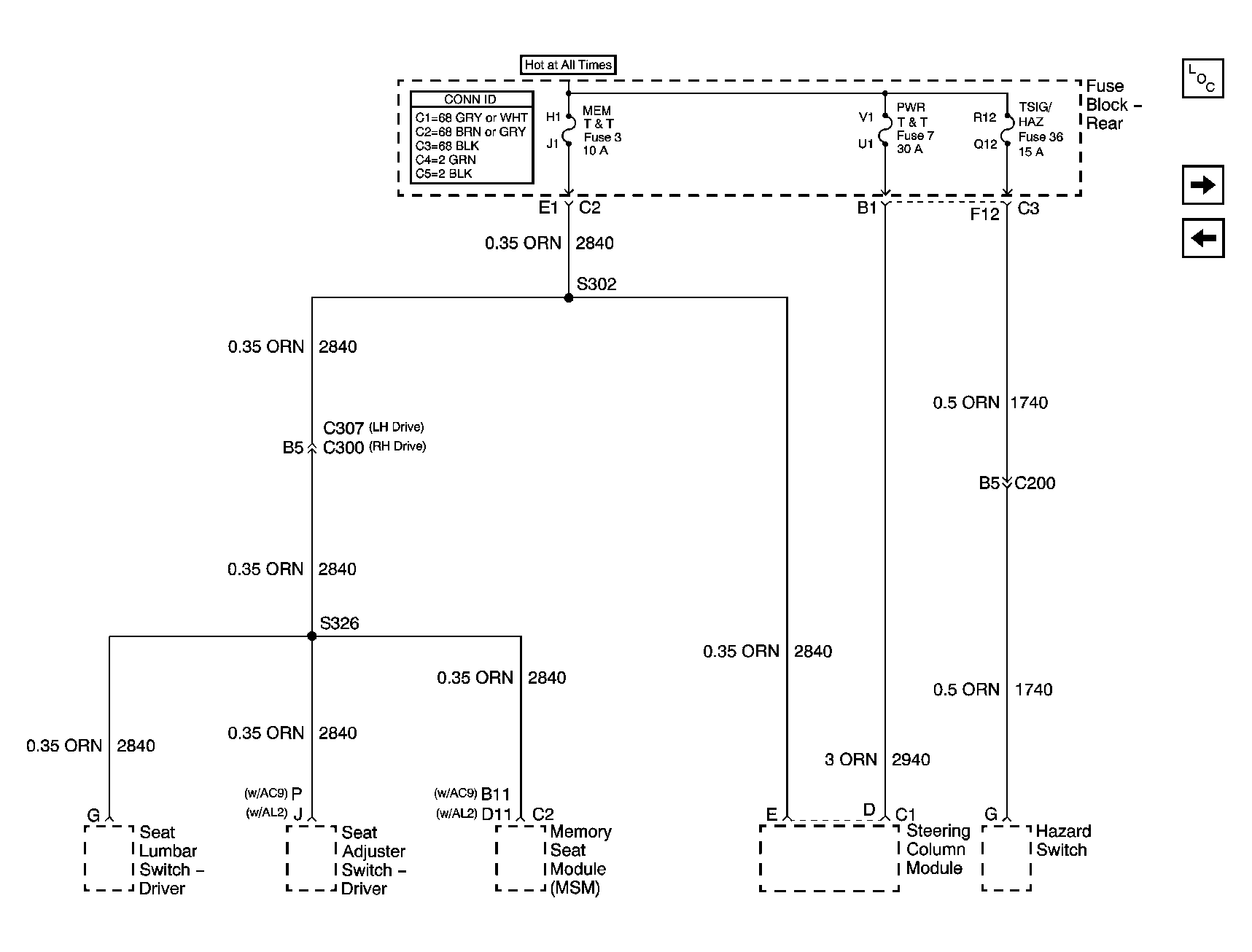

Fig 8: MEM T&T, PWR T&T, and TSIG/HAZ Fuses Schematic

GM879627

Courtesy of GENERAL MOTORS CORP.

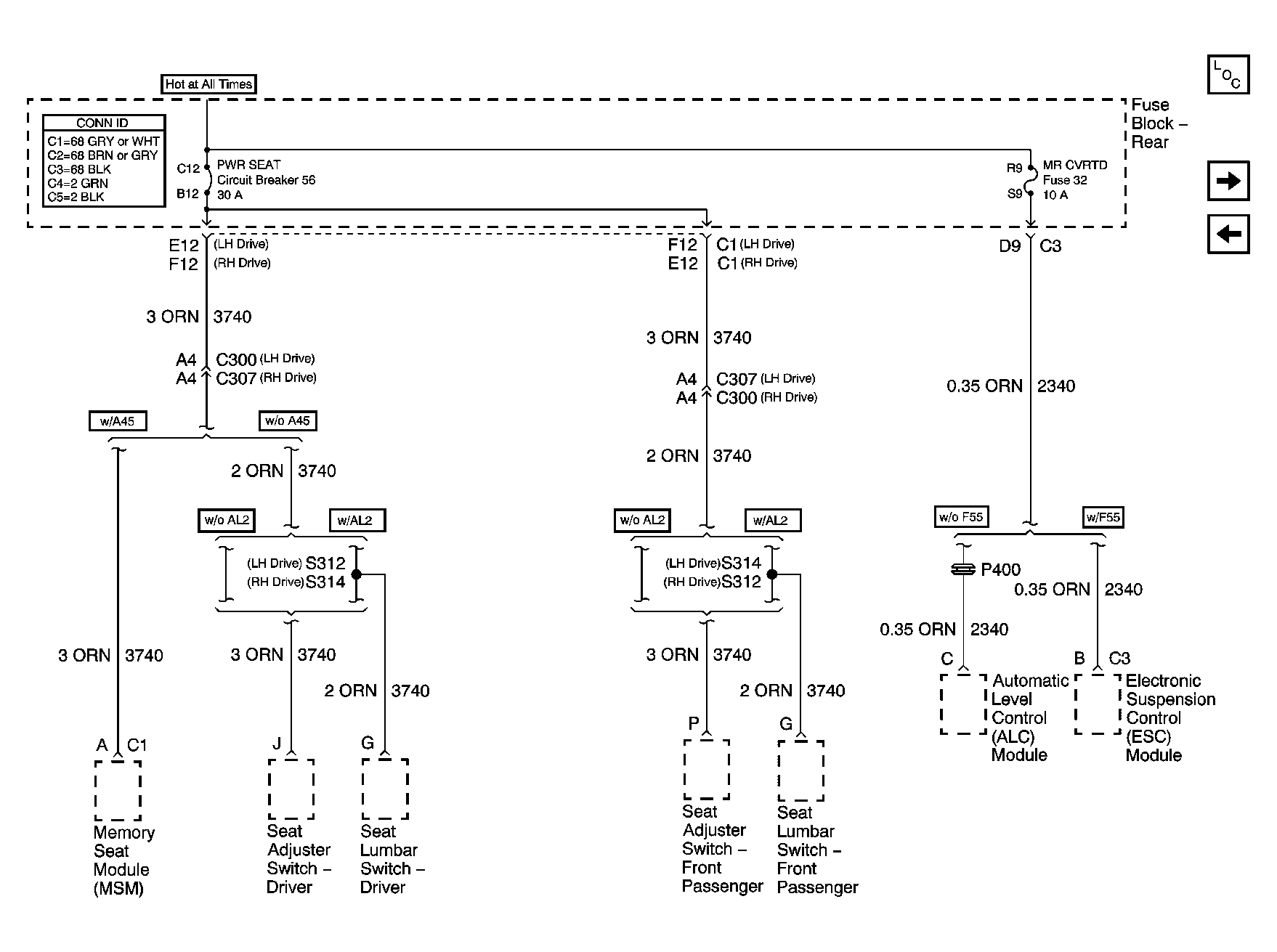

Fig 9: PWR SEAT Circuit Breaker and CVRTD Fuse Schematic

GM879629

Courtesy of GENERAL MOTORS CORP.

Fig 10: OXY SEN, CRUISE Fuses Schematic

GM1370956

Courtesy of GENERAL MOTORS CORP.

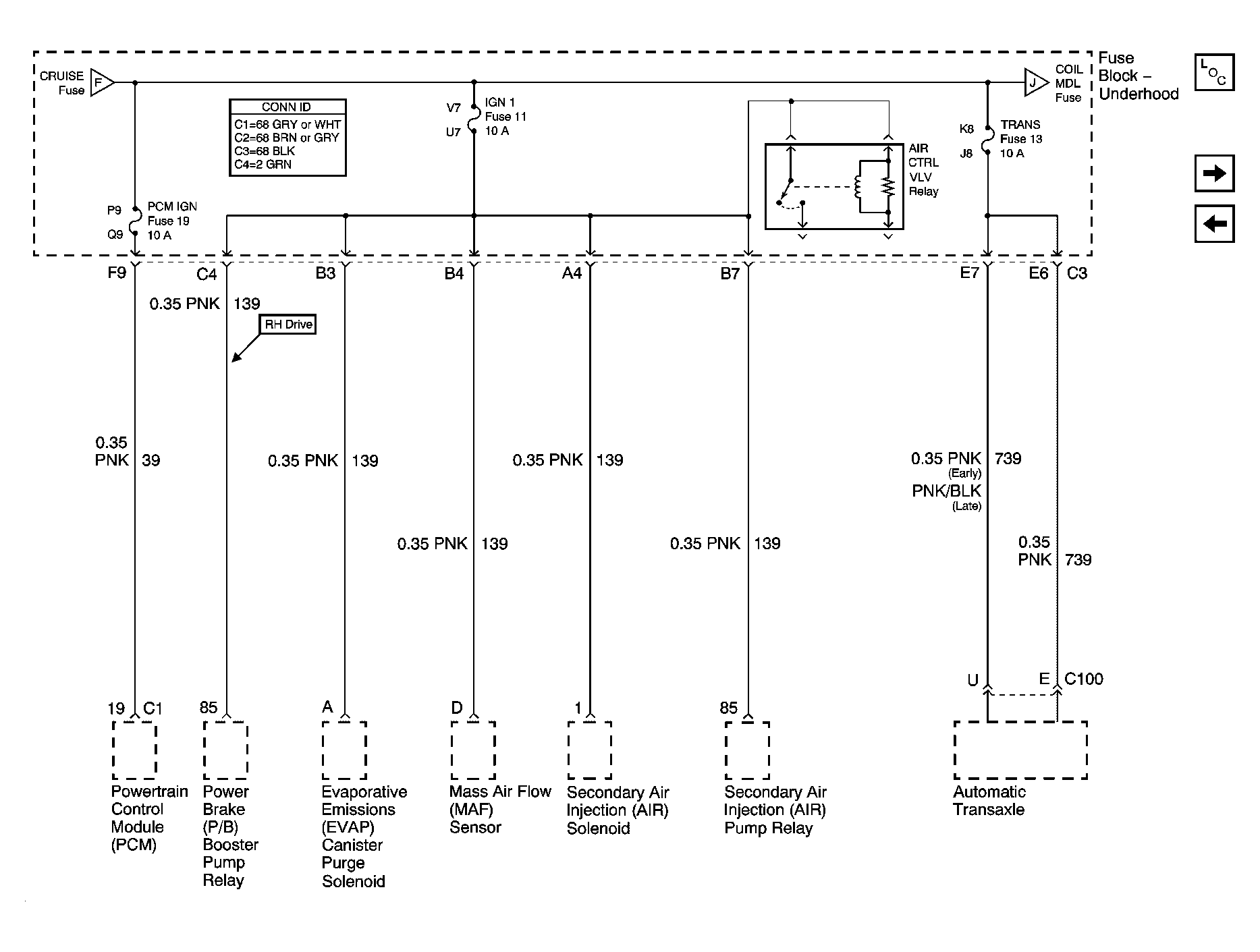

Fig 11: IGN 1 Fuse Schematic

GM1220866

Courtesy of GENERAL MOTORS CORP.

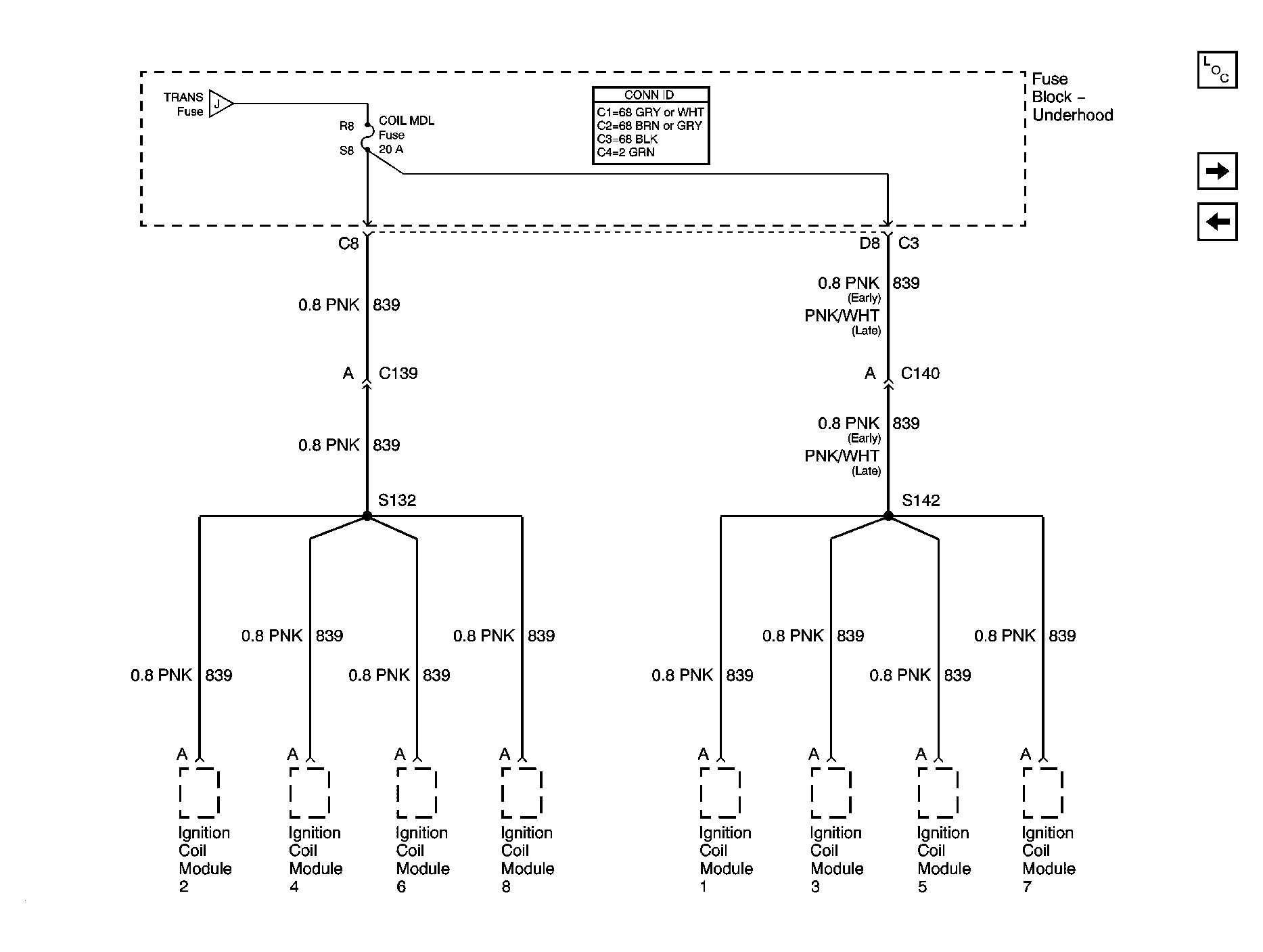

Fig 12: Coil Module Fuse Schematic

GM1370954

Courtesy of GENERAL MOTORS CORP.

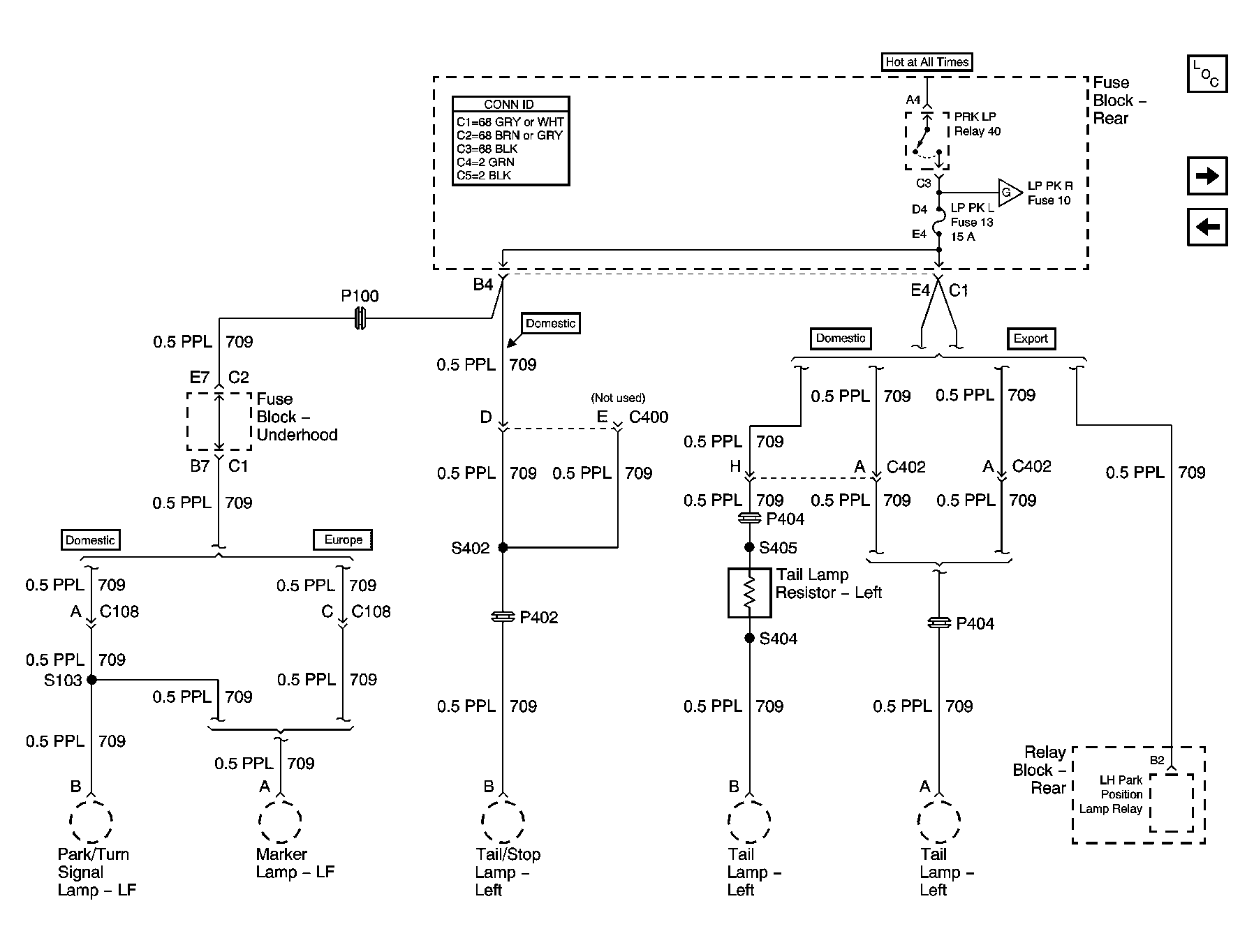

Fig 13: PRK LP Relay and LP PK L Fuse Schematic

GM879634

Courtesy of GENERAL MOTORS CORP.

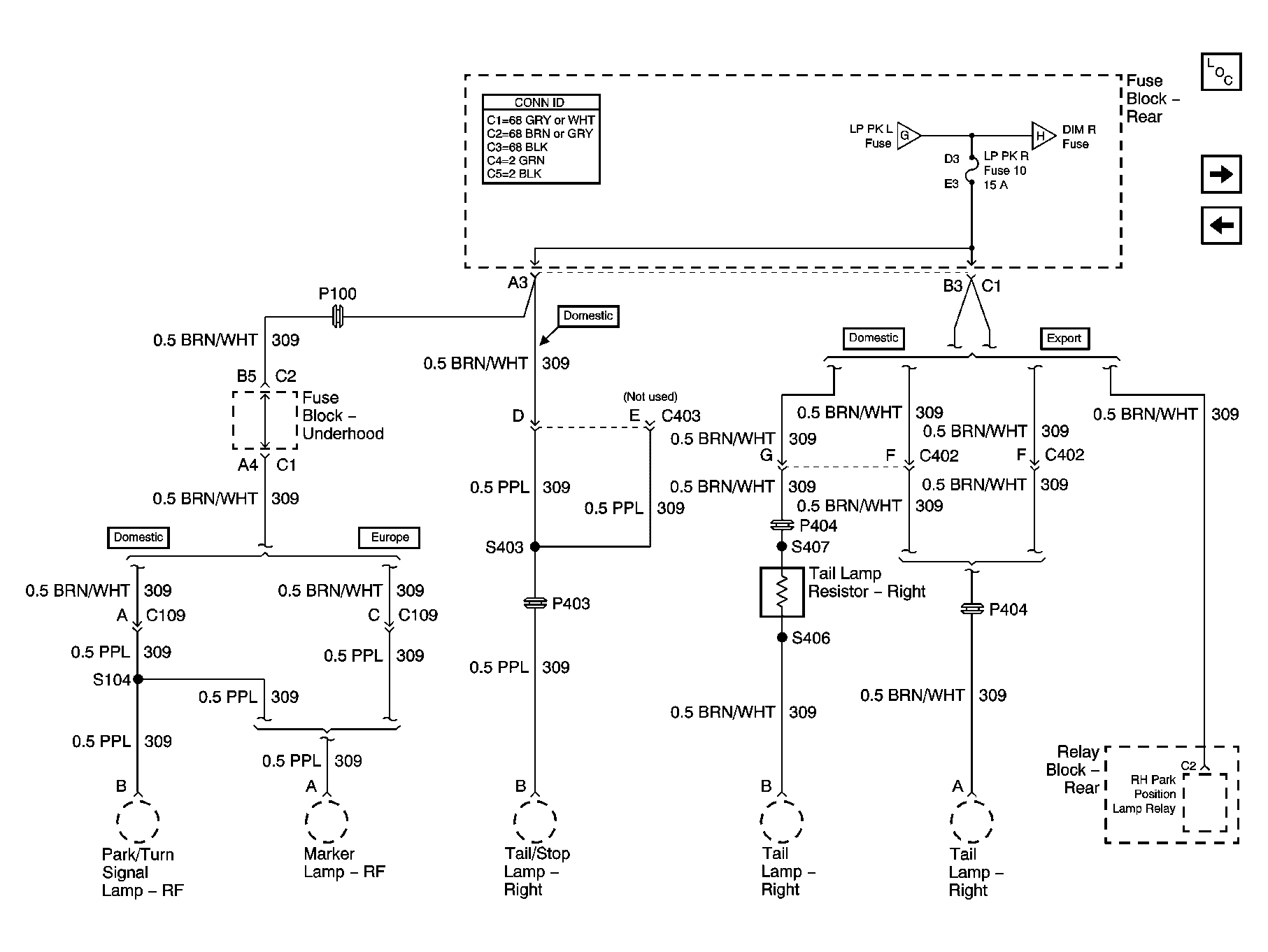

Fig 14: LP PK R Fuse Schematic

GM879635

Courtesy of GENERAL MOTORS CORP.

Fig 15: DIMR Fuse Schematic

GM864260

Courtesy of GENERAL MOTORS CORP.

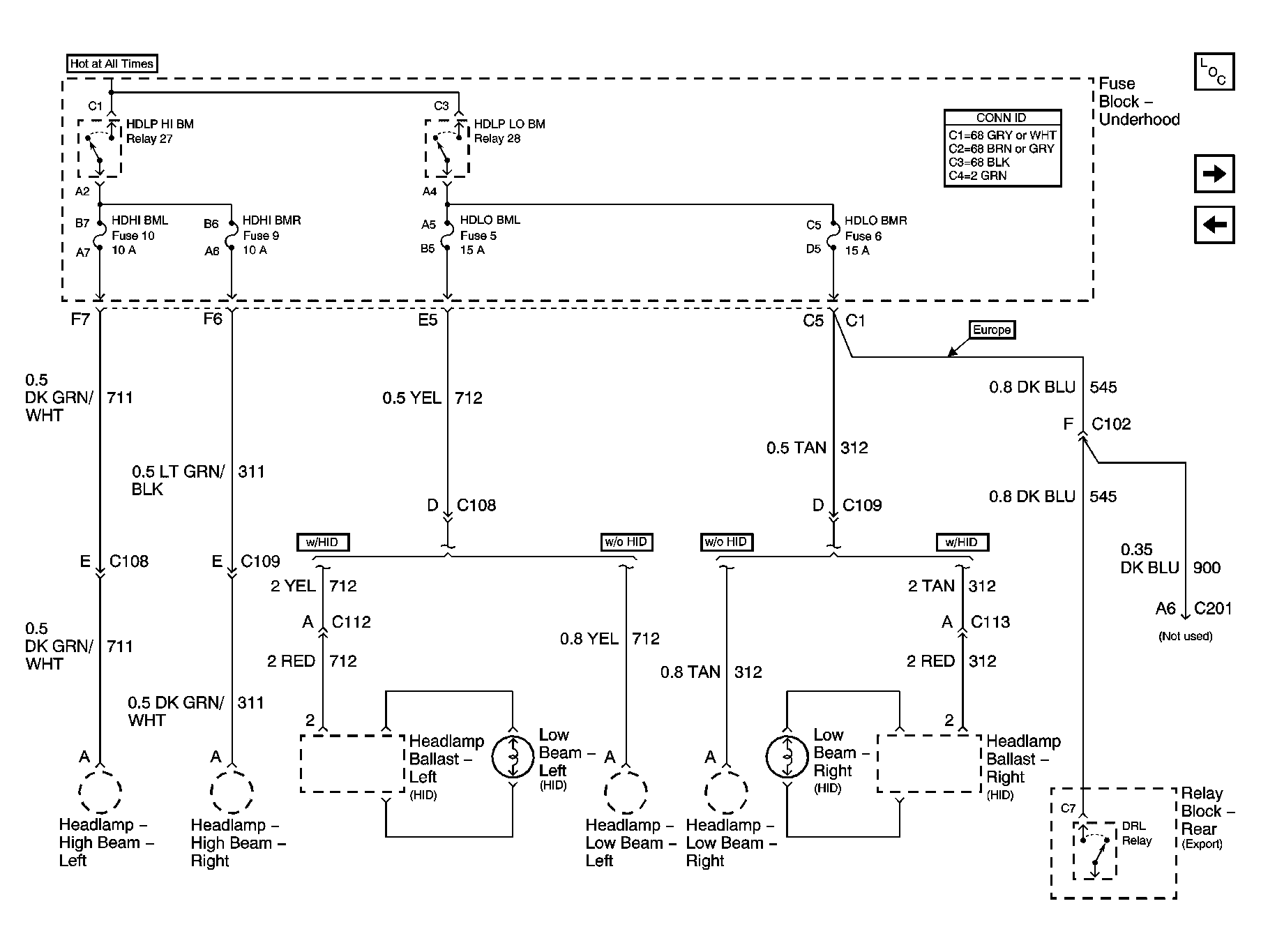

Fig 16: HDLP HI BM and HDLP LO BM Relays and HDHI BM and HDLO BM Fuses Schematic

GM879638

Courtesy of GENERAL MOTORS CORP.

Fig 17: EXPORT LGT Fuse Schematic

GM879641

Courtesy of GENERAL MOTORS CORP.

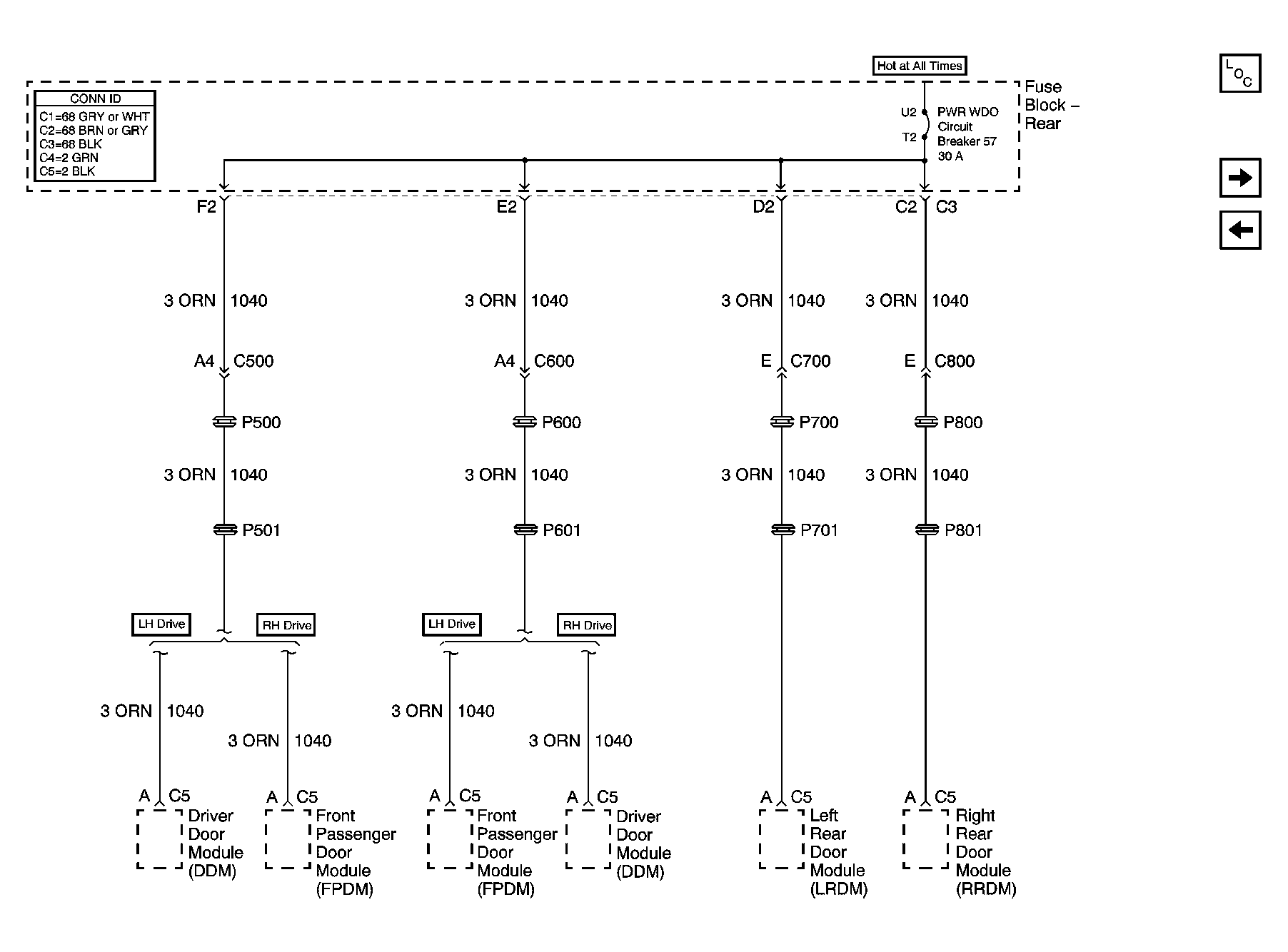

Fig 18: PWR WDO Circuit Breaker Schematic

GM879643

Courtesy of GENERAL MOTORS CORP.

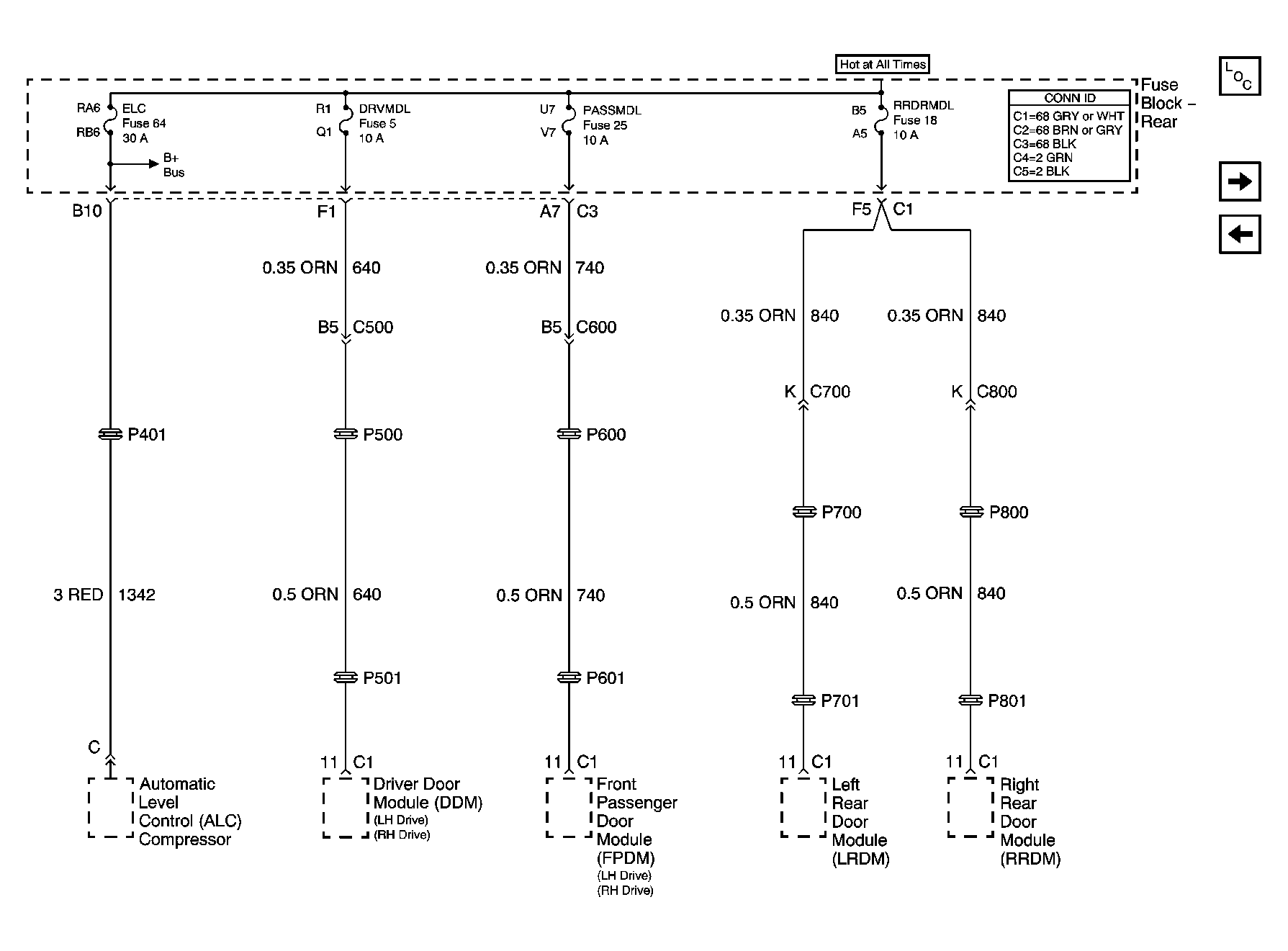

Fig 19: ELC, DRVMDL, PASSMDL, RRDRMDL Fuses Schematic

GM879647

Courtesy of GENERAL MOTORS CORP.

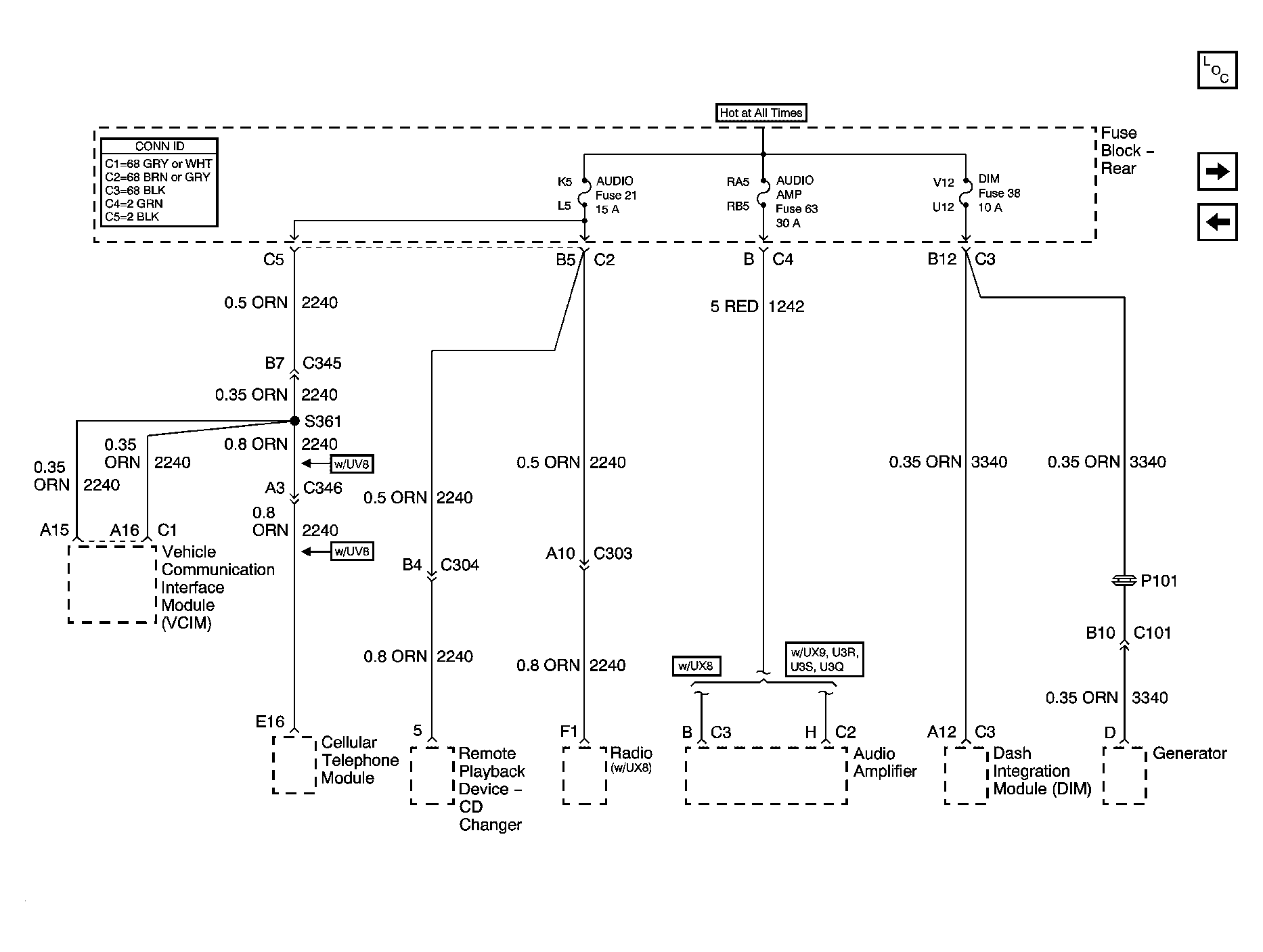

Fig 20: Audio, Audio Amp, DIM Fuses Schematic

GM1202065

Courtesy of GENERAL MOTORS CORP.

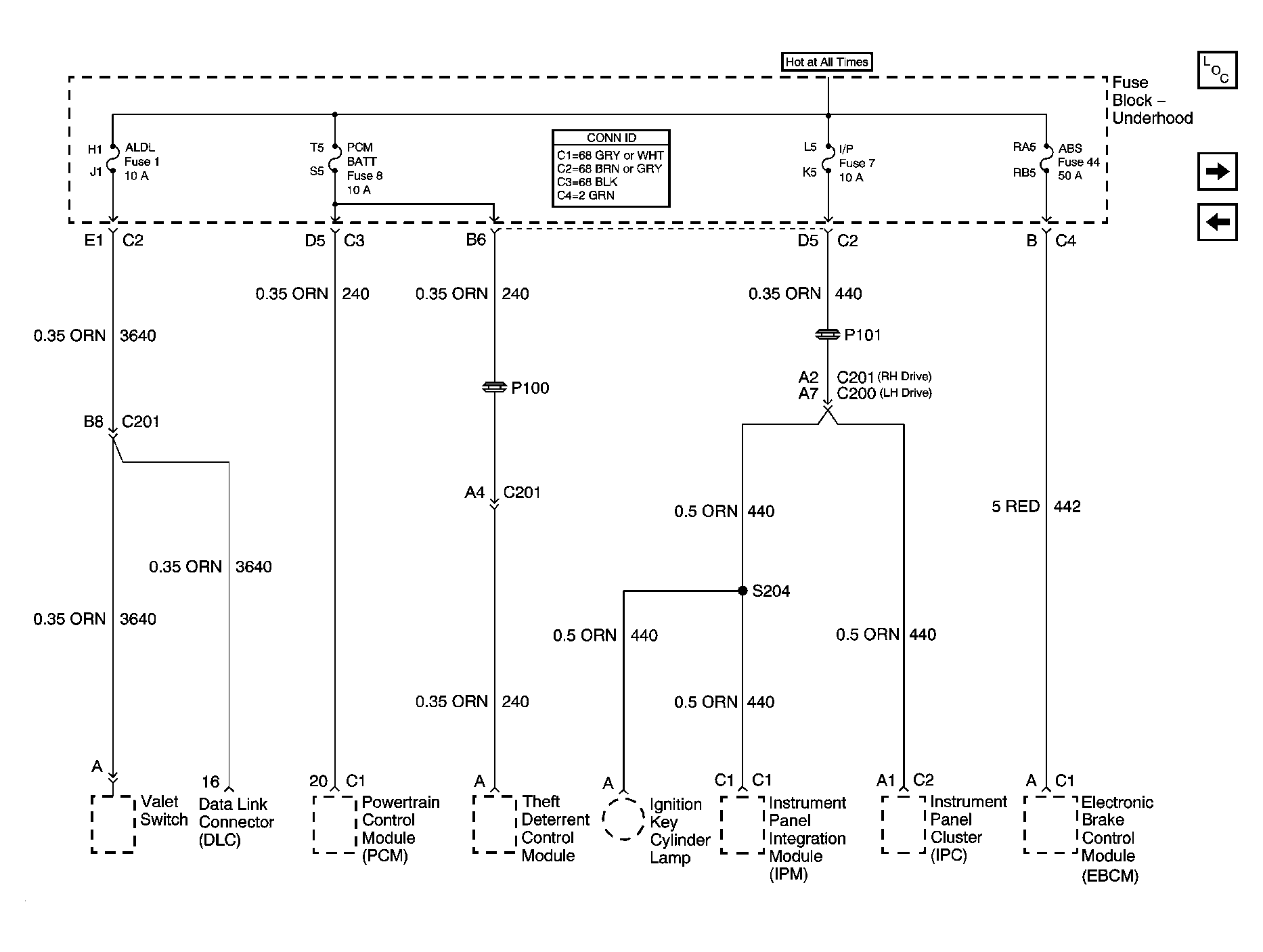

Fig 21: ALDL, PCM BATT, I/P, ABS Fuses Schematic

GM1220872

Courtesy of GENERAL MOTORS CORP.

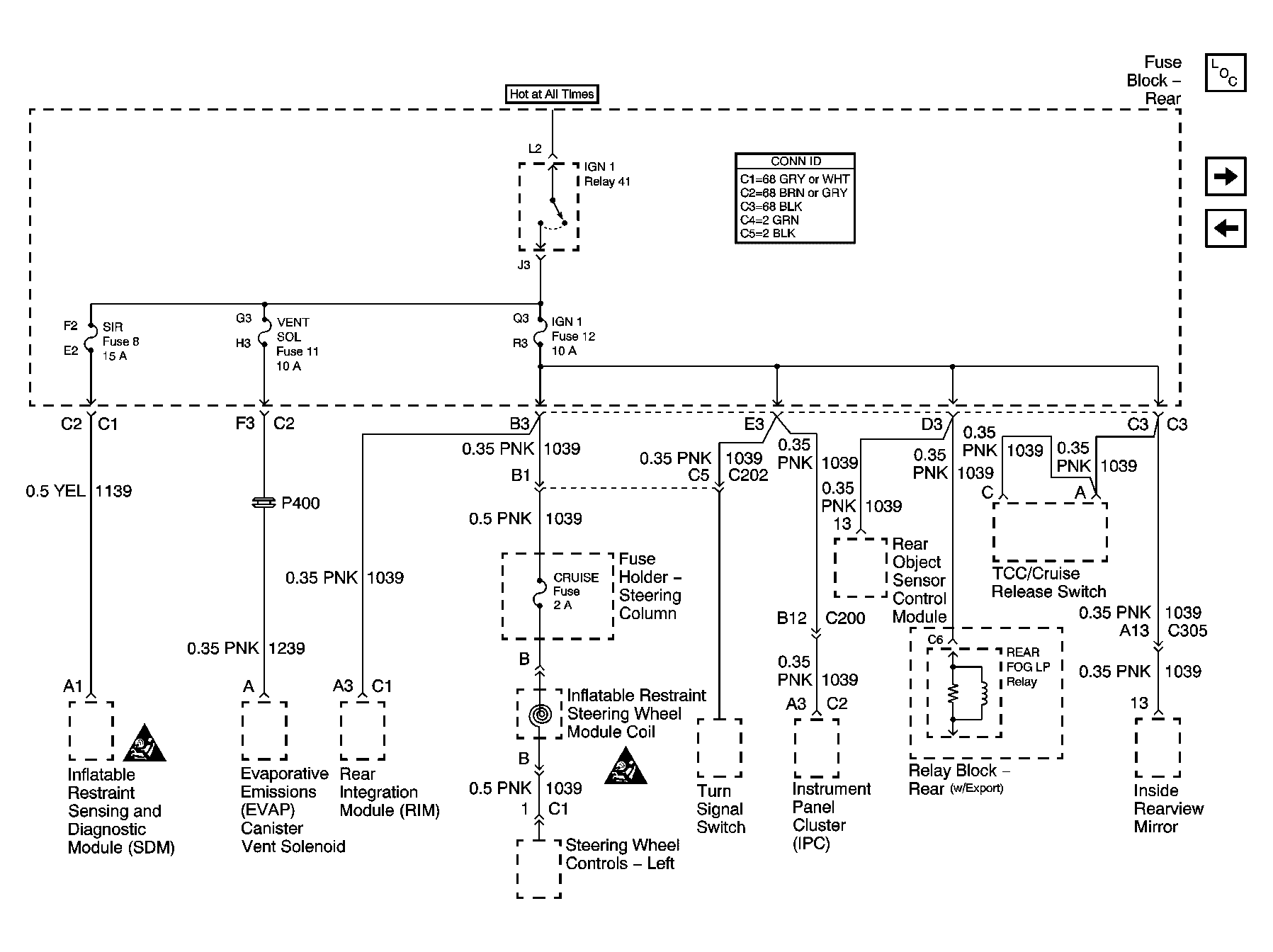

Fig 22: IGN 1 Relay and SIR, VENT SOL, IGN 1 Fuses Schematic

GM879653

Courtesy of GENERAL MOTORS CORP.

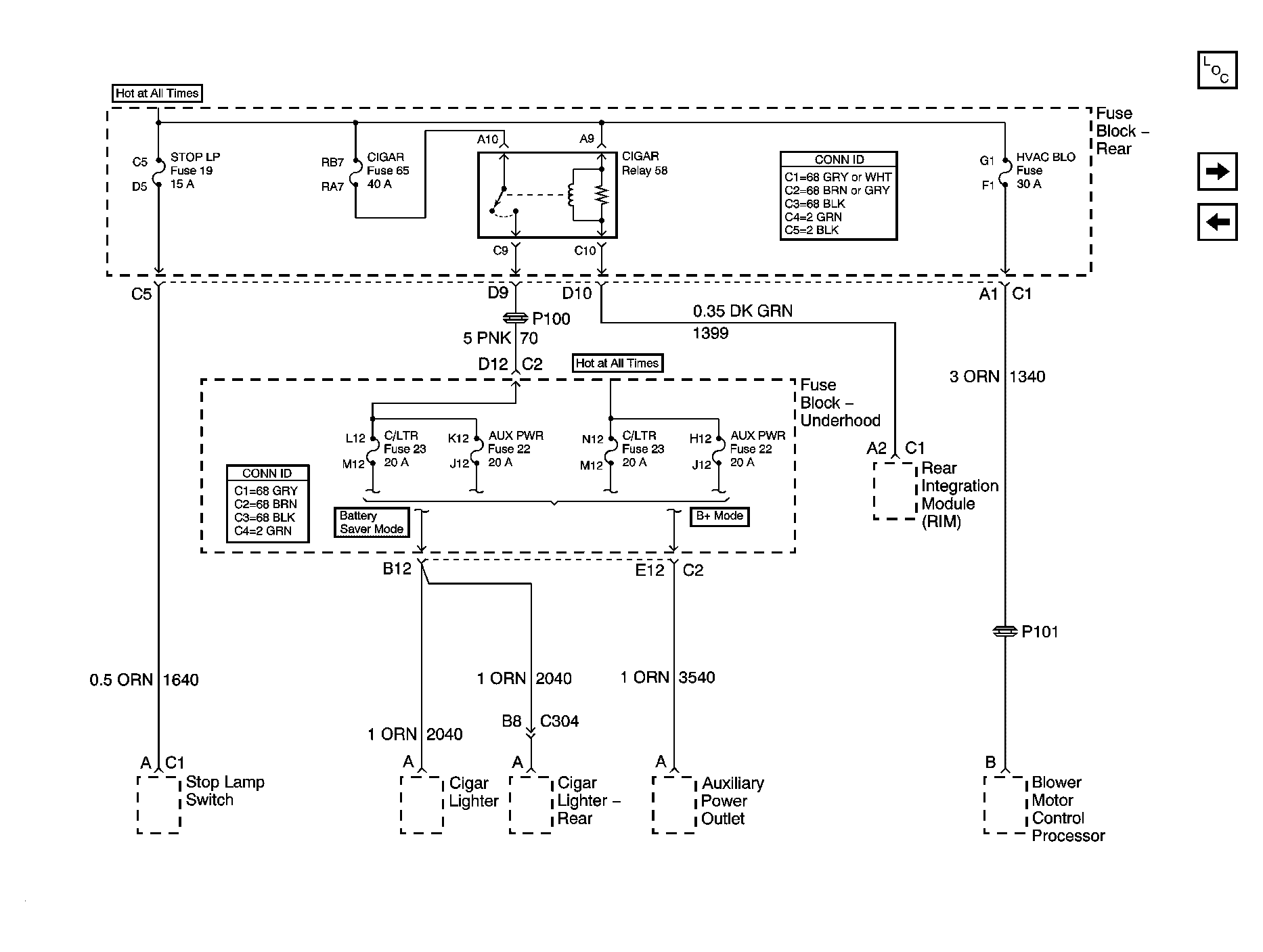

Fig 23: CIGAR Relay and STOP LP, CIGAR HVAC BLO Fuses Schematic

GM879656

Courtesy of GENERAL MOTORS CORP.

Fig 24: NAV, EXPORT BRK, and SDAR Fuses Schematic

GM879657

Courtesy of GENERAL MOTORS CORP.

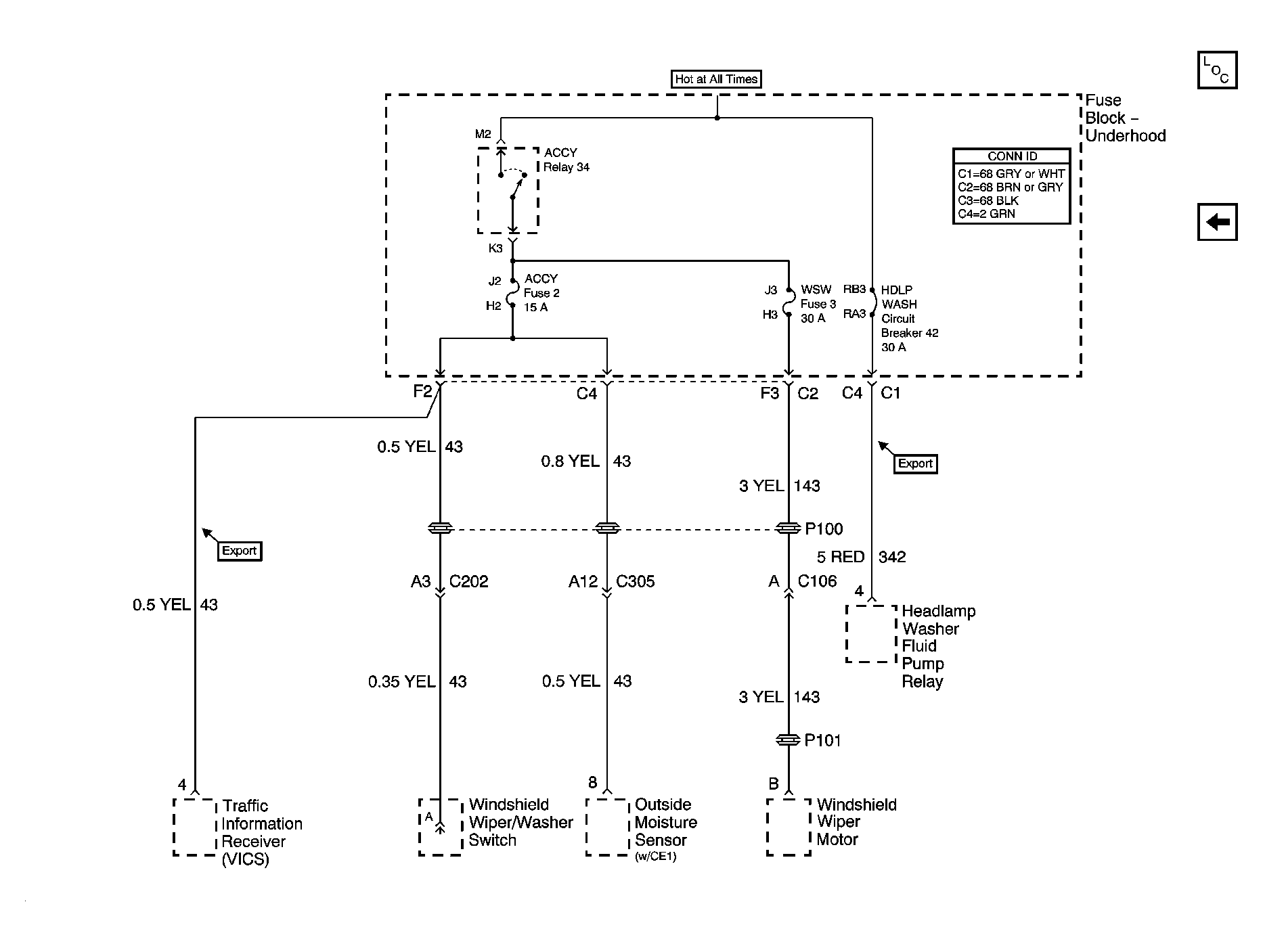

Fig 25: ACCY and WSW Fuses and ACCY Relay and HDLP WASH Circuit Breaker Schematic

GM879659

Courtesy of GENERAL MOTORS CORP.
