ABS Schematics

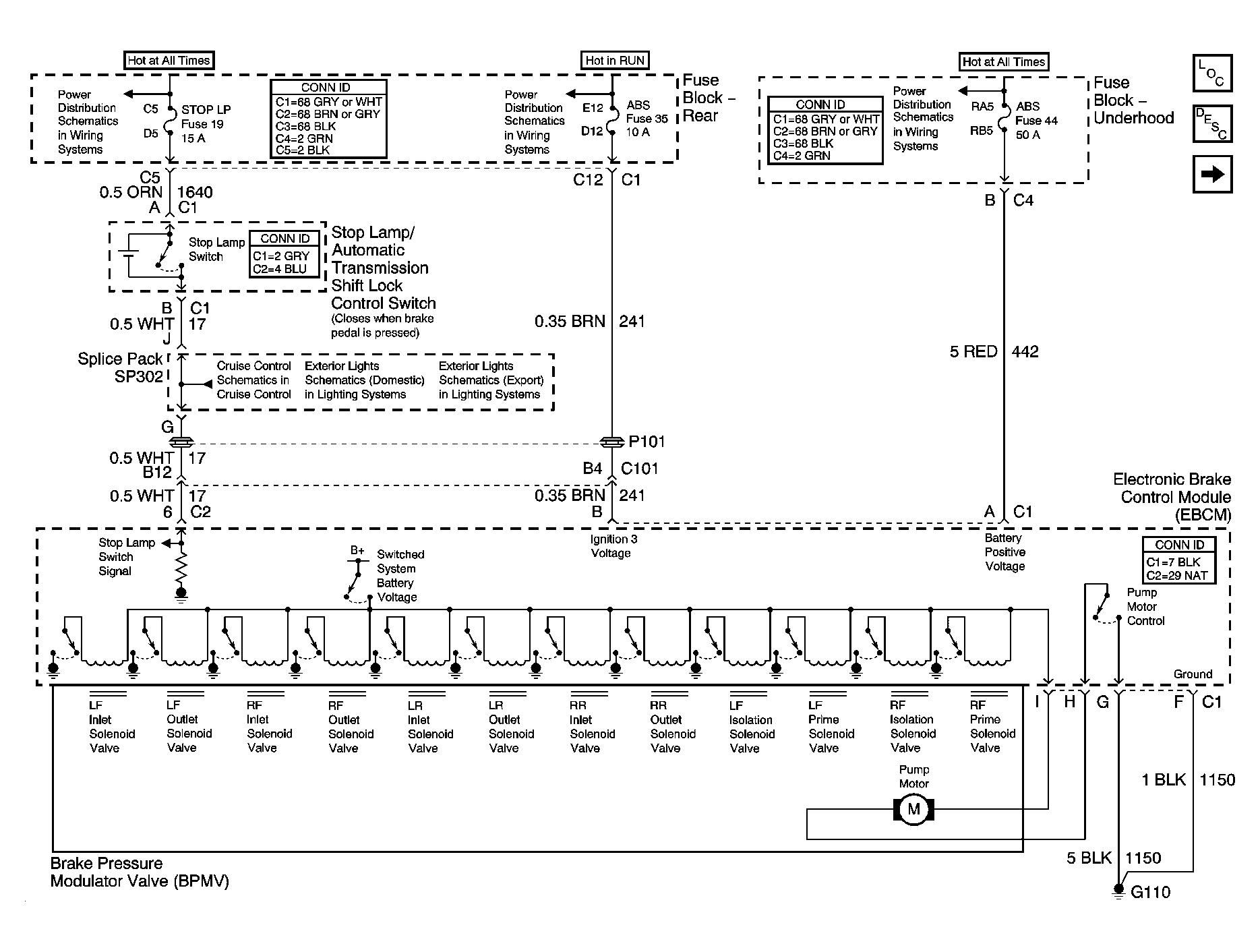

Fig 1: Power, Ground, Stop Lamp Switch, Solenoid Valves, and Pump Motor Schematic

Courtesy of GENERAL MOTORS CORP.

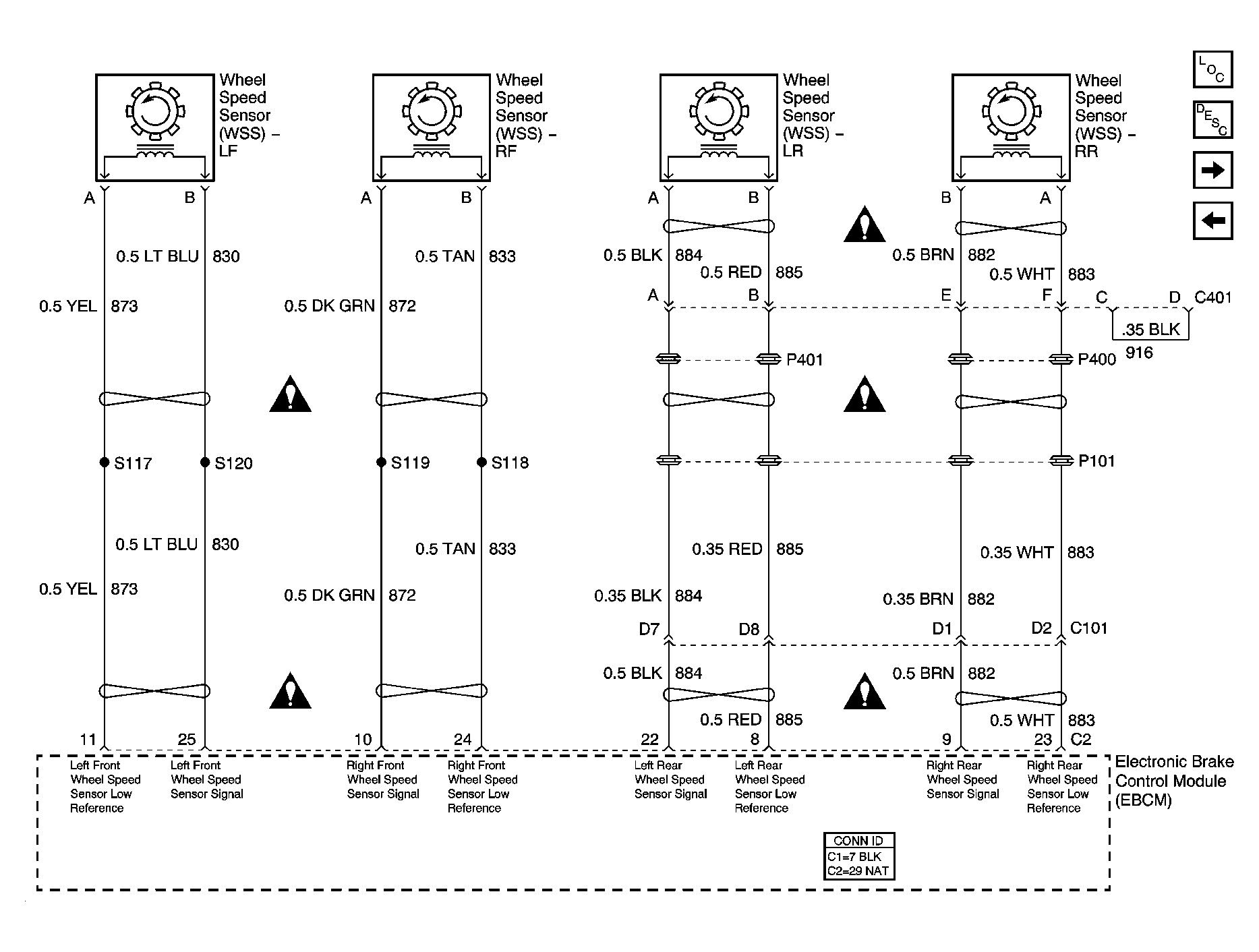

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

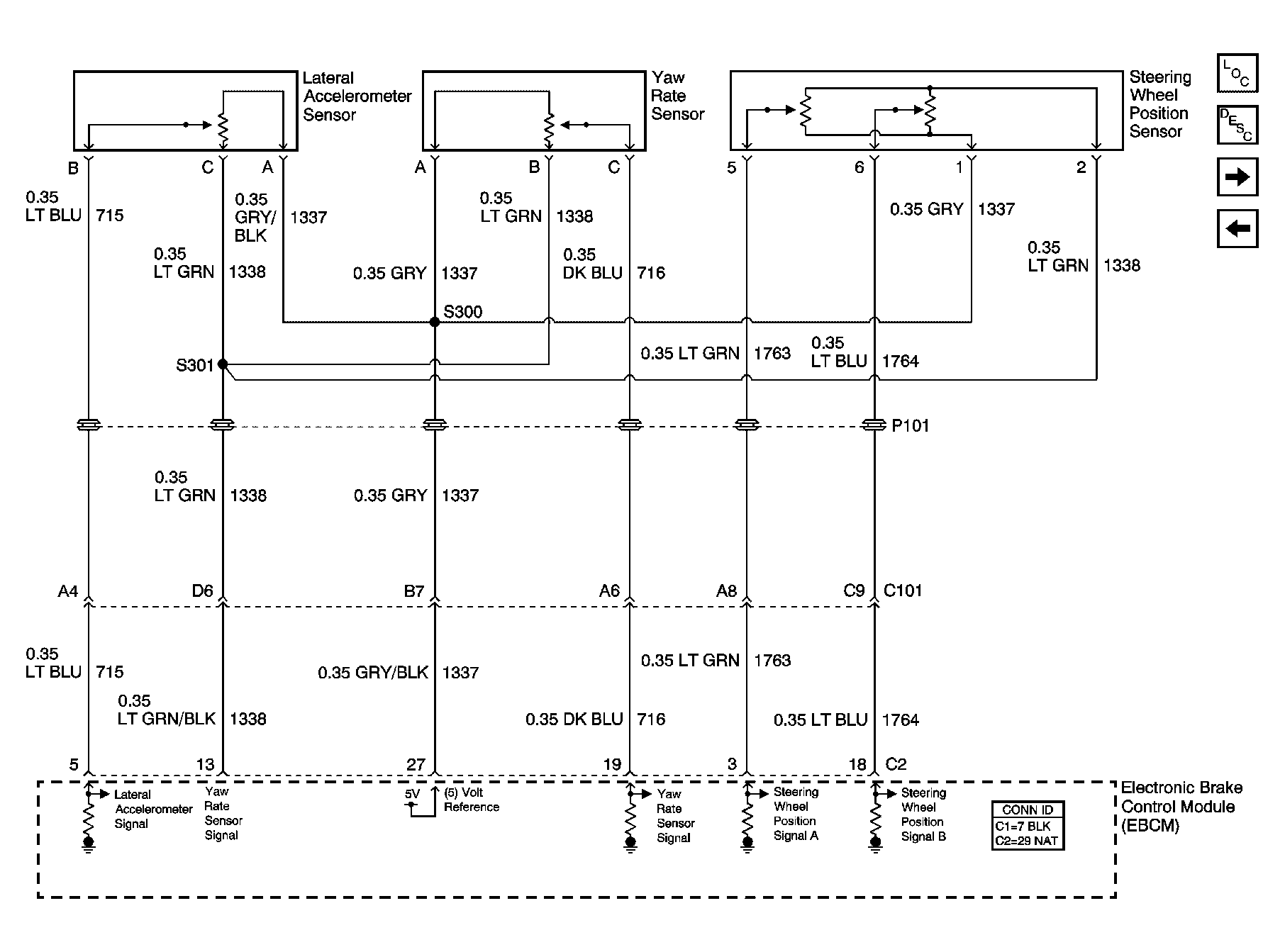

Fig 3: Vehicle Stability Enhancement System (JL4) Schematic

Courtesy of GENERAL MOTORS CORP.

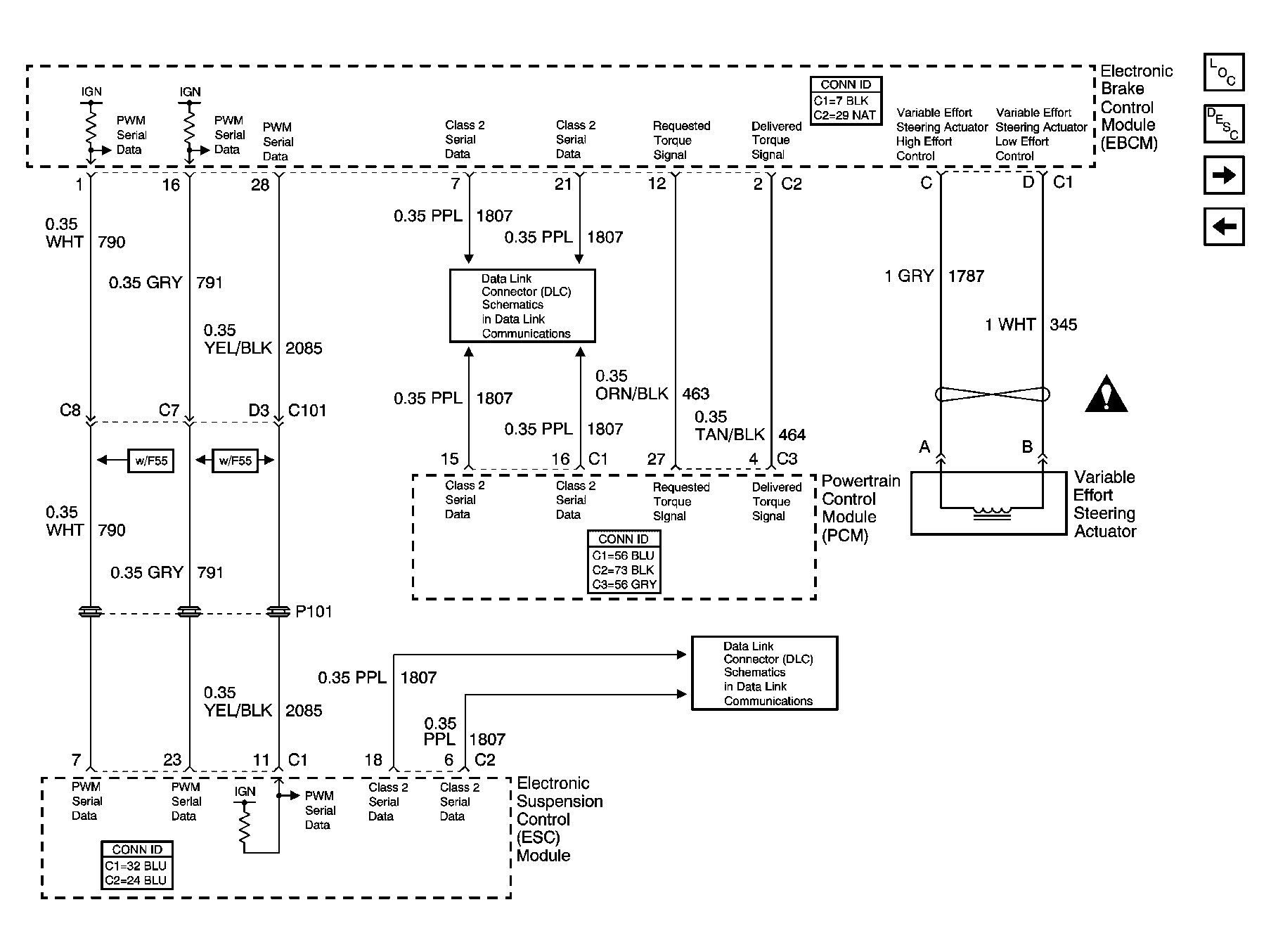

Fig 4: Suspension Inputs (w/F45 or F55), Class 2, and Variable Effort Steering Schematic

Courtesy of GENERAL MOTORS CORP.

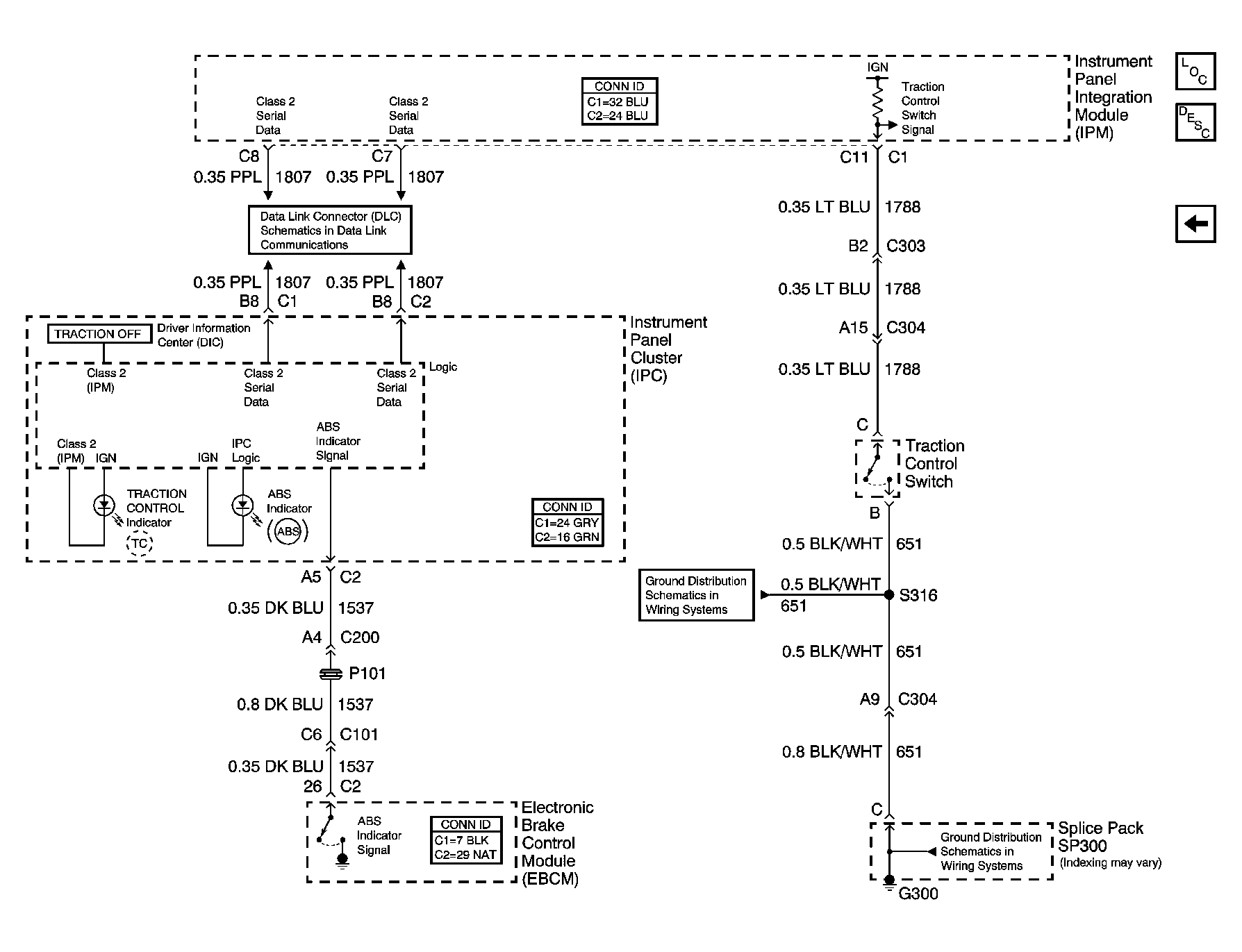

Fig 5: Traction Control Switch and ABS Indicators Schematic

Courtesy of GENERAL MOTORS CORP.
