Power Window Schematics

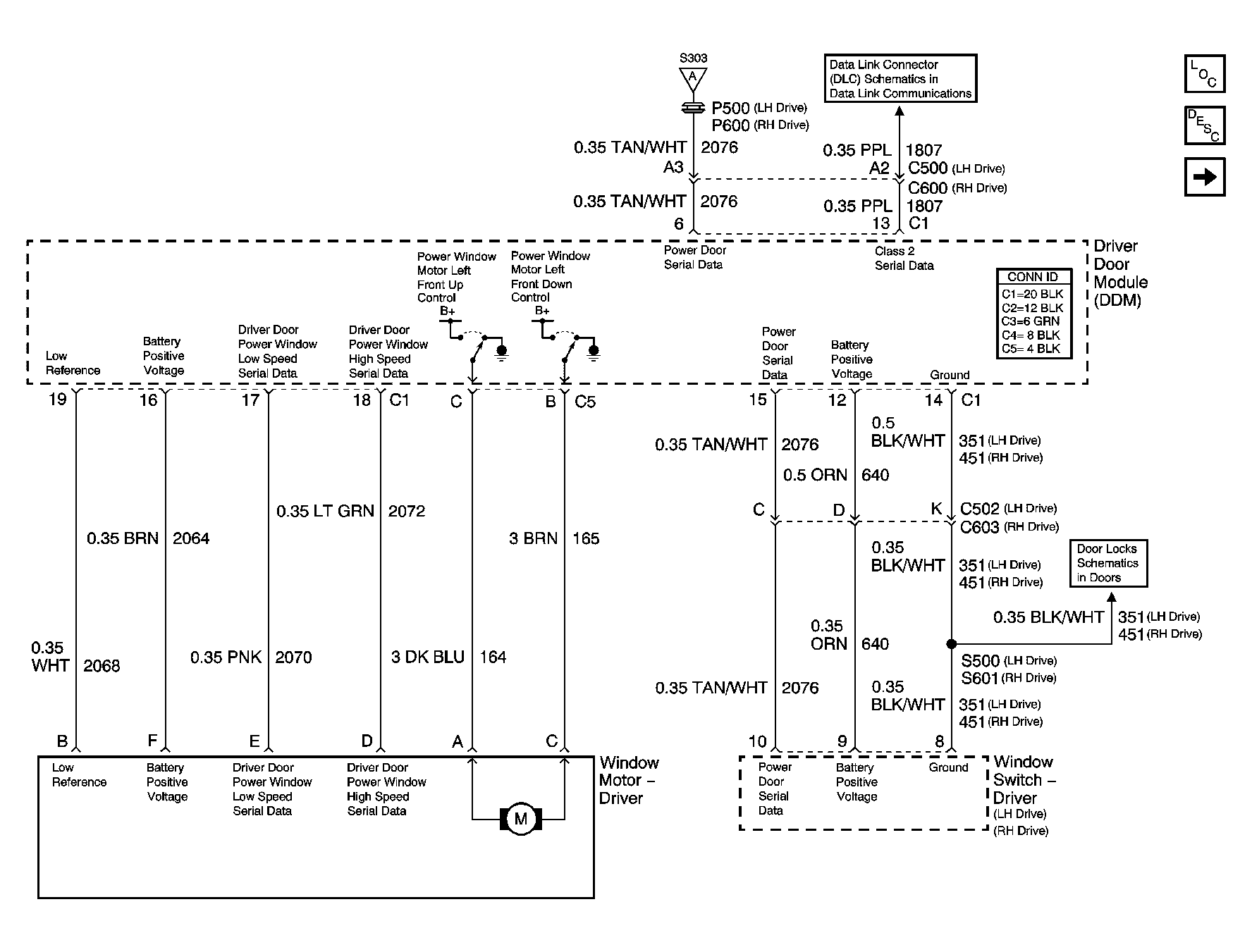

Fig 1: Driver Power Window Schematic
GM788516Courtesy of GENERAL MOTORS CORP.

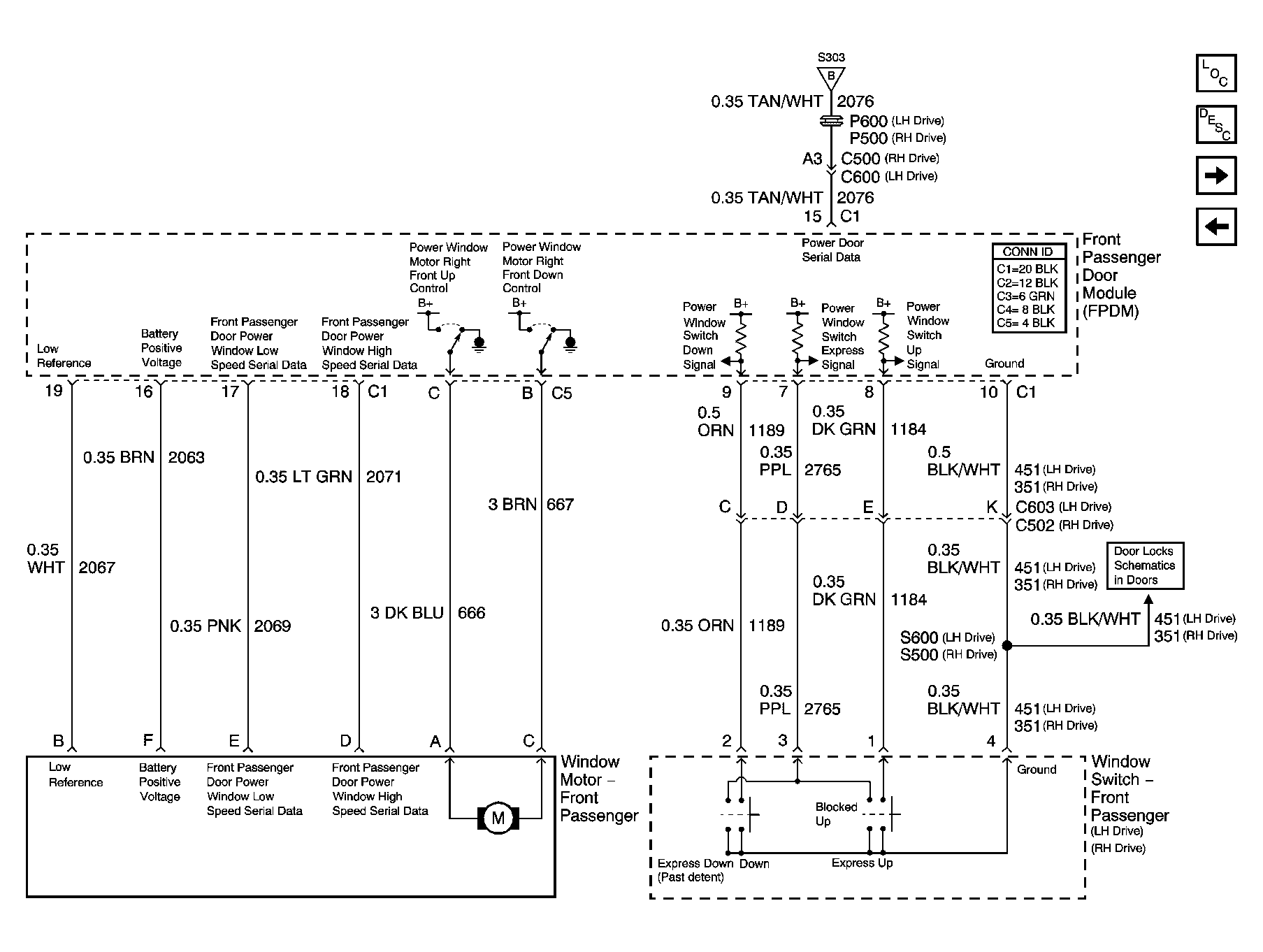

Fig 2: Front Passenger Power Window Schematic
GM794862Courtesy of GENERAL MOTORS CORP.

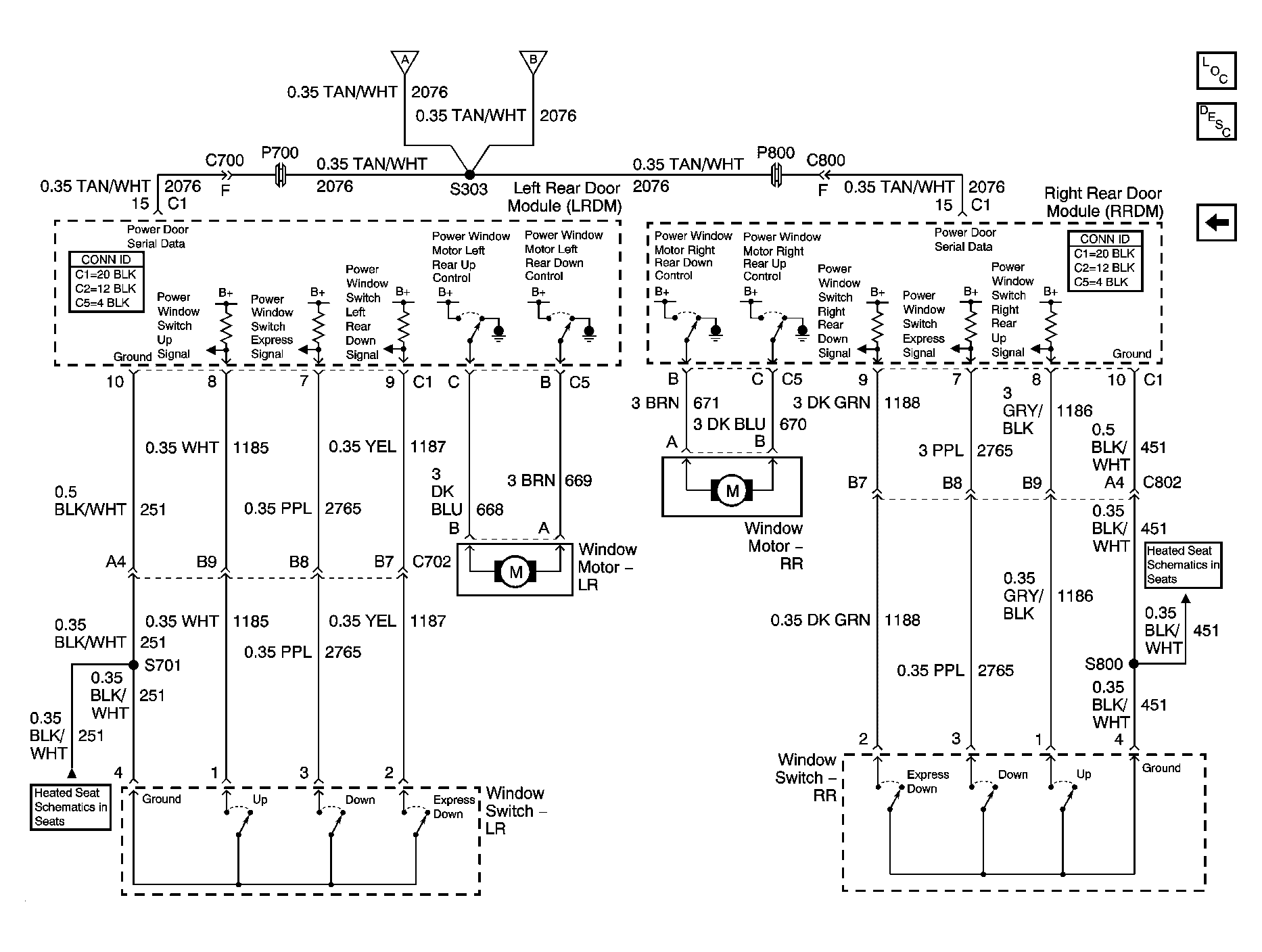

Fig 3: Rear Power Windows Schematic
GM794864Courtesy of GENERAL MOTORS CORP.
