Power Seat Systems Connector End Views

Head Rest Motor - Driver Connector End View

GM258179Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129156
  • 2 Way M Metri-Pack 280 Series (MD GRY)
Pin Wire Color Circuit No. Function
A YEL 1257 Driver Head Rest Motor Up Control
B PPL 1258 Driver Head Rest Motor Down Control
Head Rest Motor - Front Passenger Connector End View

GM258179Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129156
  • 2 Way M Metri-Pack 280 Series (MD GRY)
Pin Wire Color Circuit No. Function
A LT GRN 1625 Power Headrest Motor Feed-Passenger Up
B YEL 1626 Power Headrest Motor Feed-Passenger Down
Head Rest Position Sensor - Driver Connector End View

GM130631Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064758
  • 3 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 788 5 Volt Reference
B RED/BLK 1060 Memory Seat Position Sensor Signal-Headrest Motor
C BLK 782 Memory Seat/Mirror Sensor Low Reference
Heated Seat Cushion Element - Front Passenger Connector End View

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047786
  • 4 Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 2296 Right Rear Heated Seat Element Supply Voltage
B LT GRN 2297 Right Rear Heated Seat Element Control
C ORN 2300 Left Rear Heated Seat Temperature Sensor Signal
D PNK 2301 Right Rear Heated Seat Temperature Sensor Low Reference
Heated Seat Cushion Element - LR Connector End View

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047786
  • 4 Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 2294 Left Rear Heated Seat Element Supply Voltage
B BRN 2295 Left Rear Heated Seat Element Control
C LT BLU 2300 Left Rear Heated Seat Temperature Sensor Signal
D DK BLU 2298 Left Rear Heated Seat Temperature Sensor Low Reference
Heated Seat Cushion Element - RR Connector End View

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047786
  • 4 Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 2296 Right Rear Heated Seat Element Supply Voltage
B LT GRN 2297 Right Rear Heated Seat Element Control
C ORN 2299 Right Rear Heated Seat Temperature Sensor Signal
D PNK 2301 Right Rear Heated Seat Temperature Sensor Low Reference
Heated Seat Module - Driver C1 Connector End View

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8 Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN 41 Ignition 3 Voltage
B ORN 2440 Battery Positive Voltage
C PNK 1501 Driver Heated Seat High/Low Signal
D LT BLU 1662 Driver Heated Seat Low Temperature Indicator Control
E BLK 550 Ground
F DK GRN 1661 Driver Heated Seat High Temperature Indicator Control
G LT BLU/
WHT		 181 Heated Seat Control Module Status Signal
H YEL 182 Heated Seat Control Module Inhibit Signal
Heated Seat Module - Driver C2 Connector End View

GM39660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A RED - Heated Seat Cushion Heating Element Feed
B BLK - Heated Seat Cushion Heating Element Ground
C GRY - Temperature Sensor Input
D GRY - Sensor Return
Heated Seat Module - Driver C3 Connector End View

GM646421Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059253
  • 2 Way F Metri-Pack 150 Series (LT GRN)
Pin Wire Color Circuit No. Function
A BLK - Heated Seat Back Heating Element Feed
B BLK - Heated Seat Back Heating Element Ground
Heated Seat Module - Front Passenger C1 Connector End View

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8 Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN 41 Ignition 3 Voltage
B ORN 2540 Battery Positive Voltage
C PNK/BLK 1503 Passenger Heated Seat High/Low Signal
D TAN 1686 Passenger Heated Seat Low Temperature Indicator Control
E BLK 650 Ground
F YEL 1685 Passenger Heated Seat High Temperature Indicator Control
G LT BLU/
WHT		 181 Heated Seat Control Module Status Signal
H YEL 182 Heated Seat Control Module Inhibit Signal
Heated Seat Module - Front Passenger C2 Connector End View

GM39660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A RED - Heated Seat Cushion Heating Element Feed
B BLK - Heated Seat Cushion Heating Element Ground
C GRY 9176 Temperature Sensor Input
D GRY 9177 Sensor Ground
Heated Seat Module - Front Passenger C3 Connector End View

GM646421Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059253
  • 2 Way F Metri-Pack 150 Series (LT GRN)
Pin Wire Color Circuit No. Function
A BLK - Heated Seat Back Heating Element Feed
B BLK - Heated Seat Back Heating Element Ground
Heated Seat Module - LR C1 Connector End View

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8 Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN 41 Ignition 3 Voltage
B ORN 2640 Battery Positive Voltage
C PNK 1617 Left Rear Heated Seat Switch Signal
D - - Not Used
E BLK 750 Ground
F-G - - Not Used
H YEL 182 Heated Seat Control Module Inhibit Signal
Heated Seat Module - LR C2 Connector End View

GM39660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN 2295 Left Rear Heated Seat Element Supply Voltage
B GRY 2294 Left Rear Heated Seat Element Control
C LT BLU 2300 Left Rear Heated Seat Temperature Sensor Signal
D DK BLU 2298 Left Rear Heated Seat Temperature Sensor Low Reference
Heated Seat Module - LR C3 Connector End View

GM646421Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059253
  • 2 Way F Metri-Pack 150 Series (LT GRN)
Pin Wire Color Circuit No. Function
A BLK - Heated Seat Back Heating Element Feed
B BLK - Left Rear Heated Seat Element Control
Heated Seat Module - RR C1 Connector End View

GM62469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064998
  • 8 Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A BRN 41 Ignition 3 Voltage
B ORN 2740 Battery Positive Voltage
C BRN 1629 Right Rear Heated Seat Switch Signal
D - - Not Used
E BLK 750 Ground
F-G - - Not Used
H YEL 182 Heated Seat Control Module Inhibit Signal
Heated Seat Module - RR C2 Connector End View

GM39660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT GRN 2297 Right Rear Heated Seat Element Supply Voltage
B DK GRN 2296 Right Rear Heated Seat Element Control
C ORN 2299 Right Rear Heated Seat Temperature Sensor Signal
D PNK 2301 Right Rear Heated Seat Temperature Sensor Low Reference
Heated Seat Module - RR C3 Connector End View

GM646421Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059253
  • 2 Way F Metri-Pack 150 Series (LT GRN)
Pin Wire Color Circuit No. Function
A BLK - Heated Seat Back Heating Element Feed
B BLK - Right Rear Heated Seat Element Control
Heated Seat Switch - Driver Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124997
  • 5 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU 1662 Driver Heated Seat Low Temperature Indicator Control
B DK GRN 1661 Driver Heated Seat High Temperature Indicator Control
C PNK 1501 Driver Heated Seat High/Low Signal
D BLK 350 Ground
E YEL/BLK 1491 Backlight Lamps Control
Heated Seat Switch - Front Passenger Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124997
  • 5 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN 1686 Passenger Heated Seat Low Temperature Indicator Control
B YEL 1685 Passenger Heated Seat High Temperature Indicator Control
C PNK/BLK 1503 Passenger Heated Seat High/Low Signal
D BLK 350 Ground
E YEL/BLK 1491 Backlight Lamps Control
Heated Seat Switch - LR Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124997
  • 5 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A PNK 1631 Left Rear Heated Seat Low Temperature Indicator Control
B BLK/WHT 1638 Left Rear Heated Seat High Temperature Indicator Control
C BRN 1637 Left Rear Heated Seat Switch Signal
D BLK/WHT 251 Ground
E YEL/BLK 1491 Backlight Lamps Control
Heated Seat Switch - RR Connector End View

GM130714Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124997
  • 5 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A PNK 1636 Right Rear Heated Seat Low Indicator Control
B BLK/WHT 1635 Right Rear Heated Seat High Indicator Control
C BRN 1634 Right Rear Heated Seat Switch Signal
D BLK/WHT 451 Ground
E YEL/BLK 1491 Backlight Lamps Control
Memory Seat Module (MSM) C1 Connector End View

GM35456Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2 Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 3740 Battery Positive Voltage
B BLK 550 Ground
Memory Seat Module (MSM) C2 (AL2) Connector End View

GM73222Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110207
  • 32 Way F Micro-Pack 100 Series (LT BLU)
Pin Wire Color Circuit No. Function
E1 DK GRN 1518 Power Seat Front Vertical Up Switch Signal
E2 YEL 1519 Power Seat Rear Vertical Up Switch Signal
E3 DK BLU 1520 Power Seat Front Vertical Down Switch Signal
E4 LT BLU 1521 Power Seat Rear Vertical Down Switch Signal
E5 TAN 1522 Power Seat Horizontal Forward Switch Signal
E6 LT GRN 1523 Power Seat Horizontal Rearward Switch Signal
E7 LT GRN 276 Driver Seat Recline Motor Forward Control
E8 LT BLU 277 Driver Seat Recline Motor Rearward Control
E9 DK BLU 1064 Driver Seat Lumbar Rearward Switch Signal
E10 YEL 1065 Driver Seat Lumbar Forward Switch Signal
E11 WHT 1066 Driver Seat Lumbar Up Switch Signal
E12 YEL/BLK 1067 Driver Seat Lumbar Down Switch Signal
E13 GRY 788 5 Volt Reference
E14 BRN/WHT 557 Front Vertical Seat Motor Position Sensor Signal
E15 BLK 782 Memory Seat/Mirror Sensor Low Reference
E16 DK GRN 569 Horizontal Seat Motor Position Sensor Signal
F1 TAN 568 Rear Vertical Seat Motor Position Sensor Signal
F2 WHT/BLK 570 Driver Seat Recline Motor Position Sensor Signal
F3 YEL 1063 Driver Seat Lumbar Horizontal Position Sensor Signal
F4 BLK 1062 Driver Seat Lumbar Vertical Position Sensor Signal
F5 - - Not Used
F6 RED/BLK 1060 Memory Seat Position Sensor Signal-Driver Headrest Motor
F7-F8 - - Not Used
F9 WHT/BLK 1068 Power Seat Switch Signal-Headrest Up
F10 DK BLU/WHT 1069 Power Seat Switch Signal-Headrest Down
F11 ORN 2840 Battery Positive Voltage
F12-F13 - - Not Used
F14 - F15 PPL 1807 Class 2 Serial Data
F16 - - Not Used
Seat Adjuster Switch - Driver (A45) Connector End View

GM258247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129432
  • 16 Way F Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function
A DK BLU 1520 Power Seat Front Vertical Down Switch Signal
B LT GRN 1523 Power Seat Horizontal Rearward Switch Signal
C LT BLU 1521 Power Seat Rear Vertical Down Switch Signal
D DK GRN 1518 Power Seat Front Vertical Up Switch Signal
E TAN 1522 Power Seat Horizontal Forward Switch Signal
F YEL 1519 Power Seat Rear Vertical Up Switch Signal
G LT BLU 277 Driver Seat Recline Motor Rearward Control
H LT GRN 276 Driver Seat Recline Motor Forward Control
J ORN 2840 Battery Positive Voltage
K WHT/BLK 1068 Power Seat Switch Signal-Headrest Up
L - - Not Used
M DK BLU/
WHT		 1069 Power Seat Switch Signal-Headrest Down
N-S - - Not Used
Seat Adjuster Switch - Driver (without A45) Connector End View

GM258247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129432
  • 16 Way F Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function
A DK BLU 287 Driver Seat Front Vertical Motor Down Control
B LT GRN 284 Driver Seat Horizontal Motor Rearward Control
C LT BLU 283 Driver Seat Rear Vertical Motor Down Control
D DK GRN 286 Driver Seat Front Vertical Motor Up Control
E TAN 285 Driver Seat Horizontal Motor Forward Control
F YEL 282 Driver Seat Rear Vertical Motor Up Control
G LT BLU 277 Driver Seat Recline Motor Rearward Control
H LT GRN 276 Driver Seat Recline Motor Forward Control
J ORN 3740 Battery Positive Voltage
K YEL 1257 Driver Head Rest Motor Up Control
L BLK 550 Ground (LH Drive)
650 Ground (RH Drive)
M PPL 1258 Driver Head Rest Motor Down Control
N-S - - Not Used
Seat Adjuster Switch - Front Passenger Connector End View

GM258247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129432
  • 16 Way F Metri-Pack 280 Series (GRY)
Pin Wire Color Circuit No. Function
A DK BLU 77 Passenger Seat Recline Motor Rearward
B DK GRN 76 Passenger Seat Recline Motor Forward
C LT GRN 290 Passenger Seat Horizontal Motor Rearward Control
D YEL 288 Passenger Seat Rear Vertical Motor Up Control
E DK GRN 297 Passenger Seat Front Vertical Motor Up Control
F TAN 296 Passenger Seat Horizontal Motor Forward Control
G DK BLU 298 Passenger Seat Front Vertical Motor Down Control
H LT BLU 289 Passenger Seat Rear Vertical Motor Down Control
J-M - - Not Used
N LT GRN 1625 Power Headrest Motor Feed-Passenger Up
P ORN 3740 Battery Positive Voltage
R YEL 1626 Power Headrest Motor Feed-Passenger Down
S BLK 650 Ground
Seat Front Vertical Adjuster Motor - Driver Connector End View

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2 Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 286 Driver Seat Front Vertical Motor Up Control
B DK BLU 287 Driver Seat Front Vertical Motor Down Control
Seat Front Vertical Adjuster Motor - Front Passenger Connector End View

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2 Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 297 Passenger Seat Front Vertical Motor Up Control
B DK BLU 298 Passenger Seat Front Vertical Motor Down Control
Seat Front Vertical Position Sensor - Driver Connector End View

GM405591Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059584
  • 3 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BLK 782 Memory Seat Low Reference
C BRN/WHT 557 Front Vertical Seat Motor Position Sensor Signal
D GRY 788 5 Volt Reference
Seat Horizontal Motor - Driver Connector End View

GM130706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052110
  • 2 Way F Metri-Pack 480 Series (NAT)
Pin Wire Color Circuit No. Function
A TAN 285 Driver Seat Horizontal Motor Forward Control
B LT GRN 284 Driver Seat Horizontal Motor Rearward Control
Seat Horizontal Motor - Front Passenger Connector End View

GM130706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052110
  • 2 Way F Metri-Pack 480 Series (NAT)
Pin Wire Color Circuit No. Function
A TAN 296 Passenger Seat Horizontal Motor Forward Control
B LT GRN 290 Passenger Seat Horizontal Motor Rearward Control
Seat Horizontal Position Sensor - Driver Connector End View

GM405591Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059583
  • 3 Way F Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function
A BLK 782 Memory Seat Low Reference
B - - Not Used
C DK GRN 569 Horizontal Seat Motor Position Sensor Signal
D GRY 788 5 Volt Reference
Seat Lumbar Horizontal Motor - Driver Connector End View

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2 Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 611 Driver Seat Lumbar Motor Forward Control
B WHT 610 Driver Seat Lumbar Motor Rearward Control
Seat Lumbar Horizontal Motor - Front Passenger Connector End View

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052110
  • 2 Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU/
WHT		 211 Passenger Seat Lumbar Motor Forward Control
B PNK/BLK 210 Passenger Seat Lumbar Motor Rearward Control

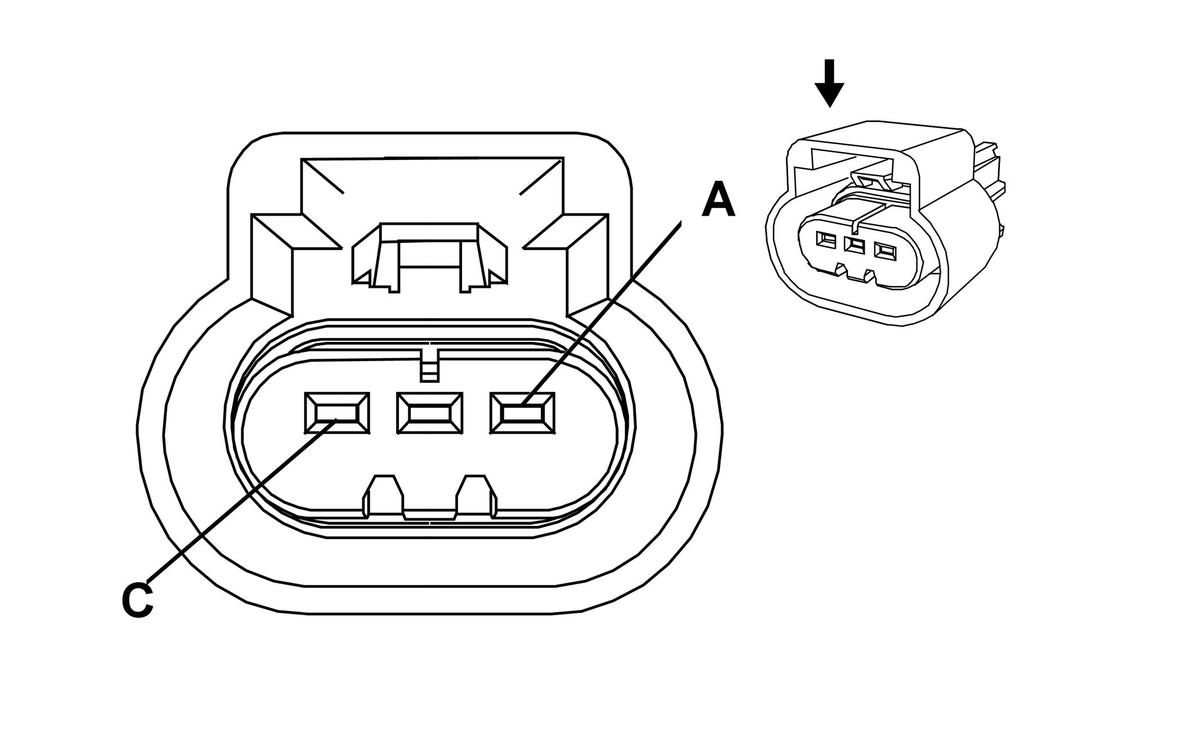

Seat Lumbar Horizontal Position Sensor - Driver Connector End View

GM605544Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15976041
  • 4 Way M Molex (WHT)
Pin Wire Color Circuit No. Function
A BRN 1063 Driver Seat Lumbar Horizontal Position Sensor Signal
B RED 788 5 Volt Reference
C LT BLU 782 Memory Seat Low Reference
Seat Lumbar Motor - Driver Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A RED 9172 Adaptive Seat Motor Control
B BLK 9173 Adaptive Seat Motor Ground
Seat Lumbar Motor - Front Passenger Connector End View

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A RED 9172 Adaptive Seat Motor Control
B BLK 9173 Adaptive Seat Motor Ground
Seat Lumbar Switch - Driver (AL2) Connector End View

GM73146Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052854
  • 7 Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A PNK 610 Driver Seat Lumbar Motor Rearward Control
B TAN 768 Driver Seat Lumbar Motor Up Control
C PPL 767 Driver Seat Lumbar Motor Down Control
D - - Not Used
E BLK 550 Ground
F DK BLU 611 Driver Seat Lumbar Motor Forward Control
G ORN 3740 Battery Positive Voltage
Seat Lumbar Switch - Driver (A45) Connector End View

GM73146Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052854
  • 7 Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 1064 Driver Seat Lumbar Rearward Switch Signal
B WHT 1066 Driver Seat Lumbar Up Switch Signal
C YEL/BLK 1067 Driver Seat Lumbar Down Switch Signal
D-E - - Not Used
F YEL 1065 Driver Seat Lumbar Forward Switch Signal
G ORN 2840 Battery Positive Voltage
Seat Lumbar Switch - Front Passenger (AL2) Connector End View

GM73146Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052854
  • 7 Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
A WHT 210 Passenger Seat Lumbar Motor Rearward Control
B ORN 792 Passenger Seat Lumbar Motor Down Control
C PNK 793 Passenger Seat Lumbar Motor Up Control
D - - Not Used
E BLK 650 Ground
F DK BLU 211 Passenger Seat Lumbar Motor Forward Control
G ORN 3740 Battery Positive Voltage
Seat Lumbar Vertical Motor - Driver Connector End View

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A PNK 768 Driver Seat Lumbar Motor Up Control
B ORN 767 Driver Seat Lumbar Motor Down Control
Seat Lumbar Vertical Motor - Front Passenger Connector End View

GM130707Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020556
  • 2 Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A TAN/WHT 793 Passenger Seat Lumbar Motor Up Control
B PPL/WHT 792 Passenger Seat Lumbar Motor Down Control
Seat Rear Vertical Motor - Driver Connector End View

GM130709Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052109
  • 2 Way F Metri-Pack 480 Series (BLU)
Pin Wire Color Circuit No. Function
A LT BLU 283 Driver Seat Rear Vertical Motor Down Control
B YEL 282 Driver Seat Rear Vertical Motor Up Control
Seat Rear Vertical Motor - Front Passenger Connector End View

GM130709Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052109
  • 2 Way F Metri-Pack 480 Series (BLU)
Pin Wire Color Circuit No. Function
A LT BLU 289 Passenger Seat Rear Vertical Motor Down Control
B YEL 288 Passenger Seat Rear Vertical Motor Up Control
Seat Rear Vertical Position Sensor - Driver Connector End View

GM405591Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059582
  • 3 Way F Metri-Pack 150 Series (BLU)
Pin Wire Color Circuit No. Function
A BLK 782 Memory Seat Low Reference
B TAN 568 Rear Vertical Seat Motor Position Sensor Signal
C - - Not Used
D GRY 788 5 Volt Reference
Seat Recline Motor - Driver (A45) Connector End View

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2 Way F Metri-Pack 280 Series Flex Lock (BLK)
Pin Wire Color Circuit No. Function
A LT GRN/
BLK		 276 Driver Seat Recline Motor Forward Control
B LT BLU/
BLK		 277 Driver Seat Recline Motor Rearward Control
Seat Recline Motor - Driver (Without A45) Connector End View

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2 Way F Metri-Pack 280 Series Flex Lock (BLK)
Pin Wire Color Circuit No. Function
A LT GRN 276 Driver Seat Recline Motor Forward Control
B LT BLU 277 Driver Seat Recline Motor Rearward Control
Seat Recline Motor - Front Passenger Connector End View

GM153645Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2 Way F Metri-Pack 280 Series Flex Lock (BLK)
Pin Wire Color Circuit No. Function
A DK BLU 77 Passenger Seat Recline Motor Rearward
B DK GRN 76 Passenger Seat Recline Motor Forward
Seat Recline Position Sensor - Driver Connector End View

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3 Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 788 5 Volt Reference
B WHT/BLK 570 Driver Seat Recline Motor Position Sensor Signal
C BLK 782 Memory Seat Low Reference
scientia non olet · About LEMON Manuals
