Removal Procedure

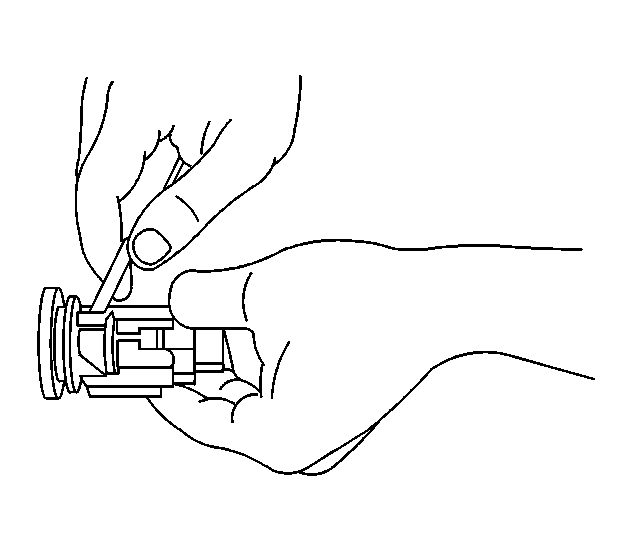

    Fig 1: View of Ignition Lock Cylinder
    GM291677Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition lock cylinder. Refer to Ignition Switch Lock Cylinder Replacement (RHD) or Ignition Switch Lock Cylinder Replacement (LHD) in Instrument Panel Gages and Console.
  2. Remove the bezel from the ignition lock cylinder, by releasing the retainers.
    3. Fig 2: Identifying Ignition Lock Cylinder Housing
    GM291678Courtesy of GENERAL MOTORS CORP.
  3. Slide the reader/exciter (4) from the ignition lock cylinder housing (1).
