Theft Deterrent System Component Views

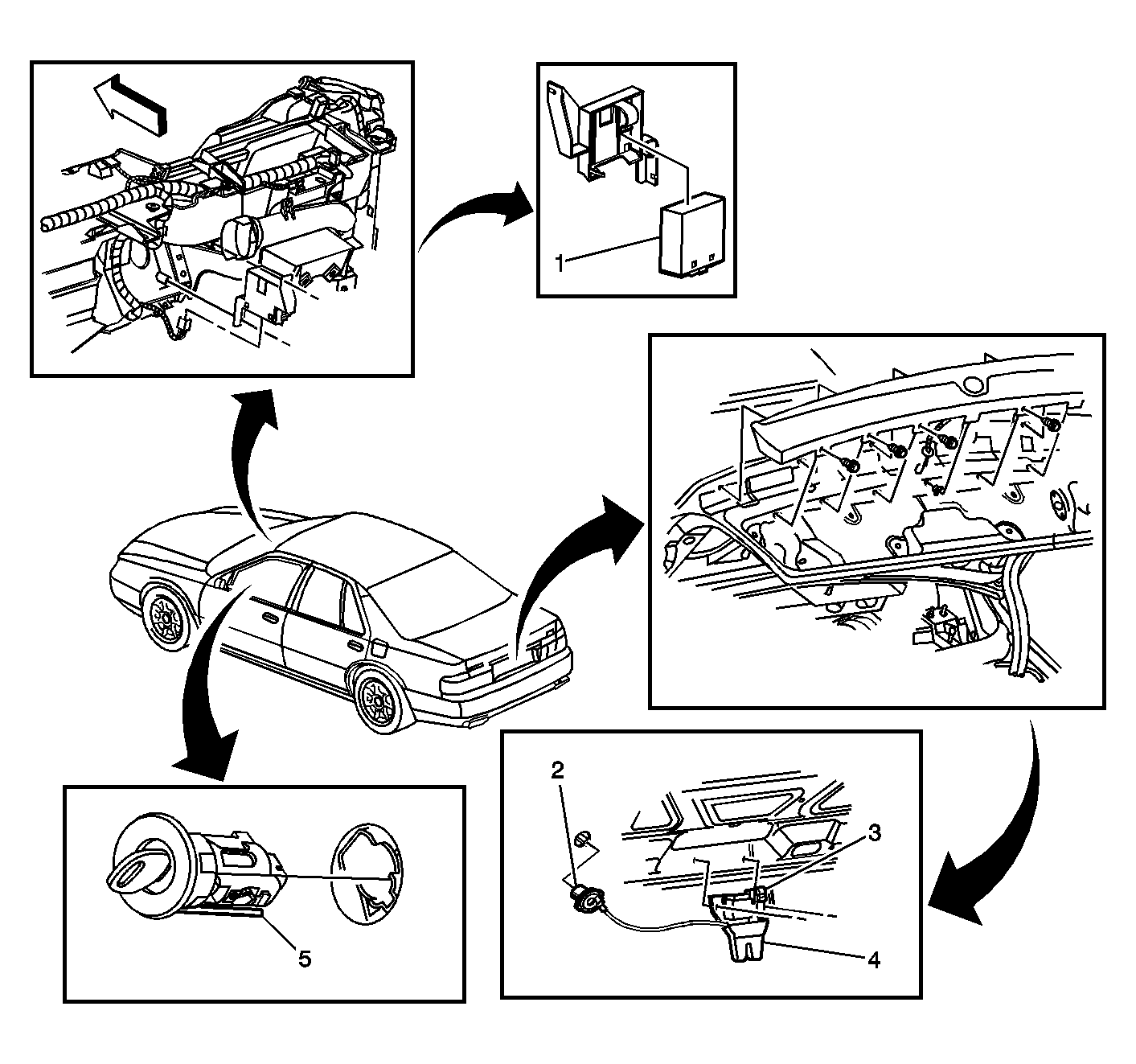

Fig 1: Theft Sub-System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Control Module
2	Rear Compartment Key Cylinder Connector
3	Rear Compartment Lid Pulldown Motor
4	Rear Compartment Lid Latch
5	Theft Deterrent Exciter Module
