Body Control System Schematics

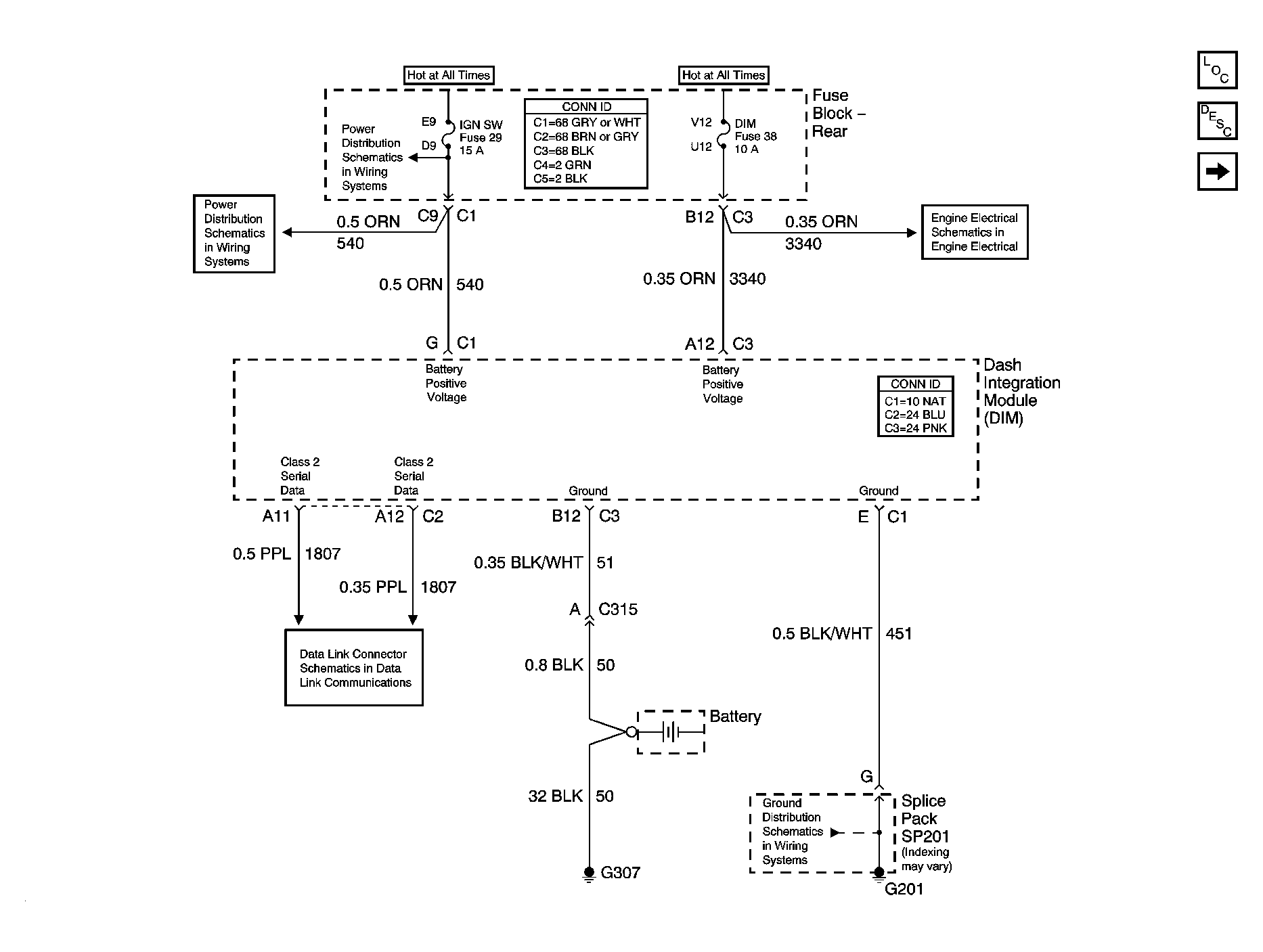

Fig 1: DIM Power And Ground Schematic

GM879894

Courtesy of GENERAL MOTORS CORP.

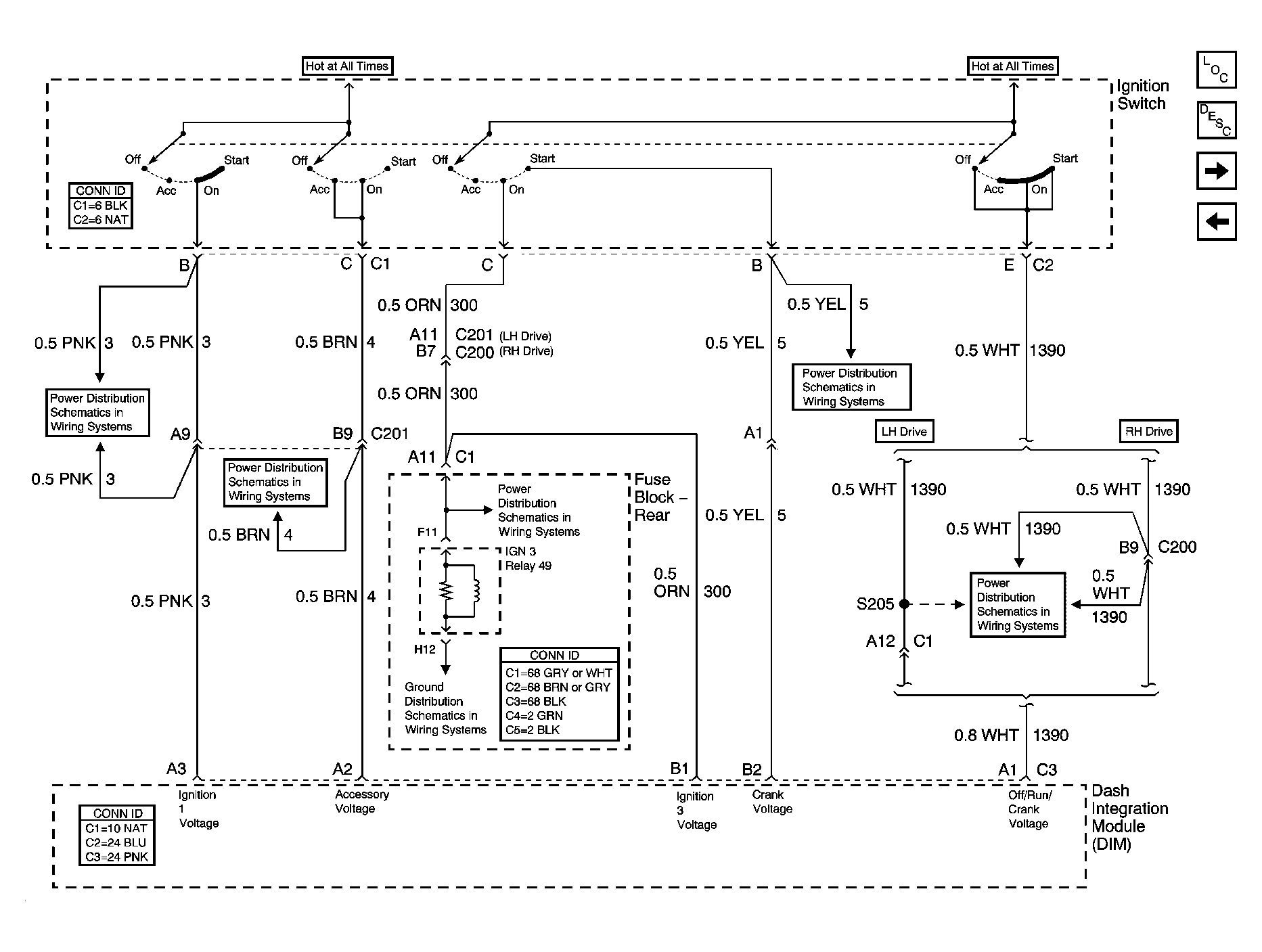

Fig 2: DIM Ignition Inputs Schematic

GM794858

Courtesy of GENERAL MOTORS CORP.

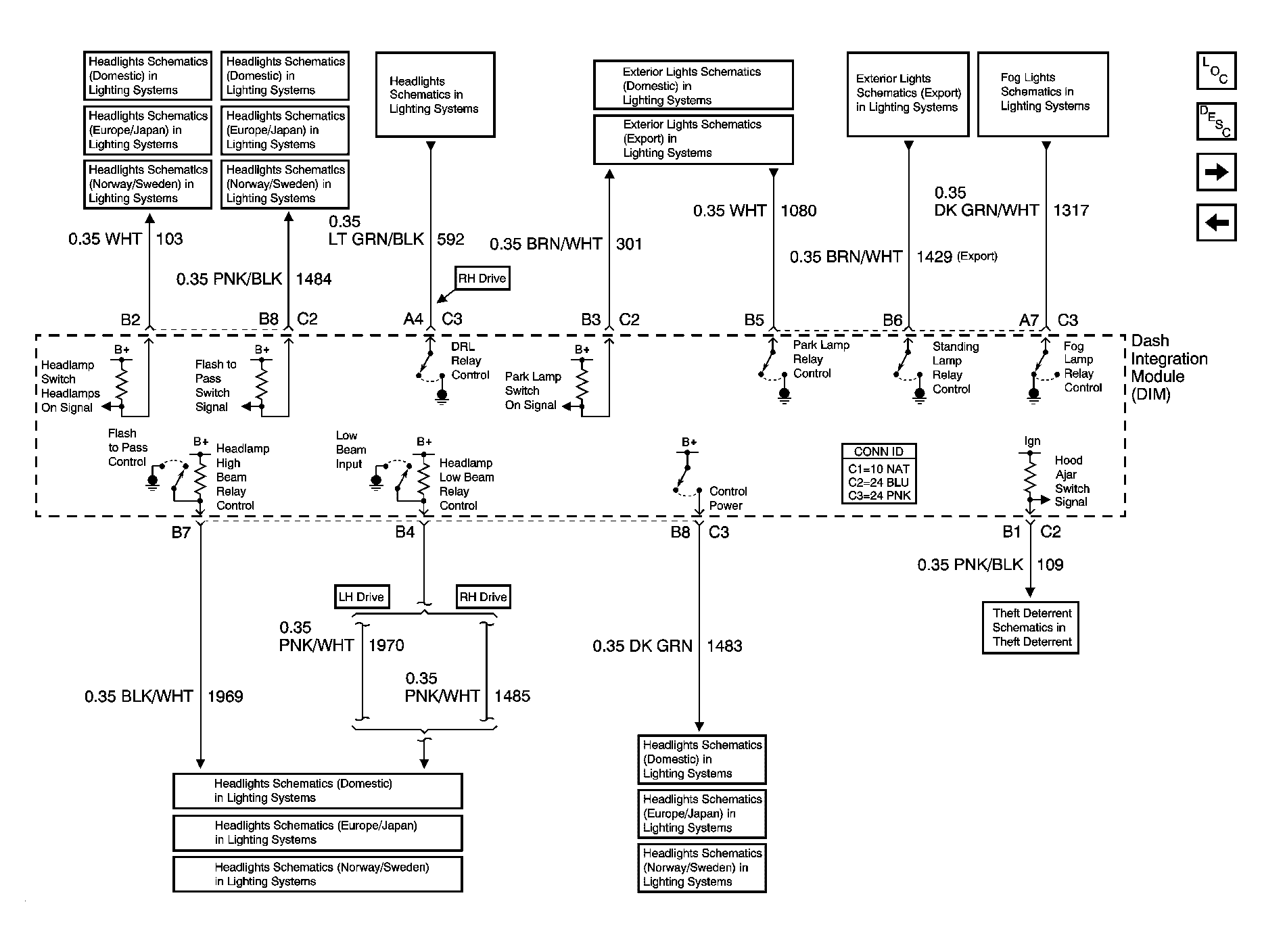

Fig 3: DIM Inputs/Outputs (1 Of 2) Schematic

GM642119

Courtesy of GENERAL MOTORS CORP.

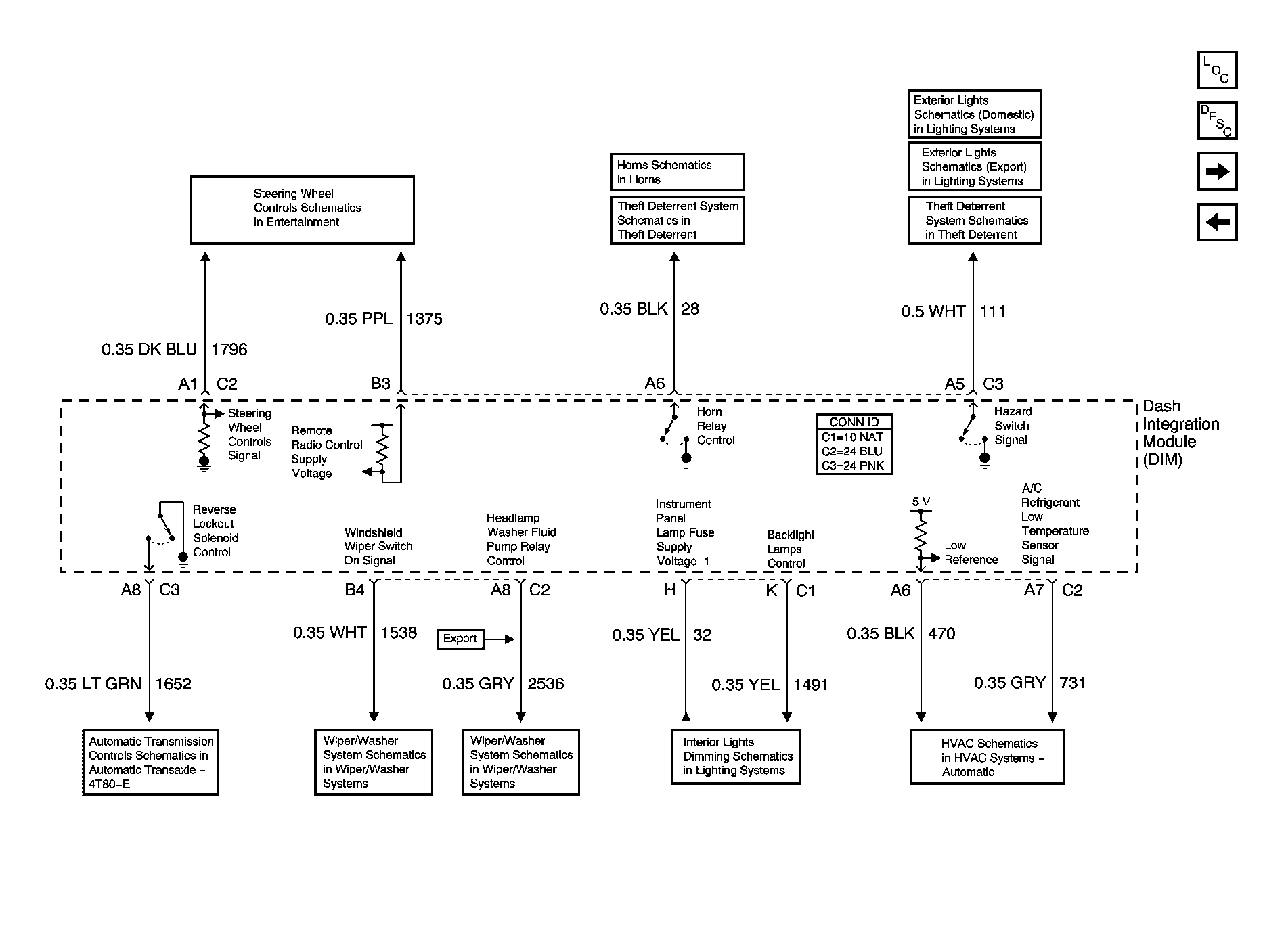

Fig 4: DIM Inputs/Outputs (2 Of 2) Schematic

GM815022

Courtesy of GENERAL MOTORS CORP.

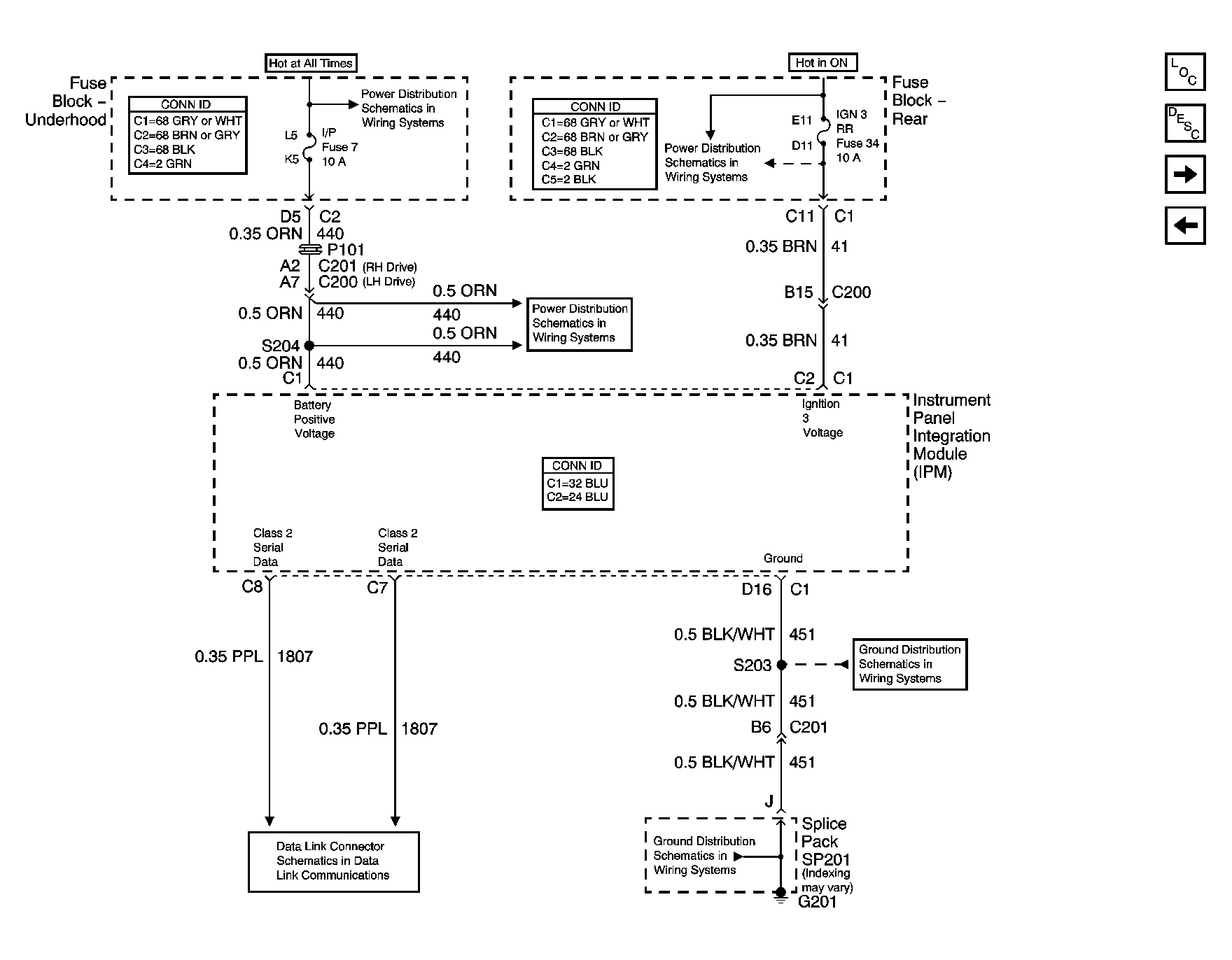

Fig 5: IPM Power And Ground Schematic

GM879895

Courtesy of GENERAL MOTORS CORP.

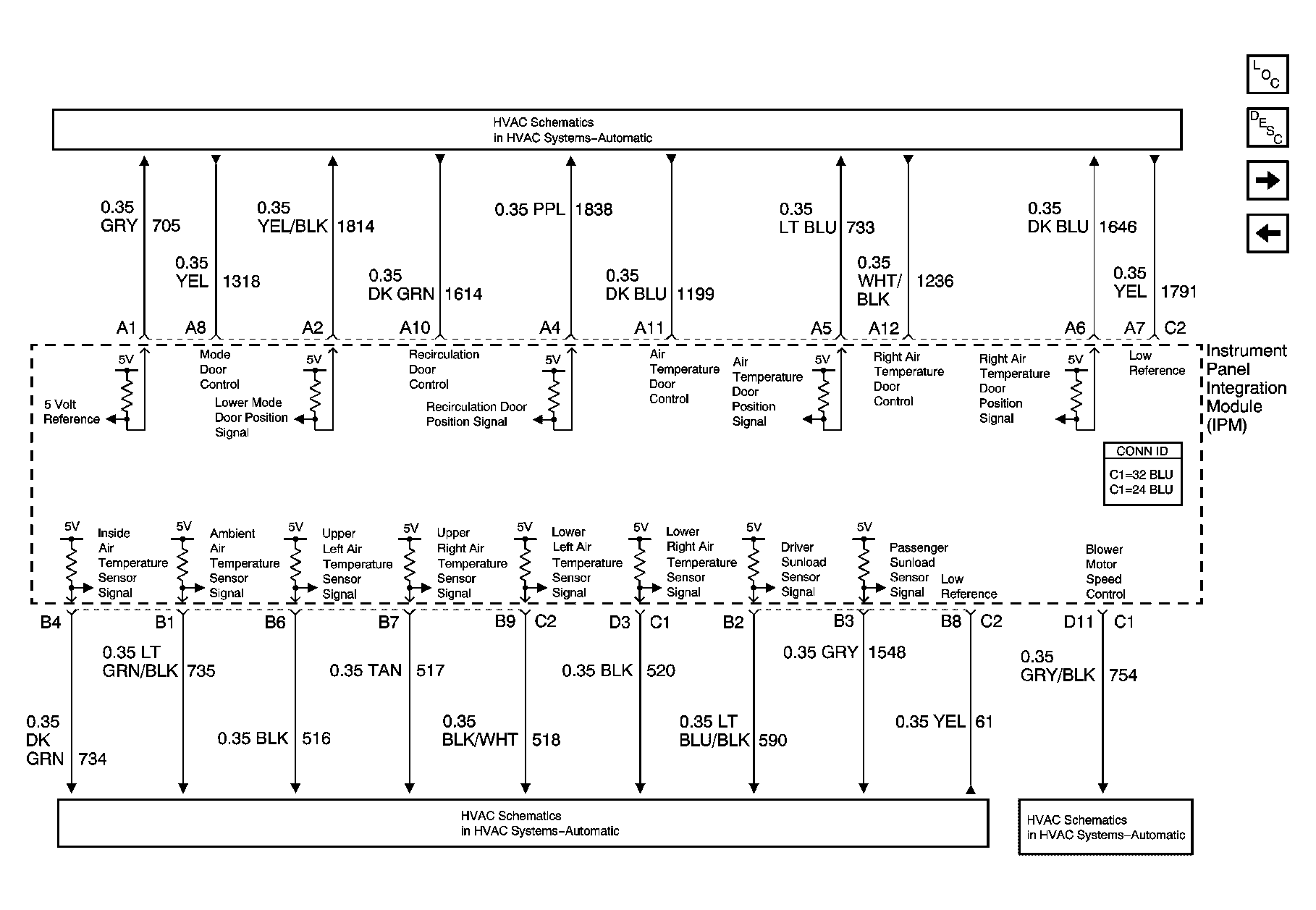

Fig 6: IPM Inputs/Outputs (1 Of 2) Schematic

GM815024

Courtesy of GENERAL MOTORS CORP.

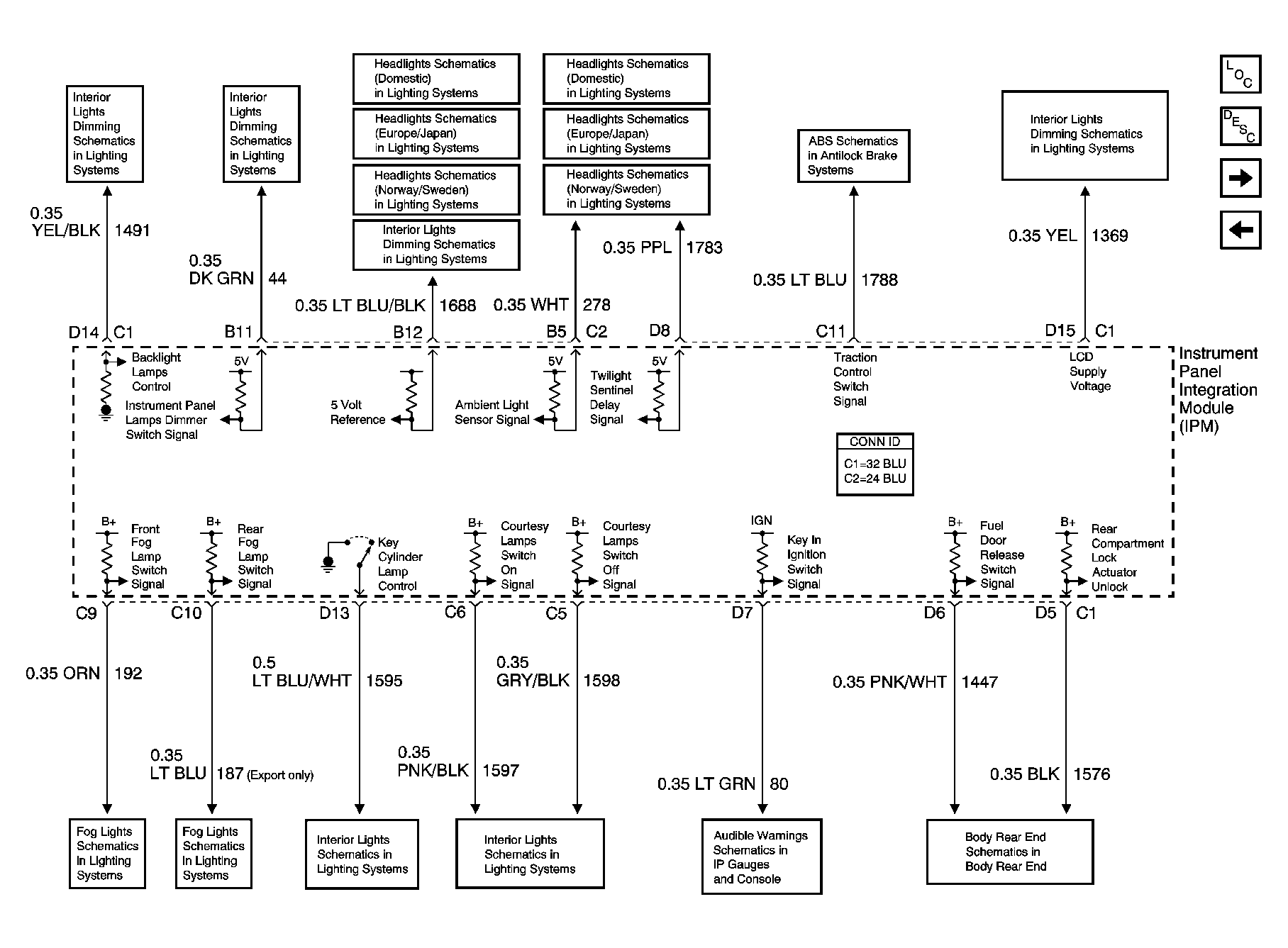

Fig 7: IPM Inputs/Outputs (2 Of 2) Schematic

GM794860

Courtesy of GENERAL MOTORS CORP.

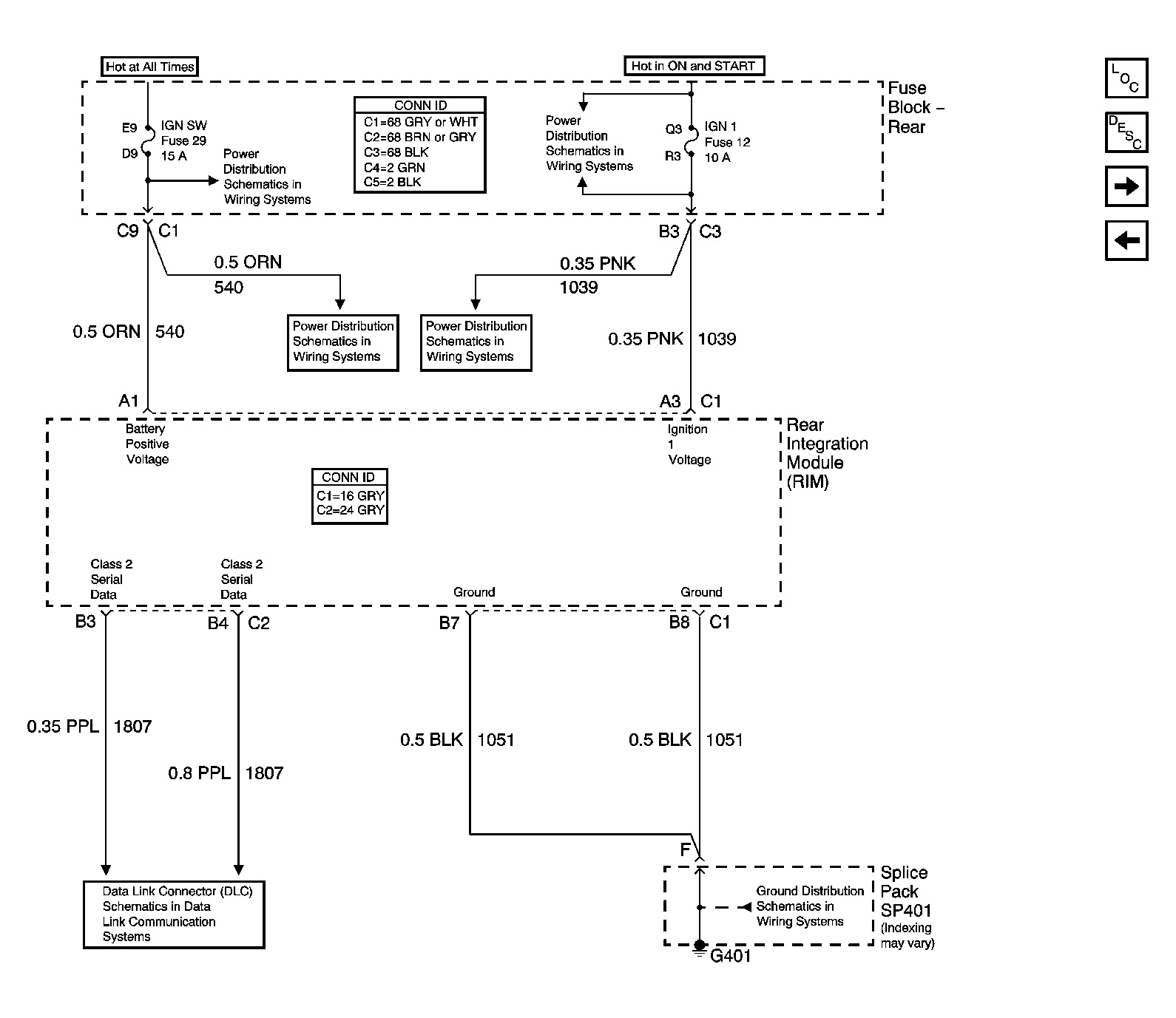

Fig 8: RIM Power And Ground Schematic

GM879898

Courtesy of GENERAL MOTORS CORP.

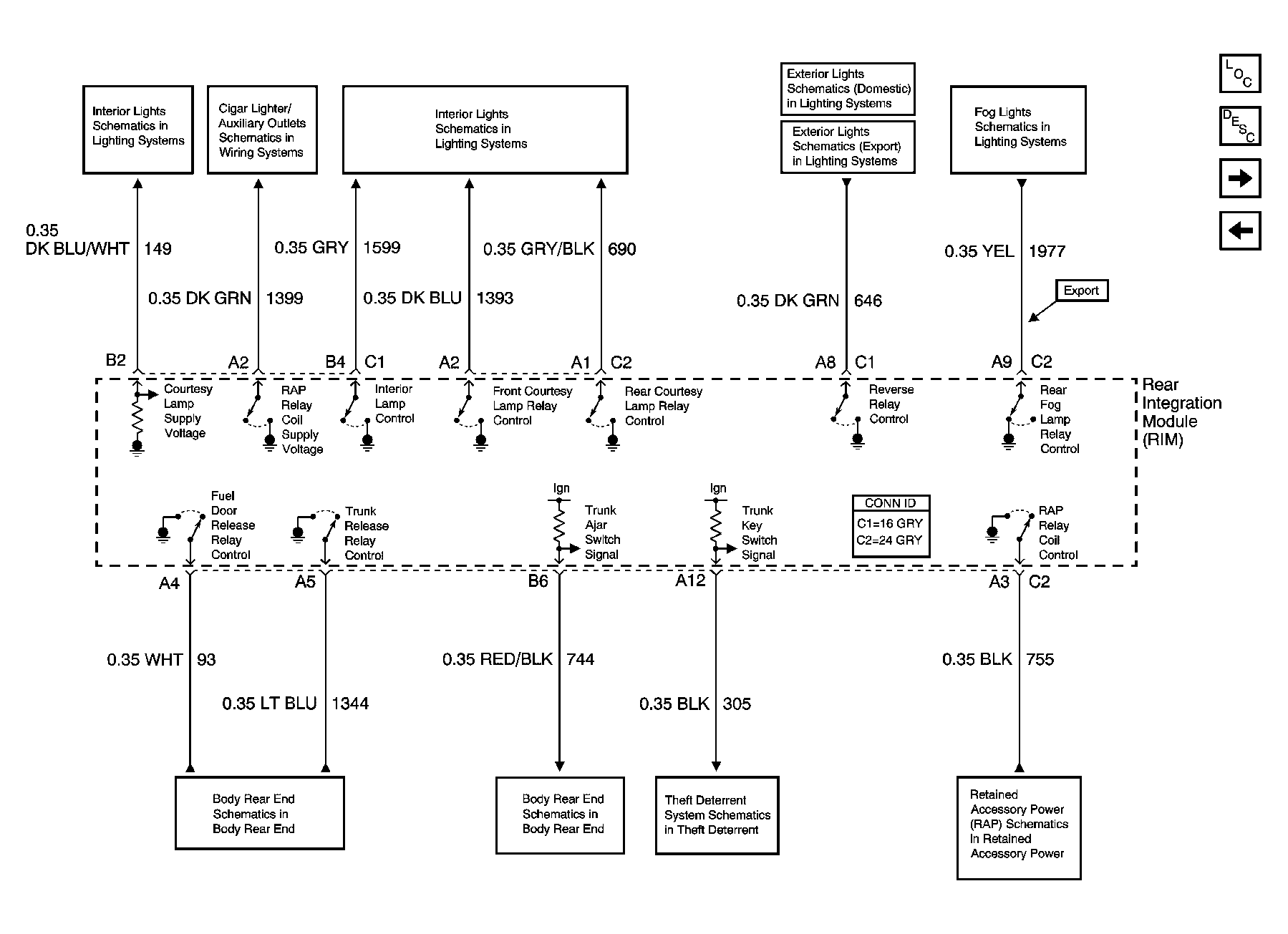

Fig 9: RIM Inputs/Outputs (1 Of 2) Schematic

GM794861

Courtesy of GENERAL MOTORS CORP.

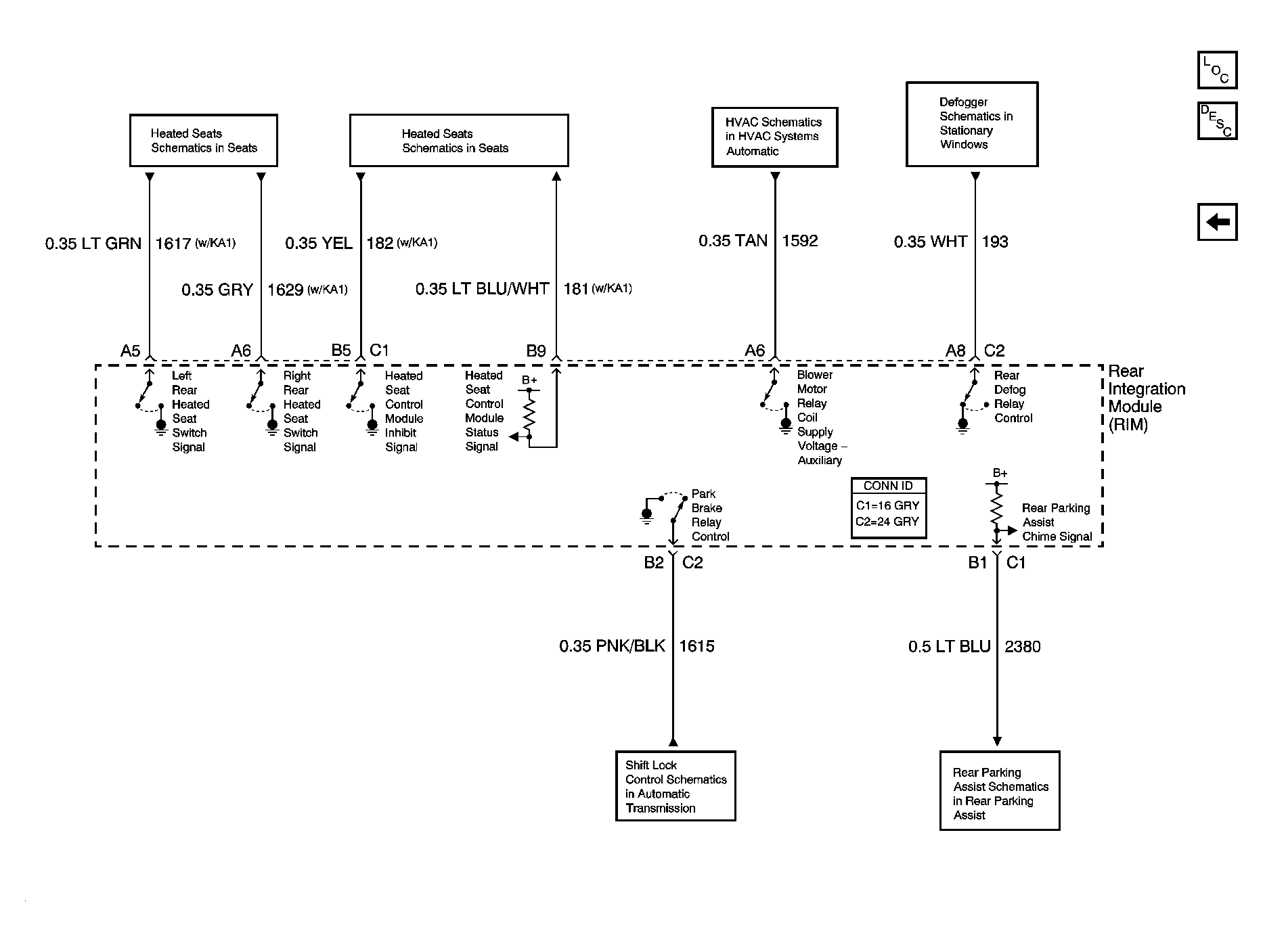

Fig 10: RIM Inputs/Outputs (2 Of 2) Schematic

GM1282171

Courtesy of GENERAL MOTORS CORP.
