Removal Procedure

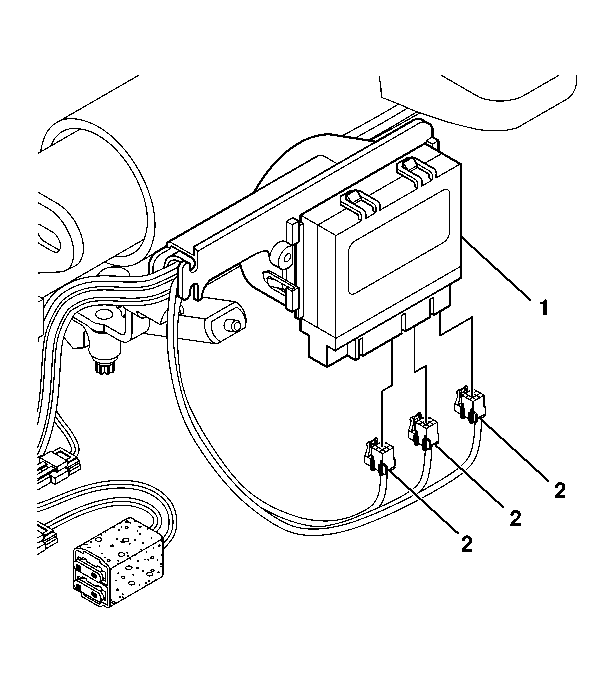

    Fig 1: Identifying Module Electrical Connectors
    GM312291Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR Caution in Cautions and Notices.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
  2. Remove the knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages, and Console.
  3. Disconnect the electrical connectors (2) on the steering column control module.

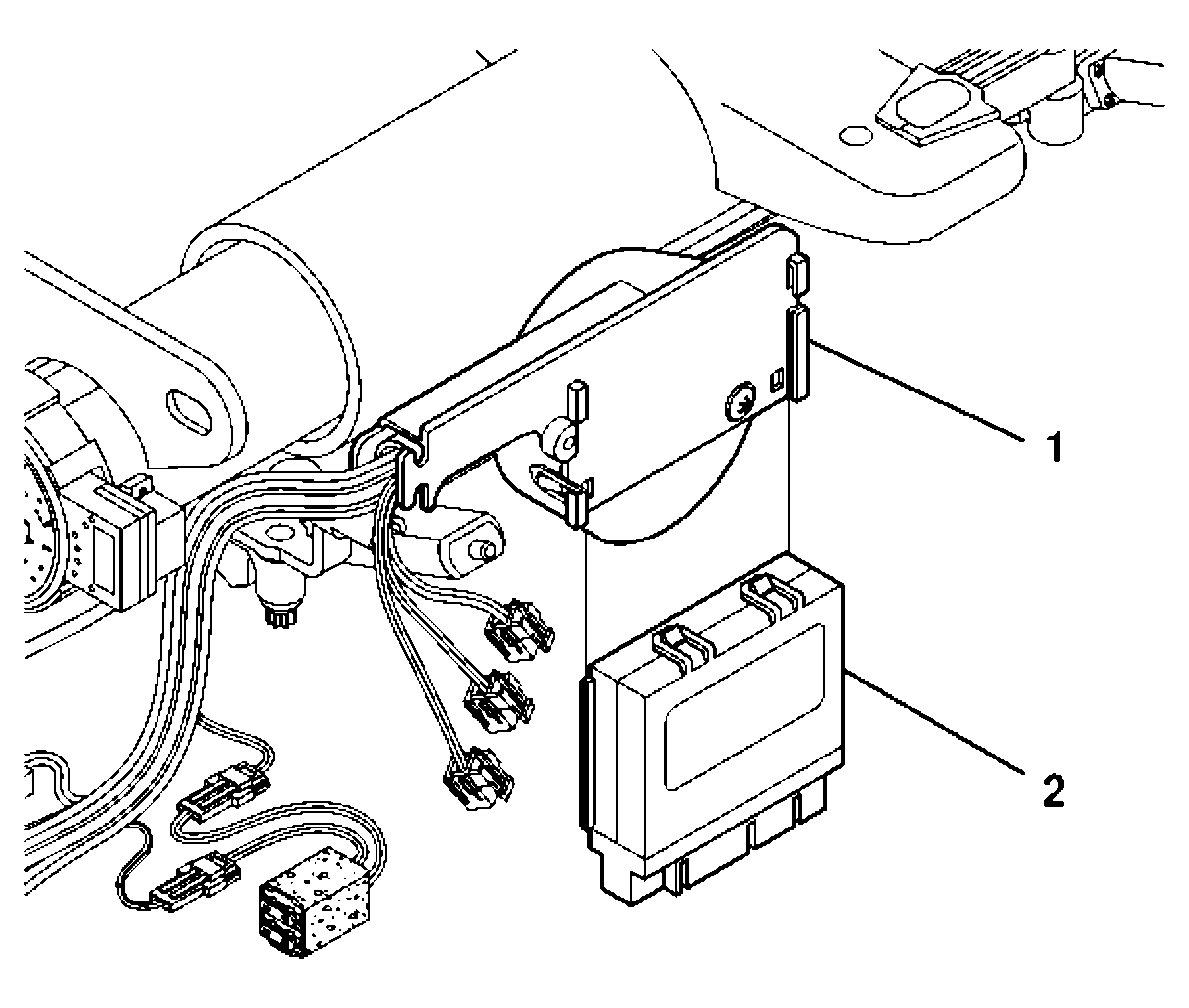

    4. Fig 2: Identifying Wire Harness Shield & Control Module
    GM312298Courtesy of GENERAL MOTORS CORP.
  4. Remove the control module (2) from the wire harness shield (1) of the lower steering column by pulling the module outward to release the retaining clips and sliding the module downward.
