Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Automatic Level Control Assembly | Under carriage, in back of right rear tire. See Figure. |

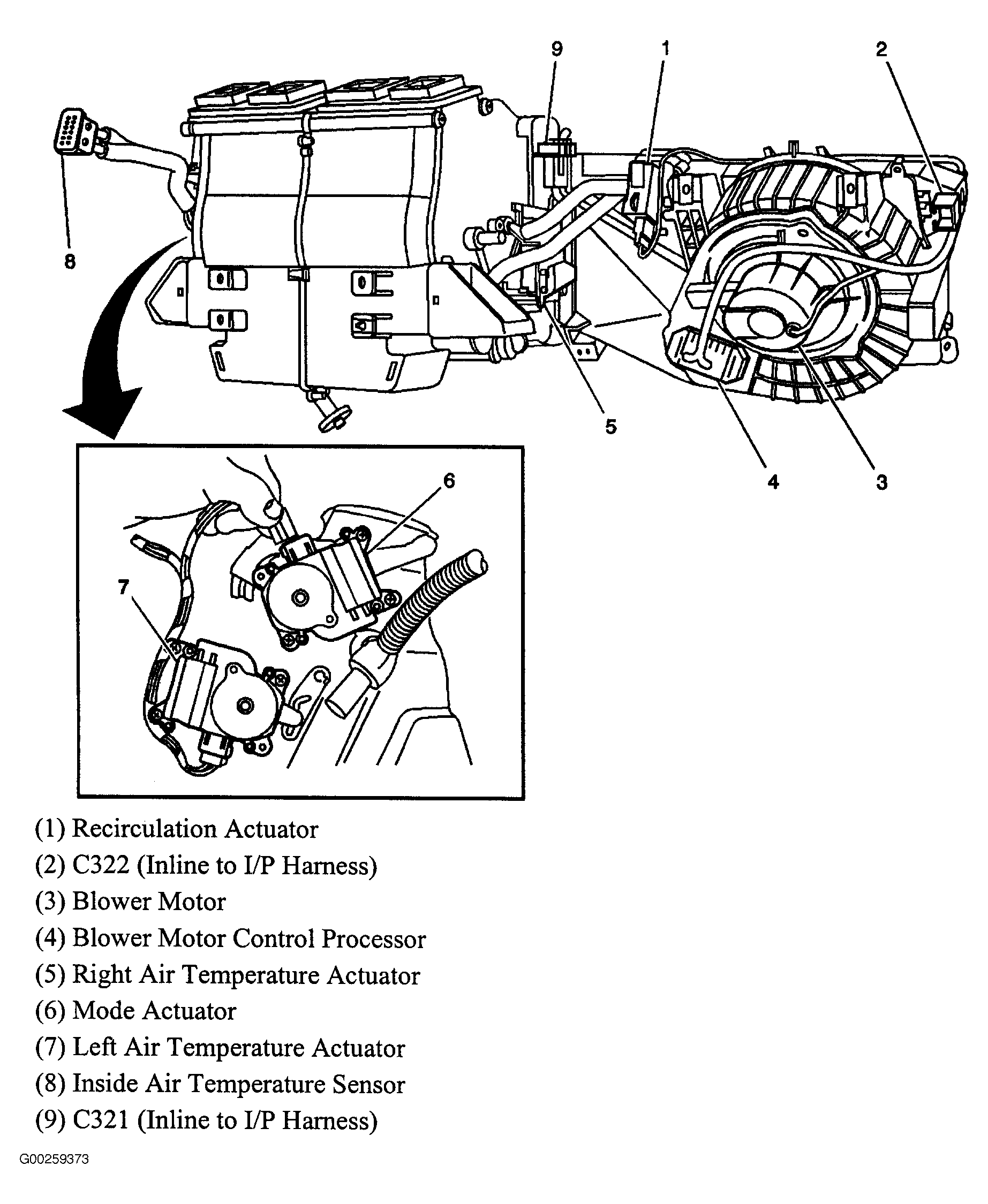

| Blower Motor Control Processor | At bottom of blower motor. See Figure. |
| Dash Integration Module (DIM) | Below glove box. |
| Driver Door Module (DDM) | On driver door, under door trim panel. |
| Electronic Brake Control Module (EBCM) | At right front corner of engine compartment. See Figure. |
| Electronic Suspension Control (ESC) Module | At right rear quarterpanel, behind trim panel. See Figure. |

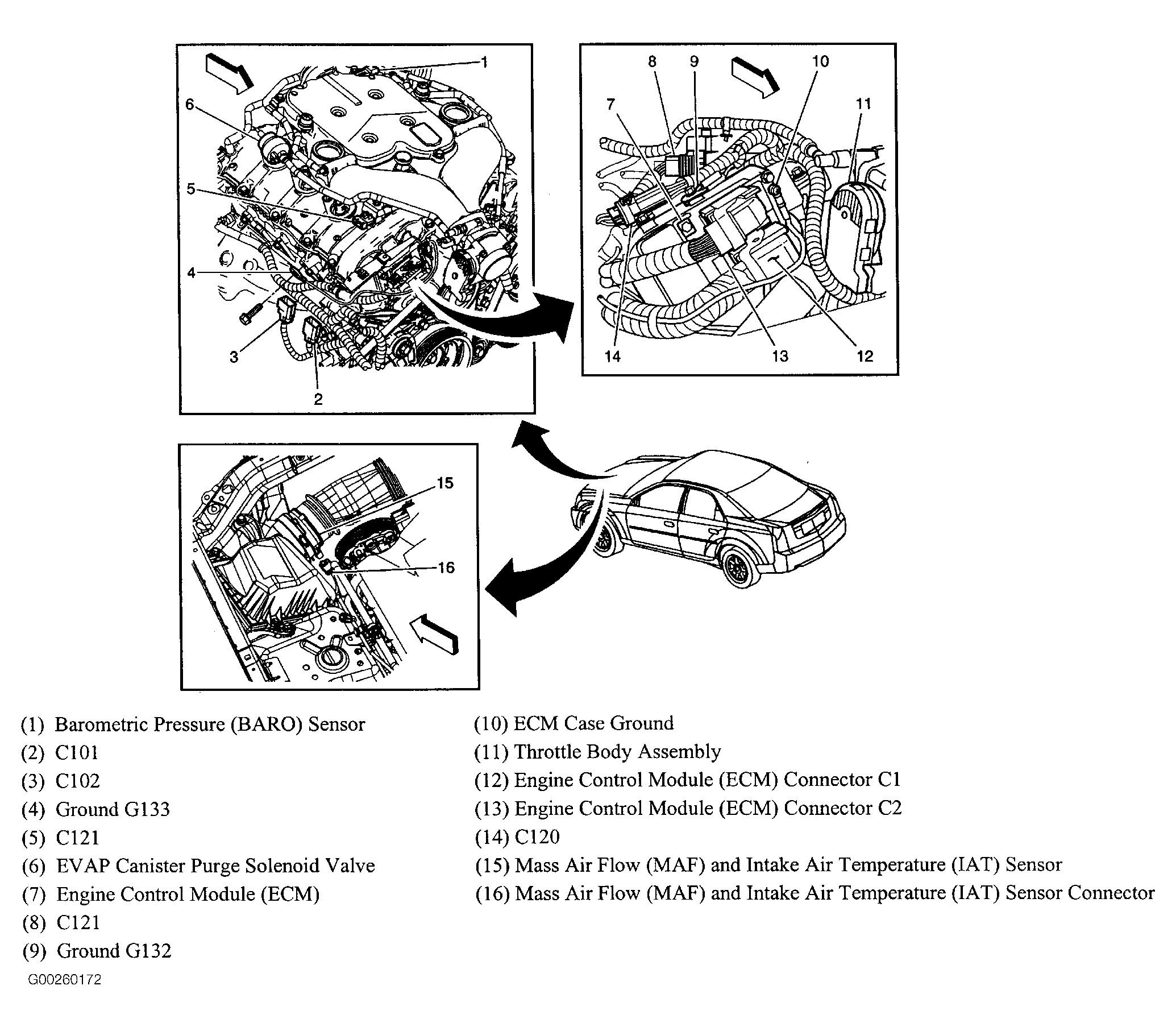

| Engine Control Module (ECM) (3.6L) | At top front of engine. See Figure. |

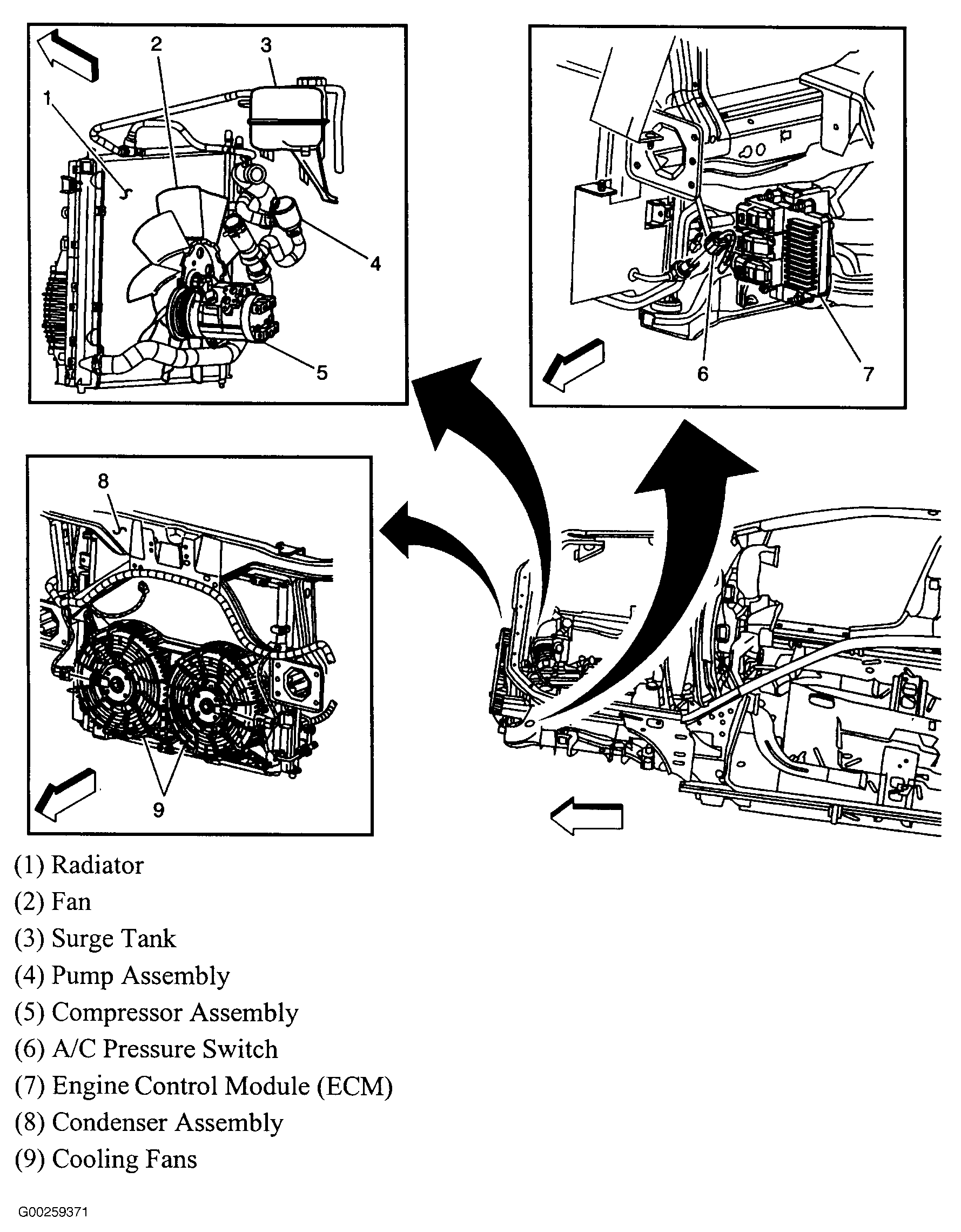

| Engine Control Module (ECM) (4.6L) | On left front frame rail, under left headlamp assembly. See Figure. |
| Front Passenger Door Module (FPDM) | On front passenger door, under door trim panel. |
| Fuel Tank Module-Secondary (4.6L) | At top left of fuel tank. See Figure. |
| Glass Control Module- Front (Mini) | Under headliner, at rear of front sunroof. |
| Heated Seat Module- Driver | Under driver seat. |
| Heated Seat Module- Front Passenger | Under front passenger seat. |
| HVAC Control Module | At center of dash, below radio. |
| Ignition Coil- Module 1 (4.6L) | At front of right cylinder head. See Figure. |
| Ignition Coil- Module 2 (4.6L) | At front of left cylinder head. See Figure. |
| Ignition Coil- Module 3 (4.6L) | At front of right cylinder head. See Figure. |
| Ignition Coil- Module 4 (4.6L) | At front of left cylinder head. See Figure. |
| Ignition Coil- Module 5 (4.6L) | At rear of right cylinder head. See Figure. |
| Ignition Coil- Module 6 (4.6L) | At rear of left cylinder head. See Figure. |
| Ignition Coil- Module 7 (4.6L) | At rear of right cylinder head. See Figure. |
| Ignition Coil- Module 8 (4.6L) | At rear of left cylinder head. See Figure. |
| Inflatable Restraint I/P Module | Behind right side of dash. See Figure. |
| Inflatable Restraint Roof Rail Module- Left | At driver side roof rail, above "B" pillar. See Figure. |
| Inflatable Restraint Roof Rail Module- Right | At passenger side roof rail, above "B" pillar. See Figure. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under center console. See Figure. |
| Inflatable Restraint Side Impact Module- Left | At left side of driver seat. See Figure. |
| Inflatable Restraint Side Impact Module- Right | At right side of front passenger seat. See Figure. |
| Inflatable Restraint Steering Wheel Module | At center of steering wheel. See Figure. |
| Left Rear Door Module (LRDM) | At front of left rear door. See Figure. |
| Left Rear Door Module (LRDM) | On left rear door, under door trim panel. |
| Memory Seat Module (MSM) | Under driver seat. |

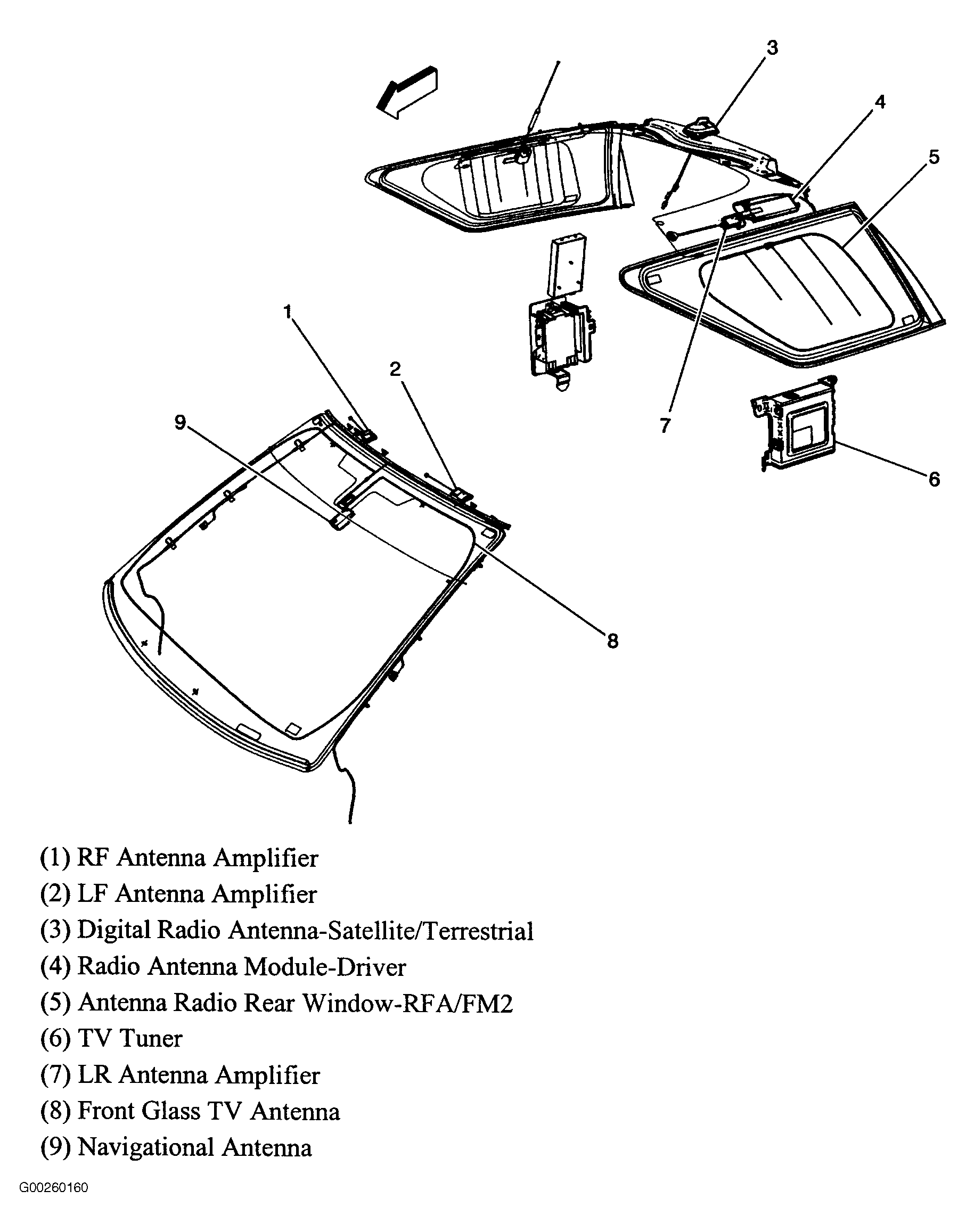

| Radio Antenna Module-Driver | Under headliner, above left rear quarter window. See Figure. |

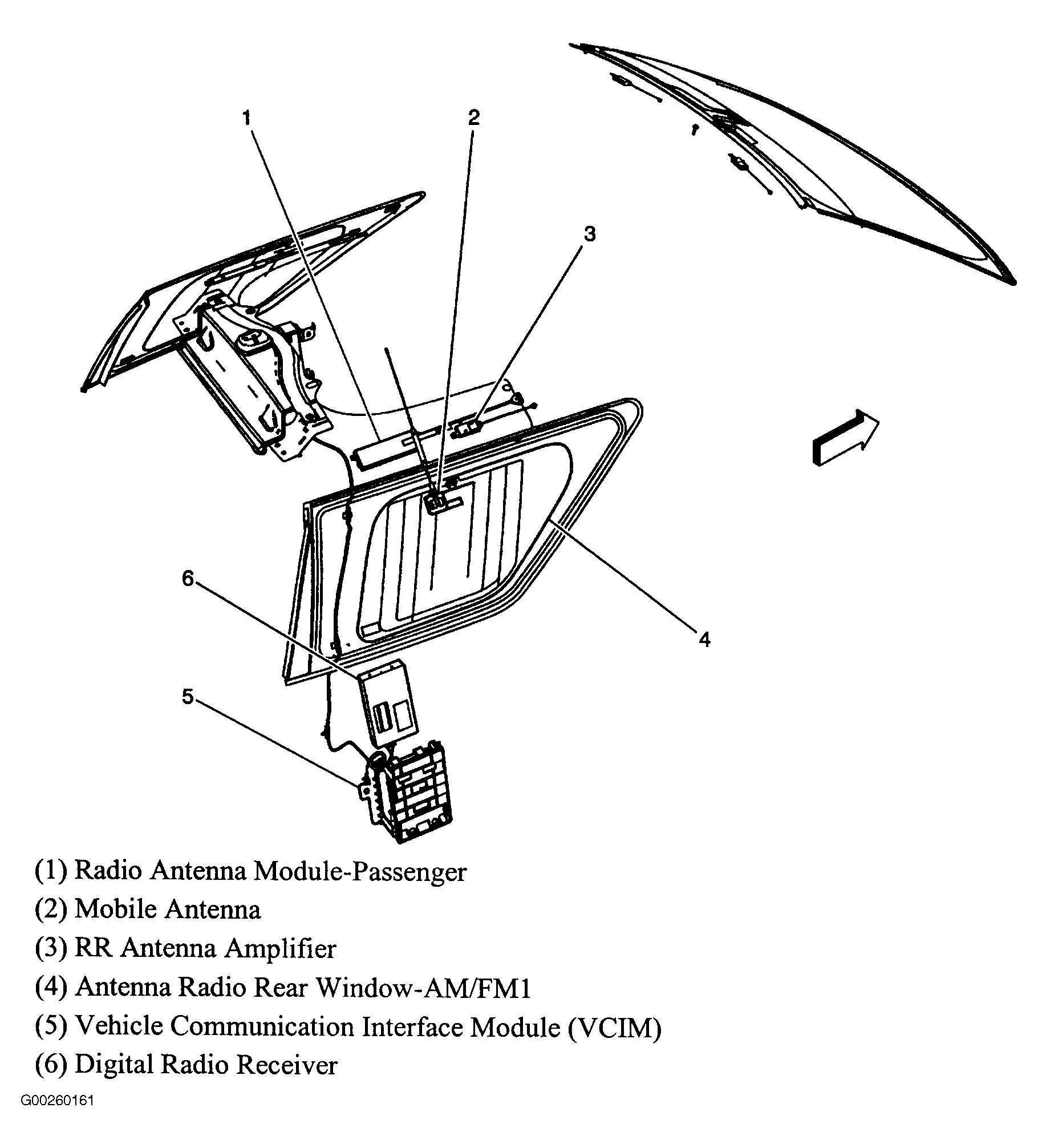

| Radio Antenna Module-Passenger | Under headliner, above right rear quarter window. See Figure. |

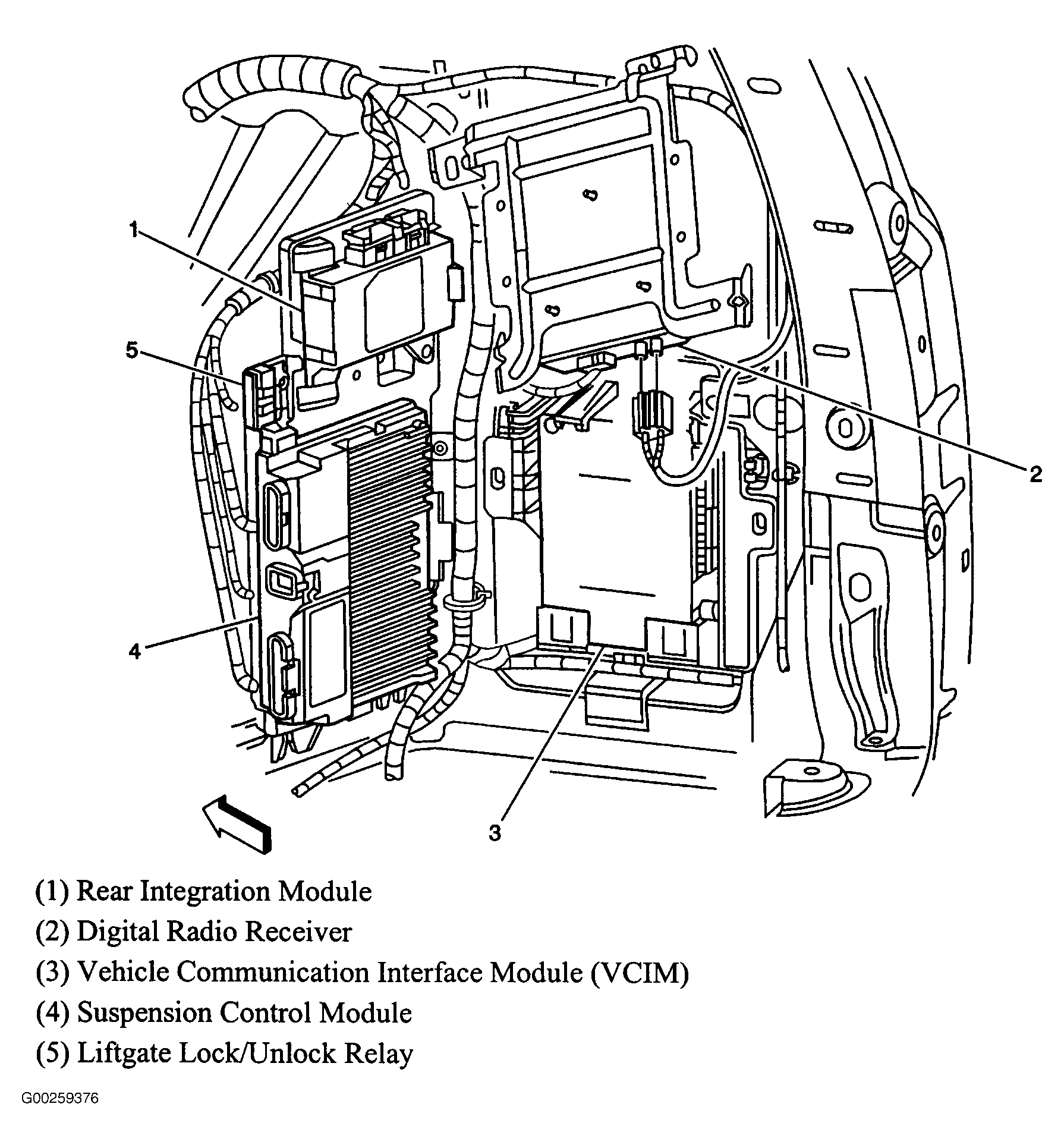

| Rear Integration Module | At right rear of vehicle. See Figure. |
| Rear Parking Assist (RPA) Module | Over left rear wheelwell. See Figure. |
| Rear Seat Module | Under 3rd row seat, on track frame. |
| Right Rear Door Module (RRDM) | At front of right rear door. |
| Right Rear Door Module (RRDM) | On right rear door, under door trim panel. |
| Sensing & Diagnostic Module (SDM) | Under center console. See Figure. |
| Sunshade Control Module- Front (Mini) | Under headliner, in back of front sunroof. |
| Sunshade Control Module- Rear (Mega) | Under headliner, between front & rear sunroofs. |
| Suspension Control Module | At right rear corner of vehicle. See Figure. |
| TAC Module (3.6L) | At top front of engine. See Figure. |
| Theft Deterrent Control Module | At right side of steering column. See Figure. |
| Throttle Actuator Control (TAC) Module (4.6L) | At front of engine. See Figure. |
| Transmission Control Module (TCM) | At right front of engine compartment. See Figure. |
| Turn Signal/Hazard Flasher Module | Under left side of dash. See Figure. |
| Vehicle Communication Interface Module (VCIM) | At right rear corner of vehicle. See Figure. |
| Vent Control Module- Rear (Mega) | Under headliner, between mini & mega sunroof. |
| Windshield Wiper/Washer Module | At left rear of engine compartment. |
