Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: Right Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 4: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 5: Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left & Right "D" Pillars
Courtesy of GENERAL MOTORS CORP.
Fig 7: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 8: Rear Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 9: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 11: HVAC
Courtesy of GENERAL MOTORS CORP.
Fig 12: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 13: Top Of Evaporator
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 15: Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 16: Rear Of Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 17: Right Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 18: Rear Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 20: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Engine Compartment, Center Rear Of Headliner & Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 23: Left Rear Of Cargo Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 24: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 25: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 26: SIR Components Location
Courtesy of GENERAL MOTORS CORP.
Fig 27: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 28: Front Of Vehicle Frame
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

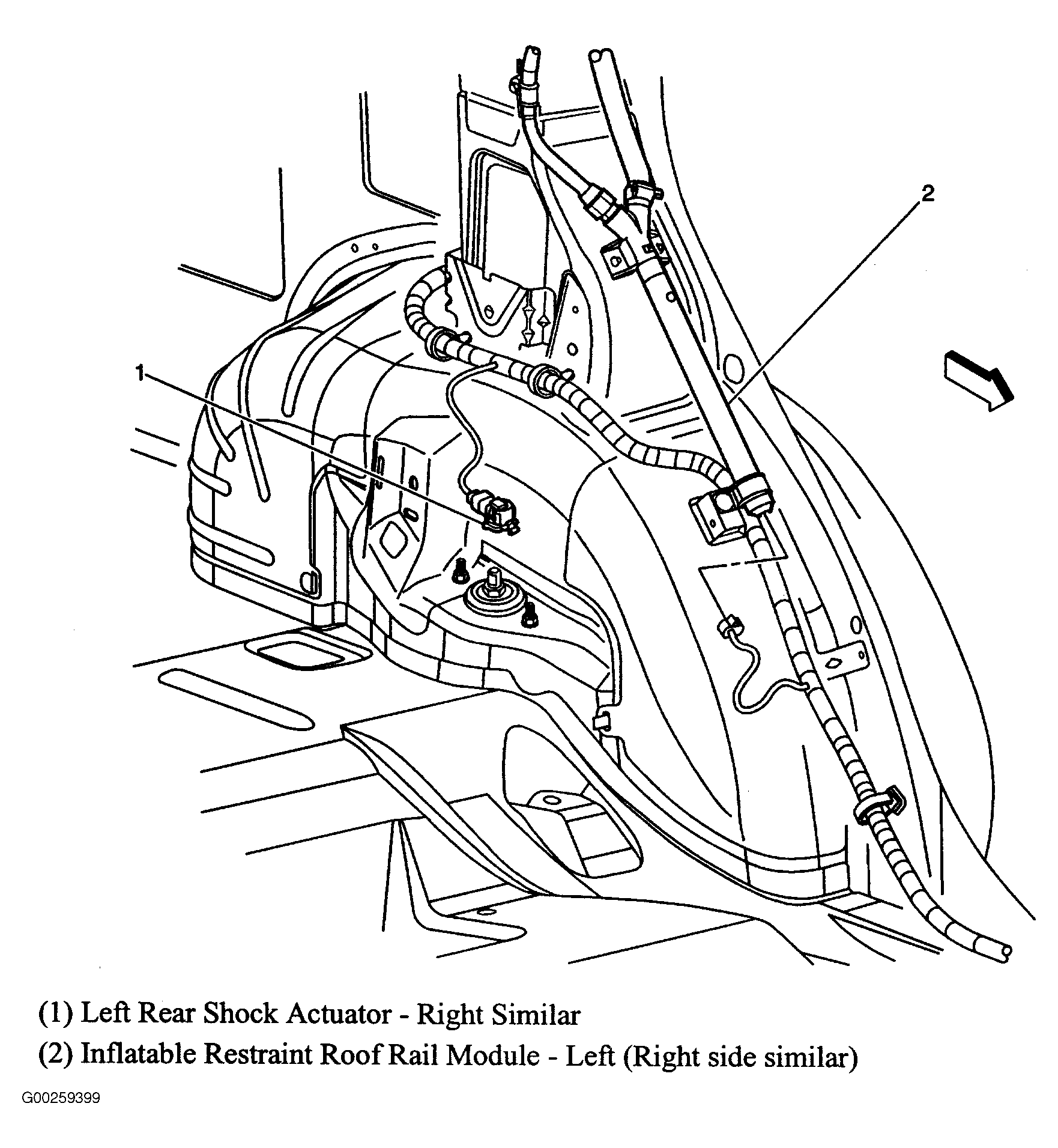

Fig 30: Left Rear Wheelwell
Courtesy of GENERAL MOTORS CORP.
Fig 31: Upper Center Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 32: Antenna Components
Courtesy of GENERAL MOTORS CORP.
Fig 33: Right Rear Quarter Window
Courtesy of GENERAL MOTORS CORP.
Fig 34: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 35: Automatic Transmission (5L40-E)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Automatic Transmission (5L50-E)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Front Of Engine & Passenger Compartments
Courtesy of GENERAL MOTORS CORP.
Fig 38: Overview Of Vehicle Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 39: Rear Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Top Of Engine (4.6L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Top Of Engine (4.6L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Top Right Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front Exhaust Pipes
Courtesy of GENERAL MOTORS CORP.
Fig 44: Fuel Tank (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Left Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.

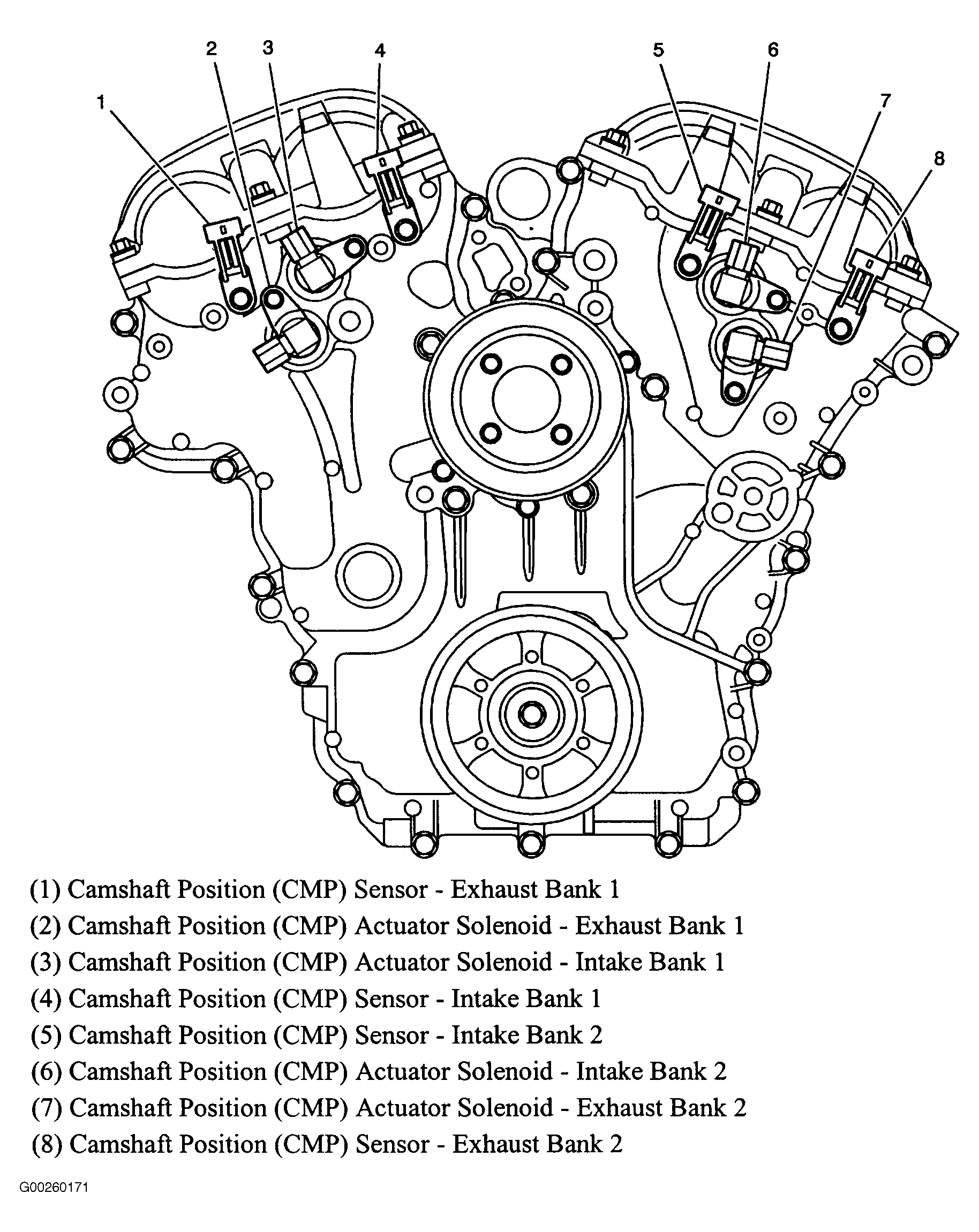

Fig 46: Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Engine Compartment & Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Right Rear Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left Rear Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Side Of Engine Compartment (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Rear Underside Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 52: Fuel Tank (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 53: Top Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 54: Top Front Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right Side Of Engine (3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Left Side Of Dash & Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 58: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 59: Under Center Console
Courtesy of GENERAL MOTORS CORP.

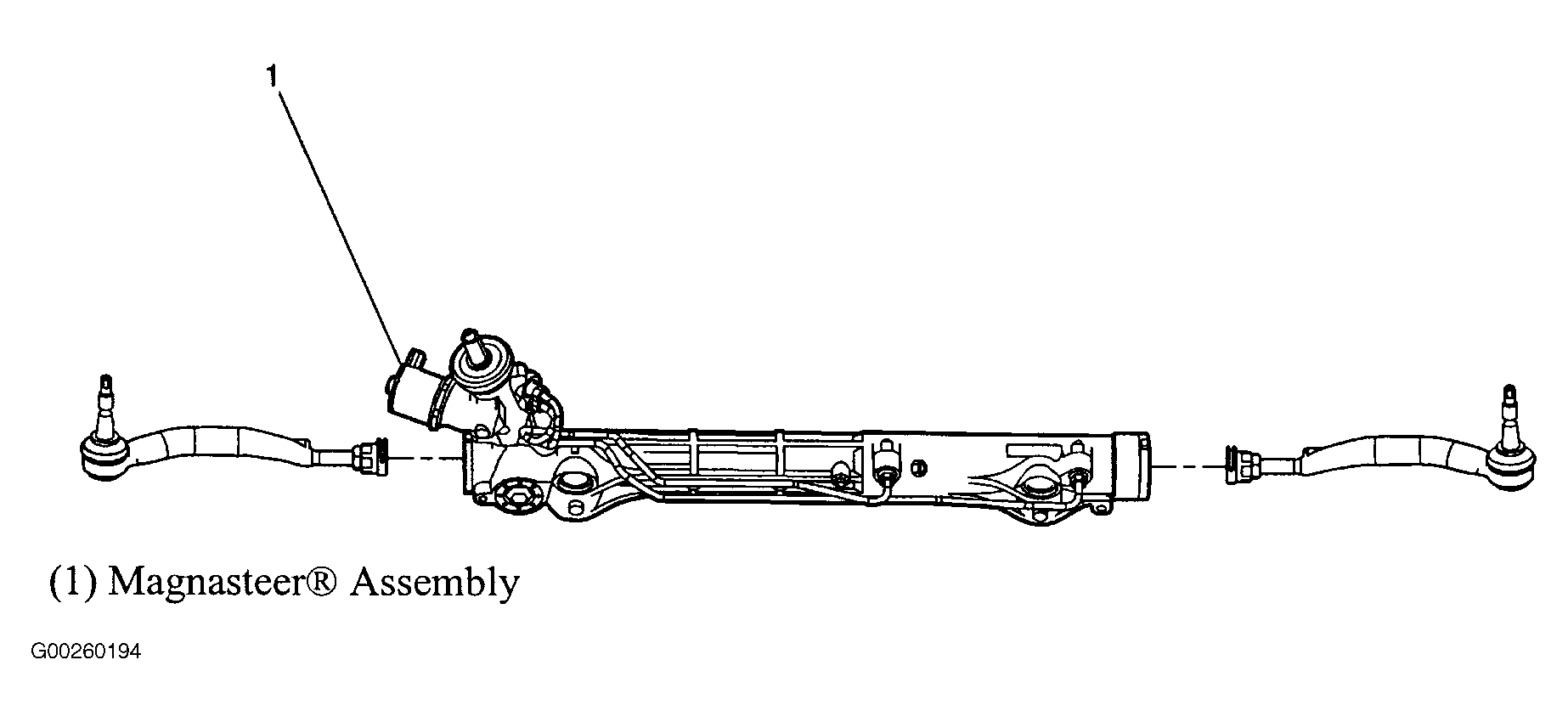

Fig 60: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

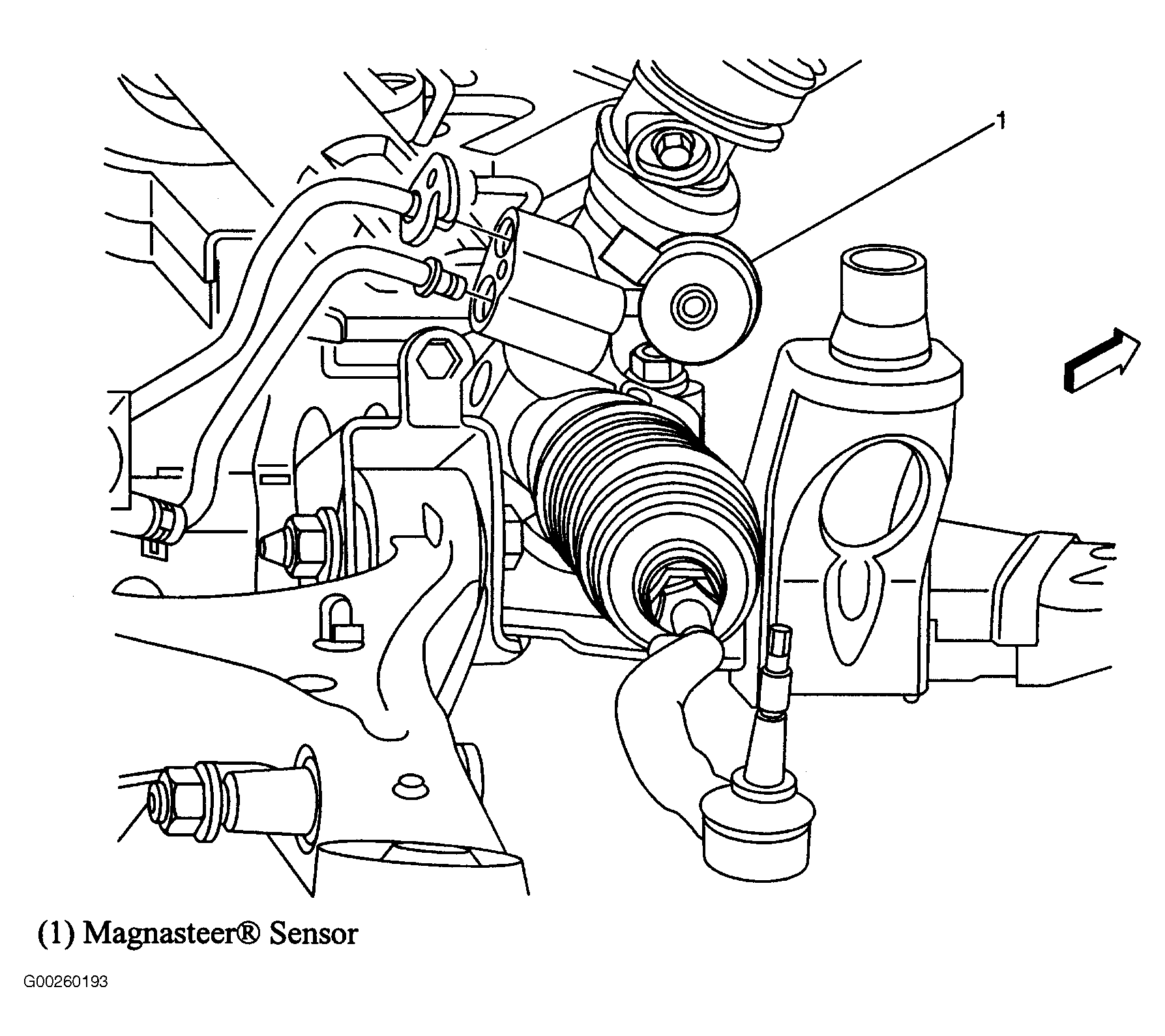

Fig 61: Bottom Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 62: Front & Rear Wheel Assemblies
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 64: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 65: Tire Pressure Monitoring Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 66: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 67: Right Rear Of Vehicle & Rear Suspension
Courtesy of GENERAL MOTORS CORP.
Fig 68: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
