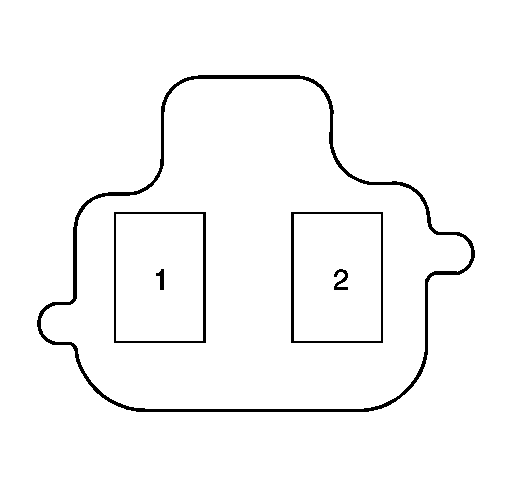

Liftgate Latch Connector End View
Liftgate Latch Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 7283-1225-30
- 2-Way F Yazaki (BK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
TN |
294 |
Door Lock Actuator Unlock Control |
| 2 |
GY |
295 |
Door Lock Actuator Lock Control |
