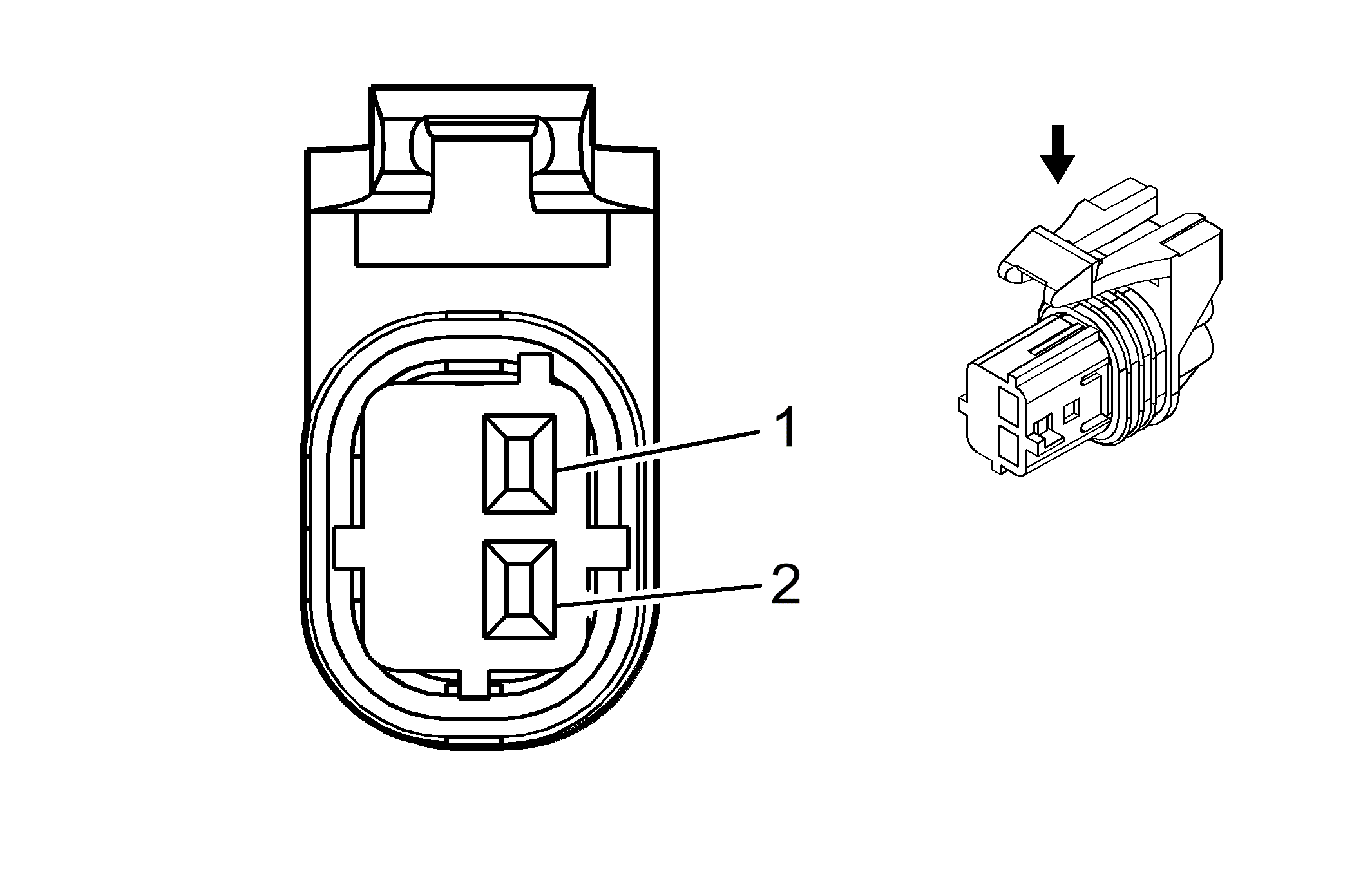

Inflatable Restraint Front End Sensor - Left Connector End View
Inflatable Restraint Front End Sensor - Left Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15356726
- 2-Way F GT 150 Series (YE)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
TN/OG |
5045 |
Discriminating Sensor - Low Reference |
| 2 |
YE |
354 |
Discriminating Sensor - Signal |
