Fuse Block Connector End Views - Right I/P

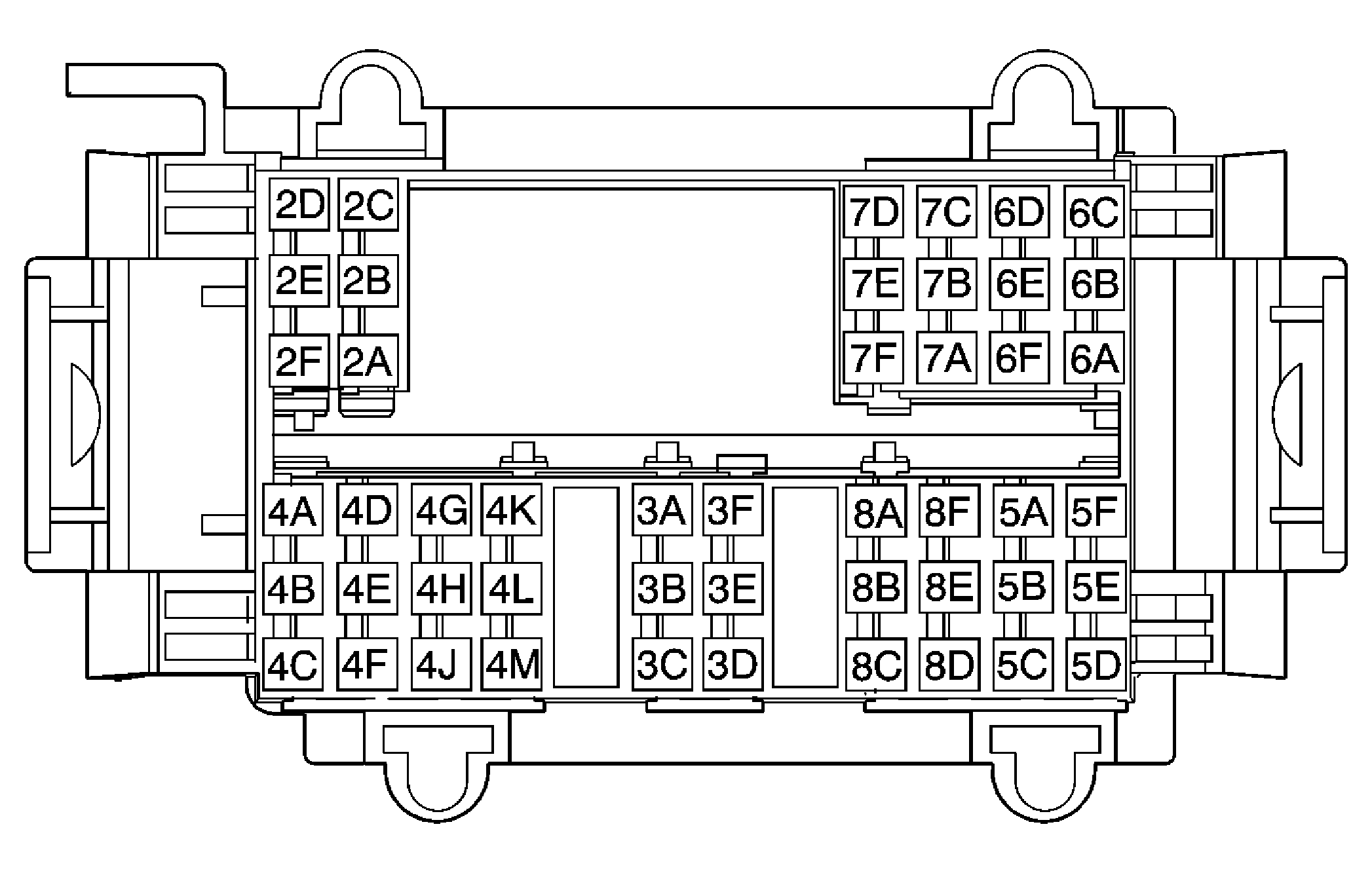

Fig 1: Fuse Block - Right I/P Bottom View
GM1156070Courtesy of GENERAL MOTORS CORP.
Fuse Block - Right I/P - C1 Wire Entry

Connector Part Information
  • 15401495
  • 48-Way F Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function
2A DK GRN 117 Right Front Speaker Output (-)
DK GRN 117 Right Front Speaker Output (-) (UQ7 w/Y91)
2B LT GRN 200 Right Front Speaker Output (+)
LT GRN 200 Right Front Speaker Output (+) (UQ7 w/Y91)
2C-2E - - Not Used
2F BLK 1050 Ground
4A BLK 1050 Ground
4B ORN 52 Blower Motor High Control (w/CJ3)
GRY/BLK 2337 Lower Right Air Temperature Sensor Signal (w/CJ2)
4C PPL 73 Medium 3 Blower Motor Control (w/CJ3)
BRN 718 Low Reference (w/CJ2)
4D RED 542 Battery Positive Voltage
4E TAN 63 Auxiliary Blower Motor Medium 1 Control (w/CJ3)
PPL 1838 Recirculation Door Position Signal (w/CJ2)
4F PPL/WHT 760 Auxiliary Front Blower Motor Switch Signal (w/CJ2)
4G YEL 60 Blower Motor Low Control (w/CJ3)
4H - - Not Used
4J LT BLU/BLK 1688 5-Volt Reference (w/CJ2)
4K LT BLU 72 Medium 2 Blower Motor Control (w/CJ3)
4L YEL 1791 Low Reference (w/CJ2)
4M - - -
5A - - -
5B LT GRN 2275 Mode Door Position Signal (w/CJ2)
5C TAN 2273 Mode Door Control (w/CJ2)
5D DK BLU 1199 Left Air Temperature Door Control (w/CJ2)
5E LT BLU 733 Left Air Temperature Door Position Signal (w/CJ2)
5F - - Not Used
6A ORN 3840 Battery Positive Voltage (w/CF5)
6B BRN 2409 Interior Park Lamps Supply Voltage
6C BLK 1050 Ground
6D DK BLU 1353 RAP Supply Voltage (w/CF5)
6E BRN/WHT 230 Instrument Panel Lamps Dimming Control (w/CF5)
6F - - Not Used
7A - - Not Used
7B TAN 1047 PDM Class 2 Serial Data
7C ORN 4240 Battery Positive Voltage
7D - - Not Used
7E ORN 1340 Battery Positive Voltage
7F DK BLU 2115 Right Turn Signal Lamps Supply Voltage
8A WHT/BLK 2339 Lower Left Air Temperature Sensor Signal (w/CJ2)
8B - - Not Used
8C BRN 341 Ignition 3 Voltage
8D DK BLU 1646 Right Air Temperature Door Position Signal (w/CJ2)
8E WHT/BLK 1236 Right Air Temperature Door Control (w/CJ2)
8F DK GRN 1614 Recirculation Door Control (w/CJ2)
Fuse Block - Right I/P - C2

GM886362Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193930
  • 6-Way F Metri-Pack 280 Series Flexlock (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 117 Right Front Speaker Output (-)
DK GRN 117 Right Front Speaker Output (-) (w/UQ3)
B LT GRN 200 Right Front Speaker Output (+)
LT GRN 200 Right Front Speaker Output (+) (w/UQ3)
C-E - - Not Used
F BLK 1050 Ground
BLK 1050 Ground (w/o YE9)

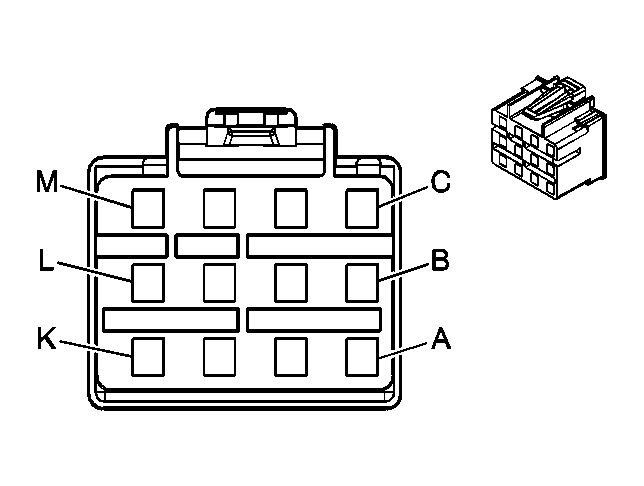

Fuse Block - Right I/P - C4

GM655757Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12194037
  • 12-Way F Metri-Pack 280 Series Flexlock (BRN)
Pin Wire Color Circuit No. Function
A BLK 1050 Ground
B GRY/BLK 2337 Lower Right Air Temperature Sensor Signal (w/CJ2)
ORN 52 Blower Motor High Control (w/CJ3)
C BRN 718 Low Reference - Air Temperature Sensor - Lower Left (w/CJ2)
BRN 718 Low Reference - Air Temperature Sensor - Lower Right (w/CJ2)
PPL 73 Medium 3 Blower Motor Control (w/CJ3)
D RED 542 Battery Positive Voltage
E PPL 1838 Recirculation Door Position Signal (w/CJ2)
TAN 63 Auxiliary Blower Motor Medium 1 Control (w/CJ3)
F PPL/WHT 760 Blower Motor Speed Control (w/CJ2)
G YEL 60 Blower Motor Low Control (w/CJ3)
H LT BLU/BLK 1688 5-Volt Reference - Air Temperature Actuator - Left (w/CJ2)
LT BLU/BLK 1688 5-Volt Reference - Air Temperature Actuator - Right (w/CJ2)
J LT BLU/BLK 1688 5-Volt Reference - Mode Actuator (w/CJ2)
LT BLU/BLK 1688 5-Volt Reference - Recirculation Actuator (w/CJ2)
K - - Not Used
L YEL 1791 Low Reference - Recirculation Actuator (w/CJ2)
YEL 1791 Low Reference - Mode Actuator (w/CJ2)
M YEL 1791 Low Reference - Air Temperature Actuator - Left (w/CJ2)
YEL 1791 Low Reference - Air Temperature Actuator - Right (w/CJ2)
Fuse Block - Right I/P - C5

GM886343Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193924
  • 6-Way F Metri-Pack 280 Series Flexlock (BRN)
Pin Wire Color Circuit No. Function
A - - Not Used
B LT GRN 2275 Mode Door Position Signal (w/CJ2)
C TAN 2273 Mode Door Control (w/CJ2)
D DK BLU 1199 Left Air Temperature Door Control (w/CJ2)
E LT BLU 733 Left Air Temperature Door Position Signal (w/CJ2)
F - - Not Used

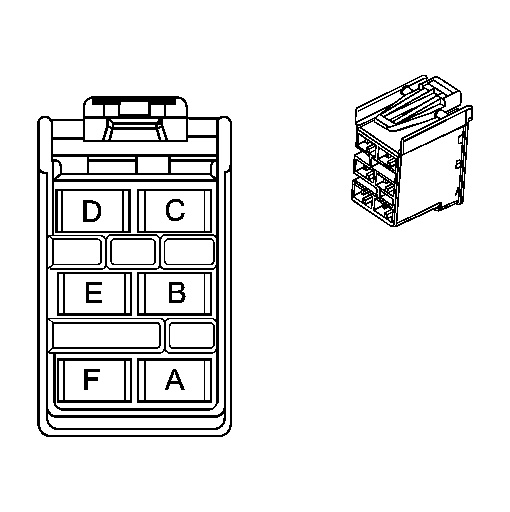

Fuse Block - Right I/P - C6 (w/CF5 and U01)

GM886360Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193929
  • 6-Way F Metri-Pack 280 Series Flexlock (LT GRN)
Pin Wire Color Circuit No. Function
A ORN 3840 Battery Positive Voltage (w/CF5)
B BRN 2409 Interior Park Lamps Supply Voltage (w/U01)
C BLK 1050 Ground (w/CF5)
BLK 1050 Ground (w/CF5)
BLK 1050 Ground (w/NYS)
D DK BLU 1353 RAP Supply Voltage (w/CF5)
E BRN/WHT 230 Instrument Panel Lamps Dimming Control (w/CF5)
F - - Not Used
Fuse Block - Right I/P - C7

GM886342Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193922
  • 6-Way F Metri-Pack 280 Series Flexlock (CRM)
Pin Wire Color Circuit No. Function
A - - Not Used
B TAN 1047 PDM Class 2 Serial Data
C ORN 4240 Battery Positive Voltage
D - - Not Used
E ORN 1340 Battery Positive Voltage
F DK BLU 2115 Right Turn Signal Lamps Supply Voltage
Fuse Block - Right I/P - C8

GM886347Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12193928
  • 6-Way F Metri-Pack 280 Series Flexlock (GRY)
Pin Wire Color Circuit No. Function
A WHT/BLK 2339 Lower Left Air Temperature Sensor Signal (w/CJ2)
B BRN 341 Ignition 3 Voltage (w/CJ2)
BRN 341 Ignition 3 Voltage (w/CJ2)
C BRN 341 Ignition 3 Voltage (w/CJ2)
BRN 341 Ignition 3 Voltage (w/CJ2)
D DK BLU 1646 Right Air Temperature Door Position Signal (w/CJ2)
E WHT/BLK 1236 Right Air Temperature Door Control (w/CJ2)
F DK GRN 1614 Recirculation Door Control (w/CJ2)
