Splice Pack Connector End Views

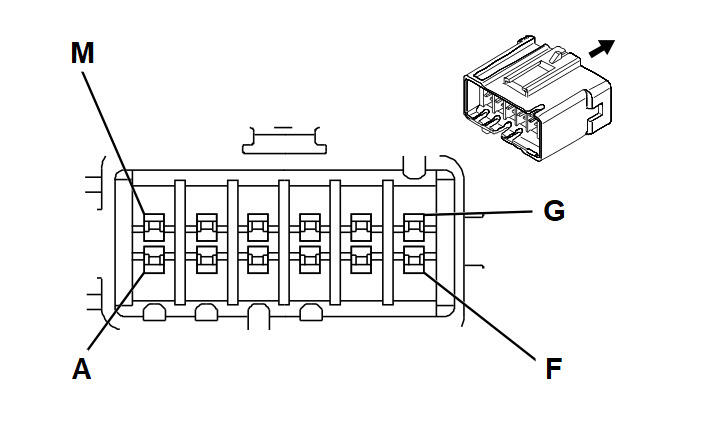

Splice Pack - SP205

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305291 12-Way F Metri-Pack 280 Splice Saver DBL (BLK)
Pin	Wire Color	Circuit No.	Function
A	ORN	1044	Radio Class 2 Serial Data
A	PNK	1045	Serial Communications Circuit
B	DK GRN	1049	PCM Class 2 Serial Data
C	DK GRN/ WHT	1133	ATC Class 2 Serial Data (NP8/NR4)
C	LT BLU	1122	ABS Class 2 Serial Data
D	PPL	1132	DLC Class 2 Serial Data
D	PPL	1807	Class 2 Serial Data (Primary) (w/T89)
E	WHT	1038	HVAC Class 2 Serial Data
F	TAN	1047	PDM Class 2 Serial Data
G	GRY	1036	IPC Class 2 Serial Data
H	DK BLU/ WHT	2218	Serial Communications Circuit
J	GRY	2567	Rear Wheel Steering Control Module Class 2 Serial Data (NYS)
K	-	-	Not Used
L	BRN	1046	DDM Class 2 Serial Data
M	LT GRN	1037	BCM Class 2 Serial Data

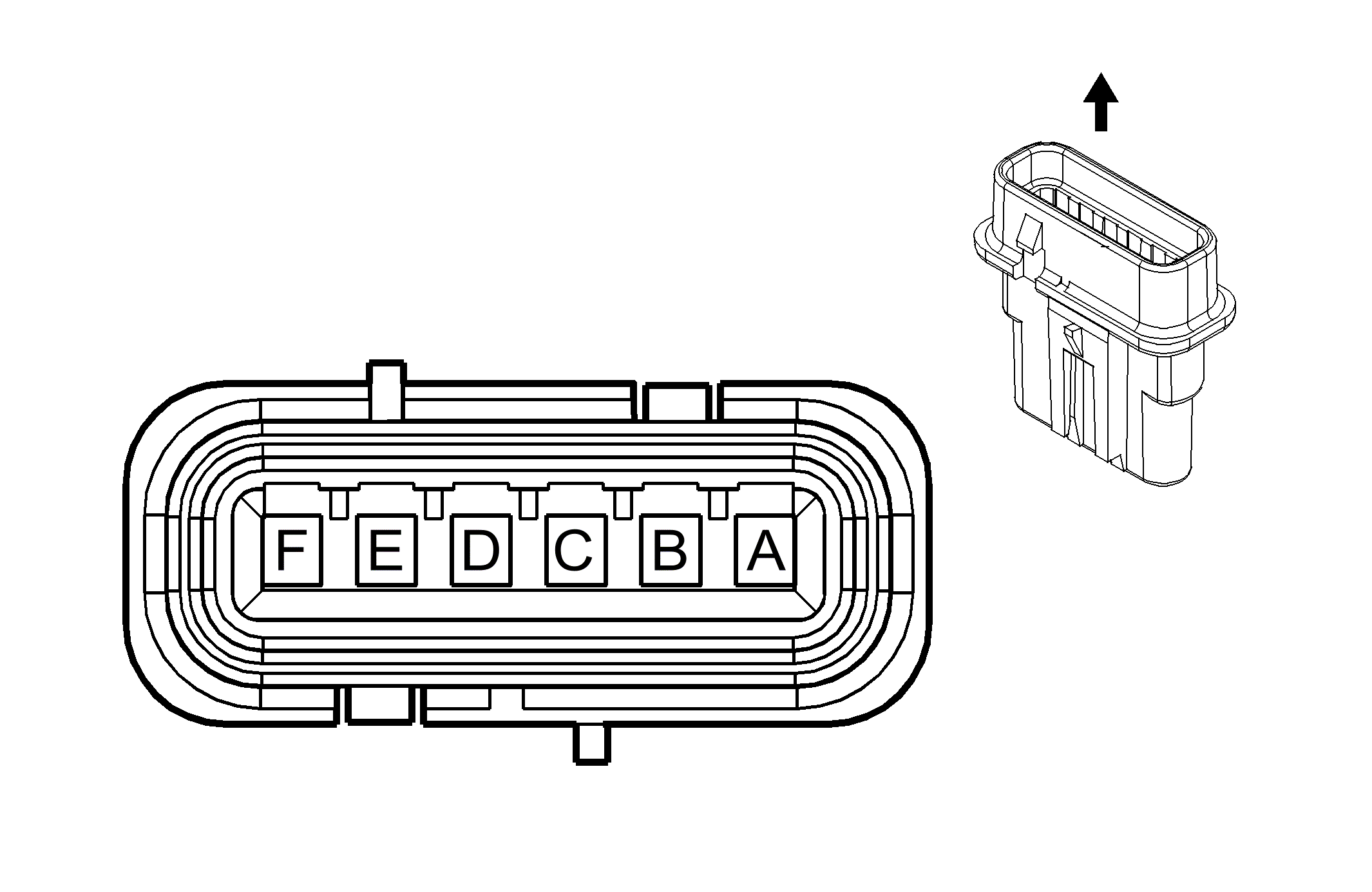

Splice Pack - SP206

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12191910 6-Way F GT 150 Splice Saver Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	DK BLU/ WHT	1126	SCM (Suspension) Class 2 Serial Data (Z55)
B	DK BLU	1128	SDM Class 2 Serial Data
C	BRN/WHT	1048	SCM (Seat) Class 2 Serial Data (AN3)
D	-	-	Not Used
E	GRY	2289	Rear HVAC/Audio Class 2 Serial Data
F	DK BLU/ WHT	2218	Serial Communications Circuit

Splice Pack - SP207

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12191216 12-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit Number	Function
A	-	-	Not Used
B	PNK	1045	RFA Class 2 Serial Data
C	YEL	1127	Trip Computer/Nav Class 2 Serial Data (UE1)
D	TAN	5072	Remote Playback Device Class 2 Serial Data
E	-	-	Not Used
F	DK BLU	2272	Amplifier Class 2 Serial Data (Y91)
G	LT BLU	2288	LGM Class 2 Serial Data
H	LT GRN/ BLK	1098	VCM (Vehicle Communication) Class 2 Serial Data (U42)
J	-	-	Not Used
K	LT GRN	2271	ADG Class 2 Serial Data
L-M	-	-	Not Used
